12mm 3V 4.5V 6V DC Mini DC Gear Motor

Product Overview

Description

FT-12FGMN30  12mm 3V 4.5V 6V DC Mini DC Gearmotor

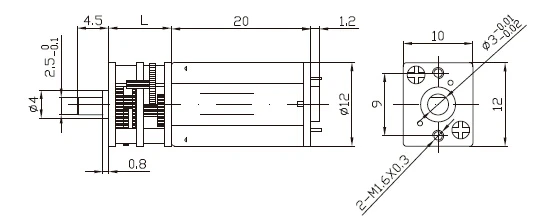

DRAWING (mm)



 Remark: find the dimension "L" in the GEARBOX DATA below.



SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	W	mA(min)	Kgf.cm
FT-12FGMN3000317500-50K	3V	350	200	246	700	0.22	0.56	1500	0.7
FT-12FGMN3000321000-100K	3V	210	150	160	550	0.3	0.49	1420	1.24
FT-12FGMN3000315000-150K	3V	100	90	95	340	0.37	0.36	1040	1.6
FT-12FGMN3000325000-250K	3V	100	180	85	690	0.62	0.54	2330	3
FT-12FGMN304.526300-20K	4.5V	1350	200	1028	550	0.08	0.84	1300	0.32
FT-12FGMN304.526300-63K	4.5V	417	230	316	1100	0.3	0.97	2400	1.7
FT-12FGMN304.520500-50K	4.5V	410	120	321	600	0.24	0.79	1500	1.1
FT-12FGMN3000612000-30K	6V	400	70	291	190	0.07	0.21	300	0.22
FT-12FGMN3000615000-100K	6V	150	55	132	160	0.19	0.26	490	0.9
FT-12FGMN3000610000-100K	6V	100	40	86	100	0.17	0.15	280	0.74
FT-12FGMN3000615000-298K	6V	50	55	40	180	0.72	0.30	450	3
FT-12FGMN3000610000-298K	6V	33	40	29	110	0.6	0.18	270	2.6
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in



GEARBOX DATA

Reduction stage	2-stage	3-stage	4-stage	5-stage	7-stage
Reduction ratio	10	20, 30	50, 63, 100	150, 210, 250, 298	1000
Gearbox length (L) mm	9				12
Max rated torque Kgf.cm	0.3	0.4	0.6	1	1
Max momentary torque Kgf.cm	0.9	1.2	1.8	3	3
Gearbox efficiency	81%	73%	66%	59%	48%



MOTOR DATA

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-N30	2.5	≤15	5300	≤59	4220	1.6	0.07	≥8	≥230
FT-N30	4.5	≤130	26300	≤610	23200	5	1.2	≥25	≥2200



CERTIFICATES: CE & ROHS



FAQ

Q: Can you make a motor with custom specifications?

A: Yes, actually this is what we are good at.

Q: Can you change the output shaft of the motor?

A: Yes, no problem.

Q: Does the motor rotate in both directions (CW and CCW)?

A: Yes, it does.

Q: What is the major difference between a spur gear motor and a planetary gear motor?

A: Generally speaking, the planetary gearing structure is much stronger than a spur one. Therefore, a planetary gear motor endures much higher torque than a spur gear motor in equivalent size.

Q: What is delivery time for a sample?

A: It depends, normally 1~2 weeks.

Q: What is delivery time for mass production?

A: 3~4 weeks if there is no additional requirements.

Q: What is the MOQ (minimum order quantity)?

A: No MOQ! Any quantity is acceptable.

Q: Do you have quality control?

A: Yes, it is a must. We do 100% inspection on all motors.

Q: Do you have warranty?

A: Yes, one year.

Q: Are you a real factory?

A: Yes, we are.

Q: How much does a sample cost?

A: We don’t expect to make any profit from samples. Please contact us and we’ll let you know.

Q: What are your payment terms?

A: 30% deposit, balance due before shipment or against shipping documents.

Q: Do you accept PayPal?

A: Yes, but for samples and for small amount of money only.

Q: How do you handle shipment?

A: a) For samples and small batches, we recommend FedEx and UPS express door to door. It is very fast, safe and convenient.

b) For mass production, we recommend shipment by sea and by airfreight and go with FOB/CIF/CFR terms.

Q: I don’t know too much about motor, can you recommend me a motor?

A: Sure. Normally we will ask you some questions regarding application, dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a robot motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
