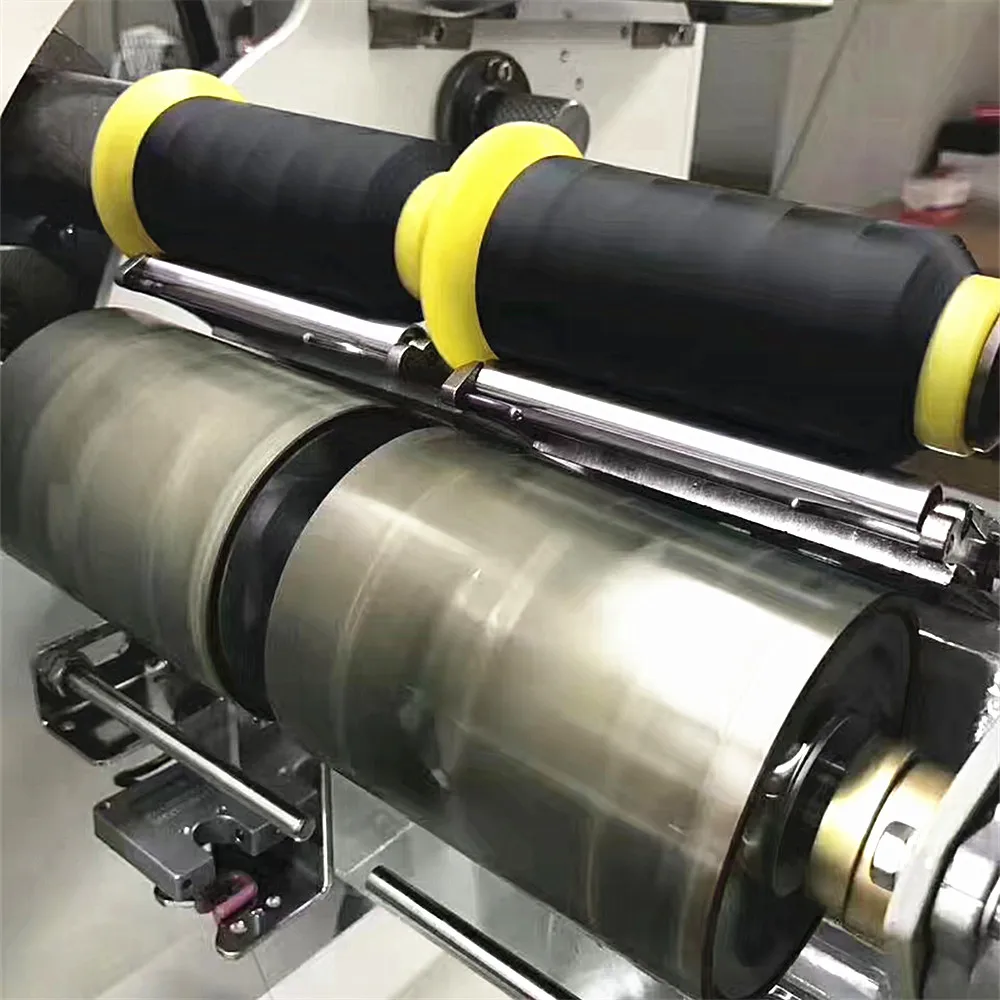

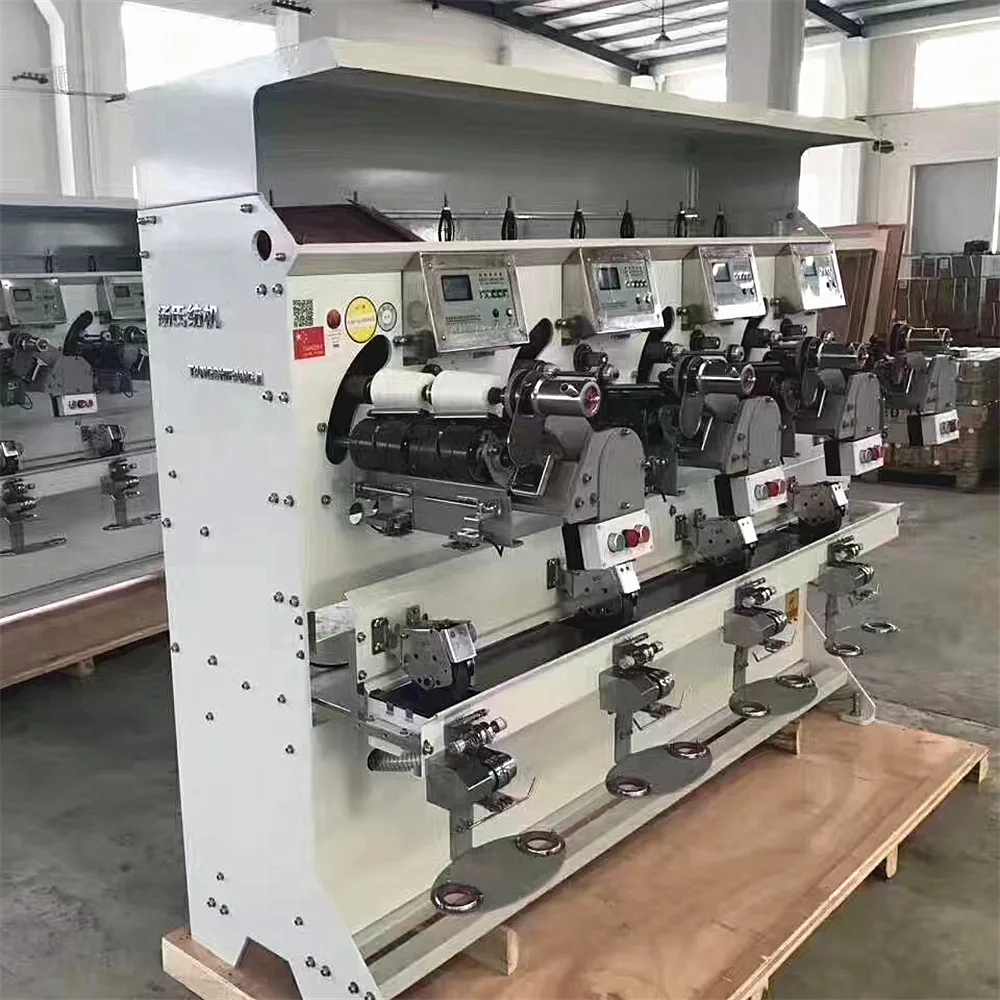

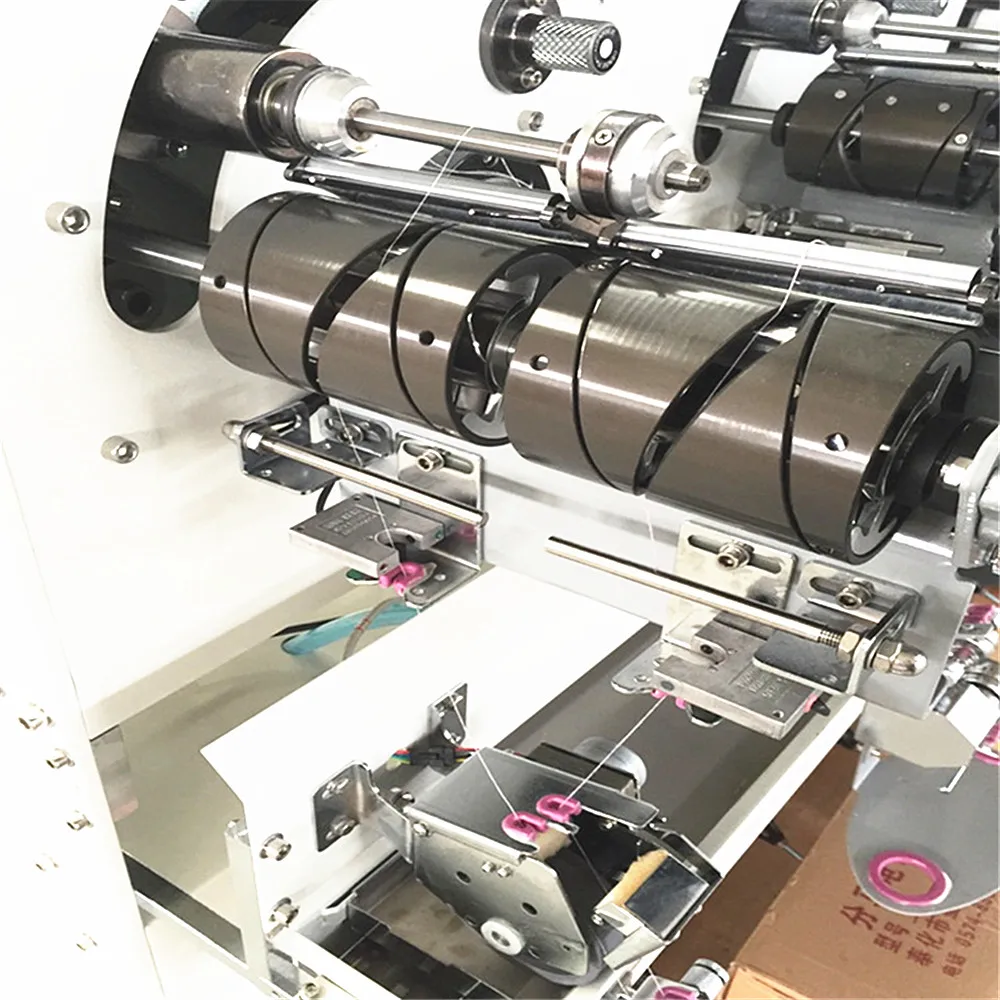

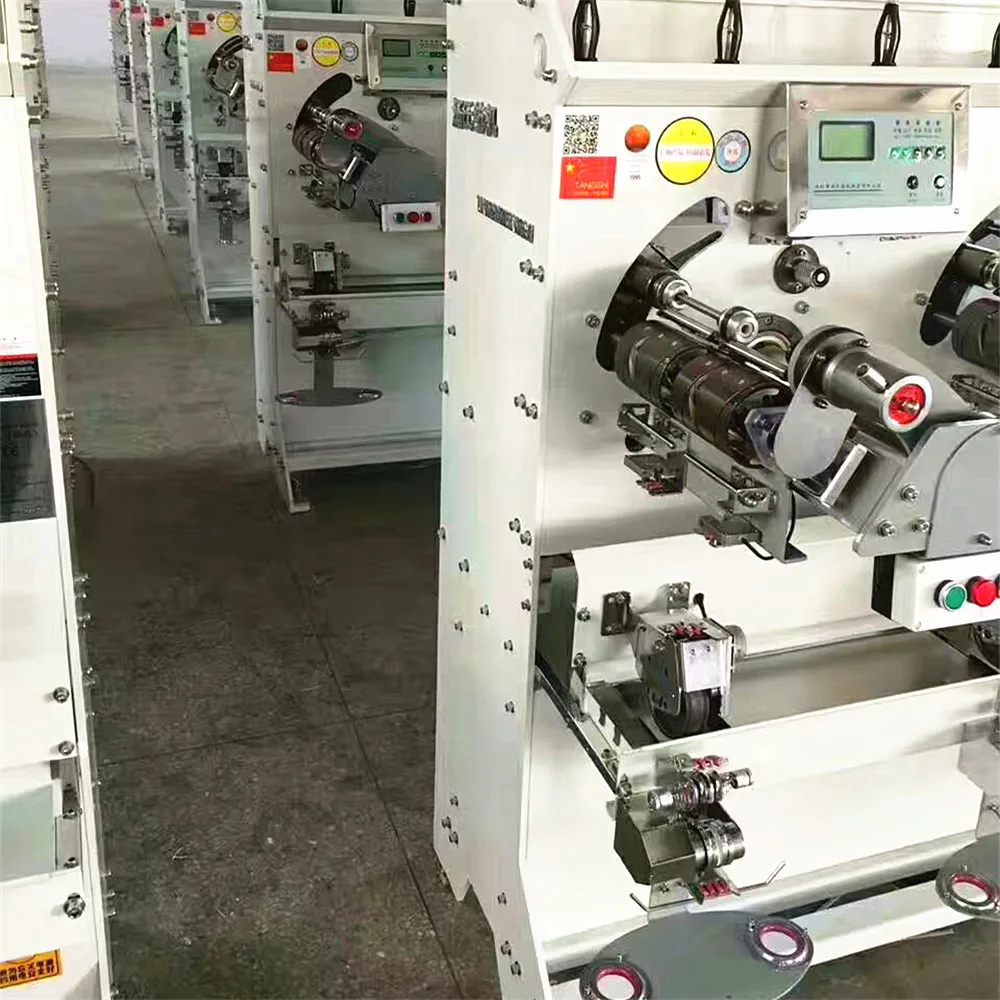

TS008O sewing thread winding machine with semi-auto oiling device is suitable for winding sewing thread, polyester, nylon, embroidery thread.It is with solid frame , high quality spare parts and perfect design.
Main features
1. The winding speed of each spindle is 100 to 1000 meters per minute which is adjusted according to the yarn.
2. The take-up cone is beautiful and with high quality.Low noise when is works.
If the bobbin length is 2.5 ~ 5 inch,one spindle with two heads. If the bobbin length is 5~7inch,one spindle with one head.
Model Number
TS008O
Brand
TANGSHI
Place of Origin
Jiangsu, China (Mainland)
Application
Winding Thread
Automatic Grade
Semi-Auto
Memory Capacity
999999m
Production Ability
High Speed
Speed
100-1000m/min
Driving
Independence Control
Tension
Electronic tensioner
Bobbin Type
Y-Shape, Cone, Cylinder 2.5inch-6inch, Customized
Auto Stop Device
Included
Package Diameter
115mm
Control
Touch Screen Control
Lubrication System
Auto-Recycle Lubricate
Bobbin Nos.
4 Spindles with 8 bobbins/4 bobbins
Certification
ISO9001:2008/CE
Power(W)
1kW/set
Voltage
380V,220V
Weight
650KG
Warranty
1 year
After-sales Service
engineer service to available machinery
Dimension(L*W*H)
2250*1050*1650mm
Comparison
FAQ
Q: What is the real winding speed for this machine
A: It's depends on how the performance and take up package formed, if the take up package formed well, then you can increase the speed, normal winding machine is 600-800m/min
Q: My bobbin is some kind of special, is that workable on the machine?
A: We will make the spindle head base on the bobbin that customer provide.
Q: The yarn always break, how to solve it?
A: 1. Check the tension first, if the tension is too big, just reduce some weight
2.Check the yarn whether it's in the right path.
3.Check the quality of yarn, sometimes yarn breakage due to the weak yarn
Q: How to solve the problem if the package become too hard and start bounce?
A: Try to reduce the tension or speed
Q: Does your machine shake when full load running?
A: No, our machine frame is very strong, it's quite stable
