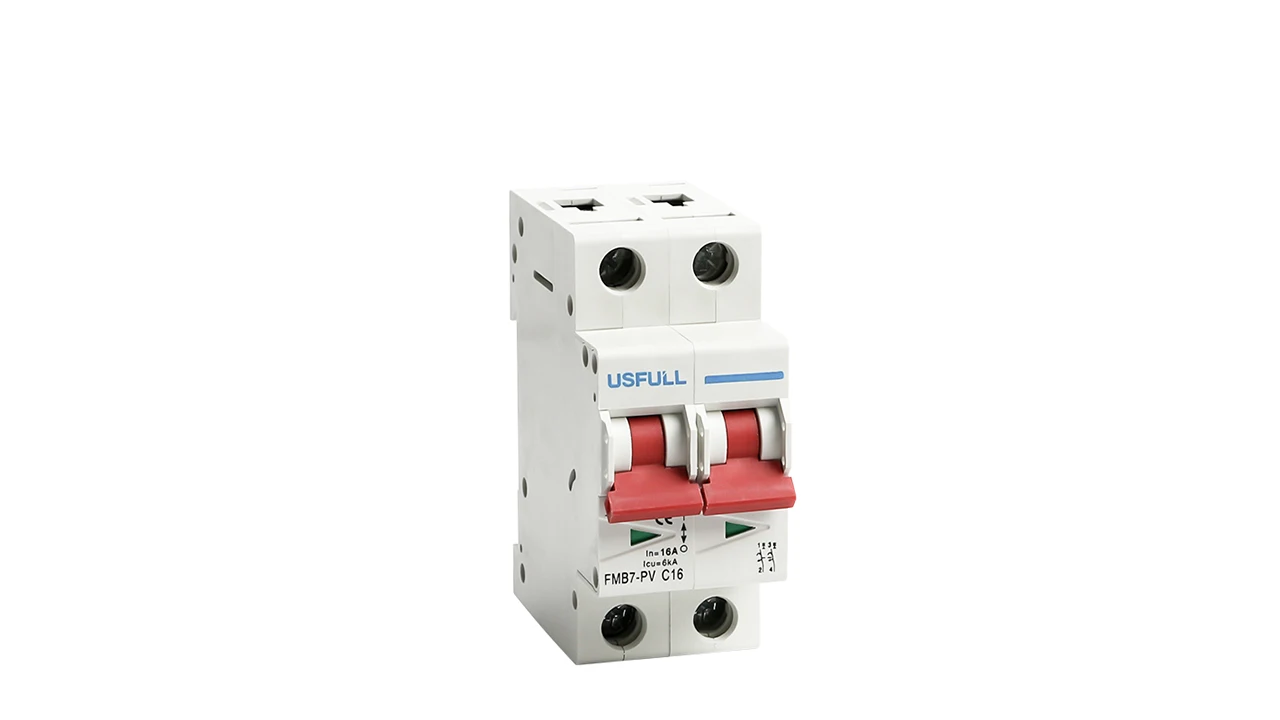

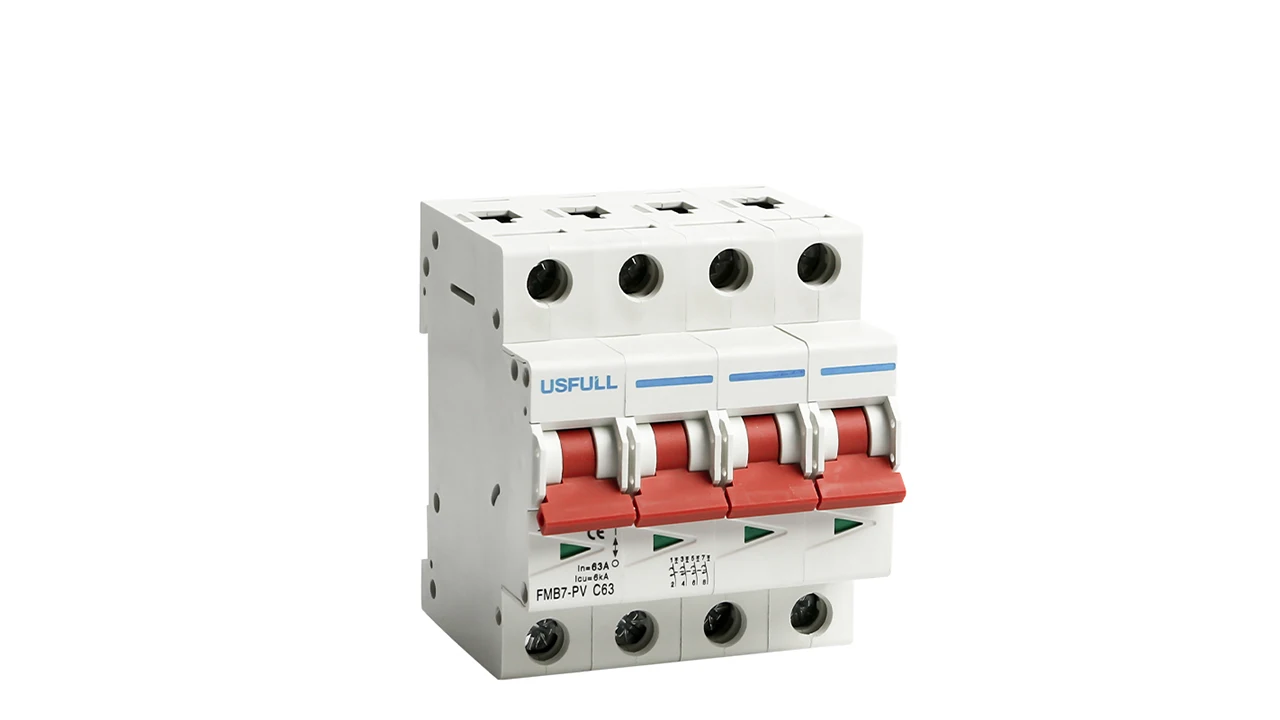

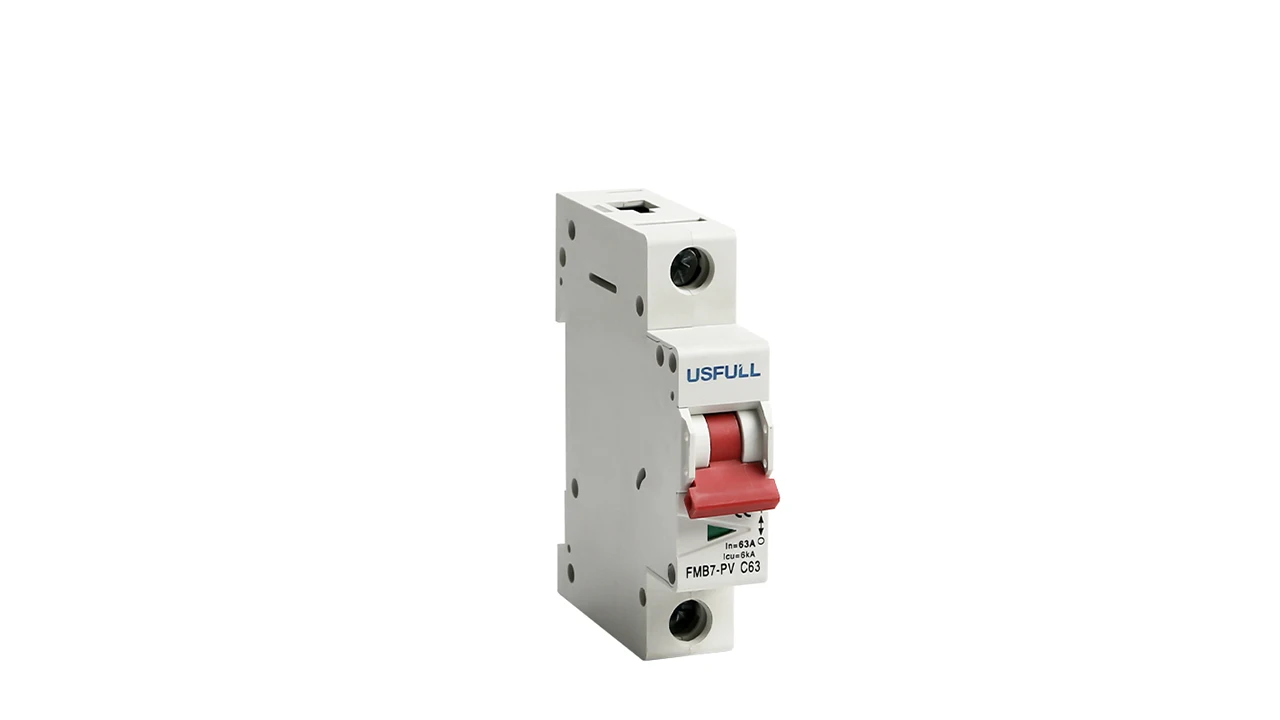

FMB7 PV 63 IEC60947 15 amp 20 amp 50 amp 63a 3p 12v 24v 250v 500v 1000v mini circuit breaker dc mcb

Product Overview

Description

SPECIFICATION
Product Model		FMB7-PV
Frame Degree Rated Current		63A
Pole		1P, 2P, 3P, 4P
Rated Operating Voltage (V DC)		12 -1200V DC
Rated Current in (A)		1 - 63A
Rated Insulation Voltage Ui (V DC)		1200V DC
Rated Impact Voltage Uimp (kV)		4
Ultimate Breaking Capacity Icu (kA)		6
Run Breaking Capacity Ics (%Icu)		0.75
Curve Type		C
Trip Type		Thermal-Magnetic
Mechanical Life	Actual average value	20000 times
	Standard value	8500 times
Electrical Life	Actual average value	2500 times
	Standard value	1500 times
Wiring capacity (mm²)		In≤32A,1~25 mm²; In≥40A,10~35mm²
Ambient temperature(℃)		-20~+70
Atitude		≤2000 m
Relative humidity		≤9.5%
Pollution Level		3
Installation Environment		No obvious shock and vibration
Installation category		Class III
Installation		DIN Standard rail
Dimensions (W)*(H)*(D)	W(mm)	1P:18, 2P:36, 3P:54, 4P:72
	H(mm)	80
	D(mm)	71
Weight (kg)		1P:0.12, 2P:0.24, 3P:0.36, 4P:0.48

FAQ:

Q 1: What's the rated current range you can offer?
   A: We offer DC MCB from 1A to 125A, and DC MCCB from 63A to 630A.



Q 2: What's your DC MCB quality?
   A: Our DC MCB is designed for solar PV system, all the parts in the DC MCB are for         direct current standard. Not all the MCB are DC MCB!



Q 3: What's your production capacity of DC MCB?
   A: We can make 300,000 pole one month. If you have order plan, feel free to contact         me, I will tell you delivery time according to your demand.



Q 4: Do you have a catalog? Can you send me the catalog to check all your products?
   A: Yes, We have catalogue. Please contact us for catalog.



Q 5: Can you help me to select suitable products?
   A: Sure, please send us inquiry and tell us your demand, we have professional team         to support you in model selection.
