XA end suction centrifugal pumps high pressure water suction pump machine
Product Description
Brief introduction:
XA series end suction pump is designed complying to BS EN733/DIN24255 standard, it is used for handing clear water or the water similar liquids, this series pumps have great advantages interchangeable parts,high quality and low cost,widely applicated in plants,mines,city water supplies,fire-fighting system,air-condition systems and irrigation.
Technical Performance Data:
| type | Capacity | Head (m) | Speed r/min | Power(Kw) | Mating motor | Efficiency (%) | NPSHR (m) | Impe ller (mm) | ||
| m3/h | (L/s) | Shaft power | Motor power | |||||||
| 32/13 | 9 | 2.5 | 24.5 | 2900 | 1.23 | 1.5 | Y90L-2 2.2KW | 49 | 1.8 | 139 |
| 15 | 4.17 | 22 | 1.47 | 2.2 | 61 | 2 | ||||
| 18 | 5 | 20 | 1.58 | 2.2 | 62 | 2.5 | ||||
| 32/13A | 8.5 | 2.36 | 21.2 | 2900 | 1.04 | 1.5 | Y90L-2 2.2KW | 47 | 1.8 | 130 |
| 14 | 3.89 | 19 | 1.23 | 1.5 | 59 | 1.95 | ||||
| 17 | 4.72 | 17.2 | 1.31 | 2.2 | 60.5 | 2.3 | ||||
| 32/13B | 7.8 | 2.17 | 18 | 2900 | 0.89 | 1.1 | Y90S-2 1.5KW | 43 | 1.8 | 120 |
| 13 | 3.61 | 16.2 | 1.01 | 1.1 | 56.5 | 1.88 | ||||
| 15.5 | 4.31 | 14.7 | 1.07 | 1.5 | 58 | 2.08 | ||||
| 32/16 | 11 | 3.05 | 40 | 2900 | 2.49 | 3 | Y132S1-2 5.5KW | 48 | 1.9 | 174 |
| 18 | 5 | 37 | 3.18 | 4 | 57 | 2 | ||||
| 22 | 6.11 | 34 | 3.51 | 5.5 | 58 | 2.6 | ||||
| 32/16A | 10.5 | 2.92 | 35.7 | 2900 | 2.22 | 3 | Y112M-2 4KW | 46 | 1.9 | 165 |
| 17 | 4.72 | 33 | 2.78 | 3 | 55 | 1.95 | ||||
| 21 | 5.83 | 30 | 3.06 | 4 | 56 | 2.4 | ||||
| 32/16B | 9.8 | 2.72 | 31.4 | 2900 | 1.93 | 2.2 | Y112M-2 4KW | 43.5 | 1.9 | 155 |
| 16 | 4.44 | 29 | 2.38 | 3 | 53 | 1.95 | ||||
| 19.5 | 5.42 | 26.5 | 2.61 | 4 | 54 | 2.2 | ||||
| 32/20 | 11 | 3.05 | 63 | 2900 | 4.71 | 5.5 | Y160M1-2 11KW | 40 | 1.8 | 214 |
| 18 | 5 | 59 | 5.9 | 7.5 | 49 | 2 | ||||
| 22 | 6.11 | 55.5 | 6.52 | 11 | 51 | 2.3 | ||||
| 32/20A | 10.5 | 2.92 | 57.2 | 2900 | 4.24 | 5.5 | Y132S2-2 7.5KW | 38.6 | 1.8 | 205 |
| 17 | 4.72 | 54 | 5.26 | 7.5 | 47.5 | 1.95 | ||||
| 21 | 5.83 | 50.2 | 5.79 | 7.5 | 49.5 | 2.2 | ||||
| 32/20B | 10 | 2.78 | 51.5 | 2900 | 3.69 | 5.5 | Y132S2-2 7.5KW | 38 | 1.8 | 195 |
| 16.5 | 4.58 | 48 | 4.5 | 7.5 | 46.8 | 1.9 | ||||
| 20 | 5.56 | 45 | 5.03 | 7.5 | 48.8 | 2.15 | ||||
| 32/26 | 14 | 3.89 | 99 | 2900 | 11.27 | 15 | Y160L-2 18.5KW | 33.5 | 2.1 | 264 |
| 22 | 6.11 | 95 | 13.23 | 15 | 43 | 2.2 | ||||
| 26 | 7.22 | 92 | 14.47 | 18.5 | 45 | 2.6 | ||||
| 32/26A | 13.5 | 3.75 | 91.8 | 2900 | 10.75 | 15 | Y160M2-2 15KW | 31.4 | 2.1 | 255 |
| 21 | 5.83 | 88 | 12.58 | 15 | 40 | 2.2 | ||||
| 25 | 6.94 | 85 | 13.6 | 15 | 42.5 | 2.5 | ||||
| 32/26B | 13 | 3.61 | 84.5 | 2900 | 9.97 | 15 | Y160M2-2 15KW | 30 | 2.15 | 245 |
| 20.5 | 5.69 | 81 | 11.74 | 15 | 38.5 | 2.16 | ||||
| 24 | 6.67 | 78.4 | 12.63 | 15 | 40.6 | 2.38 | ||||
| 40/13 | 18 | 5 | 25.5 | 2900 | 2.08 | 2.2 | Y112M-2 4KW | 60 | 1.8 | 139 |
| 30 | 8.33 | 23.5 | 2.74 | 3 | 70 | 2 | ||||
| 36 | 10 | 21.5 | 3.03 | 4 | 69.5 | 2.4 | ||||
| 40/13A | 16.8 | 4.67 | 22 | 2900 | 1.8 | 2.2 | Y112M-2 4KW | 56 | 1.8 | 130 |
| 28 | 7.78 | 20.2 | 2.3 | 3 | 67 | 2 | ||||
| 33.6 | 9.33 | 18.8 | 2.56 | 4 | 67.2 | 2.25 | ||||
| 40/13B | 15.5 | 4.31 | 18.5 | 2900 | 1.48 | 1.5 | Y100L-2 3KW | 53 | 1.8 | 120 |
| 26 | 7.22 | 17 | 1.85 | 2.2 | 65 | 1.9 | ||||
| 31 | 8.61 | 15.5 | 2.01 | 3 | 65 | 2.15 | ||||
| 40/16 | 18 | 5 | 39.5 | 2900 | 3.65 | 5.5 | Y132S2-2 7.5KW | 53 | 2.1 | 175 |
| 30 | 8.33 | 35 | 4.47 | 5.5 | 64 | 2.5 | ||||
| 36 | 10 | 31.5 | 4.9 | 7.5 | 63 | 3.6 | ||||
| 40/16A | 17 | 4.72 | 34.8 | 2900 | 3.16 | 4 | Y132S1-2 5.5KW | 51 | 2.1 | 165 |
| 28.5 | 7.92 | 30.5 | 3.82 | 5.5 | 62 | 2.5 | ||||
| 34 | 9.44 | 27.6 | 4.19 | 5.5 | 61 | 3.25 | ||||
| 40/16B | 16 | 4.44 | 30.5 | 2900 | 2.77 | 4 | Y112M-2 4KW | 48 | 2.05 | 155 |
| 26.5 | 7.4 | 27 | 3.29 | 4 | 59.5 | 2.4 | ||||
| 32 | 8.89 | 24 | 3.55 | 4 | 59 | 2.9 | ||||
| 40/20 | 18 | 5 | 63 | 2900 | 6.3 | 7.5 | Y160M1-2 11KW | 49 | 1.8 | 214 |
| 30 | 8.33 | 58 | 8.17 | 11 | 58 | 2 | ||||
| 36 | 10 | 53 | 8.96 | 11 | 58 | 2.7 | ||||
| 40/20A | 17 | 4.72 | 57.4 | 2900 | 5.72 | 7.5 | Y160M1-2 11KW | 46.4 | 1.8 | 205 |
| 29 | 8.06 | 52.4 | 7.46 | 11 | 55.5 | 1.95 | ||||
| 34.5 | 9.58 | 48 | 8.05 | 11 | 56 | 2.45 | ||||
| 40/20B | 16.5 | 4.58 | 51.8 | 2900 | 5.28 | 5.5 | Y160M1-2 11KW | 44 | 1.8 | 195 |
| 27.5 | 7.64 | 47.5 | 6.71 | 7.5 | 53 | 1.9 | ||||
| 33 | 9.17 | 43.3 | 7.24 | 11 | 53.8 | 2.2 | ||||
| 40/26 | 20 | 5.56 | 97 | 2900 | 13.22 | 15 | Y180M-2 22KW | 40 | 1.8 | 264 |
| 33 | 9.17 | 92 | 16.22 | 18.5 | 51 | 2 | ||||
| 40 | 11.11 | 87 | 17.88 | 22 | 53 | 2.5 | ||||
| 40/26A | 19.5 | 5.42 | 89 | 2900 | 12.28 | 15 | Y160L-2 18.5KW | 38.5 | 1.8 | 255 |
| 32 | 8.89 | 84 | 15.09 | 18.5 | 48.5 | 1.95 | ||||
| 38.5 | 10.7 | 79.5 | 16.35 | 18.5 | 51 | 2.45 |
XA end suction pump feature:
Structure:
Horizontal, Axial End-Suction, Single-Stage, Single-Suction, Volute Casing, Back pull-out, Centrifugal Pump
Flange:
DIN2501 standard, ANSI B16.5 Class 150lb optional
Casing:
Cast Iron standard, Ductile Iron, Stainless Steel optional
Impeller:
Bronze standard, Cast Iron, Stainless Steel optional
Shaft:
ASTM420standard, ASTM304, ASTM316, ASTM1045optional
Shaft Seal:
Mechanical Seal standard, Gland Packing optional.

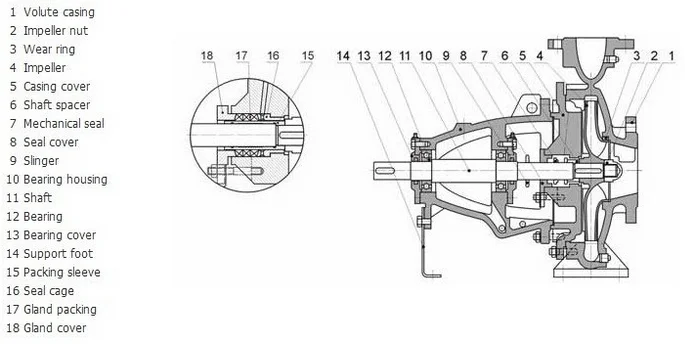

pump structure:

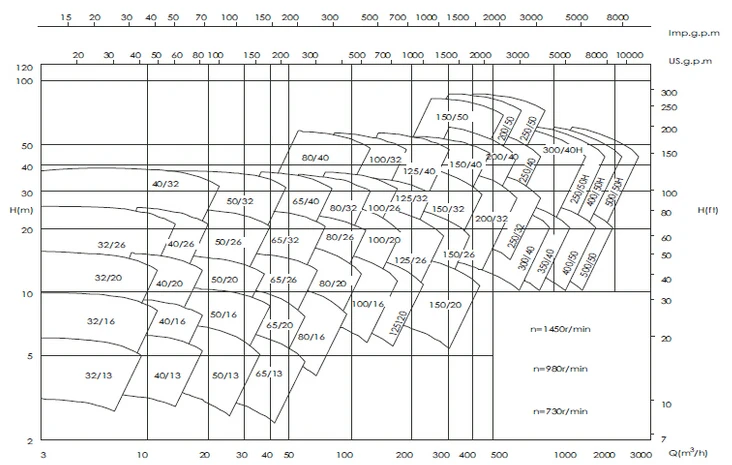

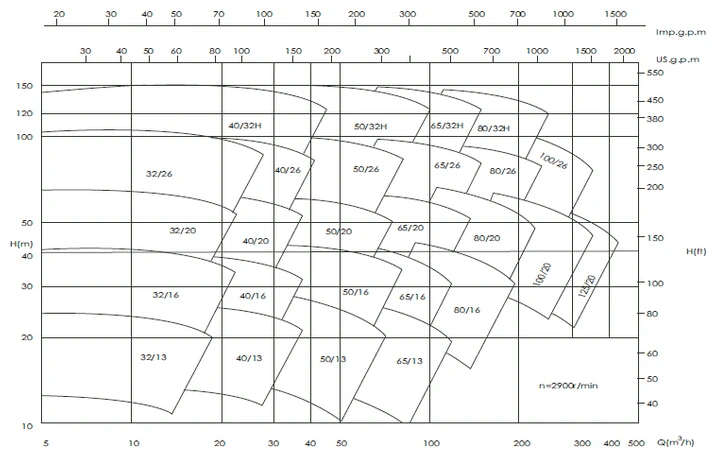

5. XA pump performance chart:
Standard Material:
Casing: Cast Iron
Impeller: Bronze
Shaft: Stainless Steel
Wear Ring: Cast Iron
Sealing: Mech. Seal
Packaging & Shipping
packing details:
1) by non fumigation wooden case packing
2) as customer's request
Pament term&delivery details:
T/T 30% as deposit, about 30days production time after receive deposite, then we will take photo for customer to check, we will arrange the shipment as soon as we receive the rest payment.
Our Services

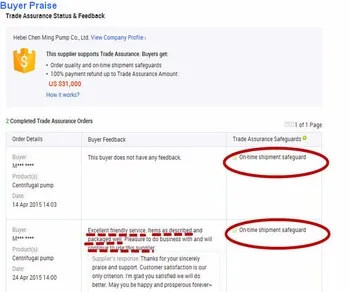

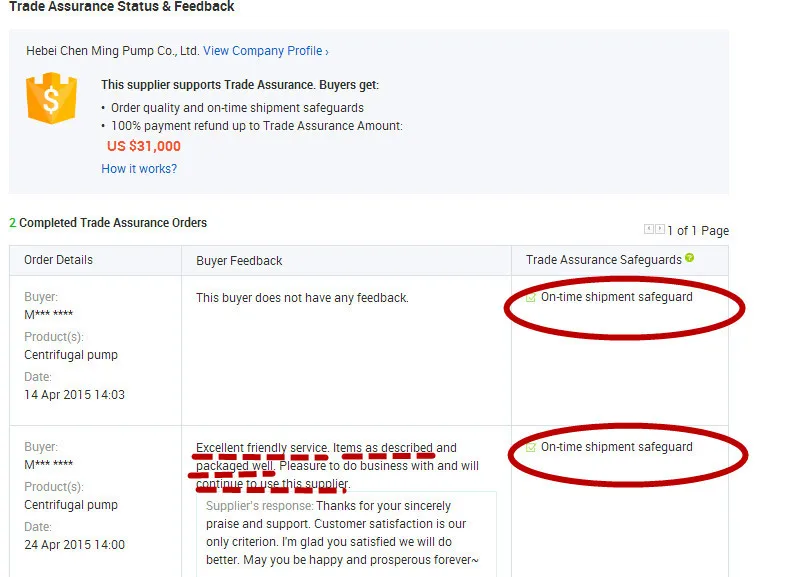

Buyer Praise:
