Price:RUB 3,829,845.00 - RUB 7,659,690.00

Quantity:


Product Overview

Description

Product Description

Description:

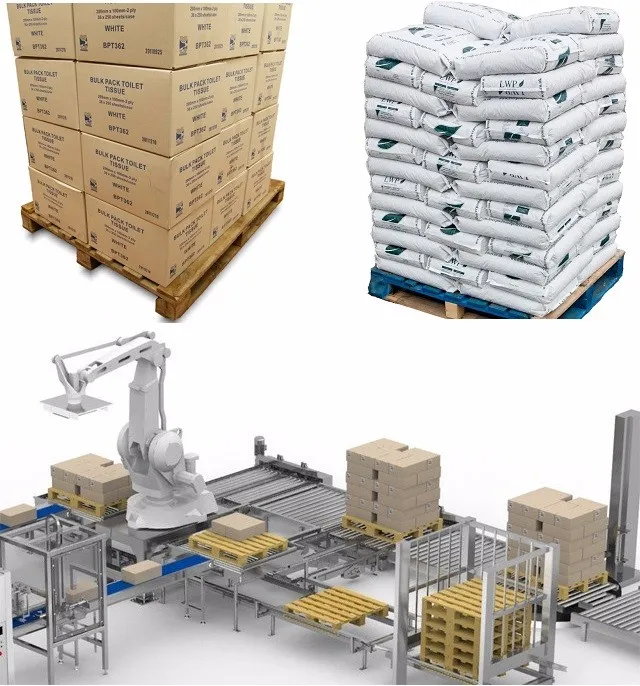

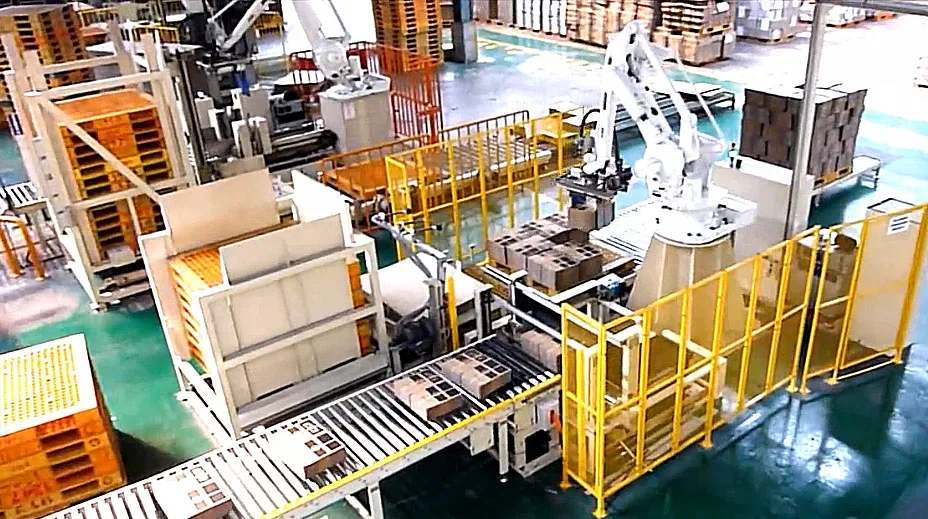

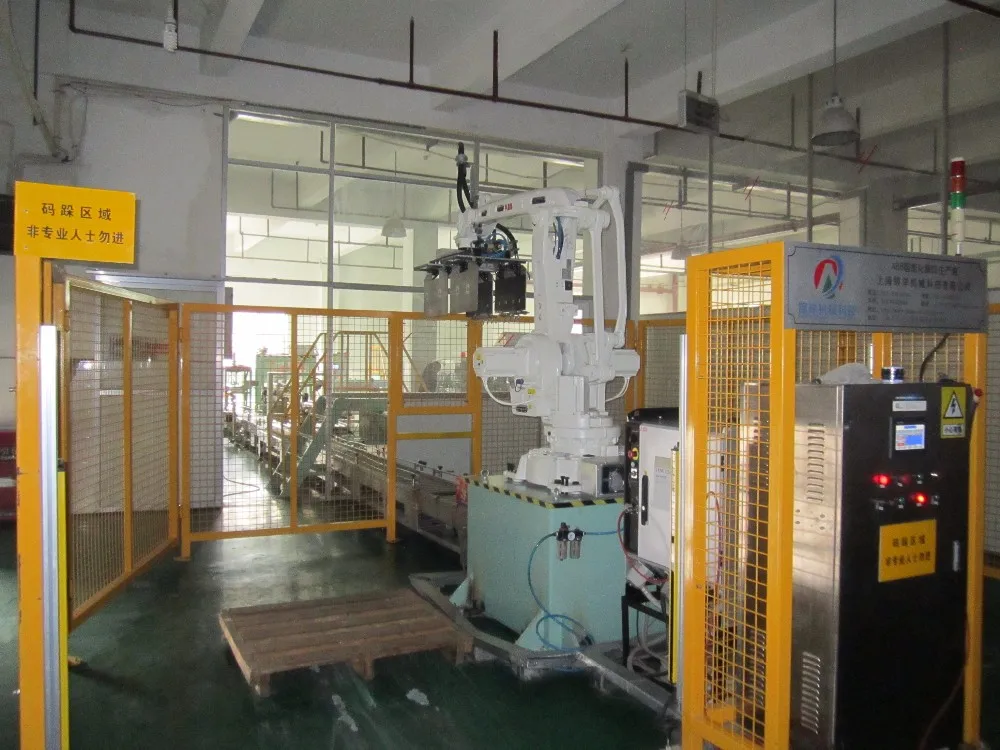

    Palletizer(or palletiser) is the equipment which can automatically stack the bags, cartons or other packaging materials transported by the conveyor according to the working way of the customers' requirements, and transport the materials to be stacked. Automatic stacking, stacking multi-layer, and then push out facilitate for forklifts transport to the warehouse.


    The device uses PLC + touch screen control, intelligent operation and management, simple and easy to master. Can greatly reduce labor and reduce labor intensity.
Name Of Equipment
1
storage bin
5
bag filling machine
9
check weigher
13
pallet dispenser
17
output conveyor
2
peneumatic conveying
6
sealing & sewing machine
10
rejecting machine
14
palletizer conveyor
18
buffering conveyor
3
storage hopper
7
turn bag shaped machine
11
inclined belt conveyor
15
bag pick-up conveyor


other...
4
weighing scale
8
metal detector
12
robot palletizer
16
wrapping machine
Product samples :
Detailed Images

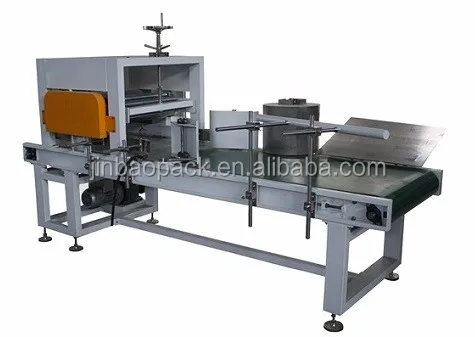

A. JBS-DZ2500 turn bag shaped conveyor

This belt conveyor make the bag turn down and shapped the bag to the next work position. It will be necessary and easy for robot to pick up.

Model
JBS-DZ2500
Conveyor type
PVC Belt with roller to press the bag
Length
2500-2800mm
Power
220V, 50-60Hz0.75kw
Speed
15m/mints
Dimension
L2610 * W1370 * H1290MM

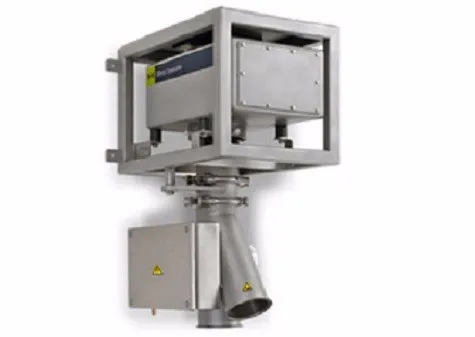

B. Metal detector

                 drop detection type

                 tunnel detection type

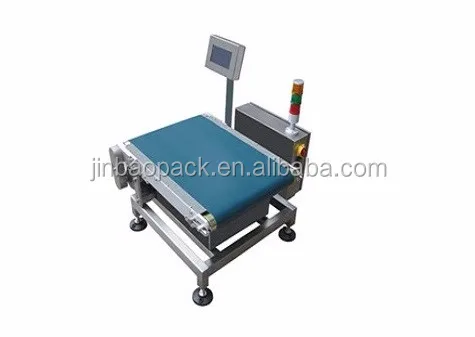

C. HCW-25 weight check scale

The maximum checking weight for this check scale can load 150kgs. It is used for checking the bag weight in case there is something wrong in the filling work position. It can guarantee the qualification rate of factory products.

Model
HCW-25
Conveyor type
PVC Belt
Load cell
MT
Accuracy
5g for 25kgs
Speed
15m/mints
Dimension
L1200 * W850* H1100MM

D. Rejecting machine

* It can accept the disqualification signal from metal detector and check scale.

* Qualification bag can be sent to next position by roller conveyor.

* Disqualification bag will be sent to the left or right no power roller conveyor.

Conveyor type
PVC Belt
Length
1000mm
Speed
12m/mints
Power
10.KW
Dimension
L1200 * W2500* H660MM

E. JBS-P4200 Incline buffering conveyor

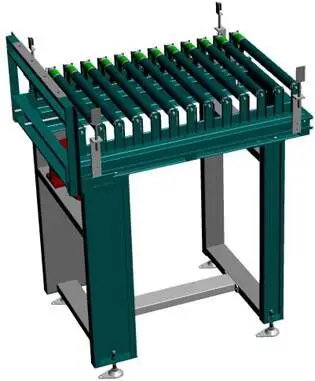

F. JBS-Z1000 robot pick up conveyor

Conveyor type
Roller
Length
1000mm
Speed
20m/mints
Power
0.4kw
Dimension
L1000 * W900* H1200MM

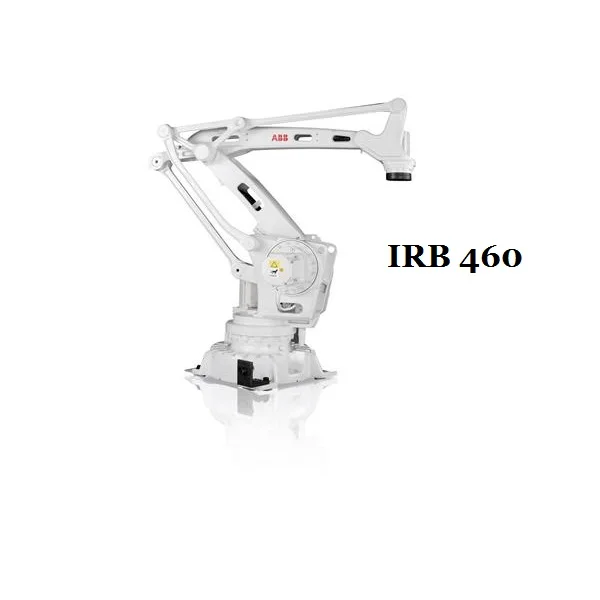

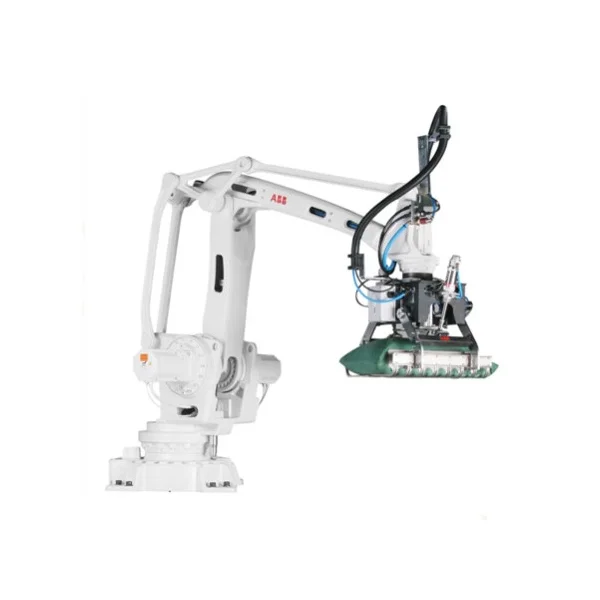

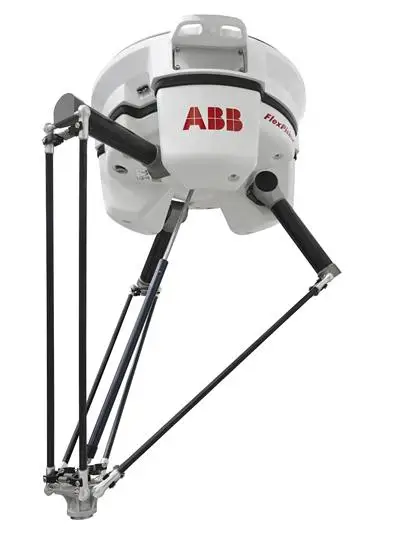

G. ABB Robot

We cooperated with ABB robot company aim to provide you the best quality robot to use in your factory.and we are responsible for after sale service.


That is why we can provide you the turkey solution .
Robot type
Gripper
Drive
pneumatically
Load
1100kg
Power
0.4kw
Dimension
L1000 * W900* H1200MM
Repetitive position precision
0.2mm
Level of protection
IP67
Working radius
2.4m
Temperature
0-45℃
Tempos
2190time/hour

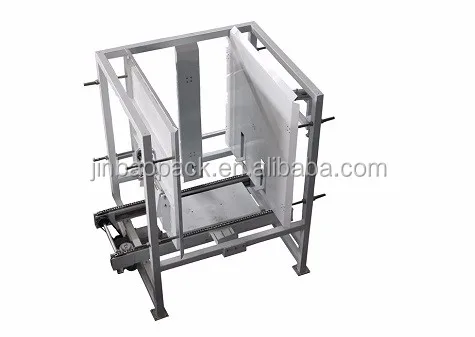

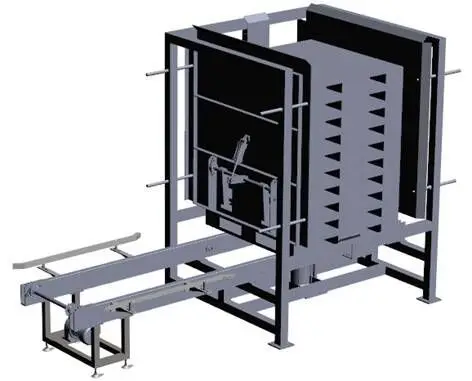

H. Pallet dispenser

* There is a lifting construction below the pallet. There are 10 pallet can be put on this machine.And there is a conveyor beside for transporting to the next working position.

* The whole system finish the action for pallet storage, dispenser and conveyor .



Technical requirement
Model
JBS-T1250 pallet dispenser
Pallet storage
10 pallet
Power for conveyor
0.75kw
Gas consumption
200 nl/min
Material
carbon steel with powder coated or stainless steel



Main features
1. Easy construction and easy for maintance

2. Choose SMC cylinder to make the machine stable

3. Customized construction by your pallet dimensions

4. PlC control whole system make the reaction faster
Packing & Delivery

Packaging:


Machine packing inside is plastic films and outside is fumigation wooden case.

Our wooden case is very strong,it can bear long time shipping on the sea.

And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.

Shipping:

Upon receipt of payment , delivery date will be in 3-15days

By Air, by Sea or by Express (DHL etc)

Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
Company Information

Shanghai Jinbao Packaging Machinery Co., Ltd specializes in the production and sale of packaging machine, packaging and palletizing line, big bag automatic weighing packaging production line, particle packing machine, powder packing machine, automatic mixing packaging production line, and material handling at the front end of the package, according to customer requirements the specific system.

FAQ

Q: Are you trading company or manufacturer ?

A:We are manufacturer with trade team for international service.

Q: How long is your delivery time?

A: Normally 45 days after confirmed order. 30 days could be available in low season for some items (during May to July), and 65 days during new year and hot season (Jan to March).

Except for special cases.


Q: How do we test your machinery ?

A: When the machine complete manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
