Underground coal and mine PVC/PVG whole core flame retardant rubber conveyor belt price
- Category: >>>
- Supplier: Hebei Ssangyong Rubber Co. Ltd.
Share on (60693167494):
Product Overview
Description

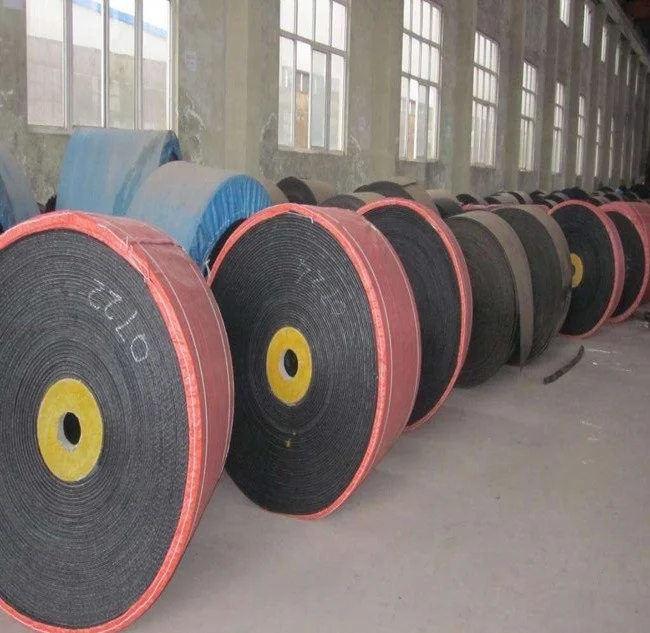

Underground coal and mine PVC/PVG whole core flame retardant rubber conveyor belt price
Product Description
Whole core fire retardant pvc pvg mining conveyor belt has the advantages of strong strength, large freight volume, transportation balance, etc., while in the meantime this conveyor belt has very good flame resistance, antistatic property, impact resistance, abrasion resistance and corrosion resistance.
This product is mainly used in coal mine underground transport, it can also be used in the steel, metallurgical and chemical industries material handling.
Whole core fire retardant pvc pvg mining conveyor belt can be divided into PVC type and PVG type.
Both of the top and bottom covering layer of PVC conveyor belt is PVC plastic cover, single cover thickness ≥ 1mm,
Both of the top and bottom covering layer of PVG conveyor belt is the mixture of nitrile rubber and PVC, single cover thickness is 1.5mm-4.5mm.
The angle of conveying for PVC conveyor belt is <16 °, and for PVG conveyor belt is <20 °, both of PVC and PVG type can be used in coal mine transportations underground or on the ground.
Samples can be customized according to buyer's requirements and free samples can be sent for evaluations.
Technical Parameters
PVC Technical Parameters
Type and technical parameter of PVC conveyer belt: | ||||||
Standard MT914-2008 | Safety factor 10 (Breaking strength*1/10) | |||||
The Slope <16°C | ||||||
Standard type | Degree | Breaking strength≥,N/mm | Tensile yield≥,% | Advising Mindiameter of Transmission Drum | ||
Longitudinal | Transverse | Longitudinal | Transverse | |||
680S | 4th | 680 | 265 | 15 | 18 | 320 |
800S | 5th | 800 | 280 | 400 | ||
1000S | 6th | 1000 | 300 | 500 | ||
1250S | 7th | 1250 | 350 | 500 | ||
1400S | 8th | 1400 | 350 | 630 | ||
1600S | 8th | 1600 | 400 | 750 | ||
PVG Technical Parameters
Type and technical parameter of PVG conveyor belt: | ||||||
Standard MT914-2008 BS3289 HG2805 | Safety factor 10 (Breaking strength*1/10) | |||||
The slope <20°C | ||||||
Standard type | Degree | Breaking strength≥,N/mm | Tensile yield≥,% | Recommend minimum roller diameter | ||
Longitudinal | Transverse | Longitudinal | Transverse | |||
680S | 4th | 680 | 265 | 15 | 18 | 400 |
800S | 5th | 800 | 280 | 500 | ||
1000S | 6th | 1000 | 300 | 630 | ||
1250S | 7th | 1250 | 350 | 750 | ||
1400S | 8th | 1400 | 350 | 750 | ||
1600S | 9th | 1600 | 400 | 750 | ||

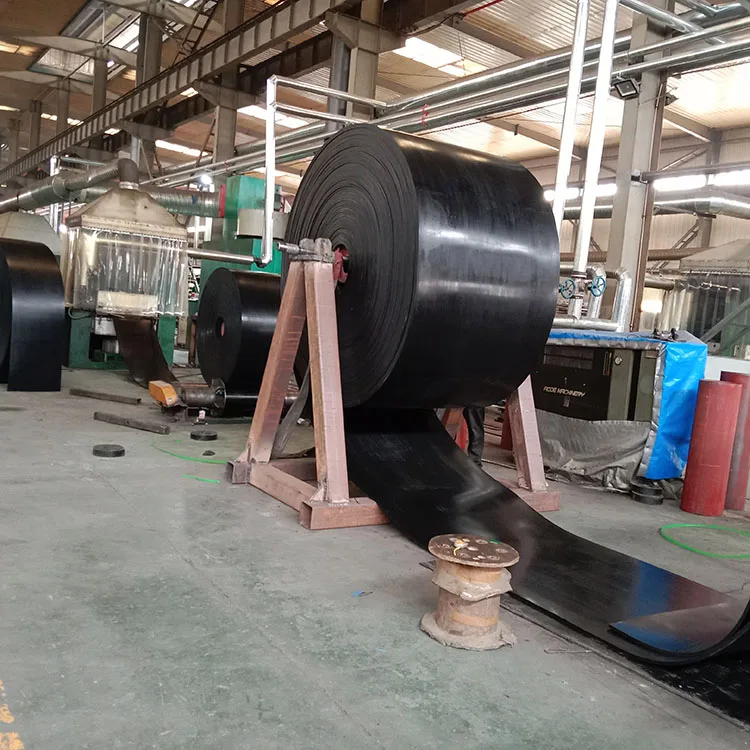

Workshop Show
Certifications
Our Services
1.24 hours online quickly reply
2.best price,because we are manufacturer
3.we can provide sample to you
4.shorten your delivery time ,because we have high capacity.
