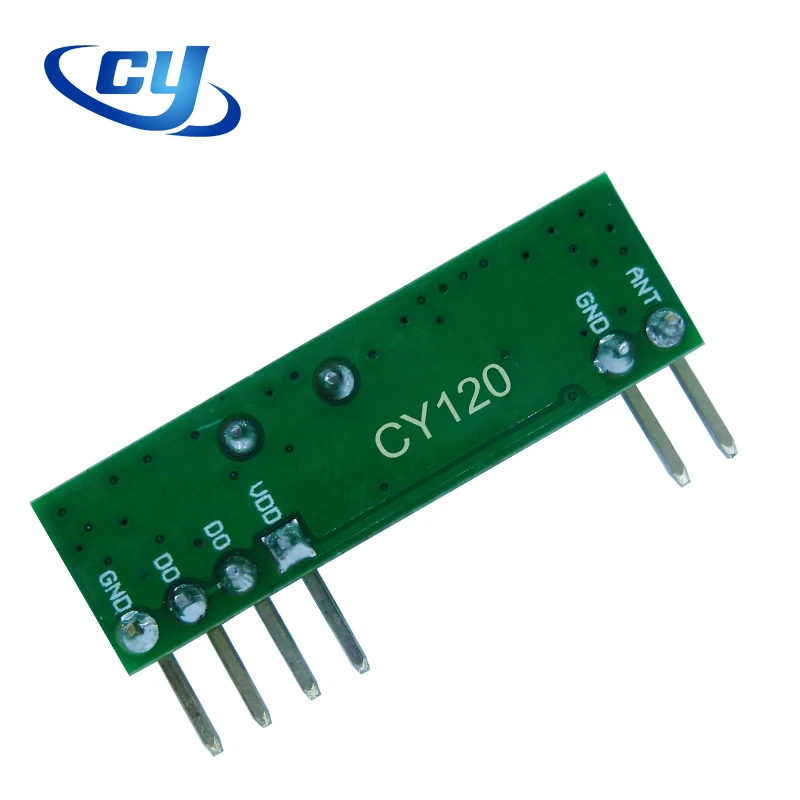

CY120FSK 3 4 Hot Sales Super Heterodyne Low cost Wireless 315MHz 433.92MHz FSK Receiver rf Module
CY120FSK-3-4 Hot Sales Super Heterodyne Low-cost Wireless 315MHz 433.92MHz FSK Receiver rf Module
CY120FSK-3-4 Hot Sales Super Heterodyne Low-cost Wireless 315MHz 433.92MHz FSK Receiver rf Module

CY120FSK 3 4 Hot Sales Super Heterodyne Low cost Wireless 315MHz 433.92MHz FSK Receiver rf Module

Share on (60693192515):


Price:RUB 49.74 - RUB 69.63

Quantity:


Product Overview

Description






DESCRIPTION:

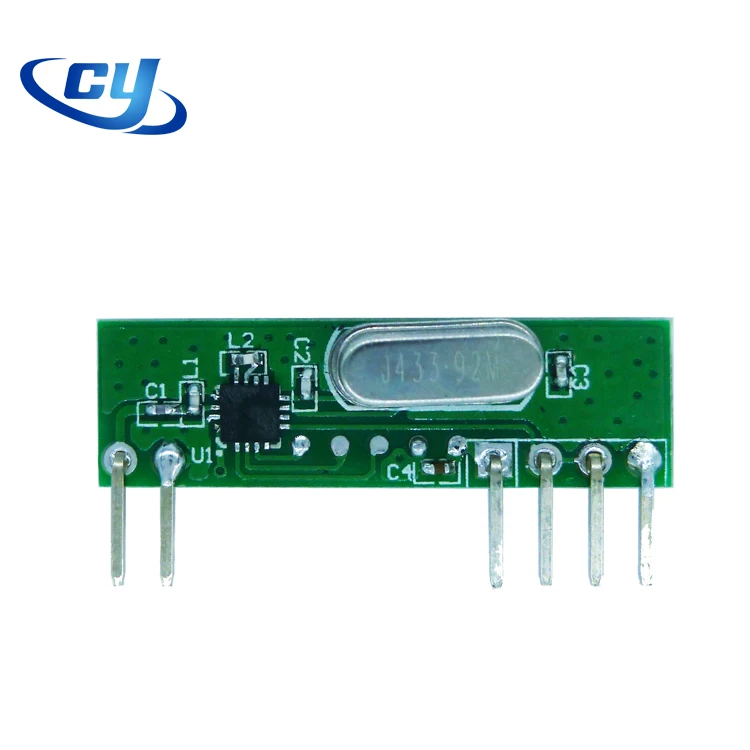

The CY120FSK-3-4 is an ASK/OOK/FSK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. With the adoption of European brand RF wireless data transferring/receiver chipsets, the module has advantages at high receiving sensitivity, small size and low cost. It solves the problem on space for the small-sized product. From wireless signal input to data output can be done without any electrical circuit. User only use extra simple data decode circuit can achieve wireless products development.



FEATURES:



Receiving Sensitivity-112dBm
Frequency300M – 960MHz(ASK/FSK)
Operation temperature-20℃ ~70℃ (work normally even in the severe temperature environment)
Supply voltage1.8~3.6V
Data Rate2.4Kbps
Size30*7.7*5mm
Other features

  • Low power consumption:

    ASK @ 3.3V: 868.325MHz-5.2mA; 433.92MHz-3.8mA; 315M-3.5mA ;

    FSK @ 3.3V: 868.325MHz-5.7mA; 433.92MHz-4.3mA; 315M-4.0mA ;

  • Excellent inhibiting ability for local oscillator radiation: multiple receivers receive signals from one transmitter simultaneously without any mutual interference and influence on range;

Application
  • Remote door openers
  • Remote keyless entry
  • Wireless security systems
  • Remote control
  • Wireless door ring
  • Wireless data transmission

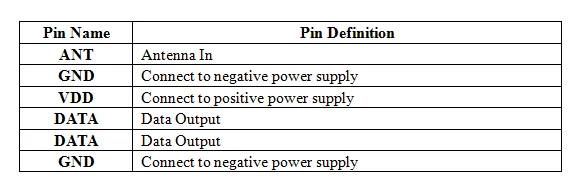

 PIN DEFINITION:









Note: ANT pin is a 50 ohm antenna input. The length is about:

           23cm for 315MHz

           17cm for 433.92MHz

          8.6cm for 868.325 MHz

          8.2cm for 915 MHz



 ELECTRICAL CHARACTERISTICS:

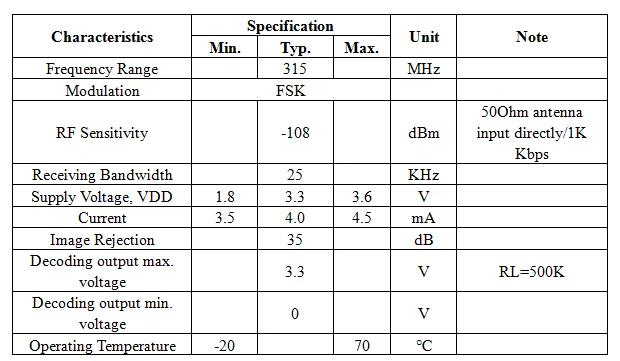

Condition: Ta=25℃ Vcc=3.3V Frequency=315MHz FSK

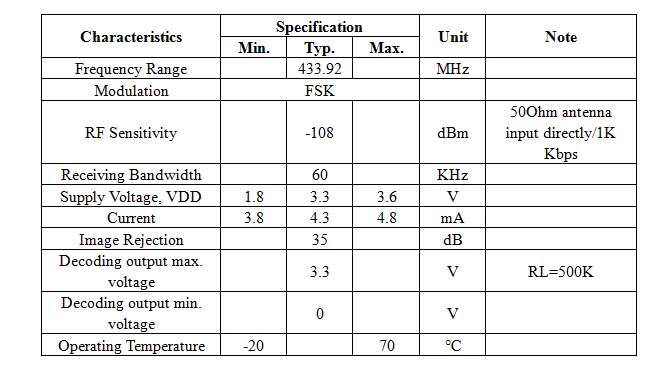

Condition: Ta=25℃ Vcc=5.0V Frequency=433.92MHz FSK



MECHANICAL SIZE: (UNIT: mm)





















1. Why choose CY Wireless?


a. High Service Quality: OEM & ODM service; Reply in 24 hours; 7 years experience in overseas export.
b. High Product Quality: Quality inspection in factory and double check in company.
c. Professional Manufacturer: We possess several production bases, gathering over 300 staff, a professional R&D team and many other cooperation manufacturer, all products are directly from factory.
d. Competitive Price: Every order must follow our quoted price rule; We never allowed the higher price.
e. Advantaged Shipment: Our partner: DHL, UPS, FedEx, EMS; Delivery time: 4-7 working days.



2. Could I order one piece for sample to test the quality?


Yes, We recommend checking the sample before order. You could order the sample before your order.

3. May I have your catalogue and price list for trial order in MOQ quantity?


All our products were shown on alibaba, please have a detailed looking and choose the interested models in our site.

4. If I want cheaper quality, can you produce?


Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.

5. If I order big quantity, what's the good price?


Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.


——
