plastic bucket mold mini injection molding making price
- Category: >>>
- Supplier: Zhangjiagang Shen Zhou Machinery Co. Ltd.
Share on (60693207593):
Product Overview
Description
Product Description
ITEM | UNIT | SZ—2000A | ||
INJECTION UNIT |
| |||
SCREW DIAMETER | mm | 50 | 55 | 60 |
SCREW LID RATIO | L/D | 23.1 | 21 | 19.3 |
THEORETICAL SHOT VOLUME | CM3 | 491 | 594 | 707 |
SHOT WEIGHT(PS) | g | 447 | 540 | 643 |
INJECTION PRESSURE | Mpa | 215 | 178 | 149 |
THEORETICAL INJECTION RATE(PS) | g/s | 145 | 175 | 208 |
PLASTICISING CAPACITY | g/s | 22.5 | 28.7 | 35.4 |
SCREW TORQUE | N.m | 1510 | ||
MAX.SCREW ROTATE SPEED | r/min | 170 | ||
INJECTION STROKE | mm | 250 | ||
CLAMPING UNIT | ||||
MAX.CLAMPING FORCE K | KN | 2000 | ||
MAX.OPENING STROKE | mm | 500 | ||
SPACE BETWEEN TIE BARS | mm | 505×505 | ||
MOULD HEIGHT | mm | 190-530 | ||
MAX.DAYLIGHT | mm | 1030 | ||
EJECTOR FORCE | KN | 53.1 | ||
EJECTOR STROKE | mm | 125 | ||
EJECTOR QUANTITY |
| 5 | ||
OTHER | ||||
PUMP MOTOR POWER | KW | 18.5 | ||
PUMP PRESSURE | Mpa | 16 | ||
HEATING POWER | KW | 16.6 | ||
HEATING ZONE |
| 4 | ||
SIZE | m | 5.9×1.5×2 | ||
NET WEIGHT | t | 6.8 | ||
OIL TANK CAPACITY | L | 420 | ||

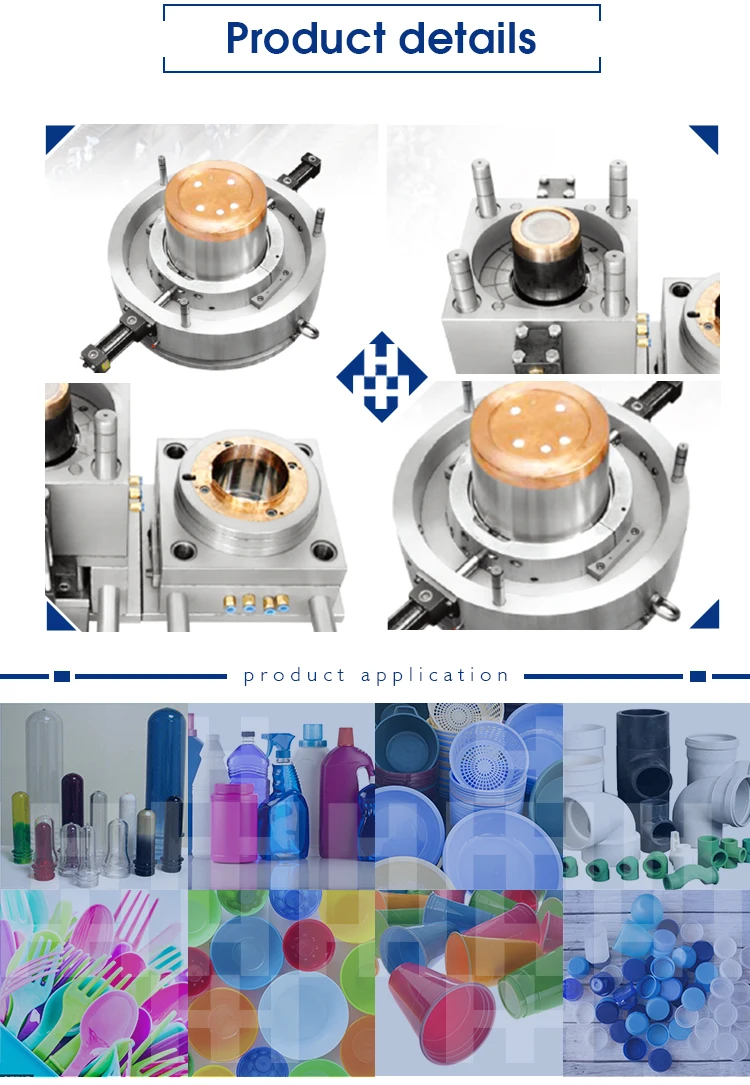

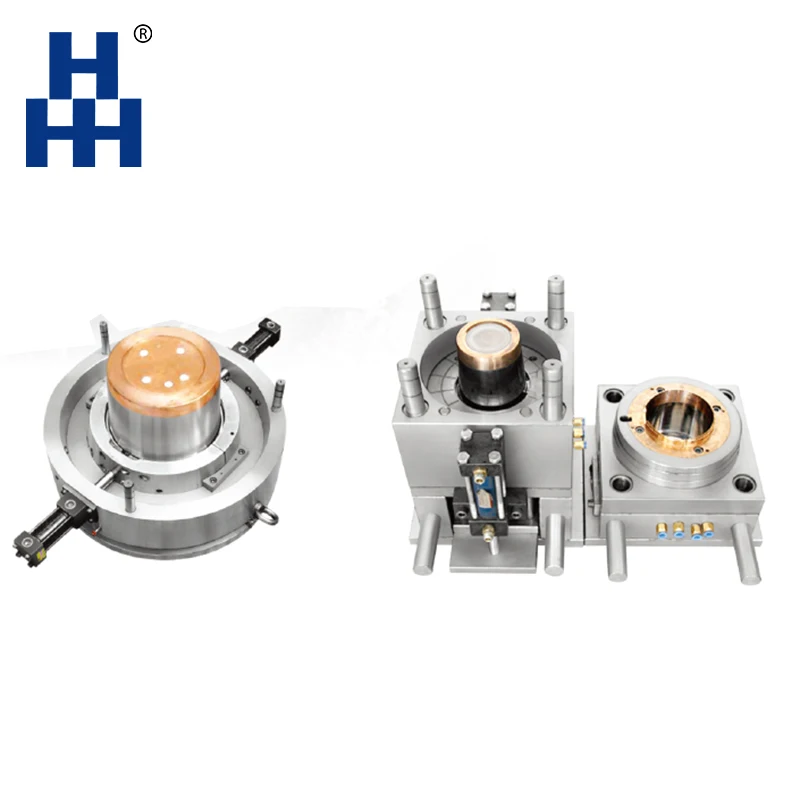

PRODUCT DETAILS
Company Information
CERTIFICATE
Packaging & Shipping
FAQ
1: Are you a trading company or a manufactory?
We are a manufactory, we supply the factory price with good
quality, welcome to visit !
2:Do you have QC or any safety standards for your plastic injection
molding machine?
yes,we have established a highly strict quality control department
to guanrantee good quality.
3:Why choose our plastic injection molding machine?
High quality with competitive price
4::How about quality control in your factory?
"Quality is first, Customers are friends".
