stainless steel bioreactor continuous stirred tank reactor
- Category: >>>
- Supplier: Zhejiang Tanlet Machinery Co. Ltd.
Share on (60693270057):
Product Overview
Description
Product Description

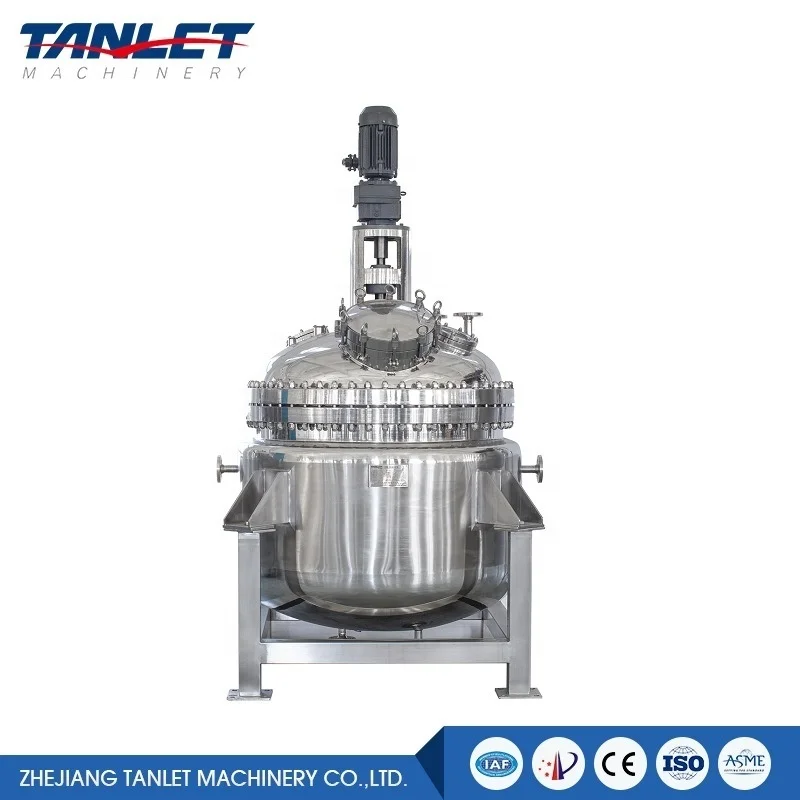

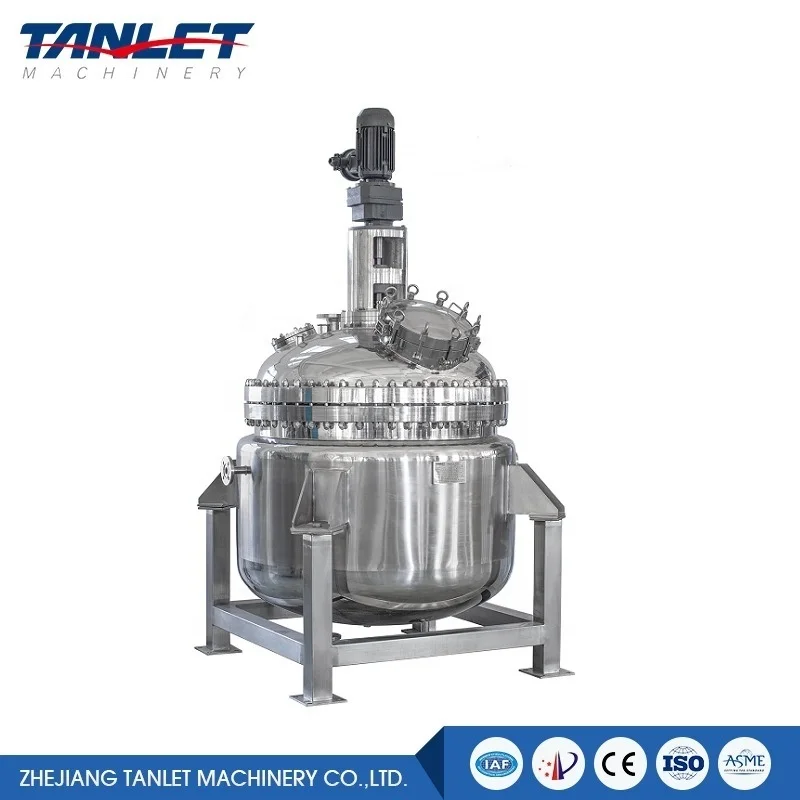

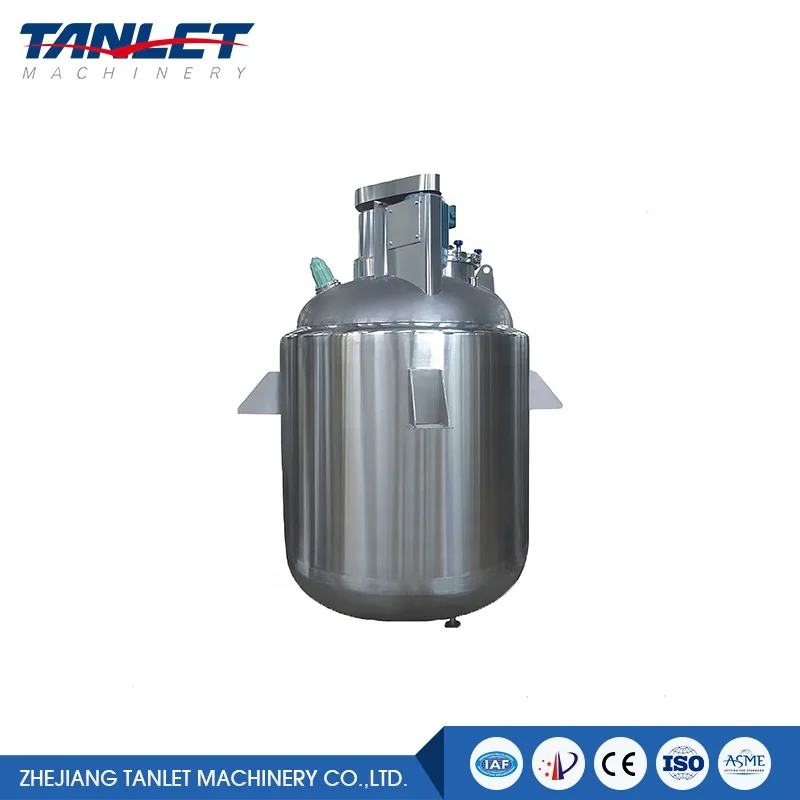

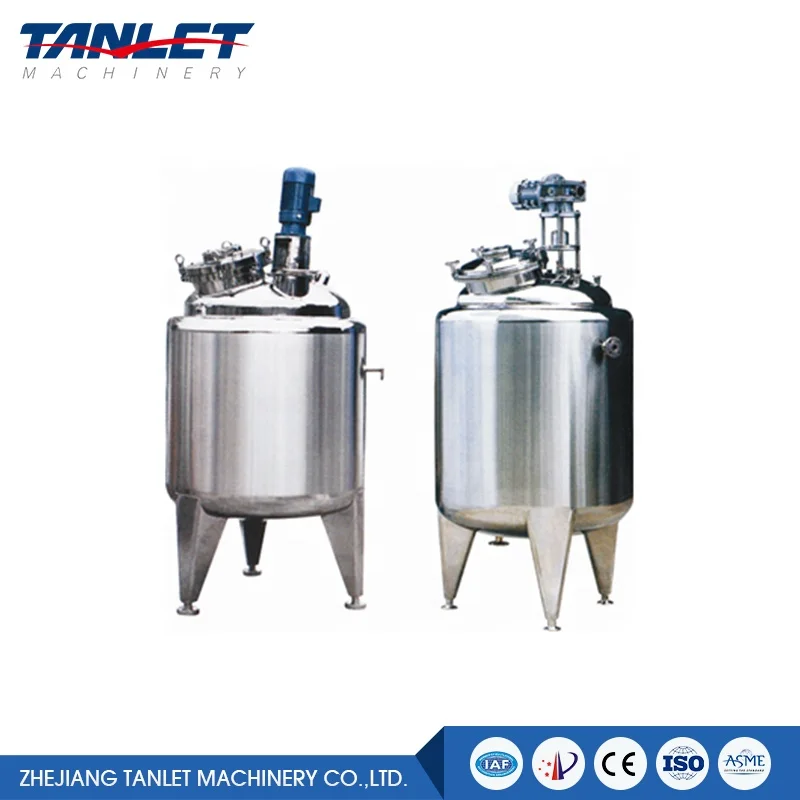

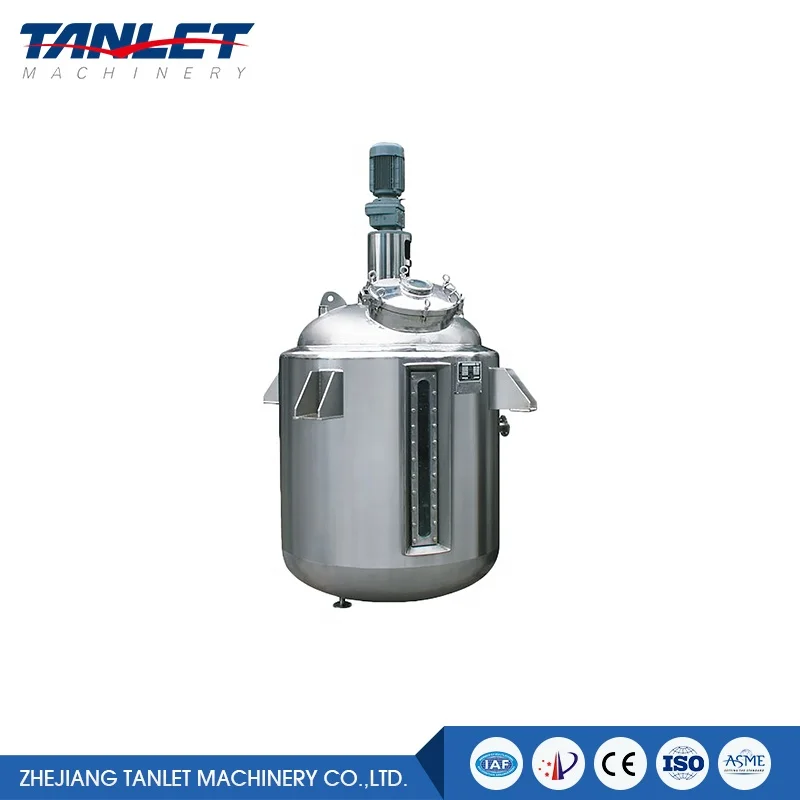

Stainless Steel Bioreactor Continuous Stirred Tank Reactor
Product Application
The Stainless Steel Bioreactor Continuous Stirred Tank Reactor is one of the reaction equipment commonly used in medicine, chemical industry, etc. It is a kind of equipment that mixes two kinds (or more kinds) of liquids and solids of certain volume and promotes their chemical reaction by using the mixer under certain temperature and pressure. It is often accompanied by heat effect. The heat exchanger is used to input the heat required or move the heat produced out. The mixing forms include multi-purpose anchor type or frame type, so as to ensure even mixing of materials within a short period of time.
The mixing rotation speed adopts variable frequency speed adjustment. It is provided with temperature display or control.
Main Parameters
Model Specification | WJG 300 | WJG 400 | WJG 500 | WJG 600 | WJG 1000 | WJG 2000 | WJG 3000 | WJG 5000 | |||||||
Volume (L) | 300 | 400 | 500 | 600 | 1000 | 2000 | 3000 | 5000 | |||||||
Vessel/Jacket Op. Pre. (MPa) | ≤0.2/≤0.3 | ||||||||||||||
Motor Power (Kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 2.5 | |||||||
Stirring Speed (r/m) | 36~53 | ||||||||||||||
Main Feature
Structure | Vertical, ellipse top or flat top, support by legs or lifting lugs. Single wall, or with jacket, or with insulation. | ||||
Material | Material adopts S31603, or S30408. (Tai Steel or Bao Steel) | ||||
Jacket Type | Full jacket, internal coil, external semi-coil, dimple jacket. | ||||
Insulation | Adopts aluminum silicate or polyurethane, thickness 50 mm or 75 mm. | ||||
Surface Finishing | Mechanical polishing, internal mirror polishing Ra 0.45; External matte, Ra 0.8 | ||||
Heating Method | Steam heating, electric heating, thermal oil/hot water heating | ||||
Adopt top center-entry agitator or side-entry agitator. Agitator type: frame, anchor, paddle, turbine, spiral, screw, magnetic stirring. Agitation speed: 10~120rpm, fixed speed or frequency speed. Motor power: 0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 5.5kw, 7.5kw, etc. | |||||
Accessories | Condenser, Manhole, CIP spraying ball, thermometer, piezometer, air filter, sight glass, light, counter flange. | ||||
Standard | All according to GMP requirements and GB150.1~4-2011 Design, Fabrication, Inspection and Acceptance. | ||||
ODM | Can be customized according to customers requirement and product process. | ||||
Simple Drawing (The drawing can be customized according to customer requirement and process)
Fabrication Process
Cutting
Plasma Welding
Mechanical Polishing
Assembly
Final Product
Our Service
User Demand Analysis
Once the project is confirmed, the product level, processing technology and consulting group are analyzed according to the actual demands of customers so as to provide suitable engineering plans, form a complete production line and calculate the budget.
Engineering Design
We carry out planning and designs on details of engineering plans through introducing internationally advances design conception to provide valuable project technological plans and ensure effective implementation of all steps.
Product Manufacturing
The approved production drawing is the basis for production and manufacturing. All equipment that is not manufactured on the site shall be indentified by our quality responsible person so as to meet the strict stipulations.
Automatic Control
Integration
The installation of the system and the whole automatic project meets the GMP standard and FDA standard. According to our years of experience, the installation and process rules will help simplify the starting and commissioning of equipment.
Trial Running and Training
During the equipment commissioning, our engineers will provide guidance on the site and carry out various tests with respect to all performances of the equipment with customers. Approval will be received from users.
Verification Services
To ensure normal production, we can set up maintenance and servicing plans for a single machine, the whole production line or the whole factory and provide equipment maintenance services and offer fittings according to customer requirements.
Packing & Delivery
Delivery & Transportation
All delivery terms are available: EXW, FOB, CIF, CFR, DAF, DDP, CIP, etc.
Shipped in 45 days after the deposit confirmed.
Packing
The equipment and accessories will be packed in the wooden case, to ensure safe shipping.
Payment Terms
T/T, L/C, Western Union, Paypal, Apple Pay, Online Payment, etc.
Company Introduction
Here is a brief on us:
Since 1998, with 20+ years of experience
3 factories totally covered 40,000+sq.m.
Annually sales $31.5 million, still keeps growing.
30+ R&D, 200+ employees professional service.
Leader of this industry in nationwide
