APW41037Z-A15-3020BA includes 5 main parts:
1. 3000mm × 2000mm working area cutting table;
2. one set of 3-Axis cutting head;
3. 410Mpa intensifier pump;
4. CNC control System (Auto Saving);
5. a New Auto Abrasive Delivery System.

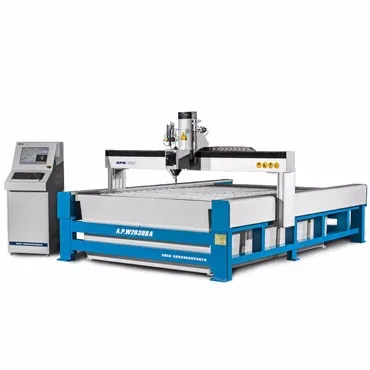

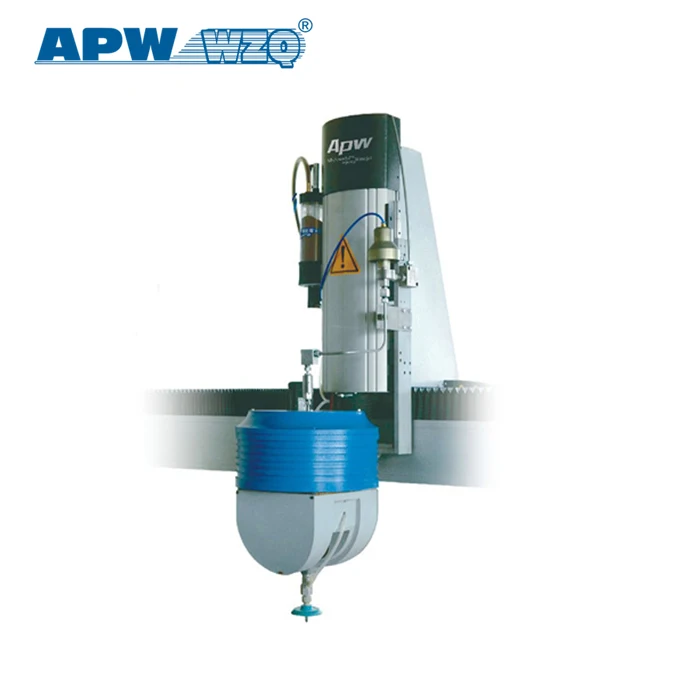

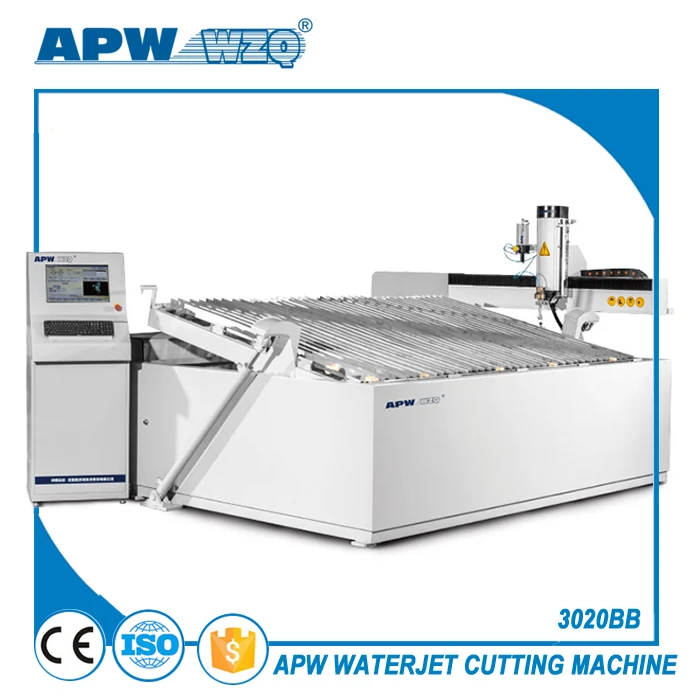

APW-3020BA Waterjet Cutting Table

Bridge Style Cutting Machine is one of the two traditional styles. The bridge style gantry is mechanized in the X and Y axis to precisely control movement of the cutting head. Because it has two support points on each side, Bridge Style Cutting Machine is very stable. It uses the ball screw unit and linear guide to control the movement of cutting head, the tolerances tighter than ±0.05" are achievable, which ensures the best price and quality.

APW3020BA Cutting Table Details
X and Y axis Travel	3000mm × 2000mm
Z-axis Travel	150mm
Control Accuracy	+/- 0.01mm
Cutting Accuracy	+/- 0.1mm
Servo Motor Specification	0.75KW 1.0KM 1.5KW
X-axis and Y-axis Max.moving speed	6000mm/min
Z-axis Max.moving speed	1000mm/min



Specification

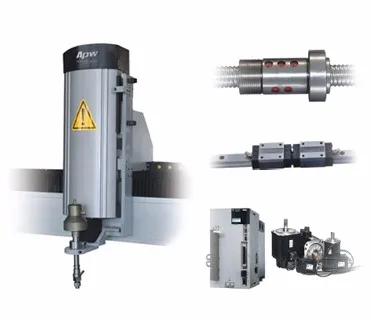

Cutting Head	3-Axis
Way of Drive	AC Servo
Servo System	Yaskawa Servo Motor
Linear guide	SKF(America)
Ball Screw	TBI(Taiwan)
Nozzle and Orifice	America
Atmosphere Pressure	86Kpa ~ 106Kpa
Dust Concentration	Not More than 10mg/m3
X, Y-Axis Structure	Aluminium Structure
Water Tank	Stainless Steel

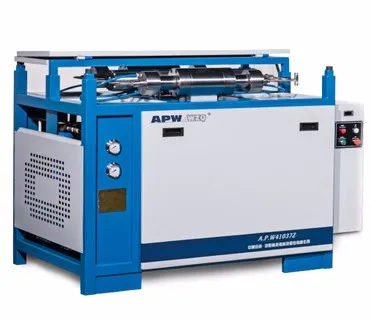

410Mpa Intensifier Pump

Intensifier is the heart of waterjet. It gives waterjet metal cutting machine life. APW A15 410Mpa intensifier pump is a miracle and it realizes the dream of every waterjet users whoever used, maintained or researched waterjet metal cutting machine. APW waterjet integrated SIEMENS motor, good quality hydraulic Pump and hydraulic valves assembly, American A&V Intensifier, American high pressure tube and stainless steel water tank.

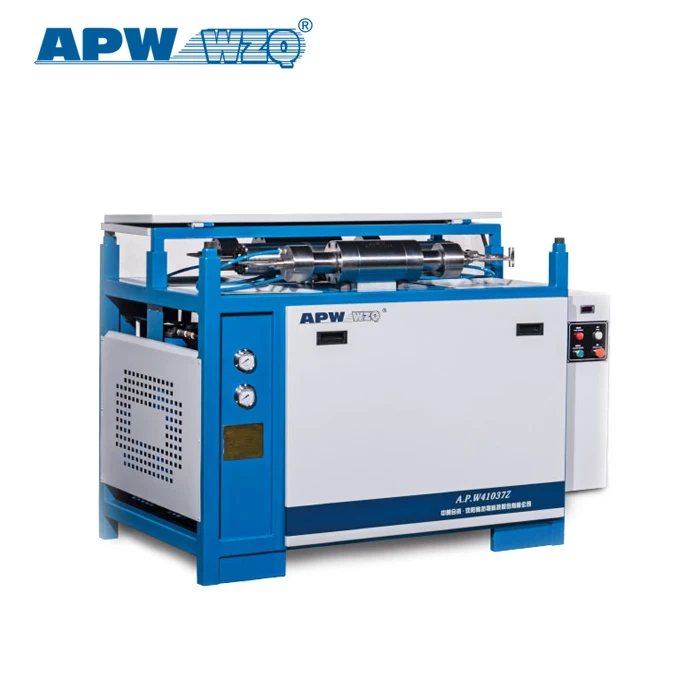

APW41037Z-A15 Intensifier Pump
Max discharge of oil pump	90L/min
Max water discharge	3.7L/min
Max available orifice diameter	0.3mm
Max pressure	410Mpa
Continuous working pressure	360 ~ 380Mpa
Main motor power	37KW(50HP)
Power supply	380V/50HZ/3PH
Max.oil pressure	20Mpa
Length/width/height	1745/1045/1350
Weight	1200kg

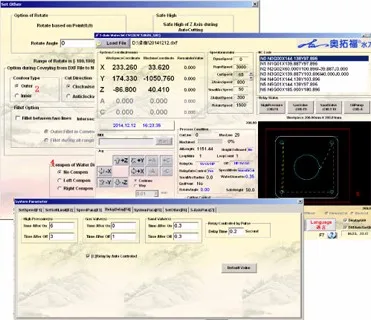

CNC Auto Saving Controller Software

Our company's waterjet using our own waterjet software to control 3-axis, 4-axis, 5-axis waterjet metal cutting machine.
PC requirement:
Support Windows 2000, Windows XP, Win 7;
CPU: above 1.5GHz;
Memory capacity: above 256M;
Hard disk: above 80G;

Main Characteristics of CNC System

15 Inch LCD Monitor

Support DXF and NC code file

Forward and backward processing function

Even pace control function

Partial and smooth processing modes

Small arcs speed auto processing function

Circle processing function

Coordinate memory retention function

Double increase & decrease speed data function

Muliti-language operating interface

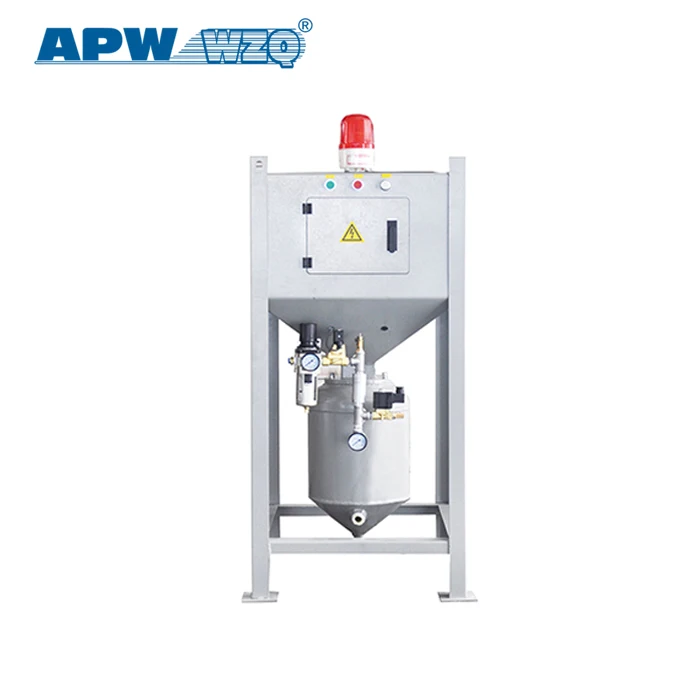

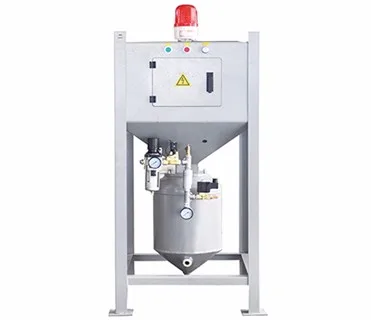

New Auto Abrasive Delivery System

With the new design, the new auto abrasive delivery system allows operator to add abrasive even during the machine working. It avoids to stop working for adding abrasive, which largely increases the working efficiency and reduces the energy consumption during operation.

New Auto Abrasive Delivery System
Max.Inlet Air Pressure	0.6Mpa
Min.Inlet Air Pressure	0.2Mpa
Abrasive Capacity	250Kg
Min.Inlet Air Flow	0.028 m3/min
Operating Air Flow	0.005 m3/min
Self-feeding Control
Air Valve to prevent jams and breakages
Self sealing
No need to stop the machine during abrasive filling



APW leading waterjet cutting machine manufacturer of waterjet cutting machine owns an important and the largest manufacturing base of ultra-high pressure waterjet industry in China. We provide high quality products and service. Custom waterjet metal cutting machine service at APW will help you rather than let you fit them.
