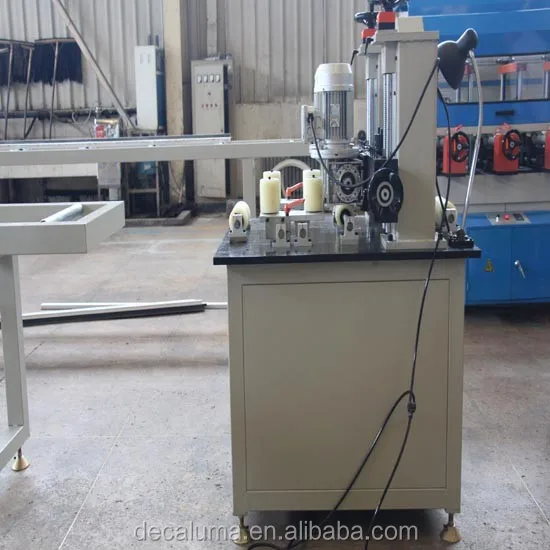

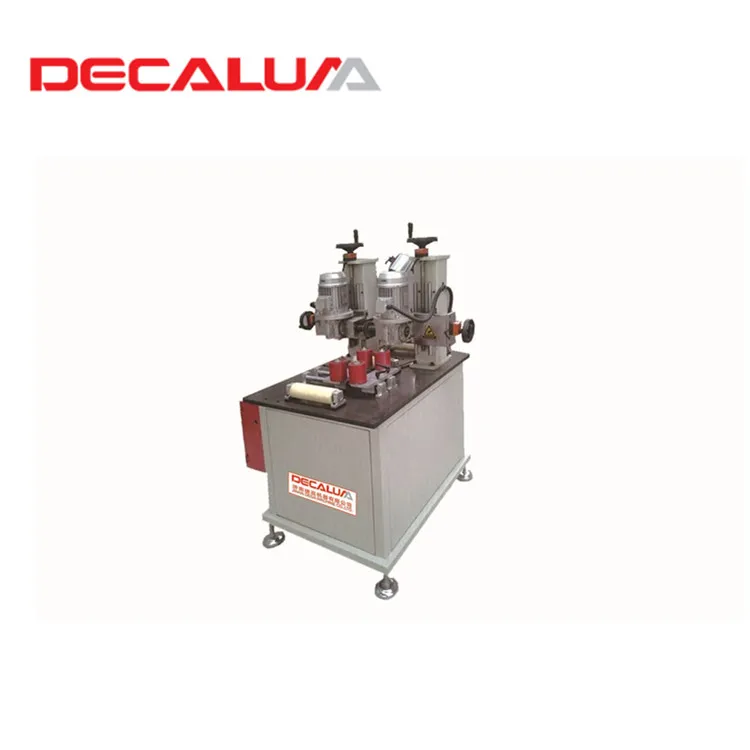

Thermal Break Knurling Assembly Machine KCJ-01
Product Description
The machine is a dedicated device that used for producing heat barrier profile.Mainly to gullet and hack in the notch of heat-insulated strip and plastic profile for aluminum profile.
1. To hob in the notch of insulated heat strip of aluminum profile in order to add contact strength between heat-insulated strip and aluminum profile.

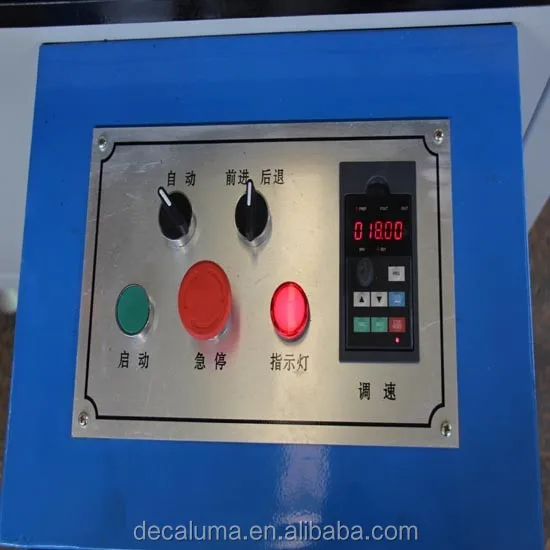

2. Used frequency control to hob, the speed is controlled stepless speed change.

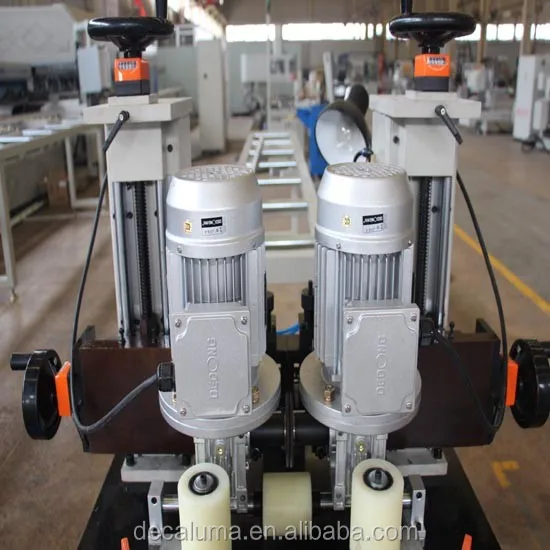

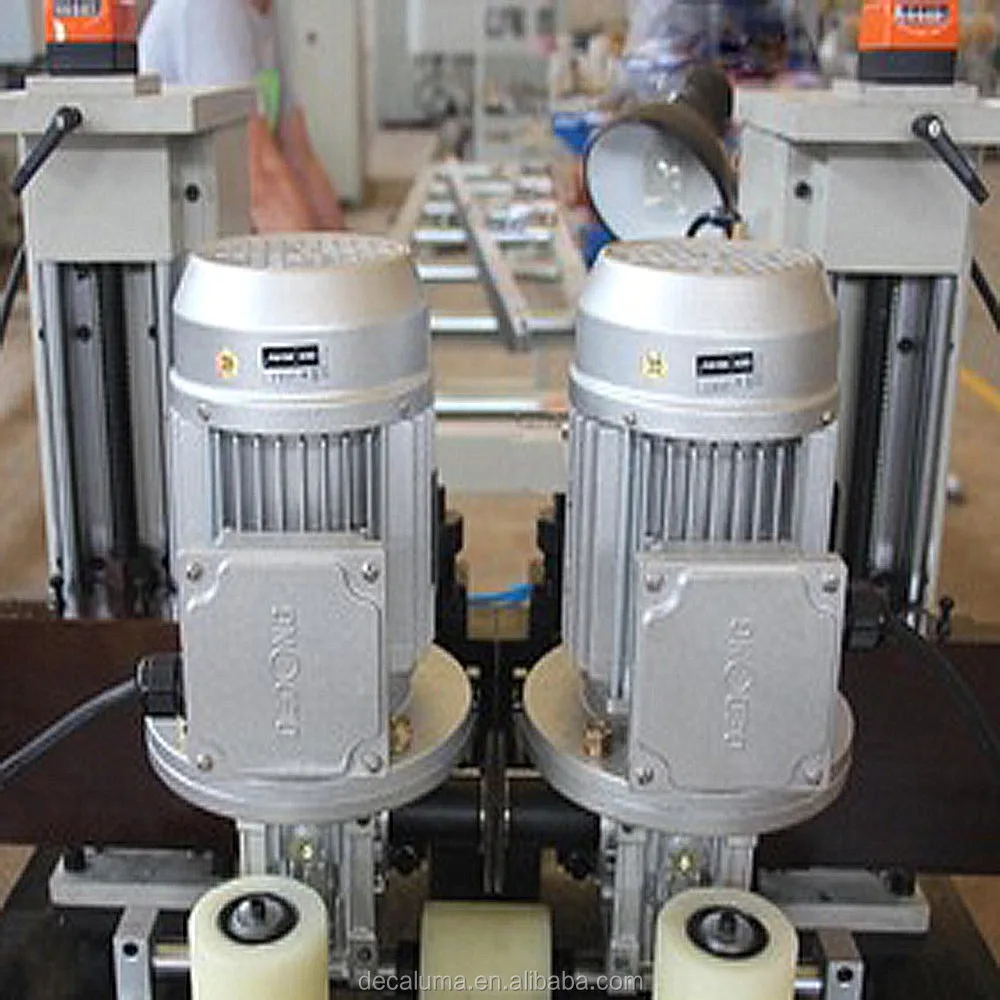

3. Rotating mode, driver motor+worm gear and shaft for aluminum housing 4 spindle-case drive gulleting cutter to realize gulleting accurately.
4. Realized automatic of gulleting and knurling.
5. The overall of machine is sprayed, attractive and durable.
6. Heat-insulated aluminum profile ingot-gulleting and assembly are synchronous.
7. Gulleting machine improves the notch of heat-insulated between heat-insulated strip and aluminum profile via hobbing. Compared with not gulleting profiles, the shear force more than 40%, and improved shear force of finished heat-insulated aluminum profile.
380v 50hz | |
Import power | 0.75*2Kw |
The Diameter of blade | φ100mm |
The speed of feeding | 6-90m/min(adjustable) |
Processing Max. Profile section | 220*280mm(H*W) |
Exterior dimension | 1000*1000*1580mm |
Weight | 800kg |
Packaging & Shipping
Our standard package is steel chassis with plastic cover or full wooden package, but it depends on customer real requirements.
Our Services
1. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
2. After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
Company Information
FAQ
1. What you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines, just contact our company email.
2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
3. Are you trading company or manufacturer?
Manufacturer(OEM)
4. Quick details about our company
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | WEST END OF CENTURY AVENUE, HIGH-TECH ZONE,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
