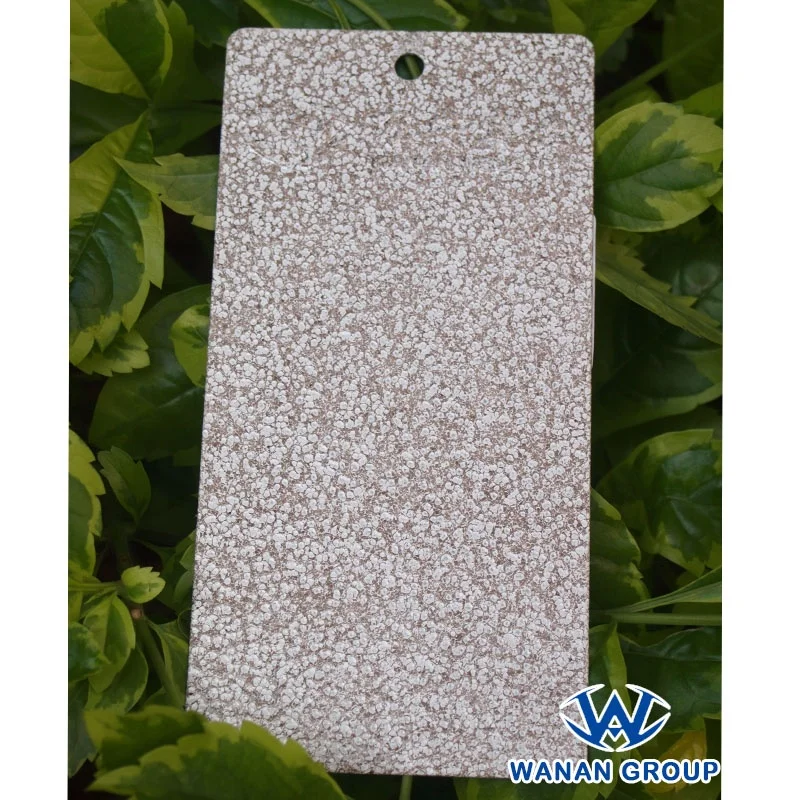

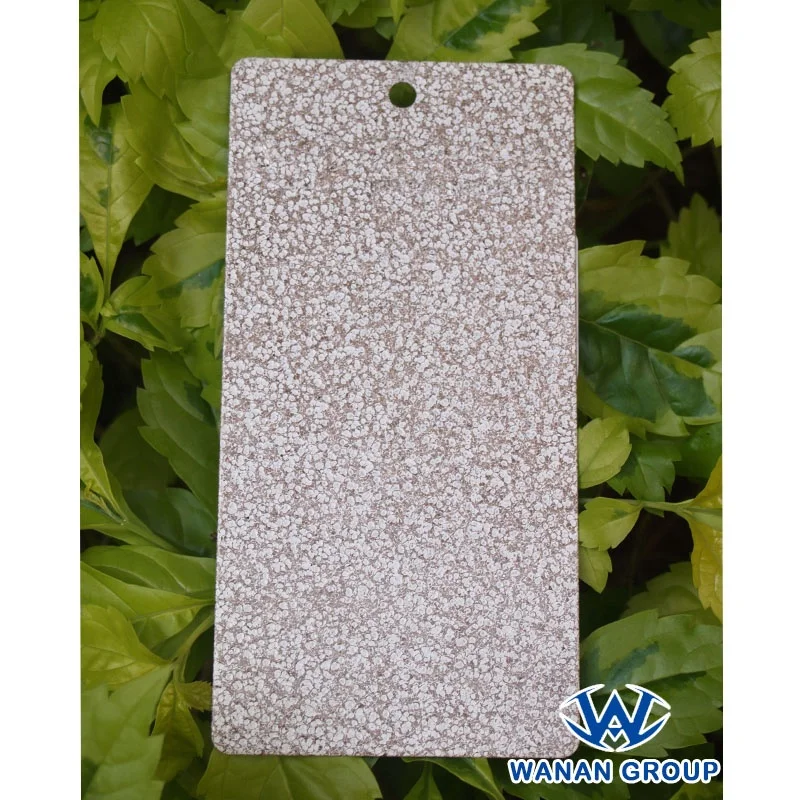

white spotted powder paint stone effect powder coating
- Category: >>>
- Supplier: Fujian Wanan Industry Group Co. Ltd.
Share on (60693369134):
Product Overview
Description
Product Description
| Description | Powder coating | |
| Another Name | Powder paint,Electrostatic powder coating, Thermosetting powder coating | |
| Type | Polyester&Epoxy resin series | |
| Main Material | Saturated polyester resin,epoxy resin | |
| Surface Type | Gloss,satin,matte,dull,wrinkle,checkered,sand grain,transparent, | |
| semitransparent,metallic,and special pattern. | ||
| Advantage | Good adhesion,good mechanical property,strong coating film, | |
| beautiful film,customized glossiness. | ||
| Application Field | Indoor use | |
| Household appliance:air conditioner indoor unit,fan,radiator, | ||
| kettle,lighting sets, refrigerator,TV set,kitchen ventilator, | ||
| disinfection cabinet,electric cooker,etc. | ||
| Daily use:Knife,fork,crafts,ornament,etc. | ||
| Indoor furniture:table,chair,cupboard,safe,carved iron bed,door,etc. | ||
| Application Condition | Electrostatic spray/Triboelectric gun spray. | |
| Recommended curing condition: | ||
| (object surface temperature) | ||
| 190℃*15min | ||
| Recommended film thickness:50~80um, range from 40~150um | ||
| Physical Property | Specific gravity | 1.4~1.8g/cm3 as per formula and color |
| Particle size | average 35~40um | |
| Test Condition | Substrate | 0.5mm thickness cold rolled steel sheet |
| Pretreatment | Remove rust and grease | |
| Film thickness | 50~80um | |
| Curing temperature | 190℃*15min | |
| Mechanical Property | Pencil hardness | ISO 15184:1998,≥F |
| Adhesion (by griding) | GB/T 9286-1998,≤2grade | |
| Impact test | GB/T 1732-1993,≥40 kg.cm | |
| Bending test | GB/T 6742 ,≤2mm | |
| Cupping test | GB/T 9753,≥4mm | |
| Chemical and Durability Test | Salt spray test | GB/T 1771,≥500 hours,no obvious change , |
| crossion width at cross≤2mm | ||
| Heat and moisture test | GB/T 1740,≥500 hours,no change | |
| Package | Inside by two-ply PE bag,outside by carton,net weight 25kg | |
| Storage Condition | Store in dry ventilated room,temperature under 35 degree centigrade, | |
| avoid direct sunlight. | ||
| Shelf Life | Six months | |
| Health and Safty | Raw material of powder coating don't contain toxic substance, | |
| no toxic gas produced during curing.Please wear dust mask in operation | ||
| to avoid inhelation of powder.Please avoide prolonged skin contact | ||
| with powder,wash out powder with soap and water. | ||

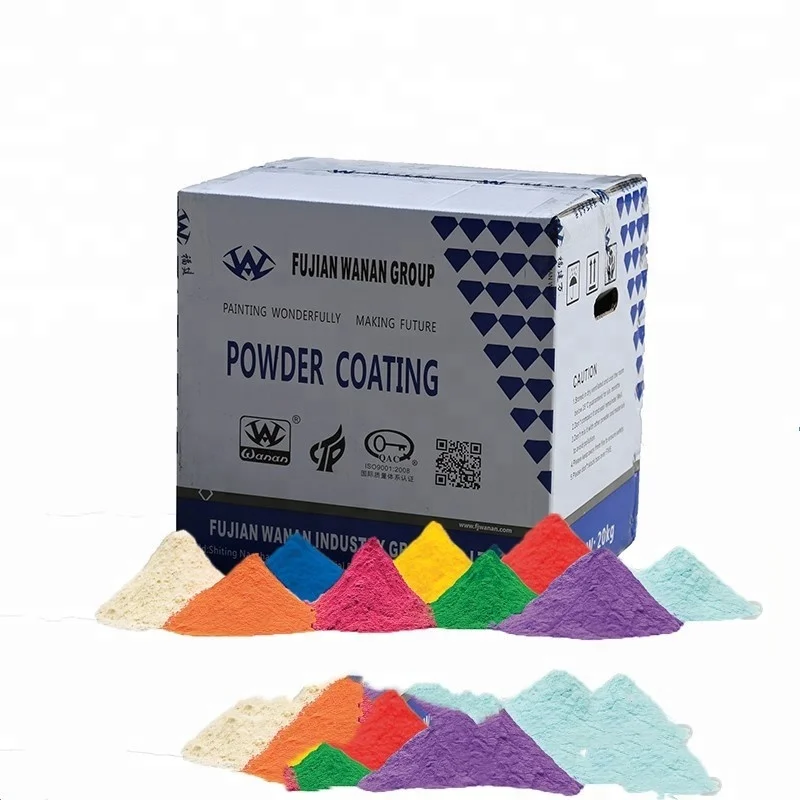

Packaging & Shipping
Inner Packing:two-ply PVC bag Outer Packing:corrugated carton Net Weight:25KG per carton
Loading Capacity:12 Metric Ton/20' container,23 Metric Ton/40' container
Shipping Time:7~20 days after sample approval and order confirmation
Our Services
1.People oriented,customer first 4.Whole process tracking, 2.Professional R&D center strict and complete quality control
3.Help customer evaluate project, 5.Excellent service team provide one-stop powder coating solution
Company Information
Fujian Wanan Industry Co., Ltd. is a high-tech private enterprise specializing in manufacturing thermosetting powder coating. Founded in 1996 and after more than twenty years' developing, we have become one of the top five powder coating companies in China. Our products have gained a great reputation both at home and abroad with stable quality, good impact resistance, excellent adhesion, perfect weather resistance property and well painting area.
We always focus on brand construction and quality control. Base on current ERP automatic information management system, we introduce the world leading lab testing equipment and advanced automatic production lines under ISO9001 international quality management system.
We always take "Quality, Service, Innovation, Efficiency" as a market philosophy, face the market with our first-class equipment, advanced testing device and best service, and serve all customers with ideals of "people oriented, people foremost, customer first".
Fujian Wanan Industry Group Co.,Ltd. welcome your visit and guidance,look forward to a long-term and stable cooperation, create more brilliante future.
Production:premix,fusion&extrusion,sheeting,smash line
Production:grinding,sieving,packing line
production:Germany bonding line
Quality Control:Material test
Quality Control:Organotin test
Quality Control:QUV test
Certification:OHSMS,ISO9001,ISO14001,Trustworthy Enterprise,Customer Satisfied Product,
High-tech Enterprise,China Top 10 Featured Powder Coating,Big Taxpayer
Partner:AOC,DELL,DOYLE GROUP,FENAN,Goodbaby,GudXon,Homestar,
IKEA,KSTAR,Lonking,MEIKOLONG,PHILIPS,SANY,SID,SunSHInE
