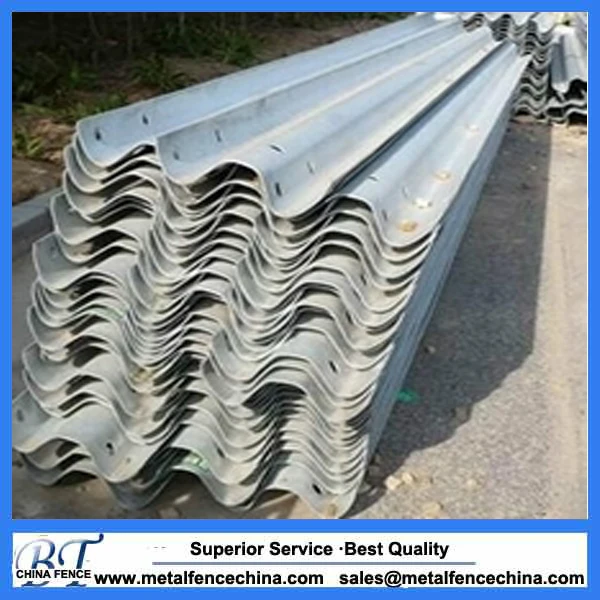

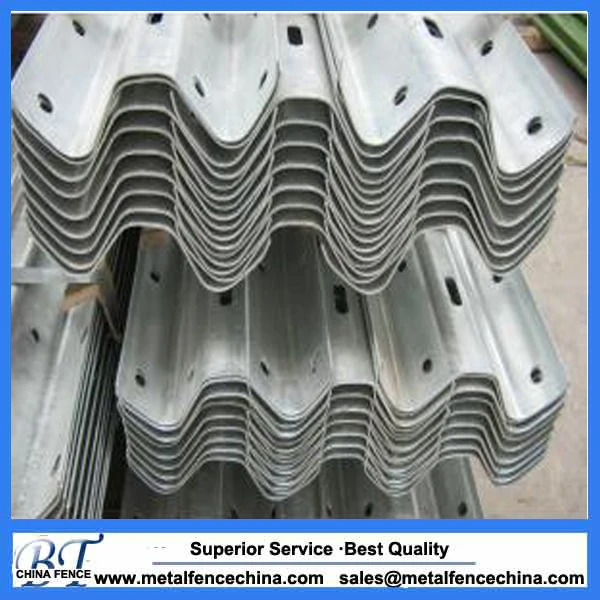

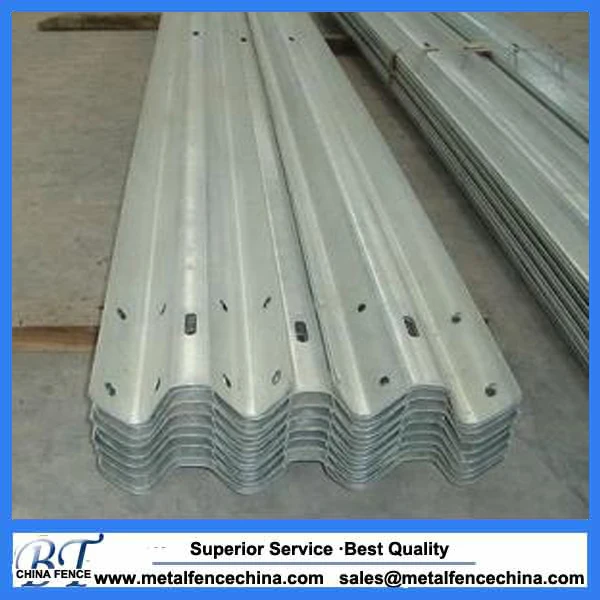

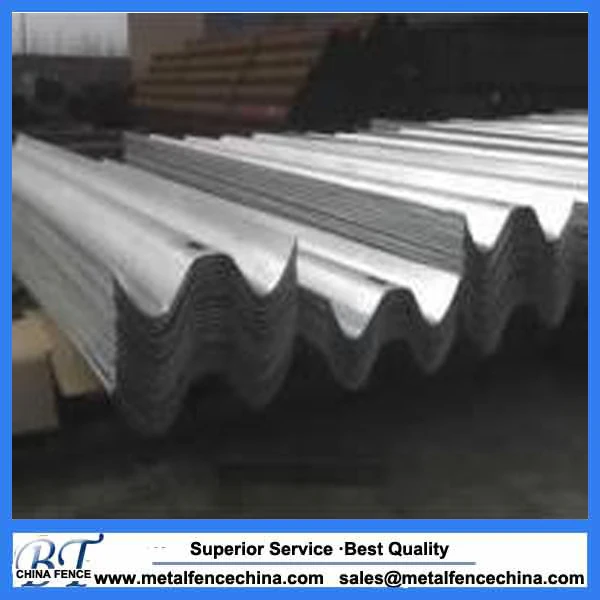

W Beam Guard Rails Protecting road used safety steel Highway Guardrail
Product Description

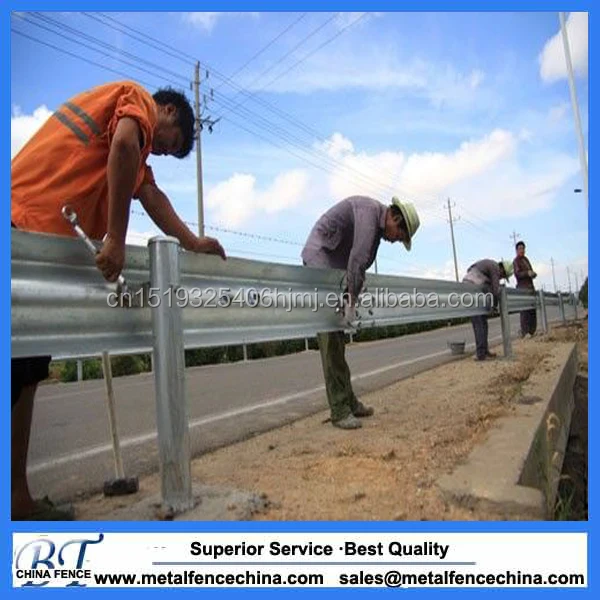

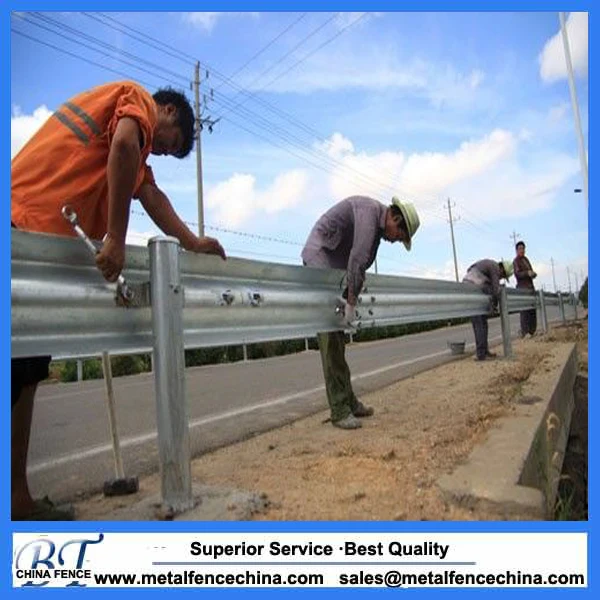

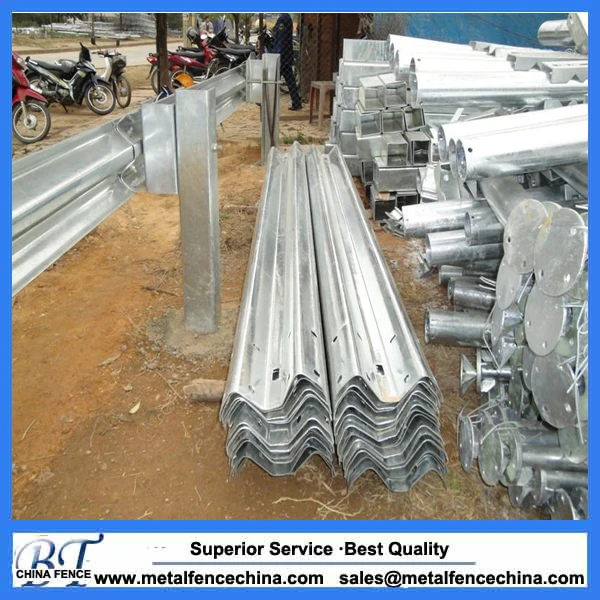

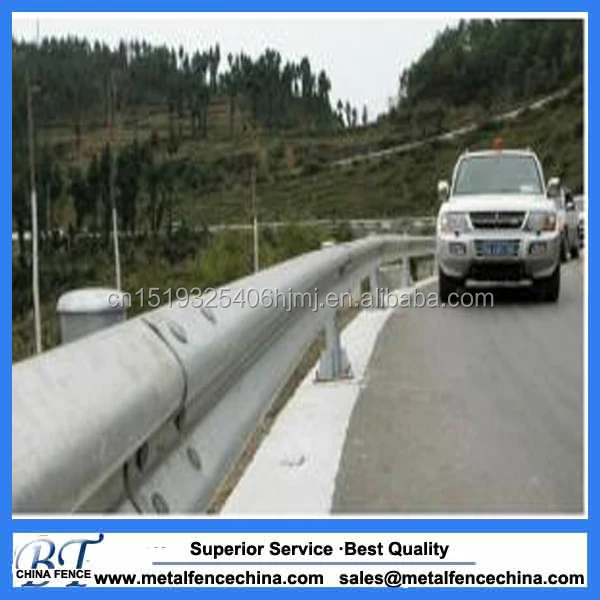

Guard Rail is widely used for the highway safety and fixed on the sides of highway, especially on curves and slopes for preventing vehicles riding out of roads.
This system is used for surface car park delineation,infrastructure protection and approach lane containment where there is a risk to the motorist. This system uses the same barrier rail as the Edge Protection System mounted on either base plate mounted rubber cushion posts or rigid RSJ posts.
The corrugated beam section has a thickness of 3mm with physical properties as per the table below. The RSJ type posts are available in bolt down and grout in form at different heights and can be installed at different post centres to suit site conditions (1.6m/3.2m).
Standard panels include 50mm x 50mm mesh and perforated, although any design to suit architectural requirements can be considered. In addition to the combined safety rails and pedestrian guard panel, Avon Barrier manufacture standalone pedestrian guard rails with either sub-surface or baseplate mounting.
Specifications
Specifications of guardrails:
Normal Sizes
L:3200/3810/4000/4300/4320× W:306/310/312/380X Height : 80/82/83/85× Thickness :2.75/3/4mm. Available in different sizes.
Material
Q235,Q345
Porfile

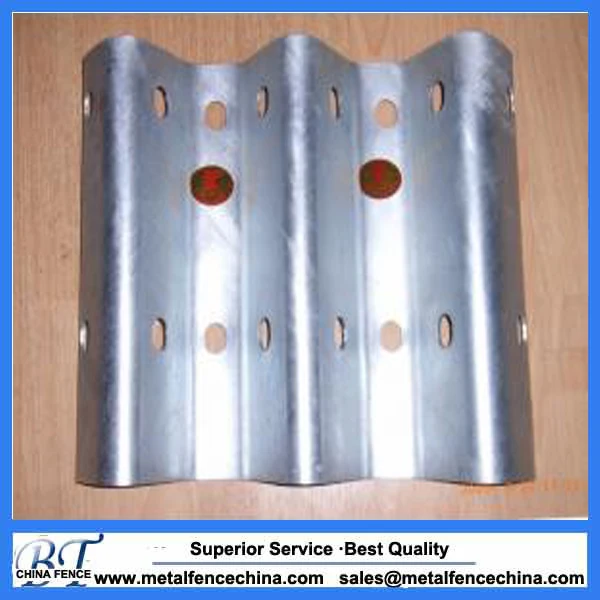

W-beam, Three-beam.
Surface Treatment
Hot dipped galvanized or plastic sprayed coating
Applicabele Standards
JT/T2811995(Corrugated Sheet Steel Beams For Expressway
Grade Q235B (equivalent to S235JR according to DIN
EN 10025 and Gr. Daccording to ASTM A283M) or Q345
(S355JR / ASTM A529M 1994).
The Thickness of Galvanized
(Double Sides):
550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ)
or as per your request.
Features
Great corrosion resistant, high intensity, long and durable,
with good impact resistance, low cost, long life, higher
security,environmental protection, etc.
Relevant Parts Required
for Guardrails:

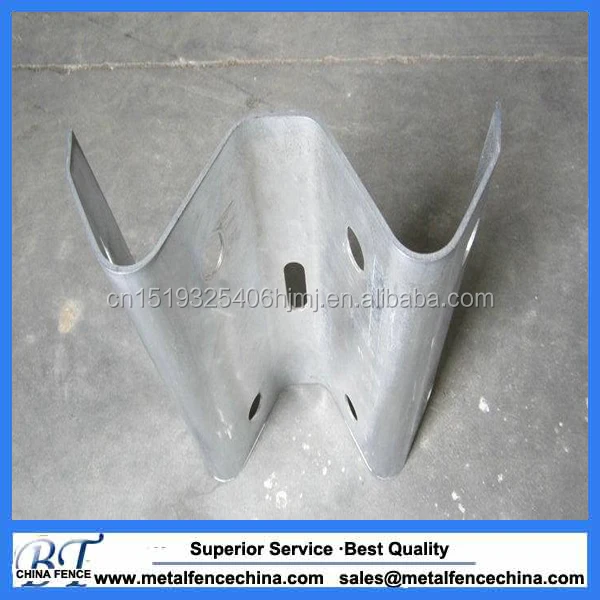

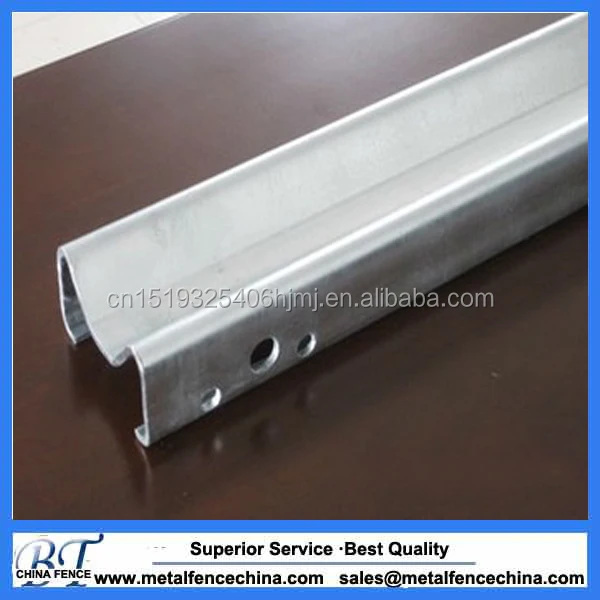

Post, Spacer (C, U and Sigma types etc) and Fasteners,
Bolts&Nuts,Terminal,Reflectors
MOQ
one 20 feet container
Price Terms
FOB,CFR,CIF
Payment Terms
T/T,L/C at sight
Other special specification as per client's requirement or drawings
Key Features:
Impact Tested
Bolt Down /Grout in post system
Varying Post Centres and Beam Heights
Hot Dip Galvanised BS729
Benefits:
Confidence in proven protection
Ease of installation
Application Flexibility
Strength and Durability
Technical Specification:
Edge Protection:

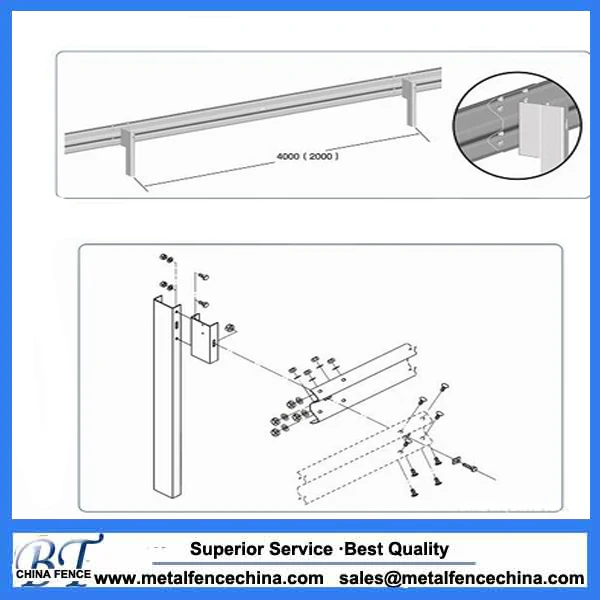

The system incorporates 310 x 85 x 3 mm sine wave untensioned crash rail mounted on either sub-surface or base plate mounted 127 x 76 x 13 mm RSJ Posts set at 1600mm centres. Enhanced strengthening is provided by reducing the post centres to 800mm
Safety Crash Barrier:
3.5m lengths (effective length 3.2m)
Corrugated beam section 3mm thick
The RSJ type posts are available in bolt down and grout in from at different heights and can be installed at different post centres to suit site (1.6/3.2m). Enhanced strengthening is provided by reducing the post centres to 800mm
Our Services
1. Reply your enquiry in 24 working hours;
2. Experienced staffs will answer all your questions in professional and fluent English;
3. Customized design is available.
4. Exclusive & unique solution can be provided by our well-trained and professional engineers;
5. If you have a large number of orders, we will send you 1 ~ 2 parts to prevent damage in transit;
6. We will try our best to meet your requirements and supply you best quality of the products.
Packaging & Shipping
FAQ
1,Q: Can you offer free sample?
A:Yes, but usually the customer need to pay the freight.
2,Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in wire mesh fence for 11 years.
3,Q: What information should I provide, if I want a lowest quotation?
A: The specification of the guardrails.
4,Q:Can I customize the products?
A:Yes, as long as provide specifications, drawings, can only do what you want products.
5,Q: how about the delivery time?
A:Usually within 15- 20days,customized order may need longer time.
6,Q: How about the payment terms?
A:T/T ( with 30% deposit ) , L/C at sight. Western Union.
7,Q:What is your after-sales service?
A:We offer professional advertising pics and spare hardware on free.
Company Information
Introduction of our company:
Hejian Perfect Metal Products Co., Ltd founded in 2016, but build factory in 2006. Our 91% products export to all over the world. We are a manufacturer specialized in producing metal wire kennels and metal wire mesh fence. It has punching machine, cutting machine, welding machine. These machines can produce many kind of fences. Also we have our own workshop to make the surface finish.
