1 year Warranty Aluminium alloy Manual wire rope pulling hoist
- Category: >>>
- Supplier: Ningbo Top Lifting International Tradnig Co. Ltd.
Share on (60693467320):
Product Overview
Description

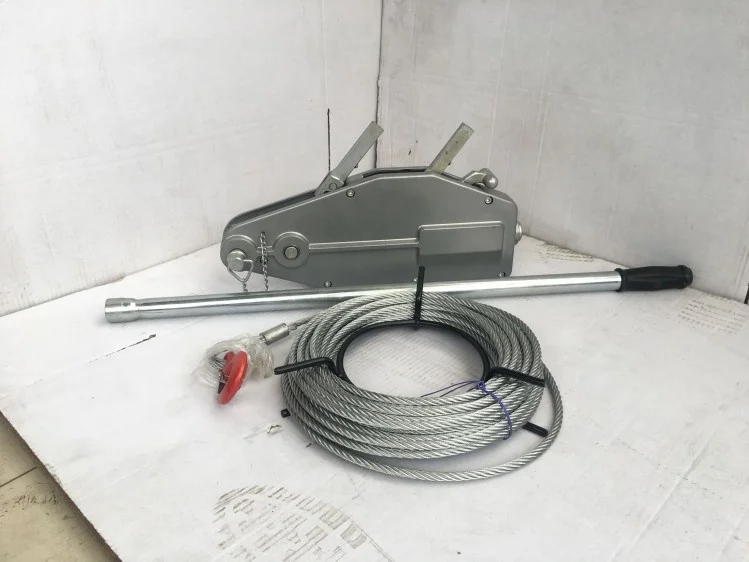

Manual Wire rope pulling Hoist
No. | 1 | 2 | 3 |
Rated hosting weight(kN) | 8 | 16 | 32 |
Once journey(mm) | ≥40 | ≥40 | ≥16 |
Diameter of steel rope(mm) | φ8 | φ11.6 | φ16 |
Standard length of steel rope(m) | 20 | 20 | 20 |
Net weight(kg) | 6.8 | 13 | 25 |
Hand wrenching at the rated load(N) | ≤343 | ≤400 | ≤441 |
Wooden case dimension(mm) | 420×106×250 | 530×126×315 | 660×160×360 |
Feature
Forward and reversing levers in tandem provide slim design and assure power transfer along the cente line.
Overload protection is by a shearing pin in the forward lever, Spare shear pins are conveniently located in the carrying handle or operating lever, A broken pin can be replaced without removing the load,
A lever disengages the rope clamp system allowing easy, smooth installation of the wire rope.
The parallel arrangement of the clamping system protects the wire rope by distributing the clamping forces evenly. A long rope advance per each lever stroke increases the working speed.
The large opening in the top of the unit allows easy cleaning: simply flush the unit with water, apply motor oil for lubrication and the puller is again ready for use.
Image details

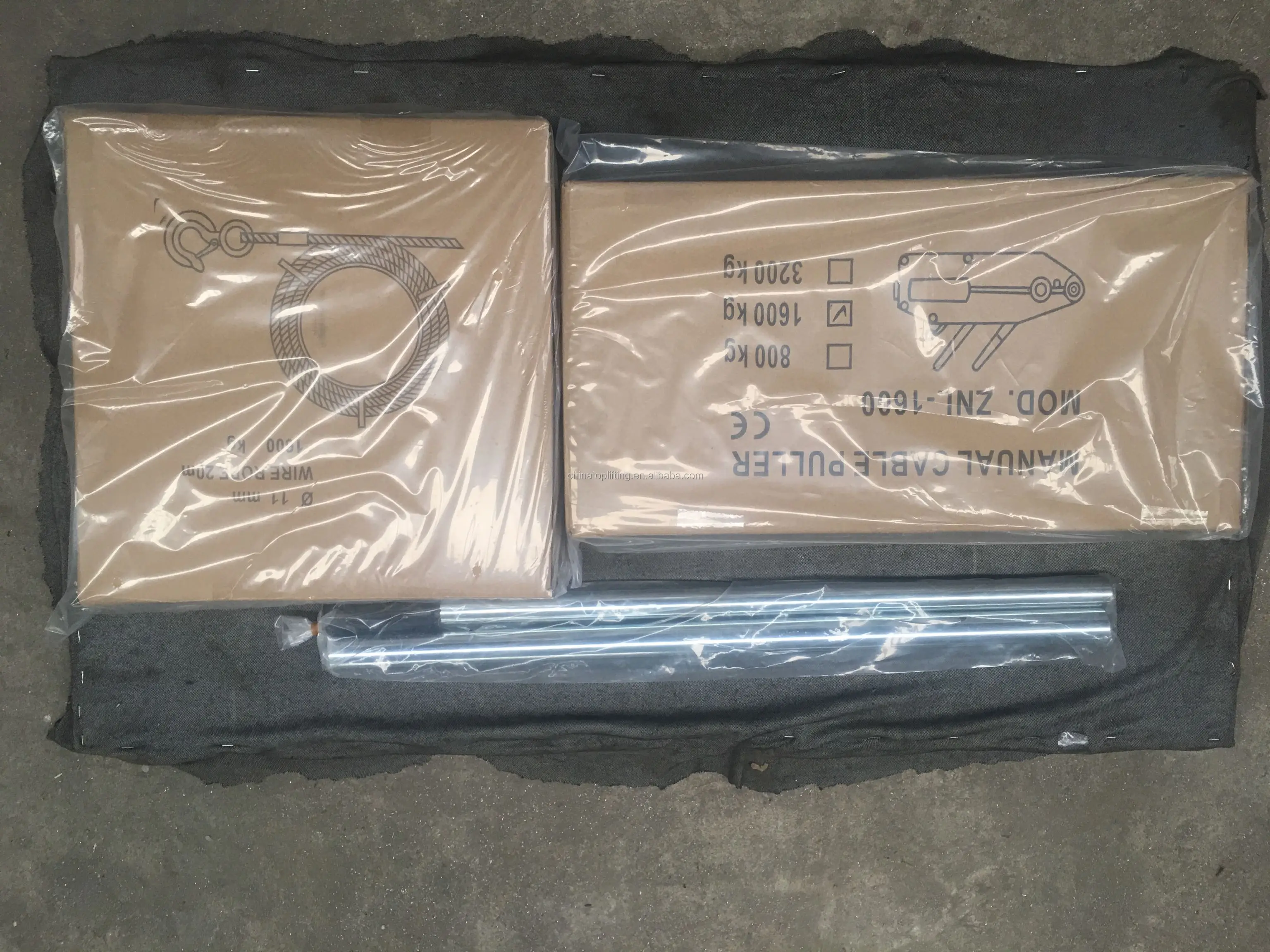

Package
Certifications
We test each order three steps.
1. Material test before production.
2. Random test during production progress
3. Test finished products before shipment.
4. Test report can be provided.
