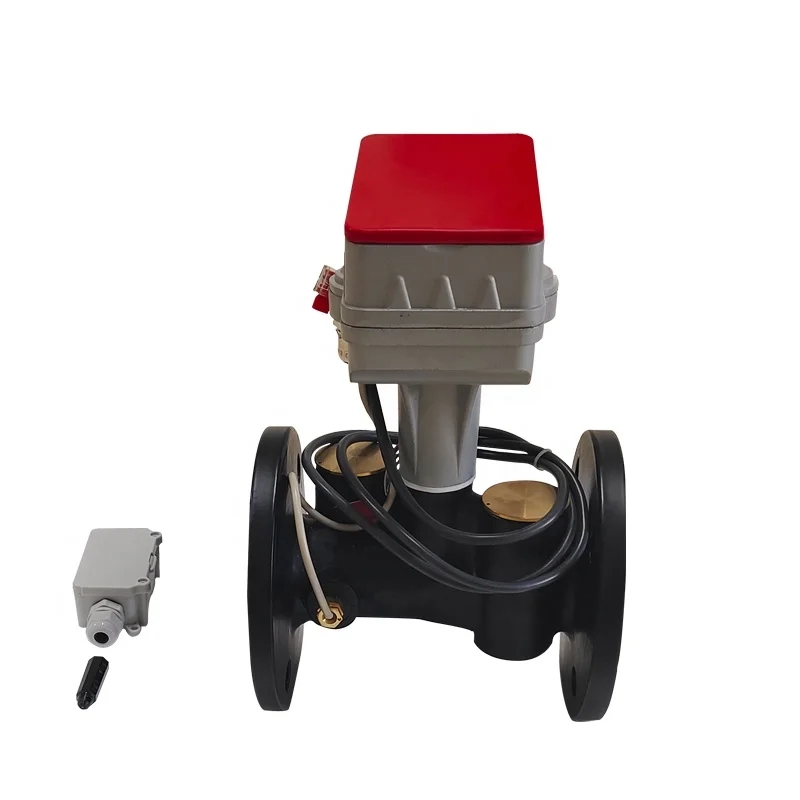

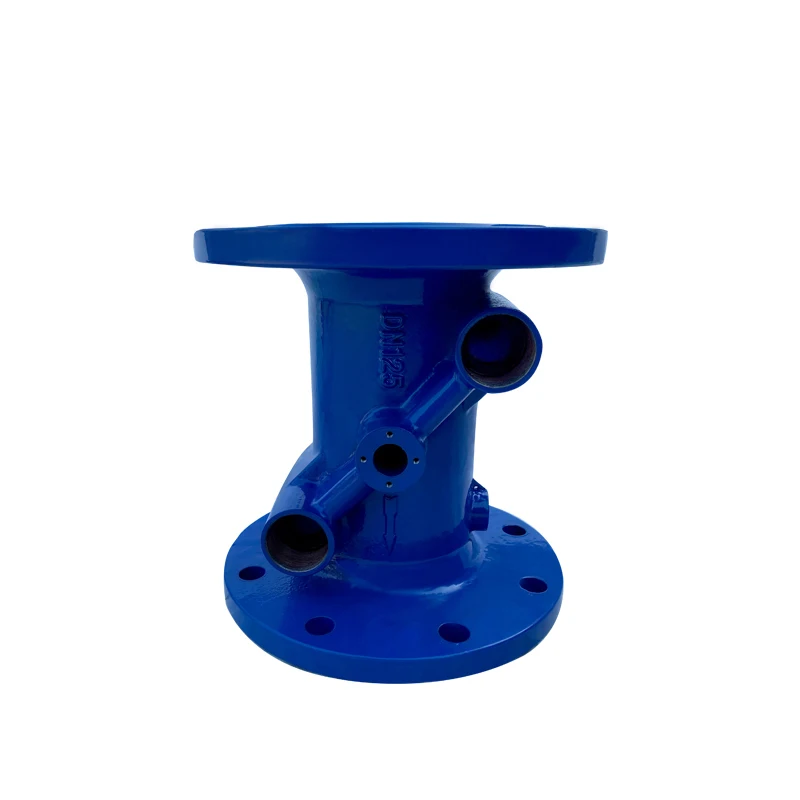

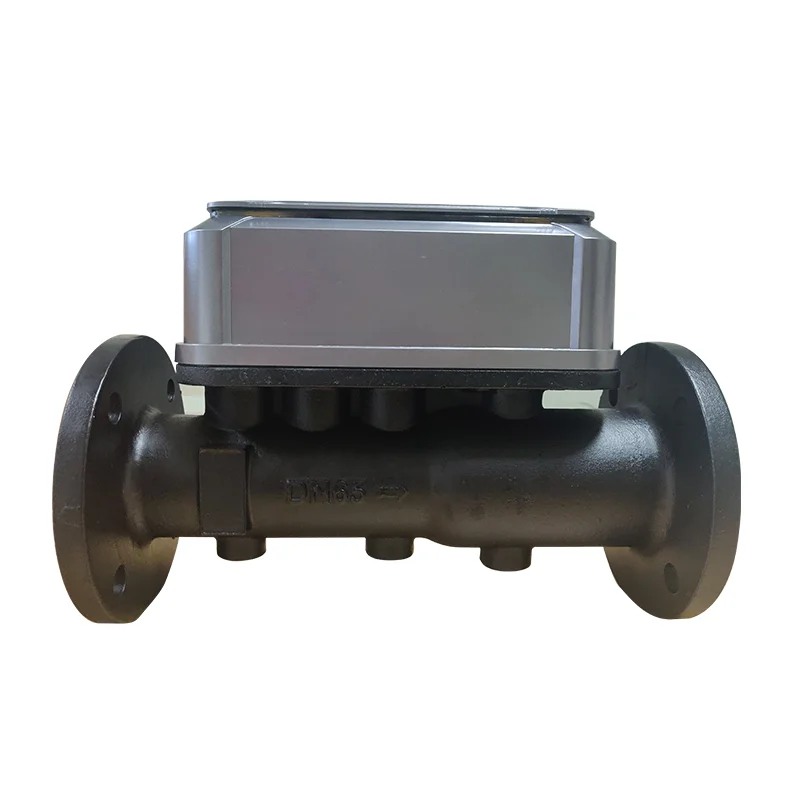

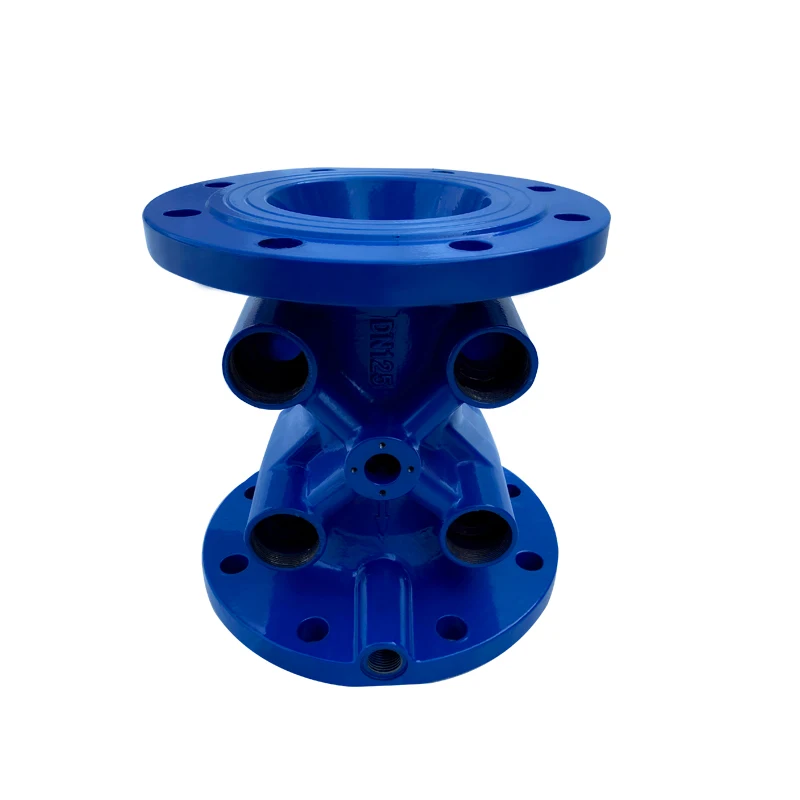

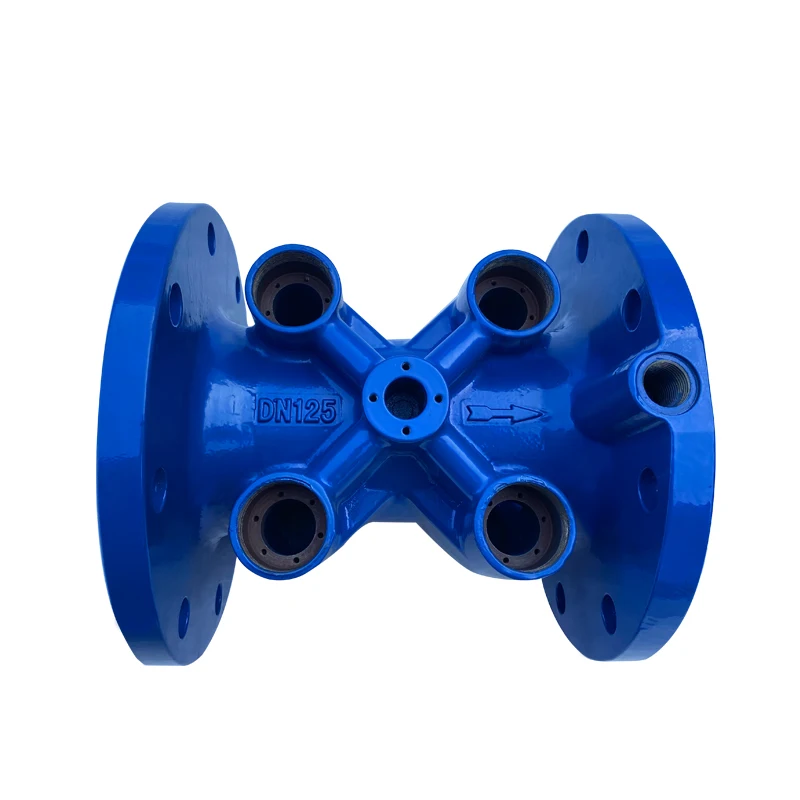

Taianxinhaitai DN125 большая Трубная секция ультразвукового счетчика воды
- Category: >>>
- Supplier: Taian Xin Haitai Sensor Co. Ltd.
Share on (60693506519):
Product Overview
Description
Actual Flow Performance Parameters
Diameter.mm | DN50 | DN80 | DN100 | DN150 | DN200 | DN250 | DN300 | ||||||
R(Q3/Q1) | R400/R250 | ||||||||||||
Accuracy Class | Class 2 | ||||||||||||
Permanent Flowrate Q3(m³/h) | 40 | 63 | 100 | 250 | 400 | 630 | 1000 | ||||||
Transitional Flowrate Q2(m³/h) | 0.16 | 0.25 | 0.20 | 1.00 | 1.60 | 2.52 | 4.00 | ||||||
Mininum Flowrate Q1(m³/h) | 0.10 | 0.16 | 0.125 | 0.625 | 1.00 | 1.60 | 2.50 | ||||||
