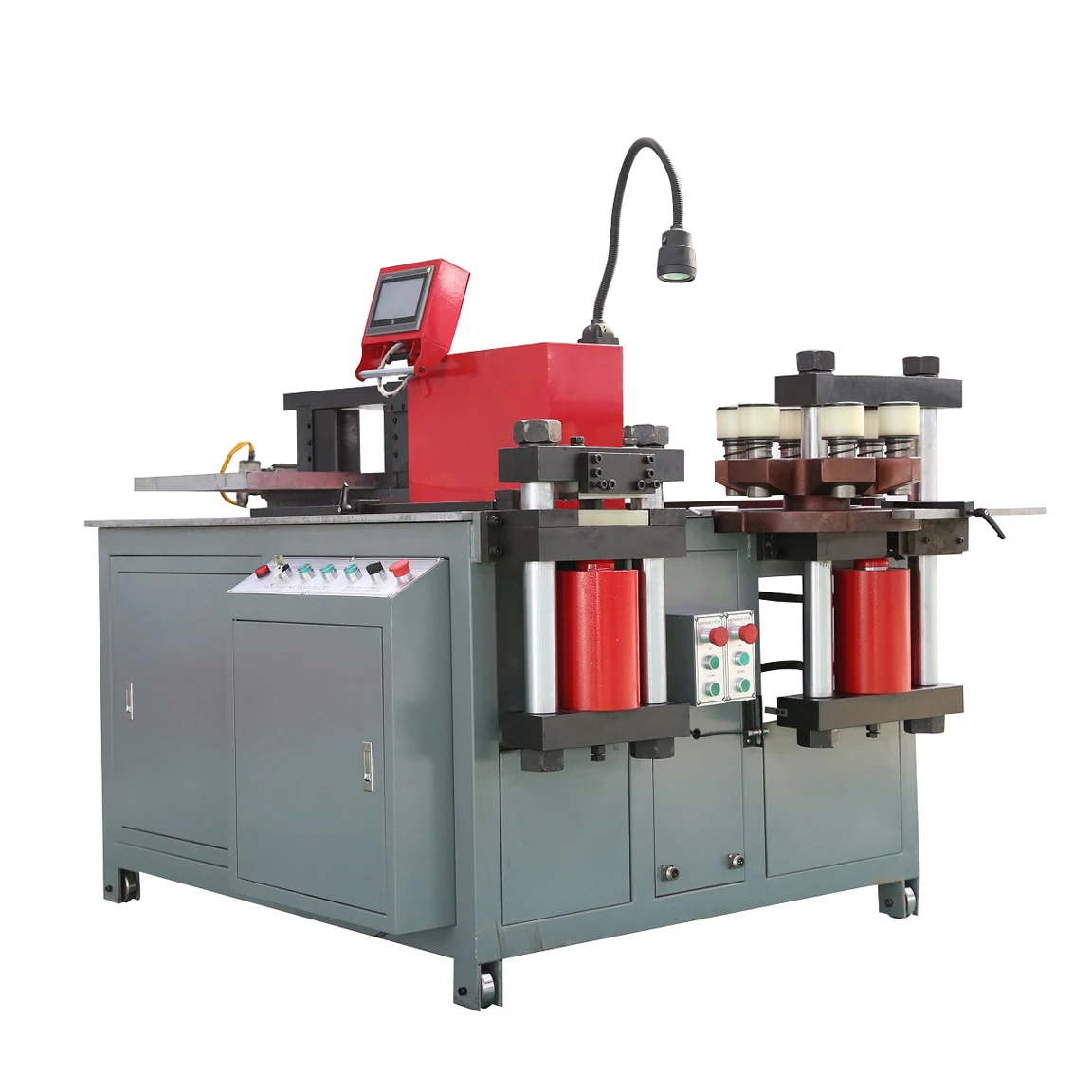

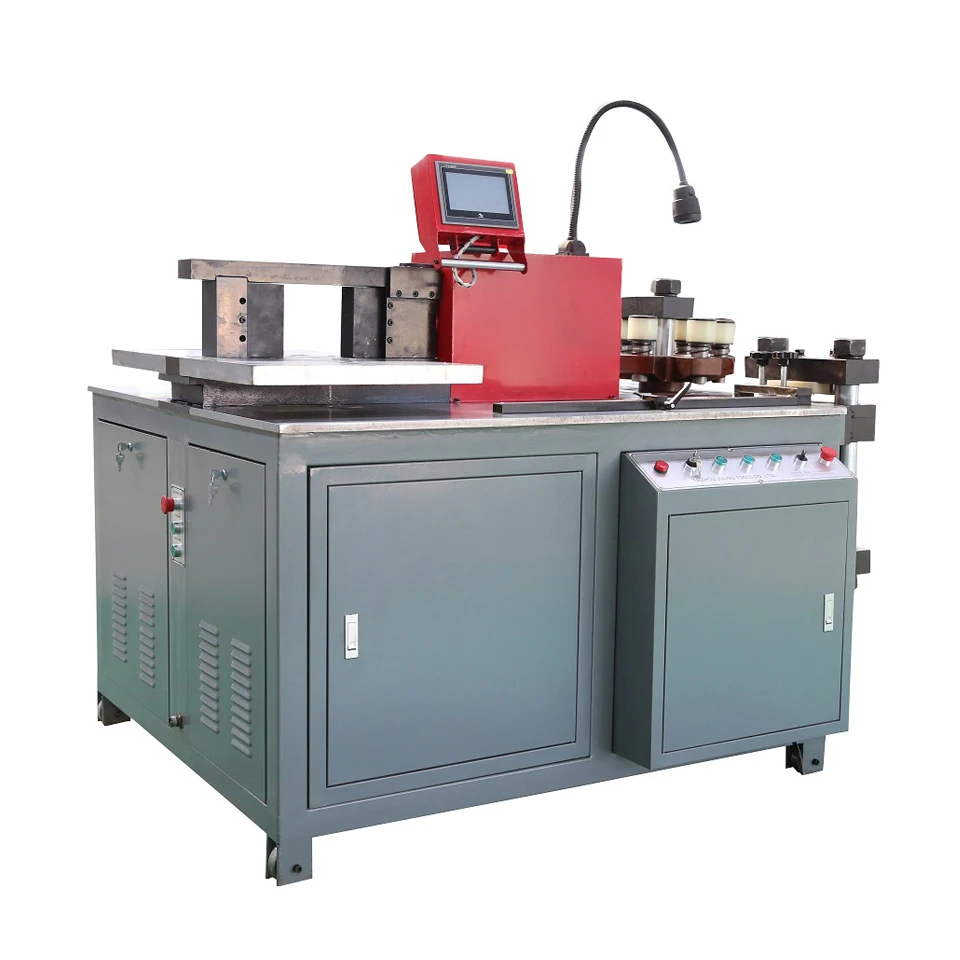

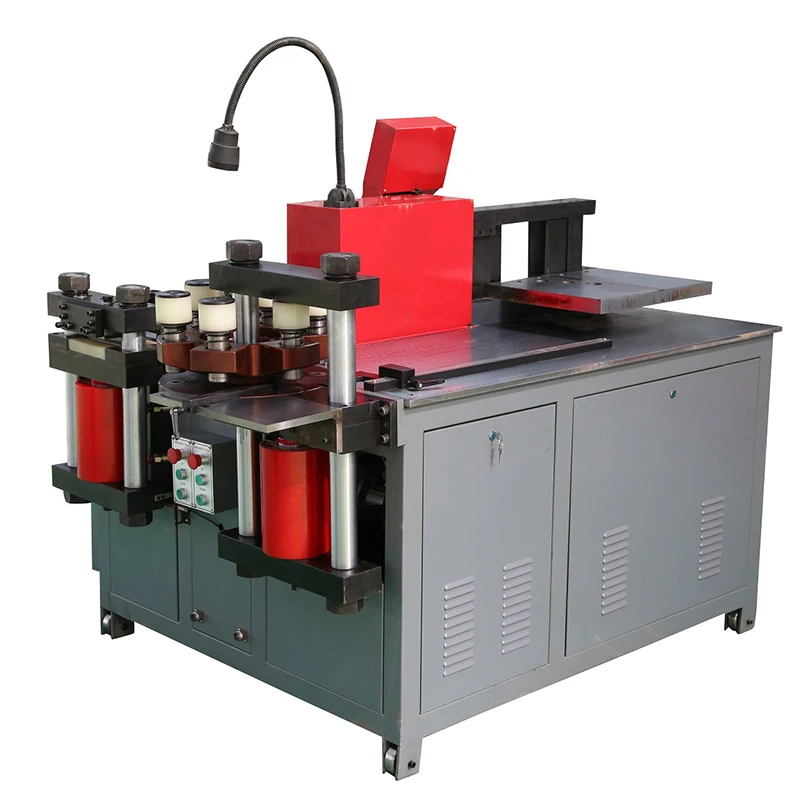

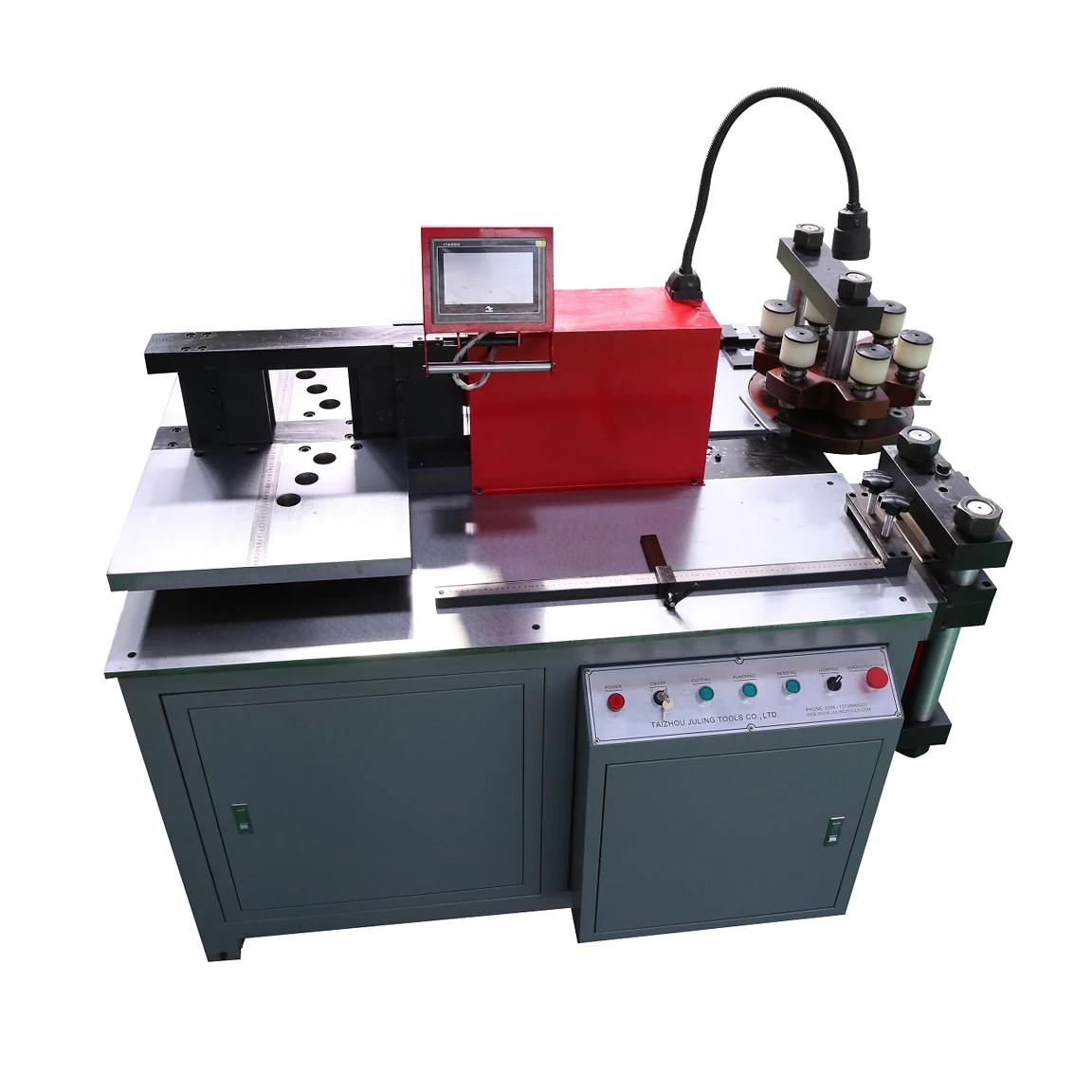

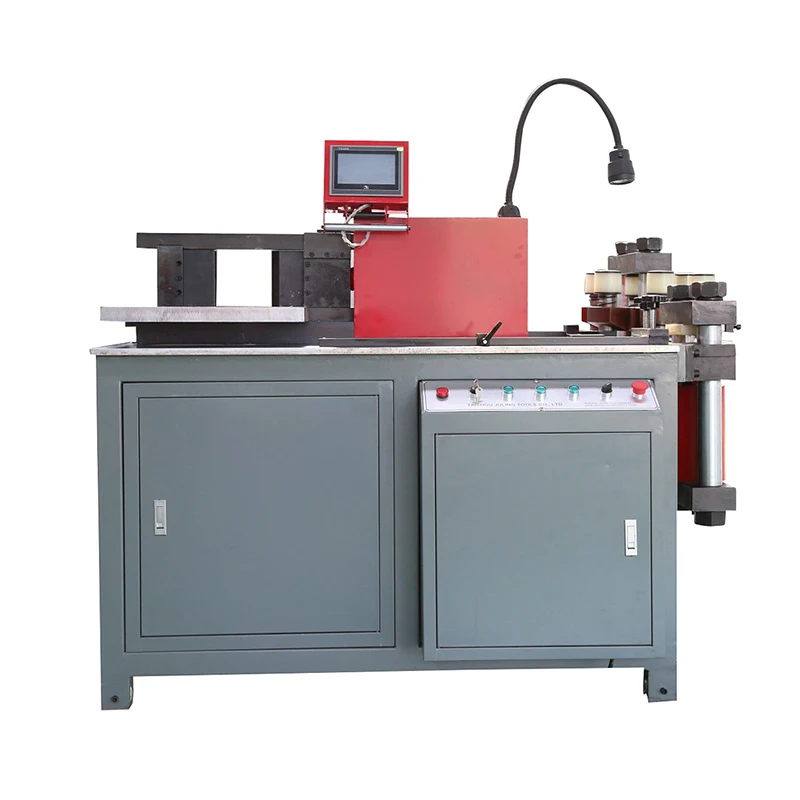

Busbar punching cutting bending shearing machine

Busbar punching cutting bending shearing machine

Category: >>>
Supplier: Taizhou Juling Tools Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

busbar punching cutting and bending machine

10years experience for busbar machine

Features:

1.Low maintenance, longer service life.

2.The cut surface is smooth and neat, no droop, no burrs, no waste.

3.Rotary turret punching unit installed 6pc (4pcs and 8pcs ) dies, less replacing, high efficiency.

4.It can punch cut and bend in the same time.

5.Contacted by PLC system, bending precision at ±1°,repeat precision at ±0.3°.

6.Easily to be moved with four casters.

7.Manual button and foot switch are optional.

8.Can customize the punching dies you need.

Function:

1.Bending at vertical and horizontal direction.
2.Punching for round and oblong hole.
3.Cutting busbar.
4.Special for embossing, knurling, twisting, cable joints pressing.

Detail Date

Function	Item	JL-200160	JL-200200	JL-200260
Punching	Max. Punching Force (KN)	300	500	800
	Punching Diameter Range (MM)	∅4.3-∅25	∅4.3-∅34	∅4.3-∅36
	Max. Thickness (MM)	12	16	20
	Max. Width (MM)	160	200	260
Shearing/Cutting	Max. Shearing Thickness (MM)	12	16	20
Shearing/Cutting	Max. Shearing Width (MM)	160	200	260
Vertical Bending	Max. Bending Force (KN)	300	500	800
	Max. Bending Thickness (MM)	12	16	20
	Max. Bending Width (MM)	160	200	260
Horizontal Bending	Max. Bending Width (MM)	120	120	120
Horizontal Bending	Max. Angle (Degree)	90°	90°	90°
CNC Precision	Bending Precision	±1°	±1°	±1°
CNC Precision	Repeat Bending Precision	±0.3°	±0.3°	±0.3°
Out Dimension	MM	175013501420	192015501500	215017501500
Power	KW	3*4kw	3*5.5kw	3*5.5kw
Weight	KG	1400	1650	1970
