Product Overview

Description

Product Description

 Fundamental:

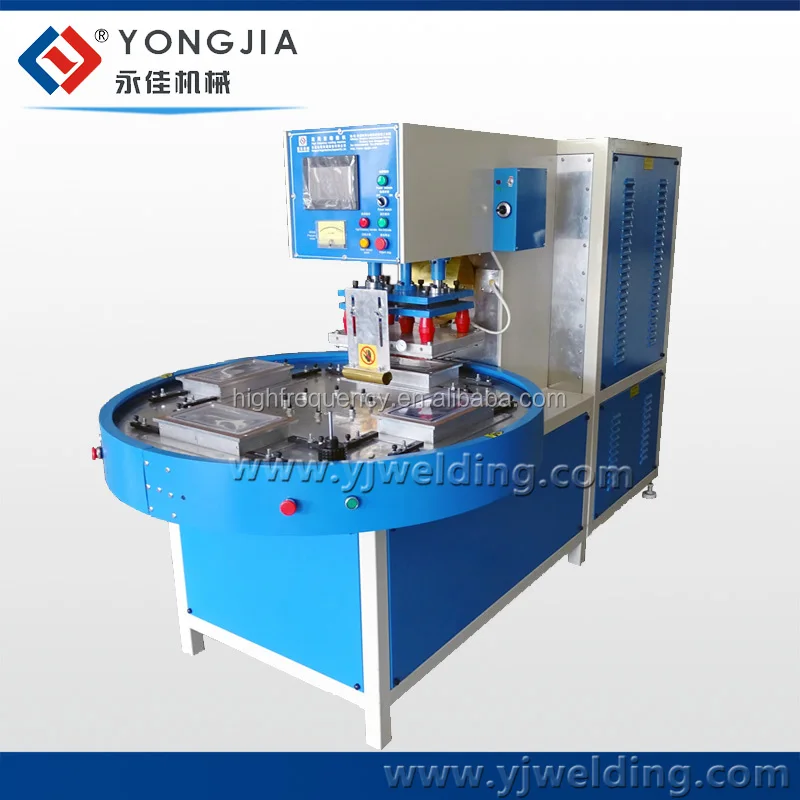

Automatic round table blister sealing machine is to use the principle of high-frequency welding, the work piece is heated by mold, plastic welding reach with plastic, plastic with paper cards, paper or plastic cards with contact paper card, paper cards usually are welded when the printed surface is coated with a layer of PVC or APET, PETG glue under the effect of high-frequency melt into one.

SPECIFICATIONS FOR TOOTHBRUSH BLISTER PACKING MACHINE
Model
YJ-ZD-8000W
                              Description
High frequency
8000W
HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded.

This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate.

Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Power voltage
380V   50/60HZ
High frequency
27.12MHZ
Input power
15KVA
Rectifier
diode
Oscillation
7T69RB
Max pressure
500kg
Electrode interval
200mm
Work area
150 mm
Upper electrode size
300*400mm
Under electrode size
350*450mm
Welding time
0-10s

Main Features

1):Anti-spark Protection
When spark occurs, the high sensitiveness spark protects electric system, cutting high frequency power immediately toprotect mold and material.


2):Jamming prevention device
Equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc

3):Safety device
When the current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by disoperation is also prevented.

4):High power welder
Using a special designed mechanism, the maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.

5):Special protection circuit
The selectable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out.

6):Easily adjustable tuner
Output power can be adjusted at the tuner according to electrode size and material thickness. In addition,othercontrol devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.

Sample
Certifications
Detailed Images

Machine Parts

Name: Anti-spark Protection


When spark occurs, the high sensitiveness spark protects electric system, cutting high frequency power immediately toprotect mold and material.

Main Features

Name: One-time forming oscillation bucket
  One-time forming with thicker metal and also strengthening rib added to protect the oscillation device.

Machine Parts

Name: plc controlled
A high degree of automation PLC + HMI, convenient parameter settings.

Output power can be adjusted according to different size and thickness, and also with special control device and electronic circuit which can highly reduce welding time and raise the production speed.

Main Features

Name: Anti-collision Rubber Brick

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 256 (W) * 289 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
