high quality CE ETL ROHS listed 200w 24v halogen lamp power supply
- Category: >>>
- Supplier: Quanzhou Smarts Electronic & Technology Co. Ltd.
Share on (60693556891):
Product Overview
Description

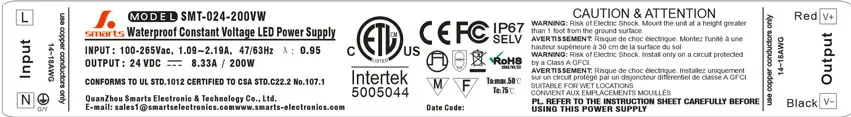

high quality CE ETL ROHS listed 200w 24v halogen lamp power supply
Product Description
| Label |
 |
| Description |
|
Features
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Integrity protection,over loading, over voltage ,over current.
- 8Hrs and 100% full load burn-in test.
Safety
1.Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
2.Withstand Voltage : I/P-O/P: 3000KVAC
3.Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Environment
1.Working Temperature : -25 ~ +50°C
2.Working Humidity : 20 ~ 90% RH non-condensing
3.Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4.TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5.Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Product parameters
Model | Input voltage(AC V) | Working Frequency | Output voltage | Output Current | Output power(DC W) | Working Temp. | Protection grade |
SMT-012-200VW | 90-135vAC / 170-265vAC | 47~63HZ | 12 | 16.67A | 200W | -25~50°C | IP67 |
SMT-024-200VW | 90-135vAC / 170-265vAC | 47~63HZ | 24 | 8.33A | 200W | -25~50°C | IP67 |
| SMT-012-300VW | 170-265vAC | 47~63HZ | 12 | 25.00A | 300W | -25~50°C | IP67 |
SMT-024-300VW |
170-265vAC | 47~63HZ | 24 | 12.5A | 300W | -25~50°C | IP67 |
Hot Products
| Hot Products |
What kind of LED Driver/Power Supply Smarts Electronics do?
We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.
