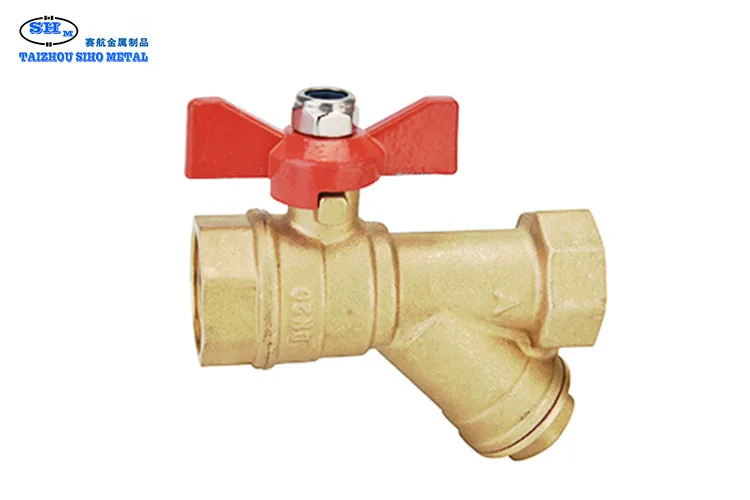

Brass Ball Valve Standard Water Brass Color Safety Manual Medium Temperature General Rubber OEM with Ss Filter 1/4' 4' CN;ZHE

Share on (60693558430):


Price:RUB 153.03

Quantity:


Product Overview

Description

Product Description






Product NameBrass valve
Valve typeRubber
Connection EndThread
Working pressure1.0-1.6Mpa (10-25bar)
Materialbrass
ColorBrass color and nickel plated
StandardNPT
GradeIso9001:2008
BradeSIHO
ThreadBSP,NPT
Field of ApplicationWater, oil and gas
Work Temperature-20℃ to 120℃
GradeA
Size1/4"-4"
Service7*24 Hours
PackagingStandard export package




Quality ControlThe production follow the valve standard strictly
We test each piece valve during the production, quality control in forge, machine, assemble and all the process in order to guarantee the quality.
Forge Process1. Automatic forging machine
2. Constant temperature
3. 100% Anneal
Brass TestEvery batch of test 100%

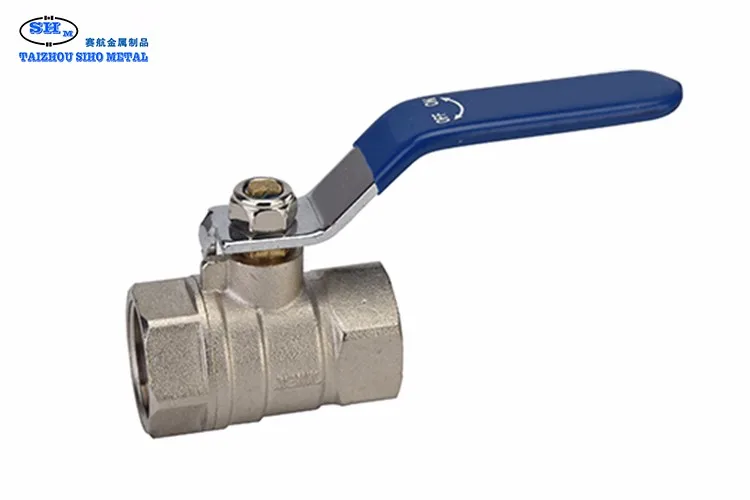

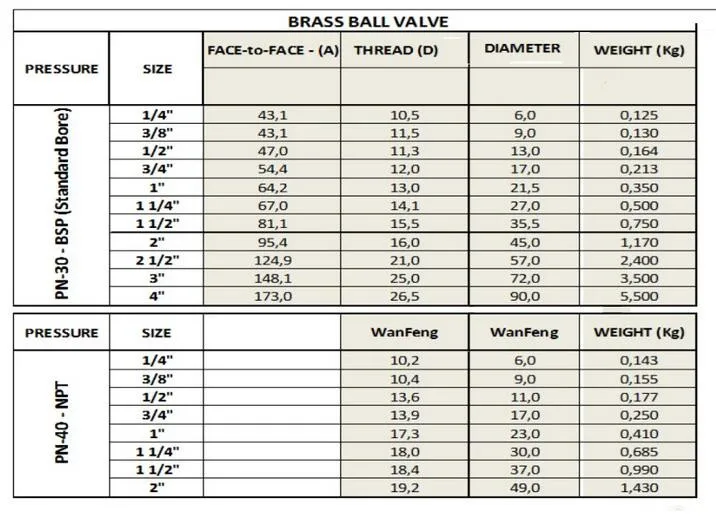

QQ20161129160314.jpg f.jpg

STEP:
   1.Ensure that the ends pipe is well defined and without scraps. the thead with use of a thread sealant will give a pressure tight seal.
   2.The connection pips must be placed on the same axis and should be psitioned straight.These must be carefully aligned and the conrrect distance .
   3.The pipes must be sustained as to avoid bending,length of the thread must be followed with table 1.
   4.The spanner or wrench should be paced on the right positions before assembly,with pipe secure,rotate valve,grip on flats next to joint being made.
   5.Assemble pipe into valve to hand tight then tighten by the spanner or wrench.
