Product Overview

Description

Gprs Gsm Sms Telemetry Data Logger IO Module remote terminal unit Alarm Modem Rtu

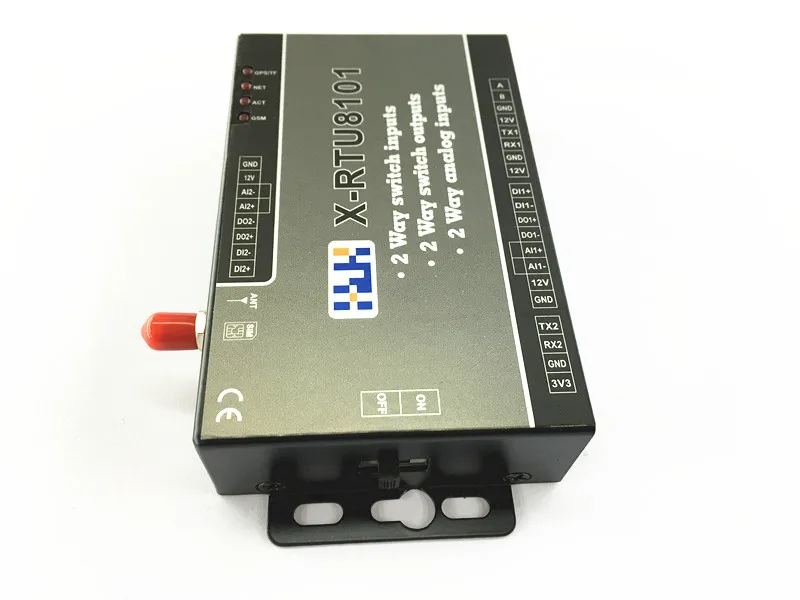

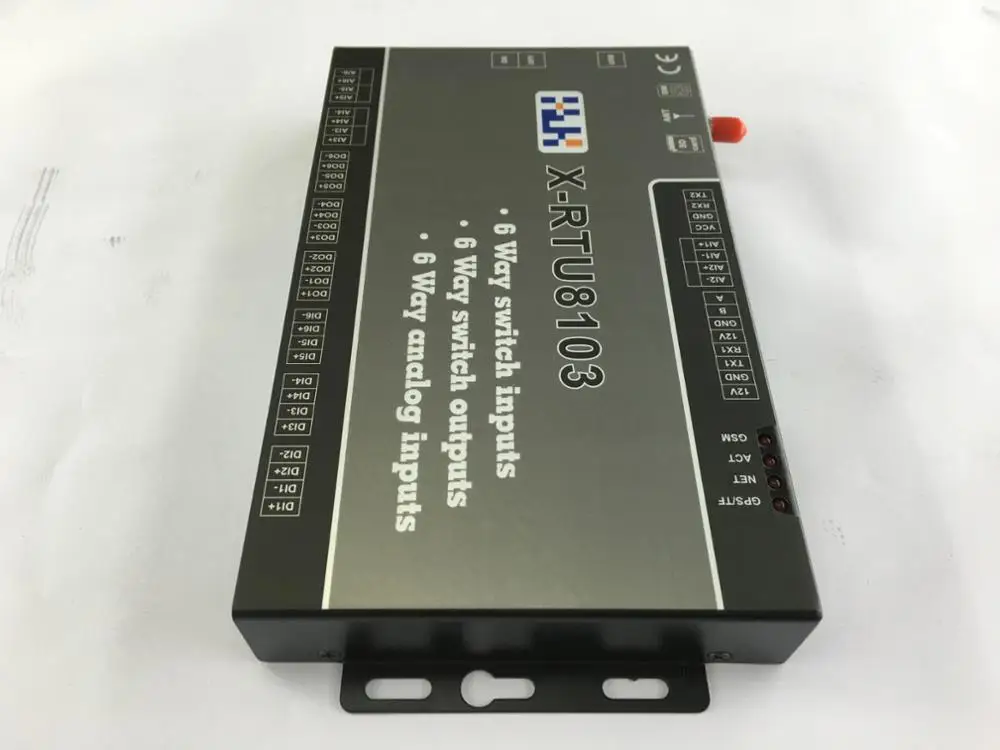

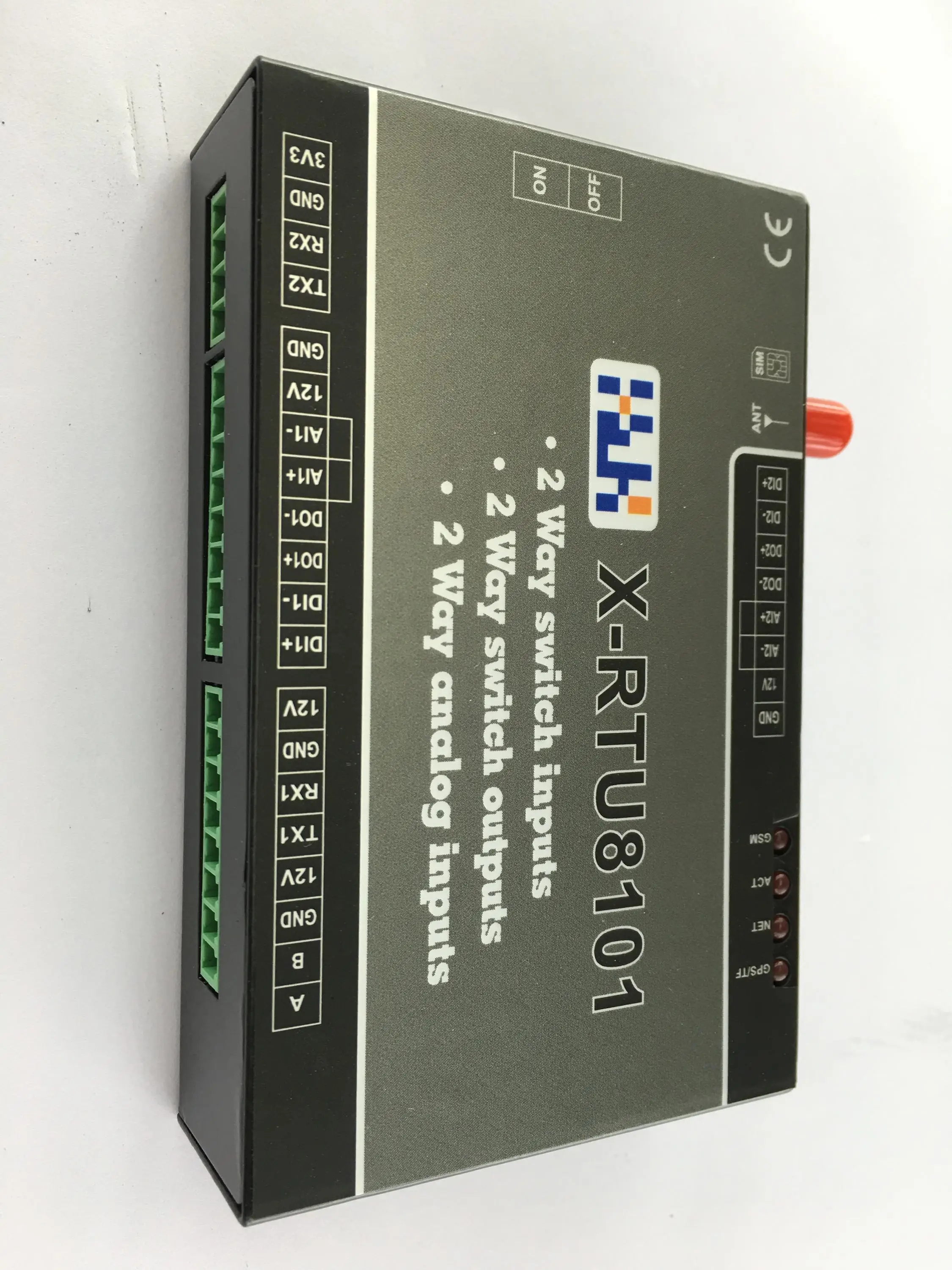

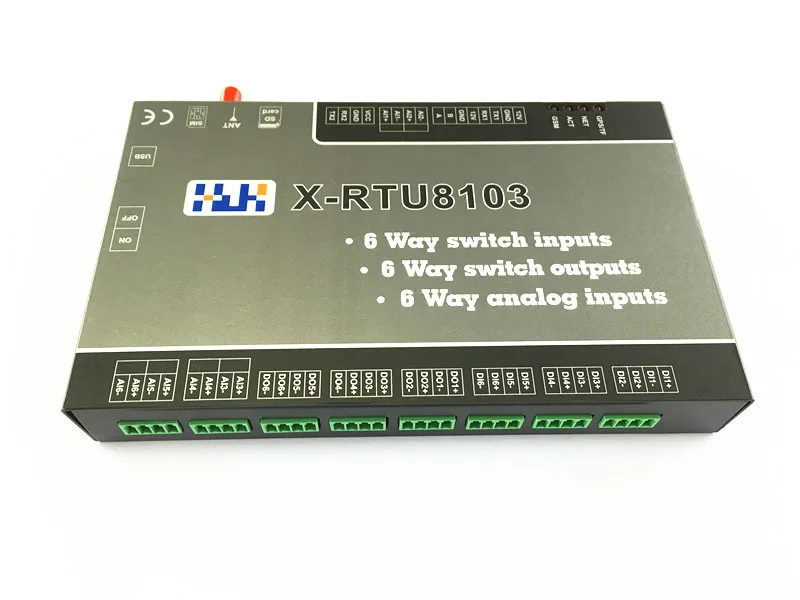

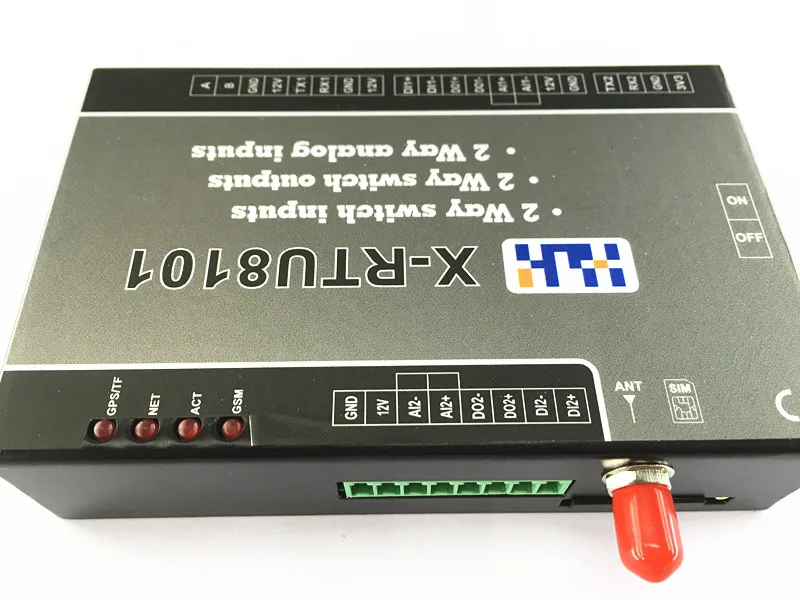

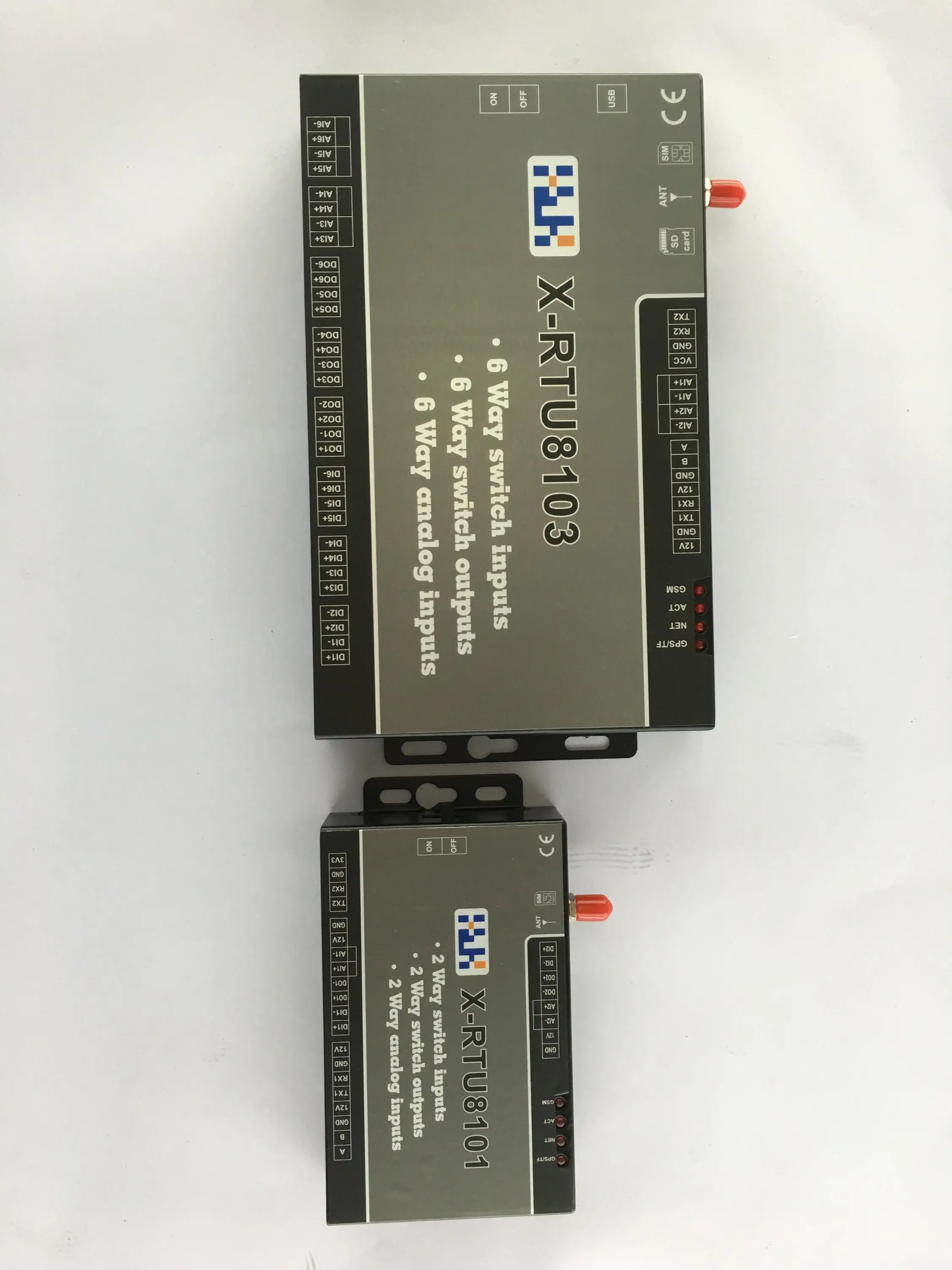

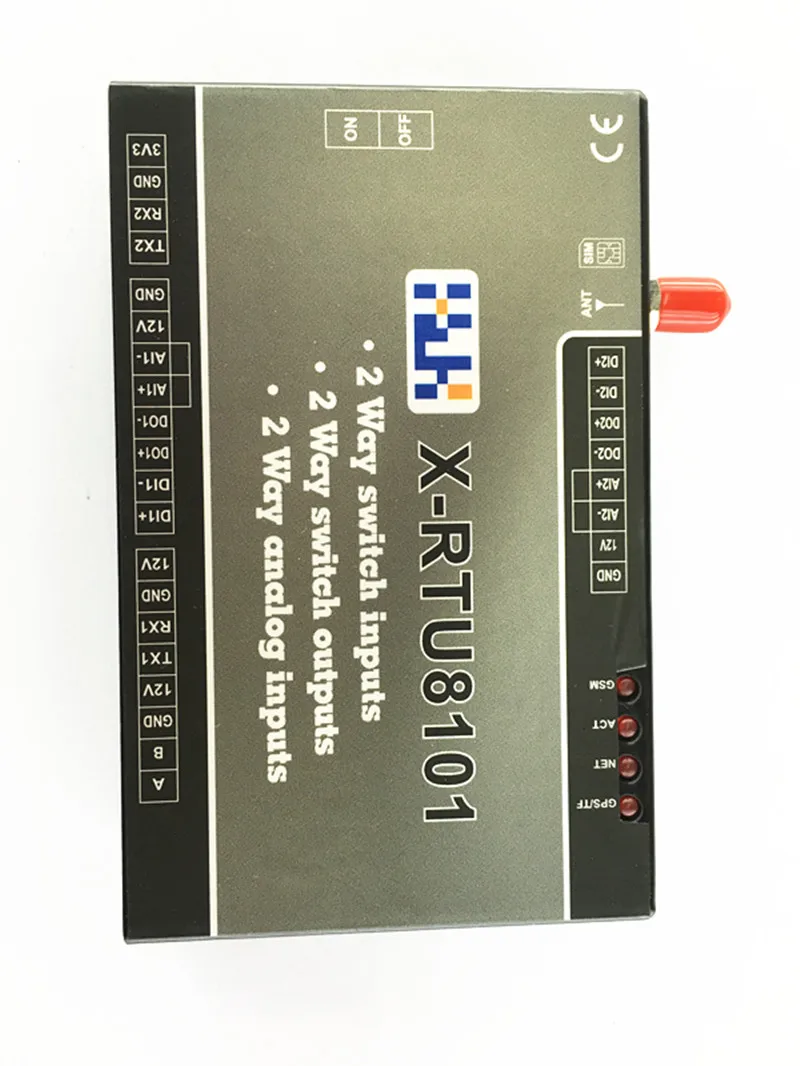

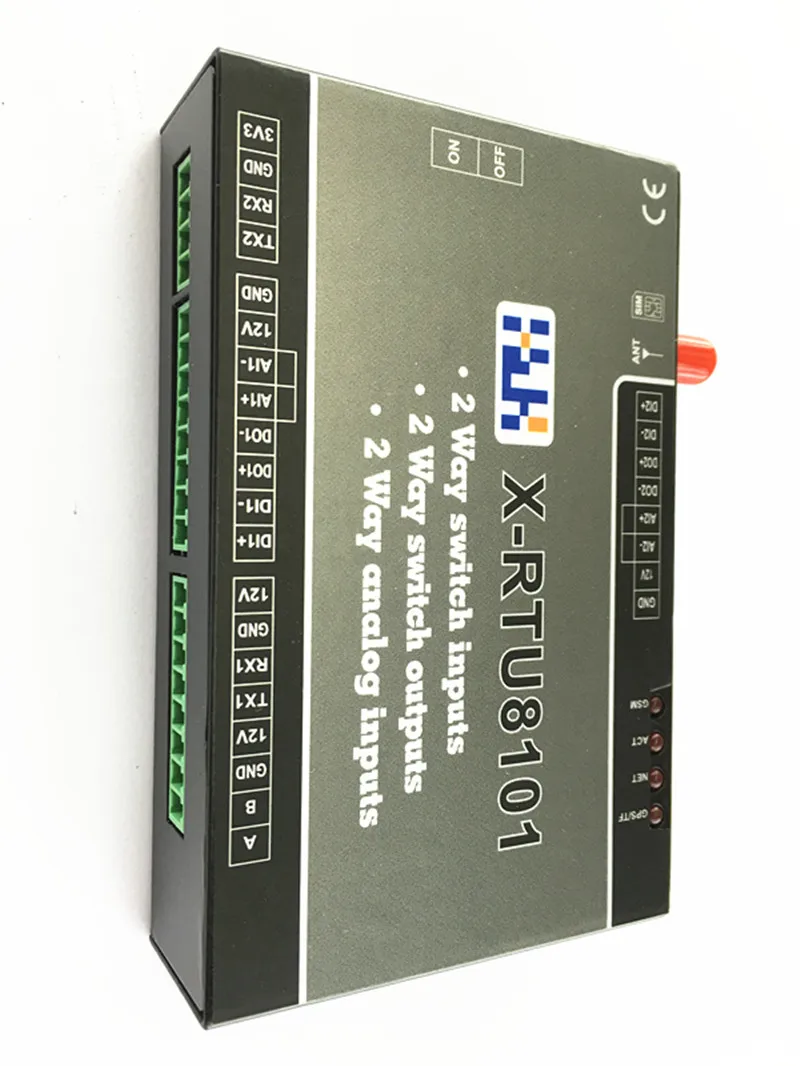

X-RTU Wireless Remote Terminal Series is an high-performance measurement and control device that integrated with analog and digital signal acquisition, relay control output and wireless data communications, can directly access to standard analog Signal that the transmitter output a variety of level signal, dry contact, pulse signals, etc., can be used as industrial Modbus-RTU protocol master station that Modbus-RTU protocol to connect a variety of instrumentation (custom).as the best means of implementing wireless monitoring and control of Small-scale process signals

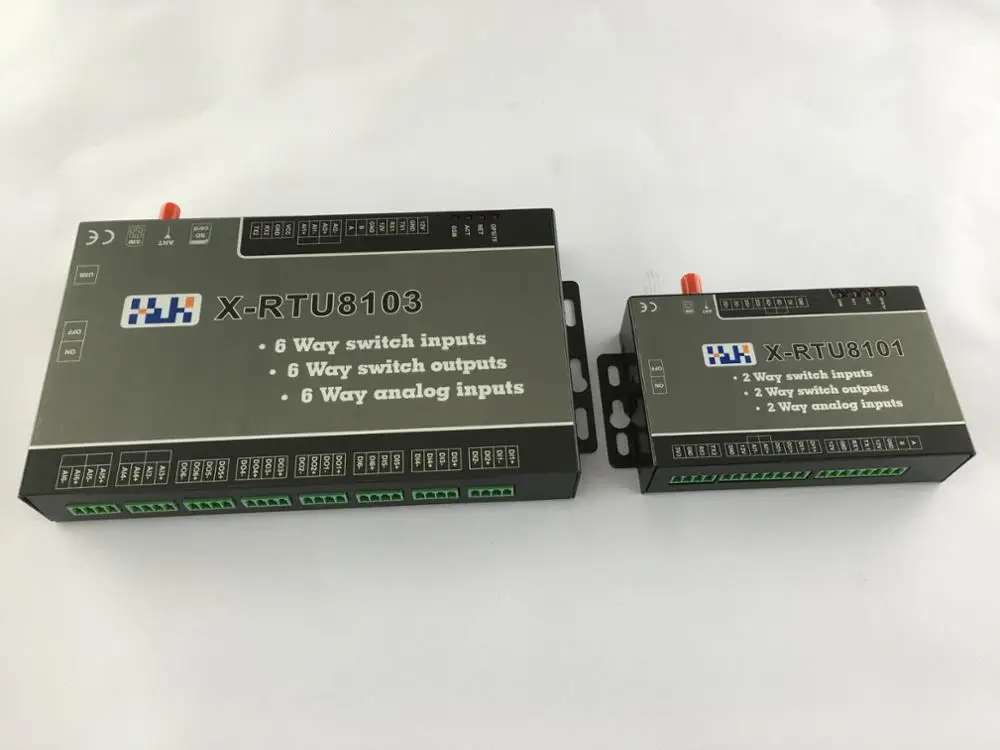

There are many models for M2M application

1:simple model for simple solution

Send sms to on/off relay to control machine

2:powerful model for advanced solution

For Remote control , data acquisition , Machines monitor online

 Detail information

Interface	numbers	Features	Patameters
I/O Interface	DI(digital input)6	input status monitor can be configured as pulsecounter input	Dry contact(NO or NC)or 0~3.3v Level trigger Counting frequency:10Hz
	DO(digital output)6	remote or local event drive DO ON/OFF/Pulse Remember status when power lost	Output drive voltage=power supply DC voltage Drive current≤500m
	AI(Analog input)6	Receive 4-20mA(option:0-5v)signal Covert signal to actual measure valuesupport calibrate can set parameters for collect signal , alarm, data communicatio can detect connect or disconnect	Dual digital filters for anti-noise Sampling frequency:33Hz 10-bit precision
Communication Interface	RS232/RS485	Connect PC to configure Support RS232 and TCP 2-way data transparent transmission	Communication rate:115200
