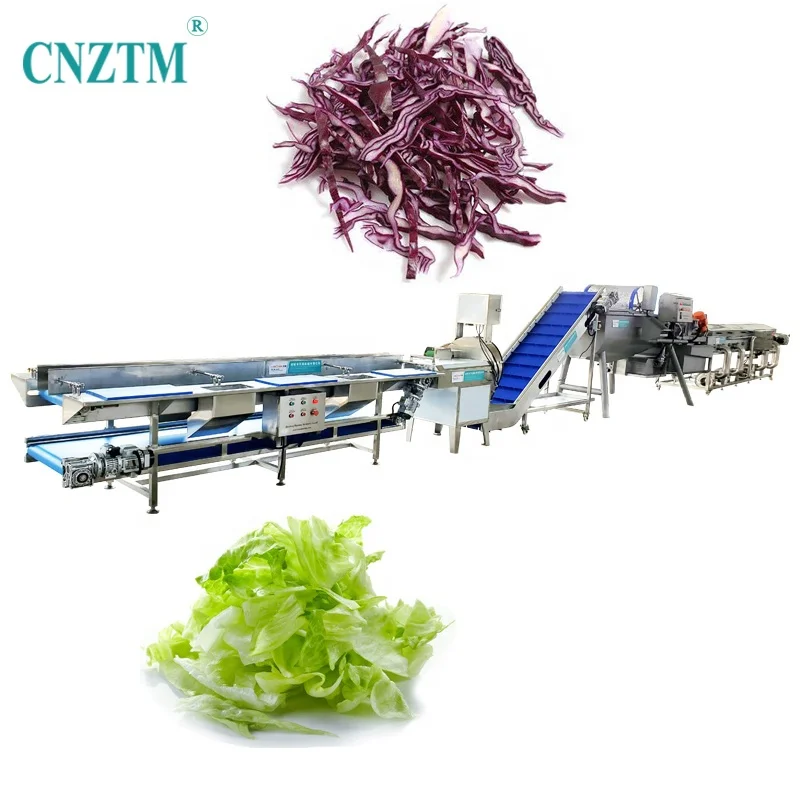

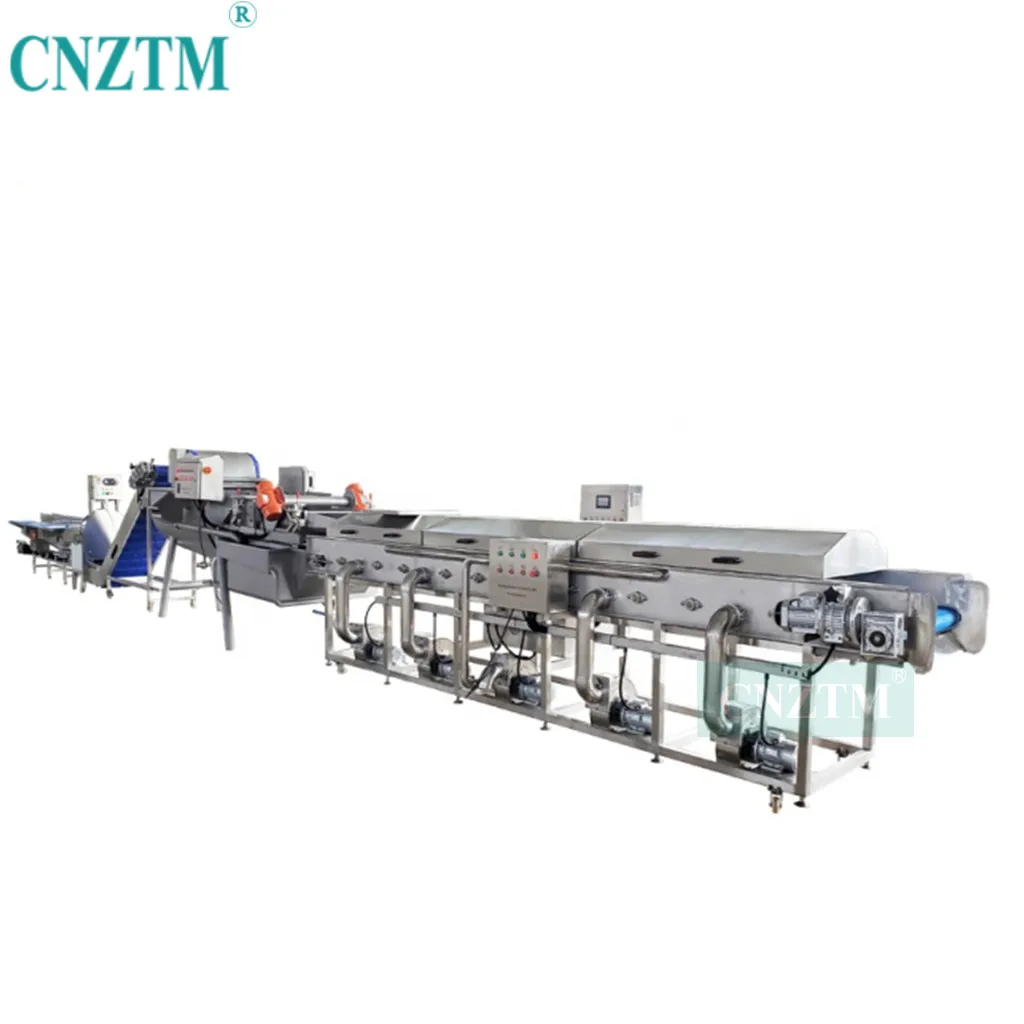

Industrial Automatic Vegetable Washing Cutting Drying Packing Processing line for Making frozen and fresh vegetables
- Category: >>>
- Supplier: Zhucheng Tianshun Machinery Co. Ltd.
Share on (60693613157):
Product Overview
Description
Products Introduction

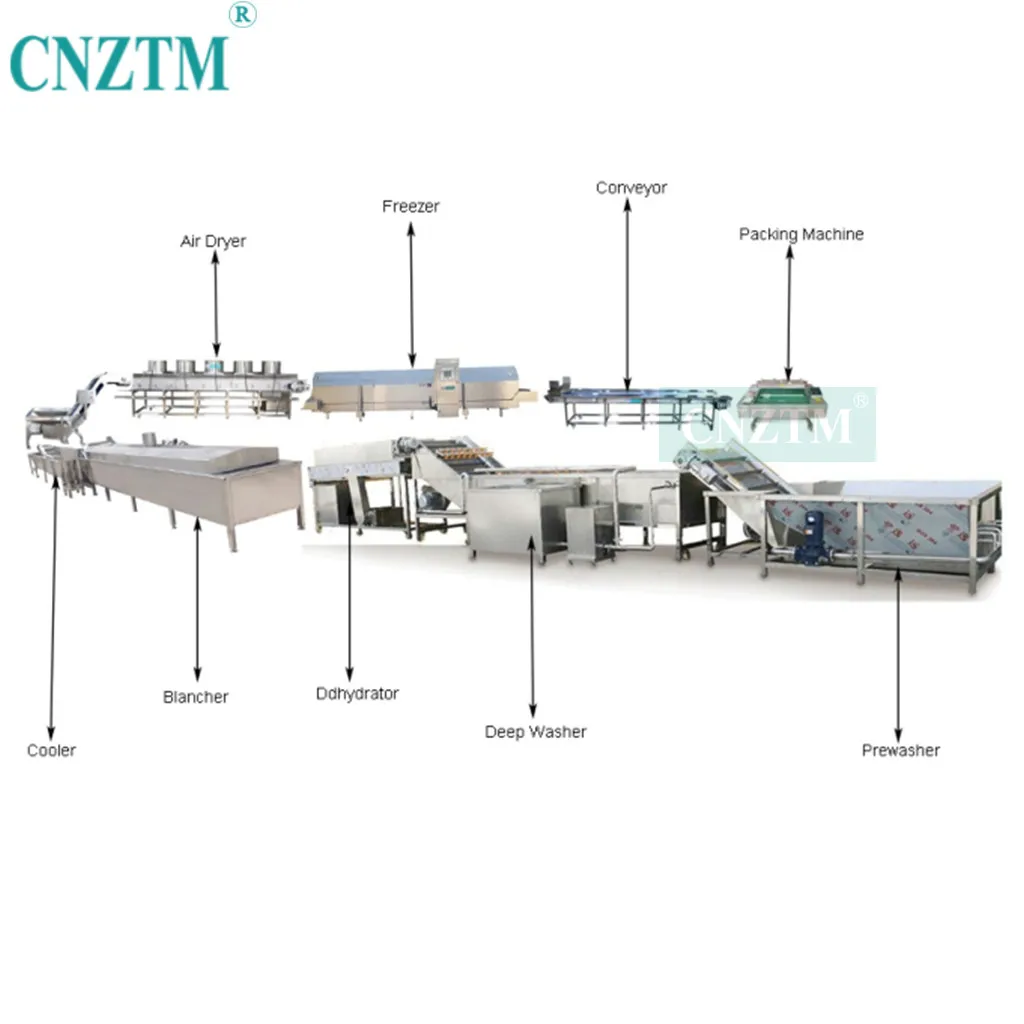

Fruit and vegetable cleaning processing machine production line

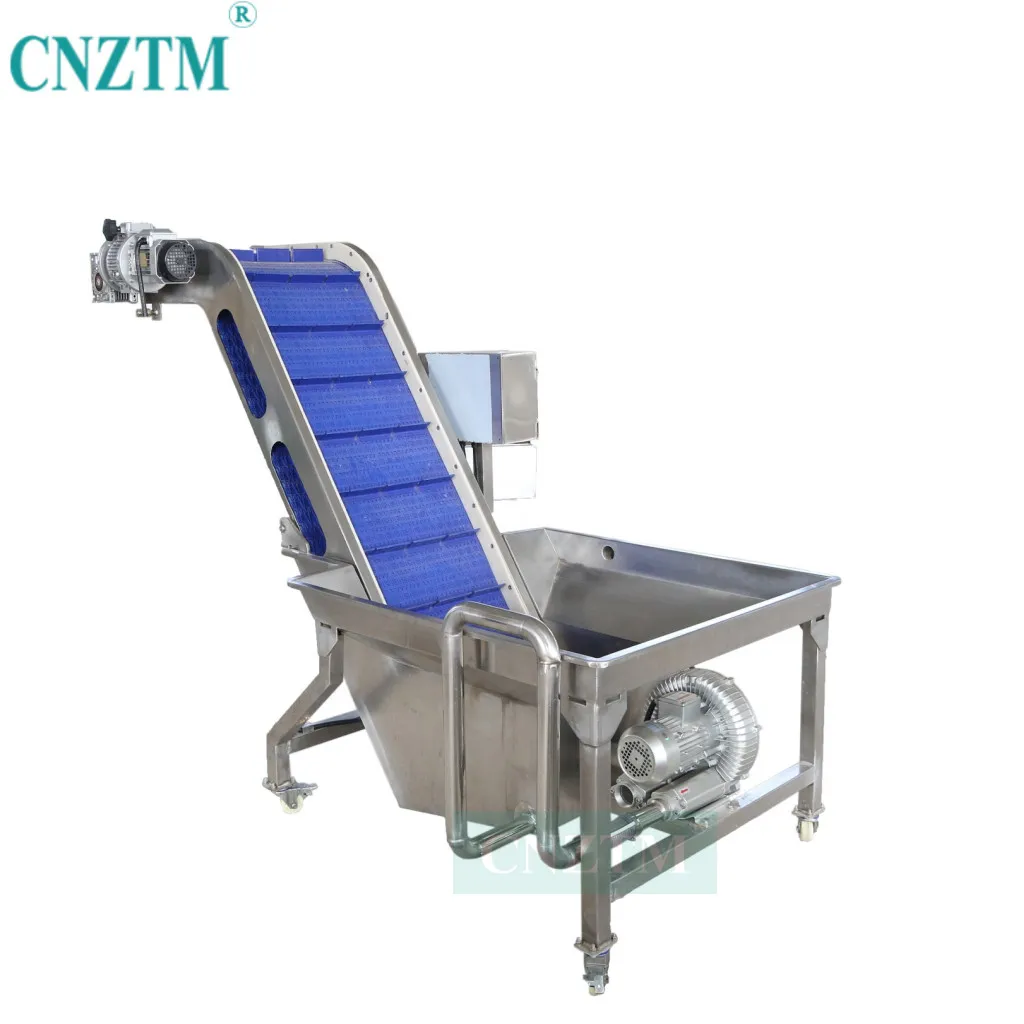

1. Bubble cleaner is mainly used for meat, fruits and melons, fresh vegetables, aquatic products, salted vegetables, fungi, seafood, etc., such as spinach, cabbage, corn, seaweed, etc., mainly used in large and medium-sized food processing plants, vegetable processing plants and other fields
2. The equipment is equipped with automatic continuous cleaning, bubbling generated by air pump and ozone generated by ozone generator to clean and effectively separate the sediment, impurities and residual drugs stuck on the materials
3. The whole machine is made of food grade stainless steel, which is durable and meets international standards
4. Automatic lifting, cleaning and maintenance are simple
1. Bubble cleaner is mainly used for meat, fruits and melons, fresh vegetables, aquatic products, salted vegetables, fungi, seafood, etc., such as spinach, cabbage, corn, seaweed, etc., mainly used in large and medium-sized food processing plants, vegetable processing plants and other fields
2. The equipment is equipped with automatic continuous cleaning, bubbling generated by air pump and ozone generated by ozone generator to clean and effectively separate the sediment, impurities and residual drugs stuck on the materials
3. The whole machine is made of food grade stainless steel, which is durable and meets international standards
4. Automatic lifting, cleaning and maintenance are simple
If you have any questions about the device, please consult an online engineer
Technical Index
Item | Value |
Model | TSSC-L500 |
Overal Size | Can be customized |
Working Type | Full automatic |
Power | 30-50kw |
Function | Salad vegetable and fruit cutting,washing and dehyrating |

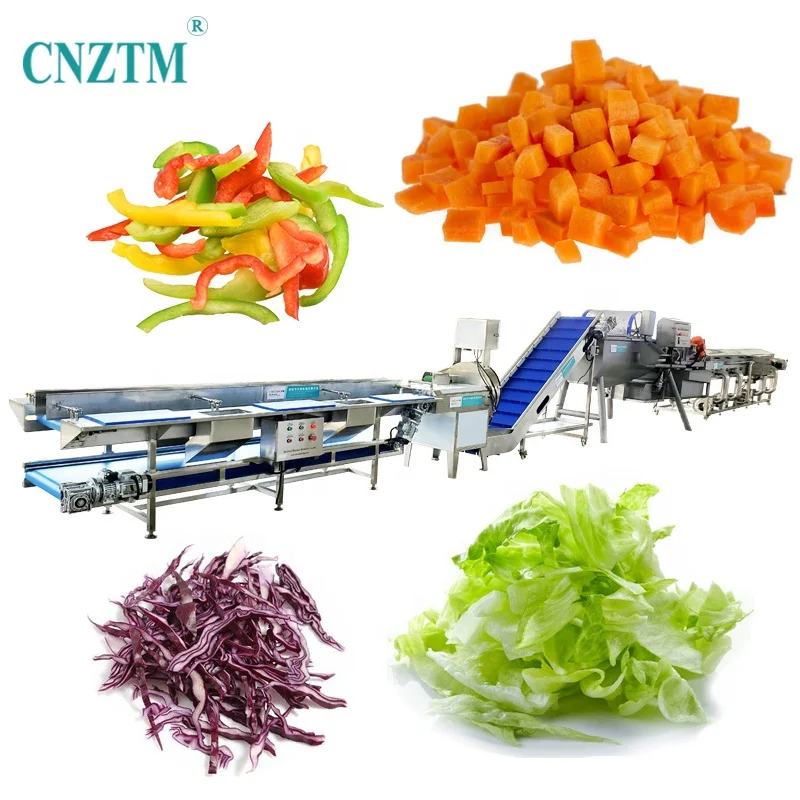

Application Range | Cabbage, Tomato,onion,lettuce,spinach, Beetroot,potato dices,carrot dices,eggplant dices,etc. |
Material | SUS 304 stainless steel |
Certificate | CE |
Details

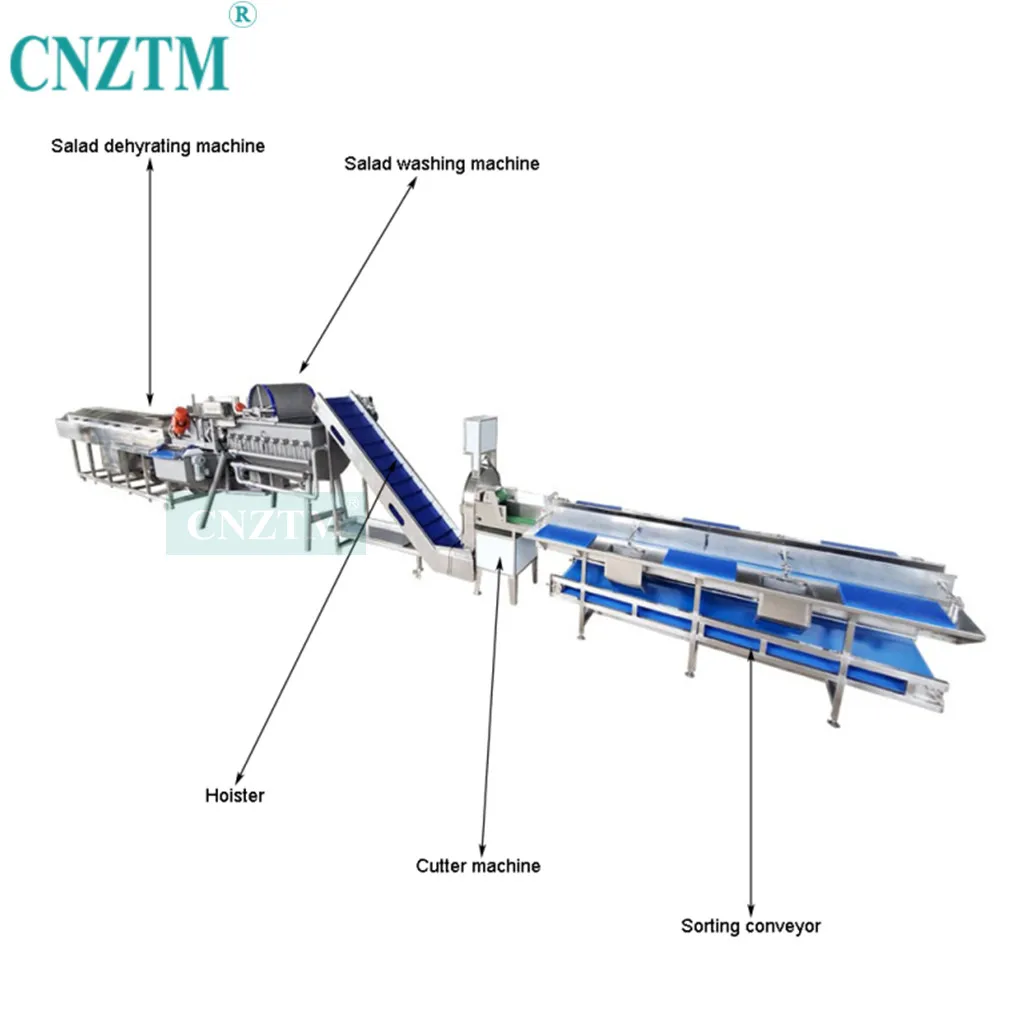

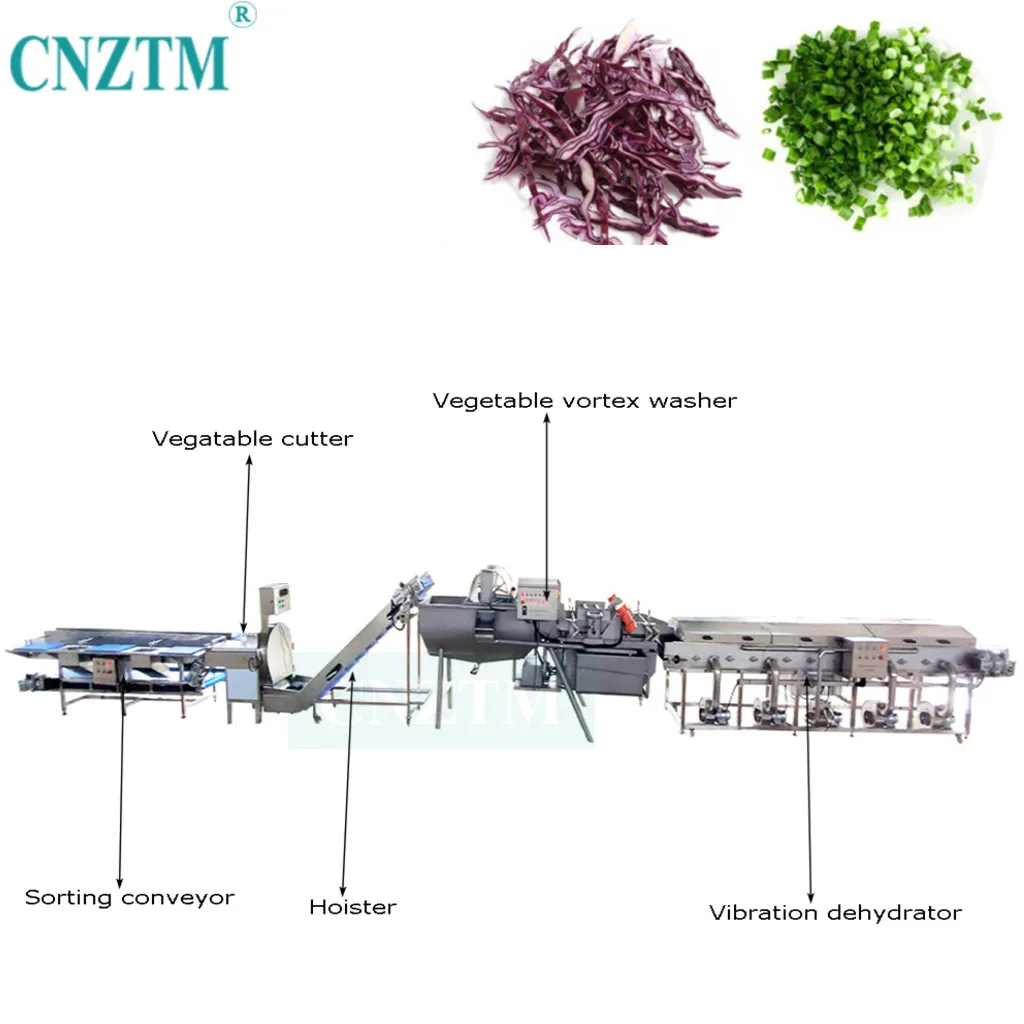

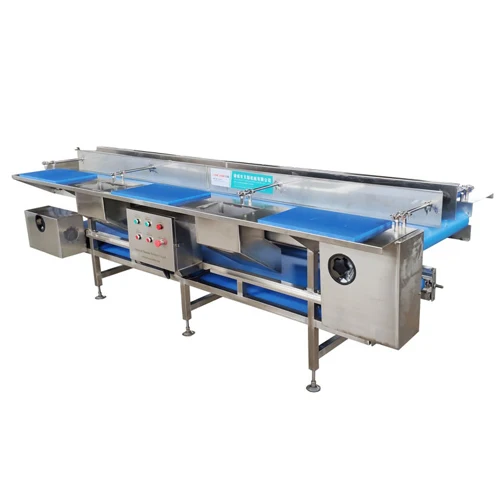

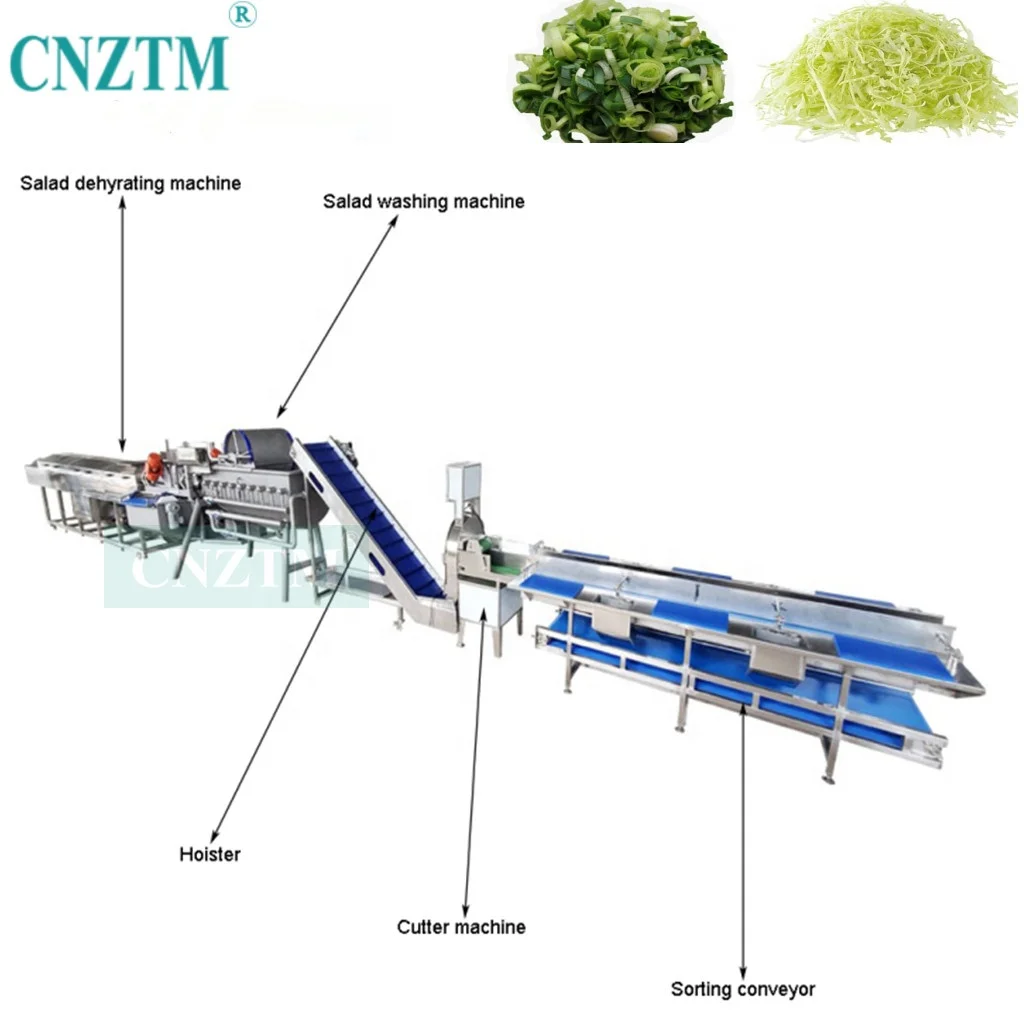

Sorting Conveyor
The sorting conveyor is made of stainless steel and PU plastic.
Workers can select the bad vegetables and remove them in advance.

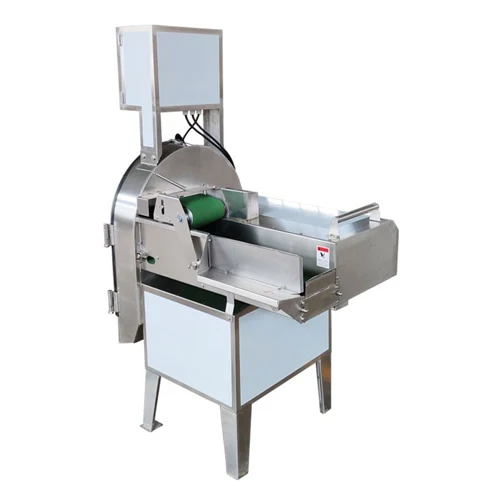

Vegetable Belt Cutting Machine
The industrial vegetable belt cutting machine is especially designed for small- and medium sized vegetable processing companies. The is well suited for almost all kinds of vegetables and salads and has a capacity up to 1000 kg/h. Cutting sizes and other options can easily be adjusted on the touch screen of the machine.
Hoister
Made of food grade PU material,can transport the cutted vegetables to the next process stage, is an important equipment which
connects two processing stages.
The height and length can be customized according to your situation.

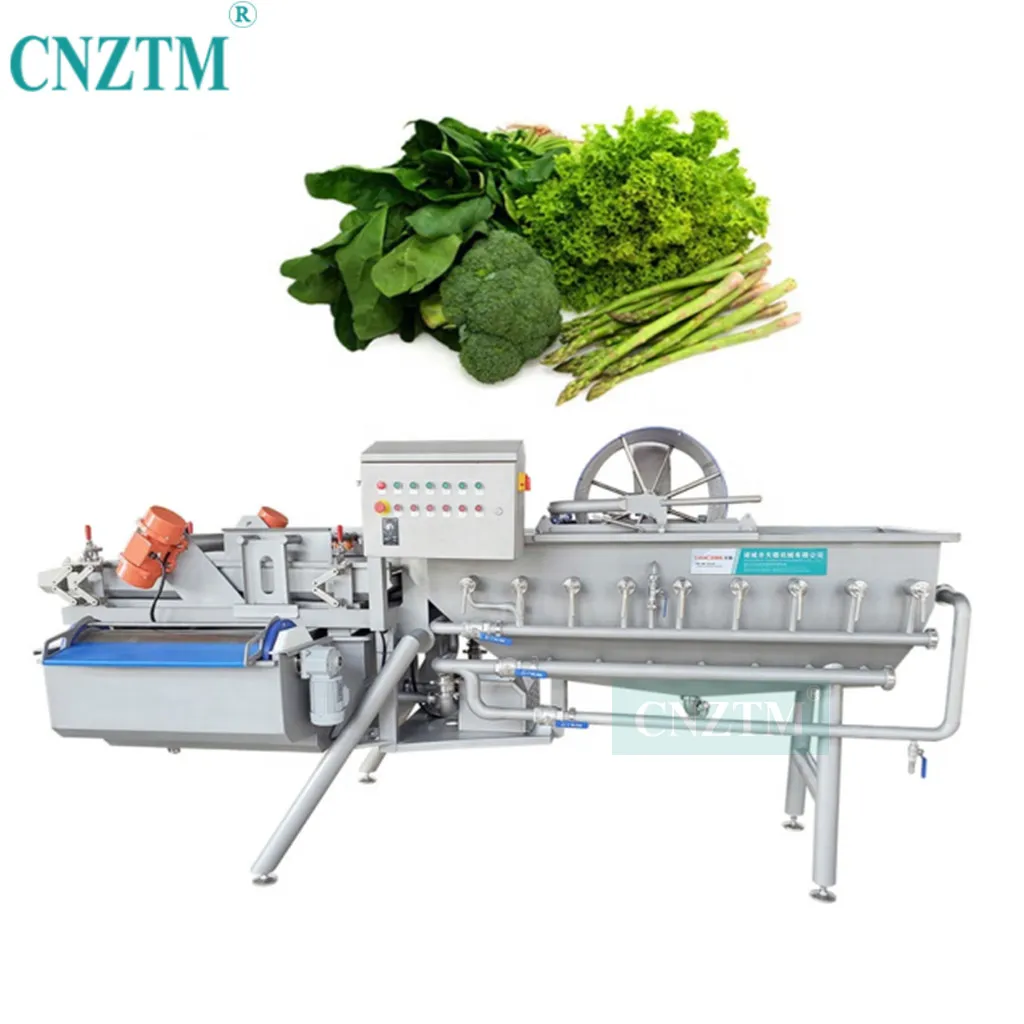

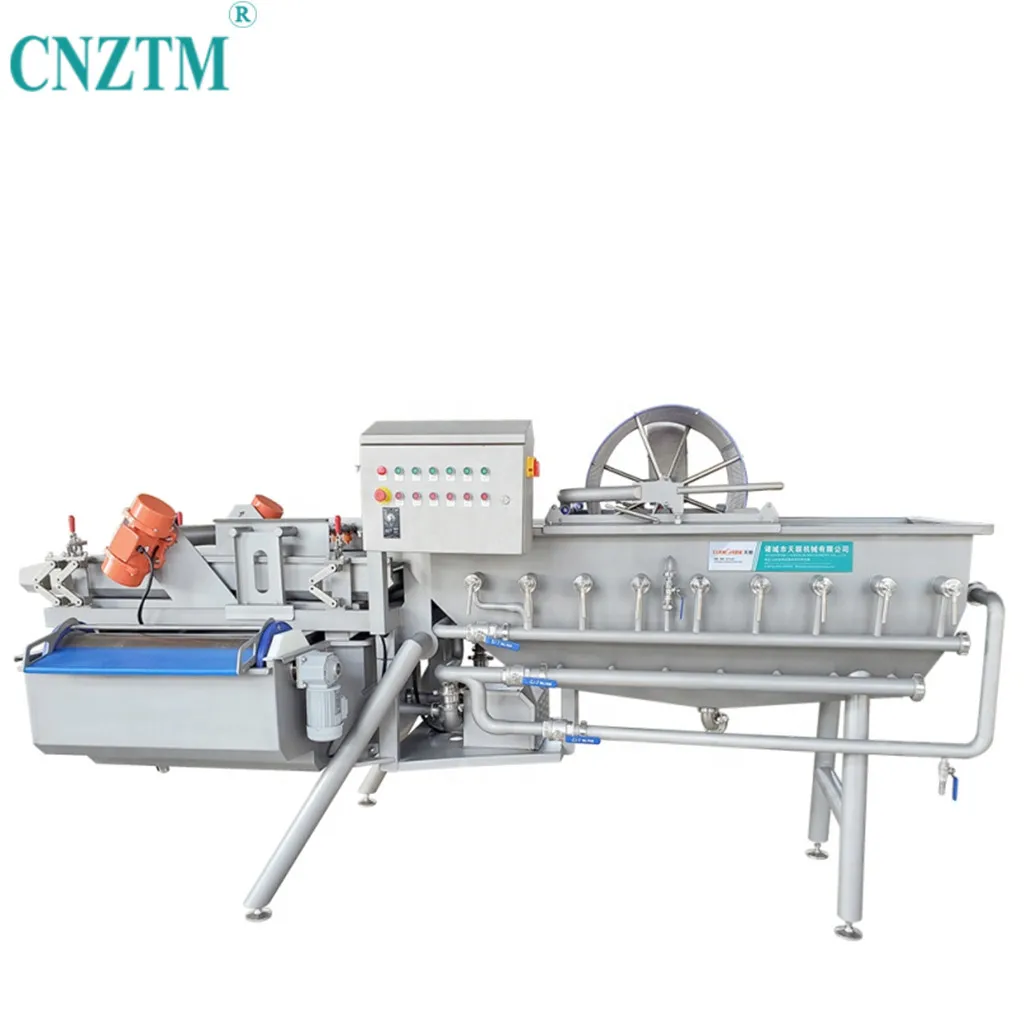

fruit and veget washing machin
The vegetable washing machine is designed for small and medium-sized vegetable processing companies. This machine perfectly suits with the belt cutting machine , the conveyor belt and the centrifugal dryer in a complete vegetable processing line. The Vegetable Washing Machine comes standard with a fly catcher. The vegetables are either transported to the washing tank of the by a conveyor belt or thrown in manually. In the washing tank, the vegetables are washed very intensively by a system of a powerful pump and water nozzles in both side walls (for circulation) and in the back headboard (for propulsion). The products are submerged by a big drum (flycatcher) as well. Due to the perforated flycatcher, insects (floating) will be filtered out and removed.

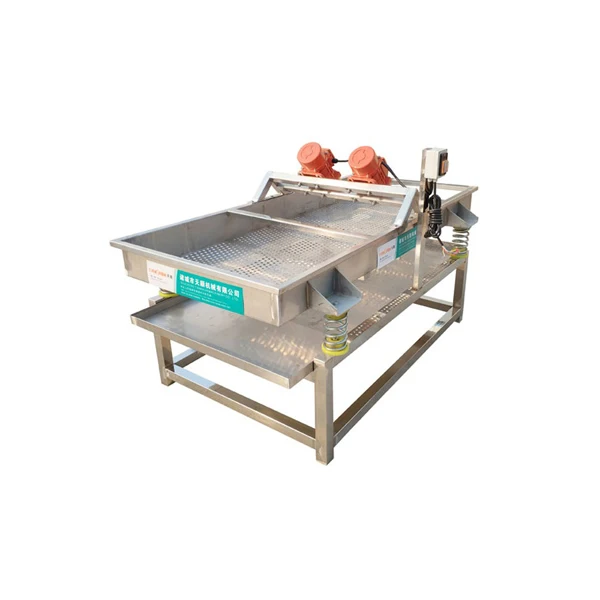

Subsequently the vegetables will be transported over the vibrating sieve. Here the vegetables get an extra ‘shower’ with clean water by the sprinklers. The overflowing water is removed through the perforated soil to the filter tank. All the sand and vegetable leftovers are filtered out through the standard mounted fine mesh drum filter, whereupon the water is recycled to the washing tank. The filtered waste can be collected under the drum filter in a waste bin.

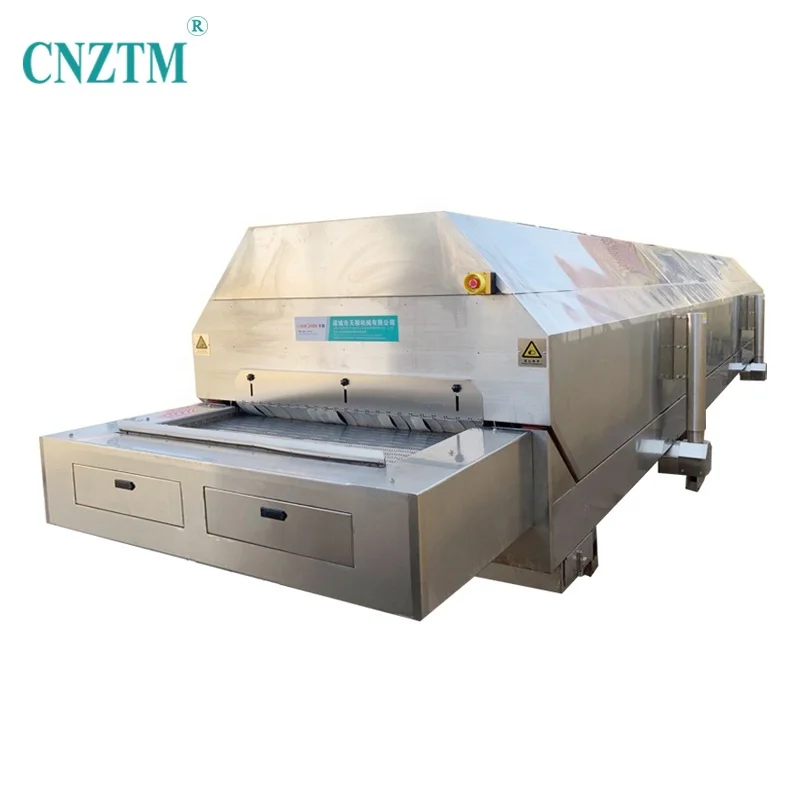

The freezing machine works with the liquid nitrogen which has the more better freezing result, the freezing time is shorter comparing the common freezing type.
You can also choos the option of freon as the freezing source.
Applications
Related Product
Customer Photos & Reviews
Company Profile&Certificates
Shipping&Delivery
FAQ
Q1.Could we visit your factory to check the machine carefully and closely?
A:Welcome to our facotry,will provide machines testing service,face-face discussing,turnkey project design solution.
Q2.How long is your machine's guarantee time?
A:1 year without normal wear parts,machine itself life guaranteed.
Q3.If we have very special request for the complete production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q4.If we show you our layout of factory,can you help to design the whole process line?
A:Layout design service provided after received customer's factory layout size.
Q5.If we have samples of new products,can you help to analysis and design the machine?
A:Yes,our technical department can help to analysis,design and test the new products based on the specific requirements you provided.
A:Welcome to our facotry,will provide machines testing service,face-face discussing,turnkey project design solution.
Q2.How long is your machine's guarantee time?
A:1 year without normal wear parts,machine itself life guaranteed.
Q3.If we have very special request for the complete production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q4.If we show you our layout of factory,can you help to design the whole process line?
A:Layout design service provided after received customer's factory layout size.
Q5.If we have samples of new products,can you help to analysis and design the machine?
A:Yes,our technical department can help to analysis,design and test the new products based on the specific requirements you provided.
