22mm DC Micro Planetary Gear Motor

Product Overview

Description

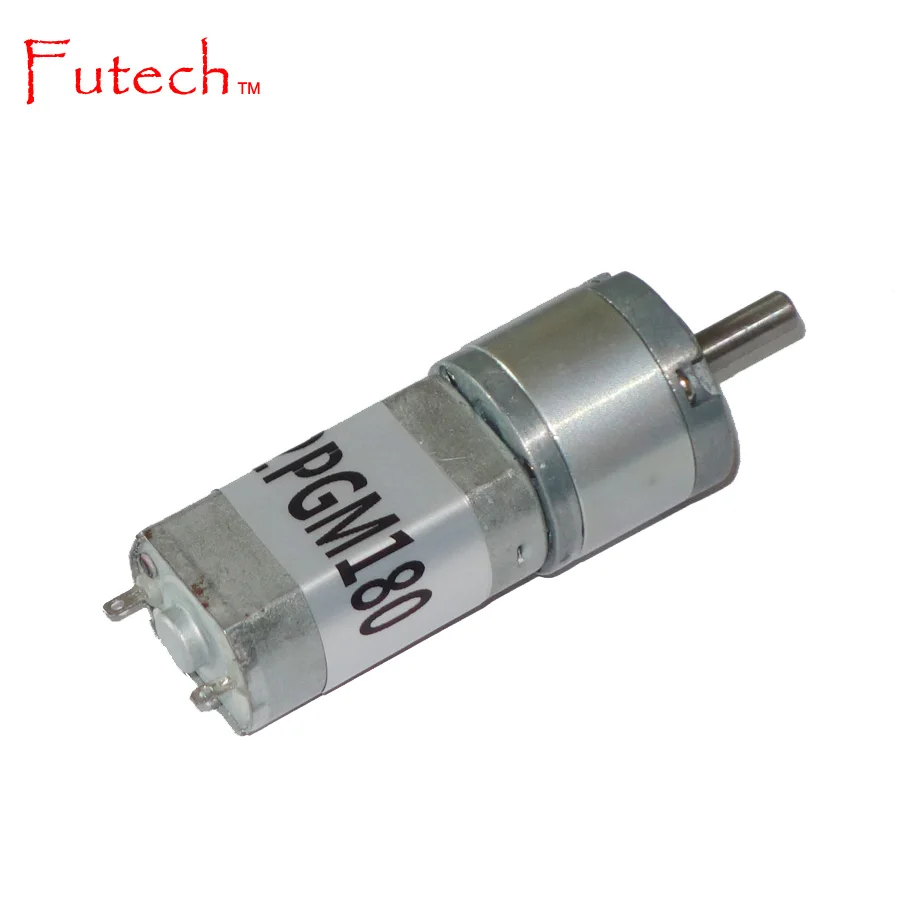

FT-22PGM180   22mm DC Micro Planetary Gear Motor



DRAWING (mm)



 Remark: find the dimension "L" in the GEARBOX DATA below.



SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	W	mA(min)	Kgf.cm
FT-22PGM1800067500-256K	6V	39	150	22	480	3	0.7	1200	10
FT-22PGM1800068000-361K	6V	22	200	16	550	4	0.7	1100	13
FT-22PGM1800067000-509K	6V	13	260	8.5	500	4	0.3	830	10.7
FT-22PGM1800063000-2418K	6V	1.2	60	0.8	90	4	0.03	220	11
FT-22PGM18000912000-107K	9V	112	260	82	800	2.2	1.9	1920	8.2
FT-22PGM1800128000-4.75K	12V	1550	160	1130	420	0.1	1.2	800	0.3
FT-22PGM1800128000-16K	12V	500	140	360	380	0.32	1.2	760	1
FT-22PGM1800126000-19K	12V	315	80	244	200	0.23	0.6	430	0.9
FT-22PGM1800128000-107K	12V	75	120	56	320	1.8	1.0	720	6.9
FT-22PGM1800126000-256K	12V	24	70	19.5	180	1.7	0.3	450	7
FT-22PGM1800128000-304K	12V	26	75	20.5	250	3.1	0.7	700	12.5
FT-22PGM1800126000-369K	12V	18	65	14	180	2.5	0.4	400	9
FT-22PGM1800128000-428K	12V	18	75	15	250	4.8	0.7	700	18.5
FT-22PGM1800129000-509K	12V	17	200	12	350	5.5	0.7	580	18
FT-22PGM1800128000-2418K	12V	3.3	120	2.4	400	10	0.2	692	40
FT-22PGM1800247000-4K	24V	1750	60	1310	120	0.05	0.7	225	0.18
FT-22PGM1800249000-64K	24V	140	200	105	350	1	1.1	470	4
FT-22PGM1800249000-107K	24V	84	70	63	200	2	1.3	450	8
FT-22PGM1800249000-256K	24V	35	80	25	210	4.2	1.1	450	15
FT-22PGM1800249000-304K	24V	29	60	22	180	5	1.1	430	20
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in



GEARBOX DATA

Reduction stage	1-stage	2-stage	3-stage	4-stage	5-stage
Reduction ratio	4, 4.75	16, 19, 22.5	64, 76, 90, 107	256, 304, 361, 428, 509	1024, 1216, 1444, 1714, 2036, 2418
Gearbox Length “L” mm	13.5	16.9	20.5	24.1	27.6
Max rated torque Kgf.cm	2	3	4	5	6
Max momentary torque Kgf.cm	4	6	8	10	12
Gearbox efficiency	90%	81%	73%	65%	59%



MOTOR DATA

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-180	3	≤260	5000	≤158	4000	19	0.8	≥80	≥790
FT-180	5	≤75	12900	≤1510	11000	25.2	2.86	≥174	≥9100
FT-180	12	≤35	8000	≤300	6200	26	1.69	≥100	≥770
FT-180	24	≤36	9000	≤120	7600	15	1.19	≥60	≥470



CERTIFICATES: CE & ROHS
