18dBi 5.8GHz 900Mbps 11ac Outdoor Wireless Bridge CPE 10KM WiFi Transmitter,long range for 10km wifi transmitter and receiver

Product Overview

Description

18dBi 5.8GHz 900Mbps 11ac Outdoor Wireless Bridge CPE 10KM WiFi Transmitter,long range for 10km wifi transmitter and receiver





Description:

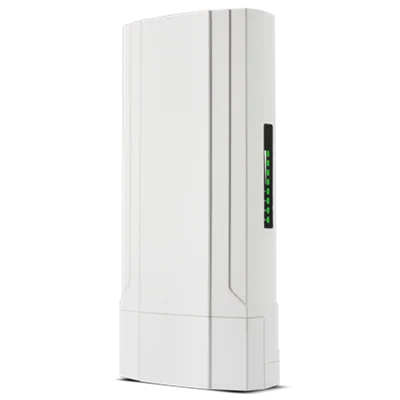

CPE890SR is an high power industrial 5G outdoor CPE with the next generation 802.11ac Wi-Fi standard, Qualcomm Chipset, combined 900Mbps high speed in 5G, equipped Gigabit WAN port, 3 times Ethernet data rate faster than CPE880, it make more than 60 end users access into it and enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

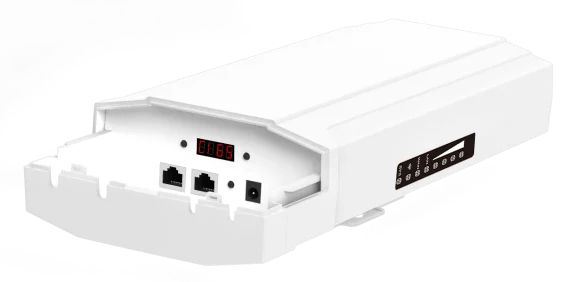

900Mbps Data Rate & Gigabit WAN/LAN Ports

CPE890SR features 802.11ac Wi-Fi and 2*2 MIMO technology, 900Mbps wireless speed. Equipped with Gigabit Ethernet port ensures high speed internet access and more end users access.



10KM PTP/PTMP Distance

Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, 18dBi MIMO high gain panel antenna, greatly increase the wifi range to 10KM distance, then supply the stable wifi signal for users.



Power over Ethernet

CPE890SR has integrated passive Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

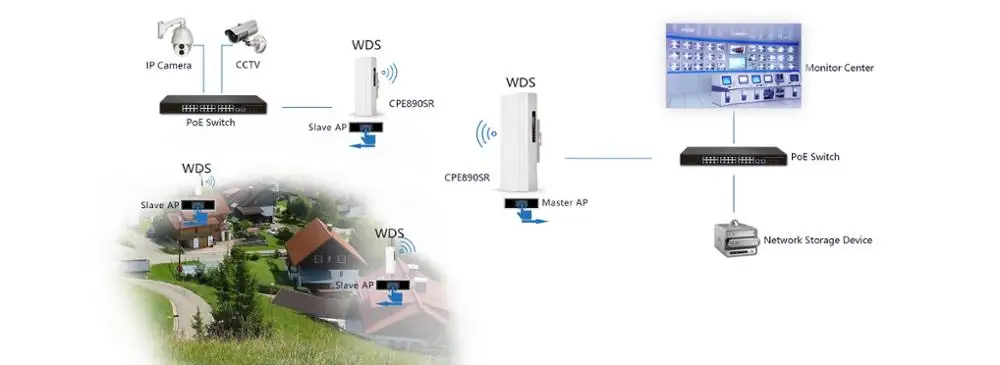

Multiple operation mode, Press WDS Switch button to do PTP/PTMP Connection

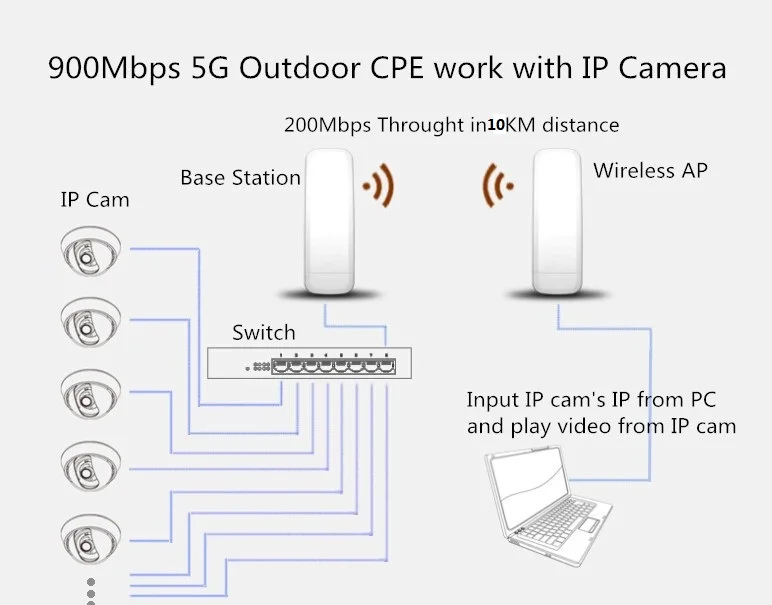

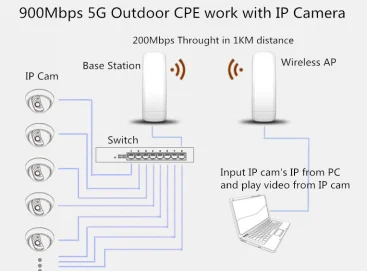

CPE890SR support Gateway, WISP, Wireless AP, WiFi Repeater, WDS operation mode, it is widely used in WiFi Bridge Connection, WISP Connection and Wireless Security;

CPE890SR with WDS Switch button, press it to do the PTP/PTMP connection, very easy, no need to access into GUI.



Access Controller System & Cloud Management System

With Access Control System under AP/WDS operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....



Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this AP more professional in WiFi Projects.







Main Features:

lComply with IEEE 802.11ac/a/n, 5G,900Mbps Data Rate

l1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port

l500mW high power, build in 18dBi MIMO panel antenna, stronger signal strength, more wireless coverage

lSupport passive PoE, 24V

lSupport SSID broadcasting, Muiti SSID up to 4, then support tag VLAN based on SSID.

lSupport Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP, WDS operation mode

lWith function of build in firewall, IP filter, URL filter and MAC filter

lComply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment

lSupport DDNS, VPN pass through, Port forwarding and DMZ host

lSupport 64/128-bit WEP security, 128bit WPA (TKIP/AES) security





Product Specification:
