Product Overview

Description


Product Description

RFID and Barcode Ticket Traffic Management Car Parking System

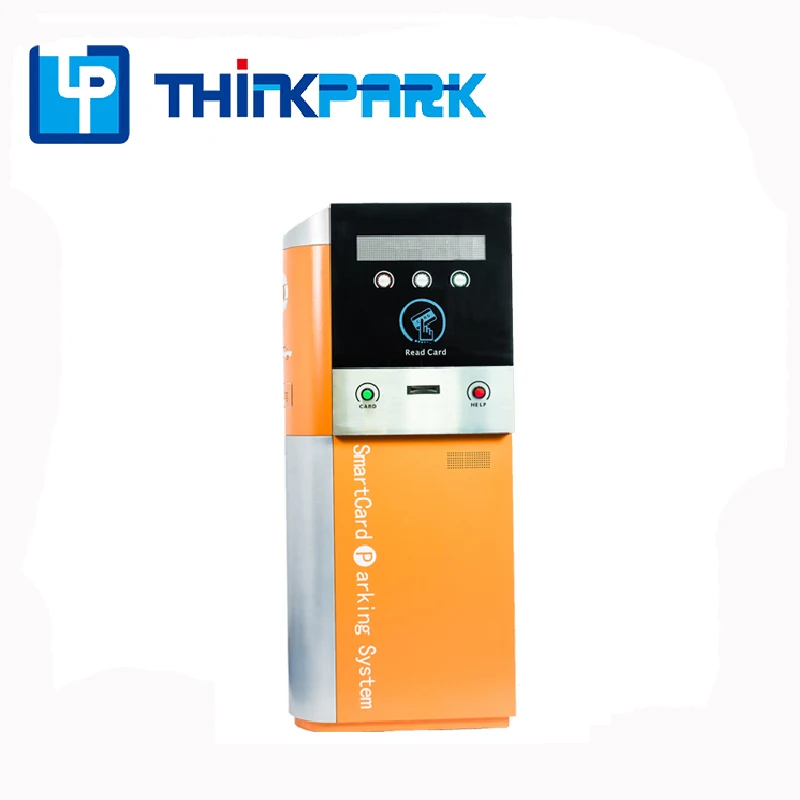

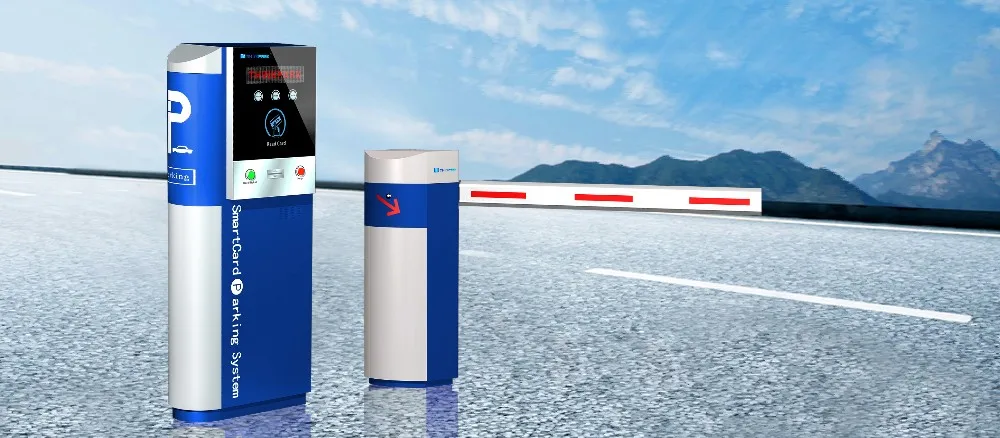

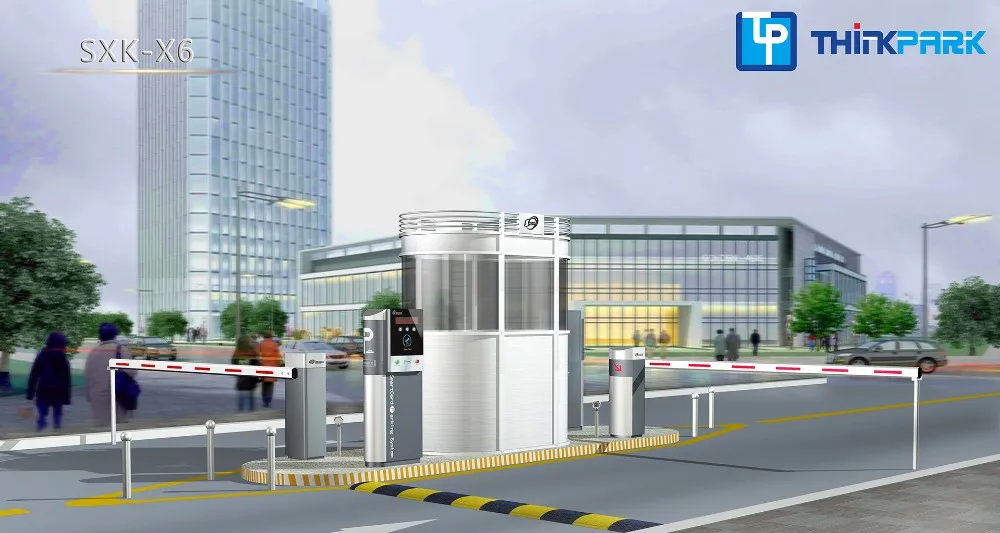

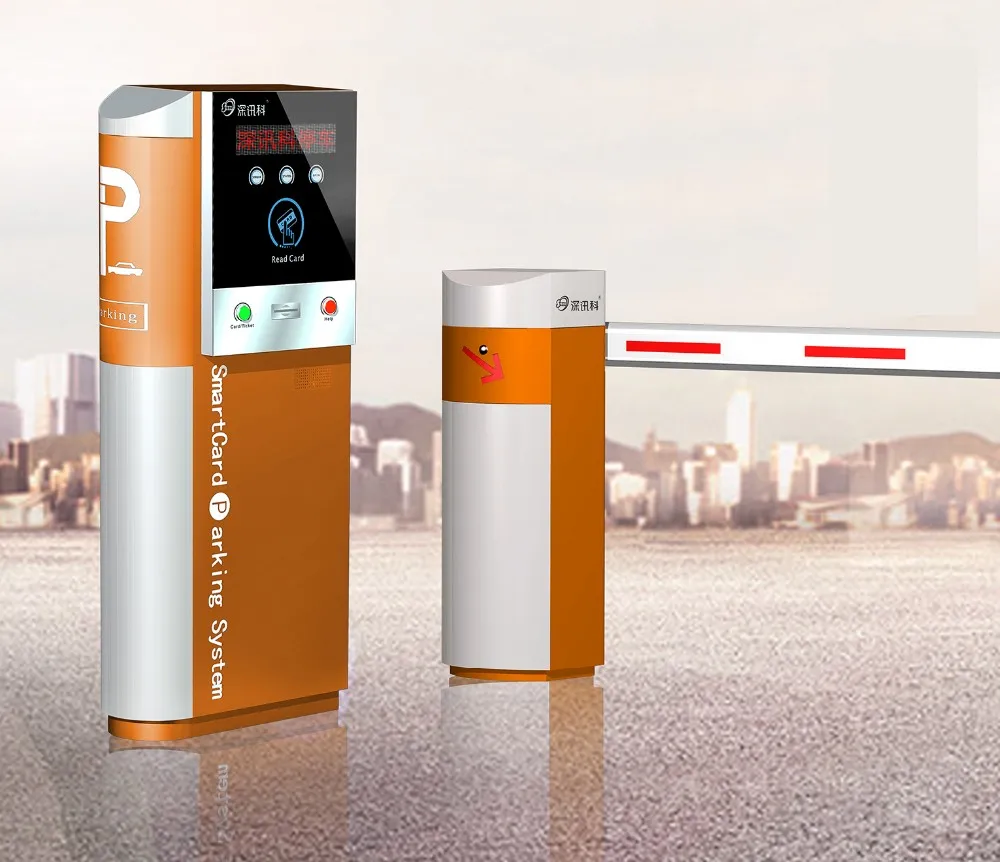

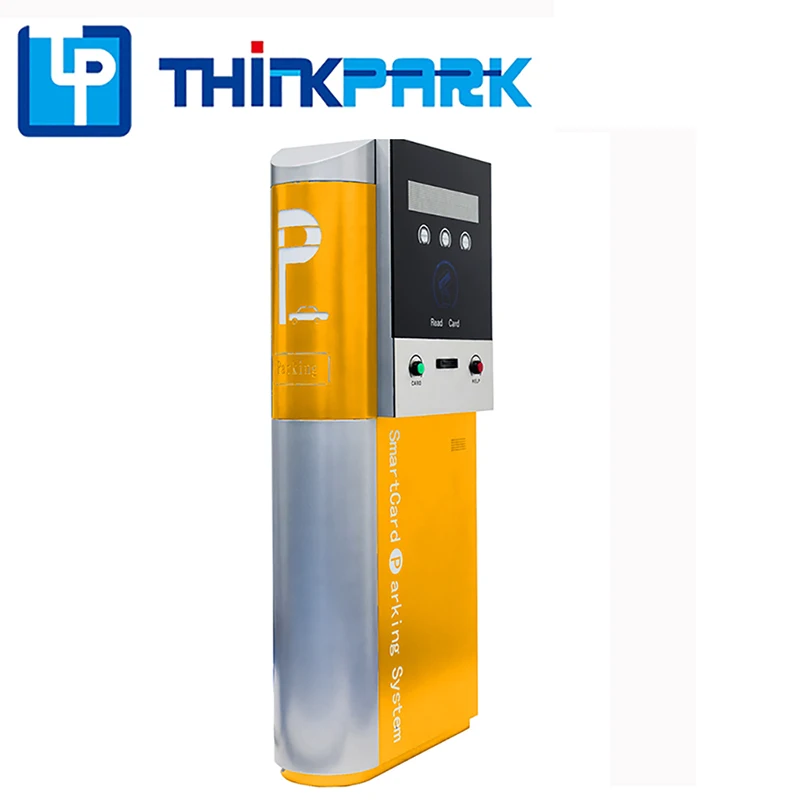

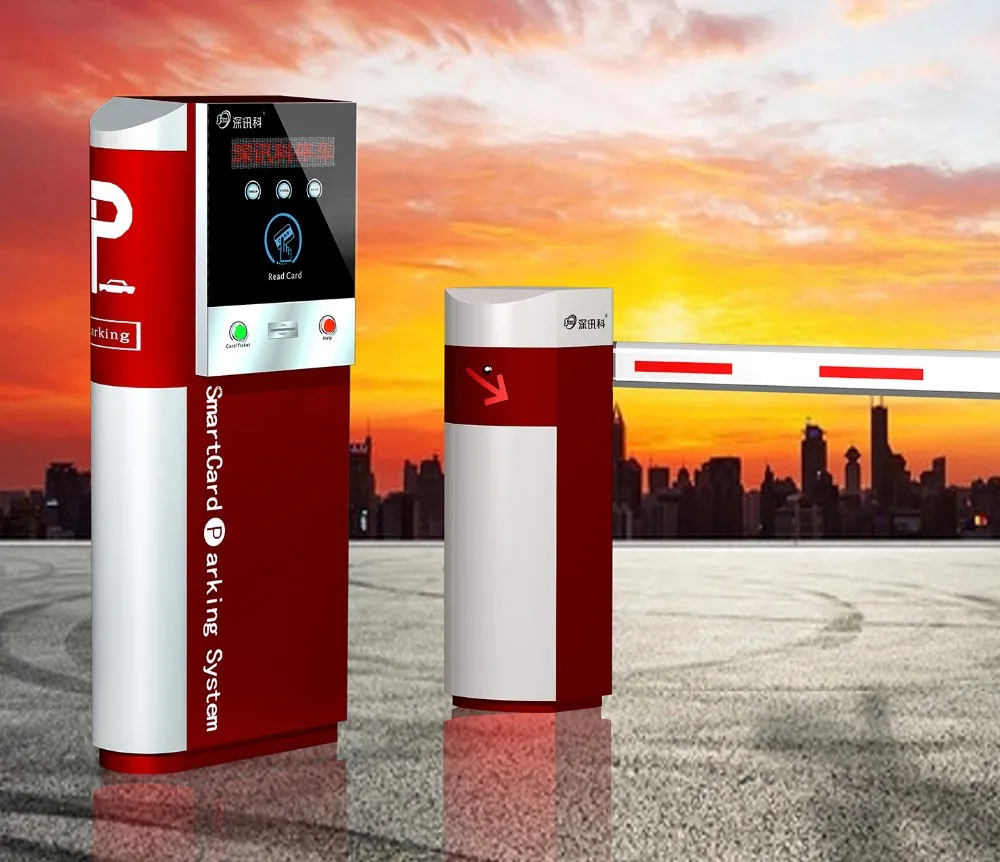

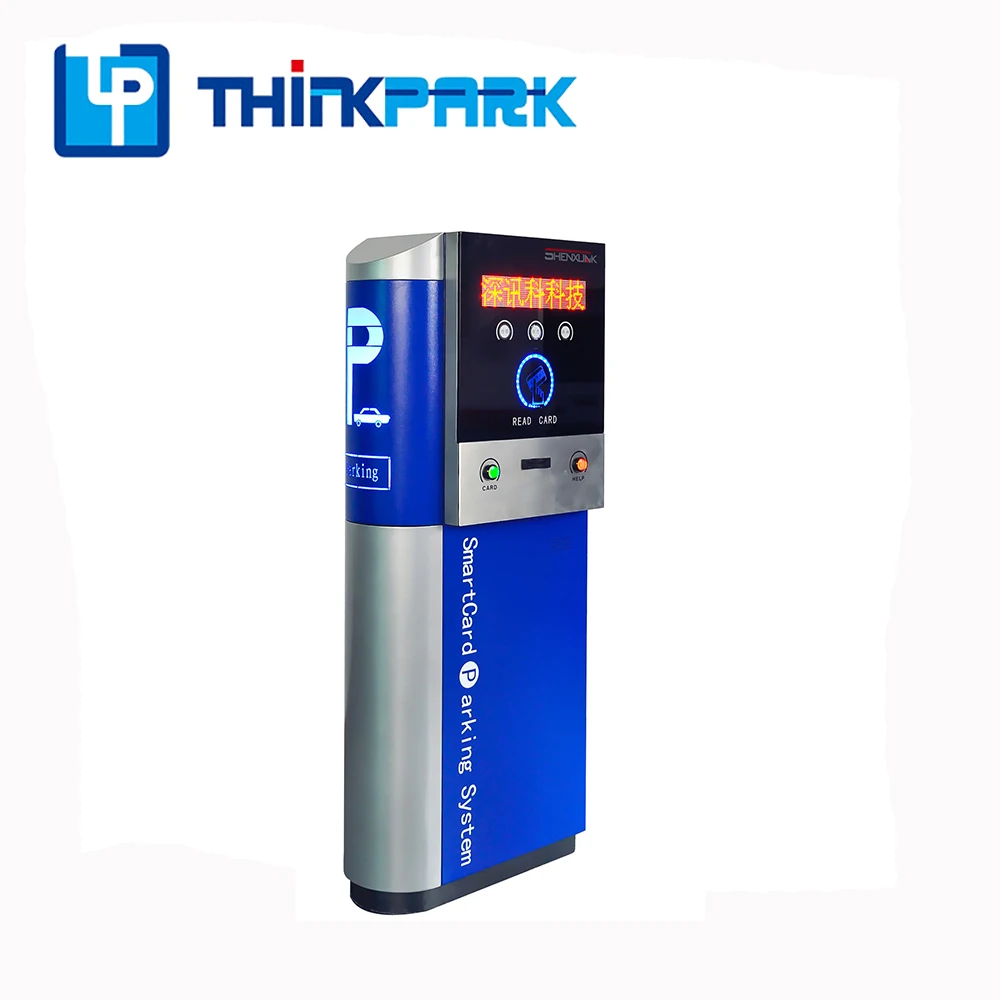

SXK-X6 Automatic Pay Station, or can also be called Auto Pay Station, pay on foot station, or pay and display machine, is set up on the way to parking lot exit or other proper location.
* It offers self-service of parking fee collection to drivers.
* It also provides automatic, humanized and safety management to parking lot.

Features&Specs

1. Easy to install, debug and maintain

2. Cold rolled galvanized steel casing, surface electrostatic powder coating, waterproof, dustproof, rustproof

3. Management software is compiled under windows environment, easy access to large DBMS

4. Use 32-bit ARM processor, highly improves the system speed and keeps the system in real time

5. UseRS-485 communication interface as the underlying support, TCP/IP protocol for the network connection

6. Flexible system configuration, can be extended to multi-level parking lot management system
7, Off-line processing function, support remote operation when connect to network

8. Extendible plate-number identification and auto-printing
9. Extendible long distance read function

10. Compatiable with IC card (Mifare-1 card), EM card, CPU card, RFID card and Barcode ticket

11. Multiple charging mode, charging standards can be defined by the user

\t
Working Voltage
\t
AC110/220V
\t
Diaplsy
\t
Max 80bits, free uploading
\t
Card Type
\t
IC,ID,Barcode Ticket
\t
Application
\t
Pay-at-Exit, Pay-on-Foot
\t
Traffic Flow
\t
>2500 car/day
\t
Reading distance
\t
2-15m
\t
Communication
\t
RS485, TCP/IP
\t
IP Grade
\t
IP55
Product Details

Card Dispenser

Accurately adjust all  kinds of different thickness for issuing different cards.

Card Collector

* Designed for requirement of the automatic ticket-check system

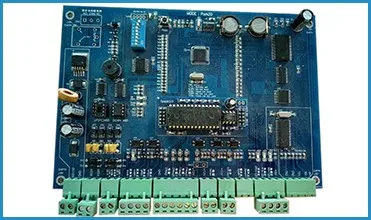

Intelligent Control Panel

* Connect with three EM card readers for reading cards

* Control barrier gate to open and close,

* RS485 output,

* Feasible confuguration with any other barrier gate

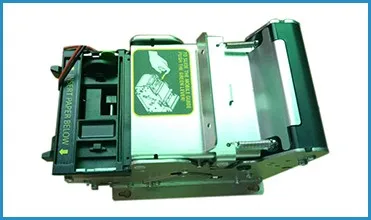

Barcode Ticket Thermal Printe

* A variety of international languages and scripts
* Driving high-speed download and print mode
* Supports Linux system drive
* Ethernet and Serial port monitoring function

How does the system work?

Entry station: car detector will start the entry station when vehicles enter induction area.System will start voice messages and LCD screen to guide drivers.

1. Temporary parking drivers can press button to receive Parking Token.

2 . Monthly parking card users only have to tap Parking card to induction area.

Data will be saved and send back to CentralManagement System after internet reconnected

Exit station: Its LCD screen will show operation messages in English and Chinese and system will start playing voice messages to guide drivers.

1. Temporary parking drivers should insert parking tokens.

2. Monthly parking card users only have to tap card to induction area.

Cases
\t\t\t\t\t\t\t\t\tAbout Thinkpark \t\t\t\t\t\t\t

Thinkpark works as a professional Access and Revenue control system supplier since 2006, specializing in producing and developing car park barrier gates, car park management systems, ANPR / LPR systems, security turnstiles, locker systems, door access control system, visitor management systems, PGS tracker, and other traffic facilities. We are top 10 car park brands of China, and our factory have passed ISO9001 and ISO14001 certificate.


Our R&D team have more than 12 years experience in this field, we can provide you with tailored solution upon your request. "Only professional, is trustworthy" is the eternal pursuit of Thinkpark.

\t\t\t\t\t\t\t\t\tCertificates \t\t\t\t\t\t\t

FAQ

Q: Are you trading company or manufacturer?
A: We are integrated enterprise specialized in R&D and manufacturing
Q: How long of your lead time?
A: 3-15 working days
Q:Can you customize my goods?
A: Yes, we provide with tailored servce upon project requirement.
Q: What's your certificate?
A: ISO9001:2008, ISO9001:14001, CE, Patent license.
