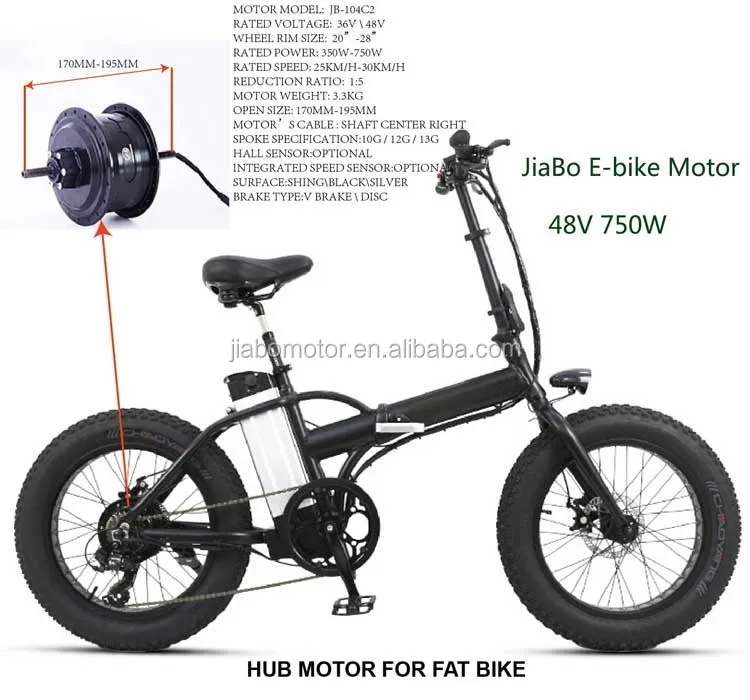

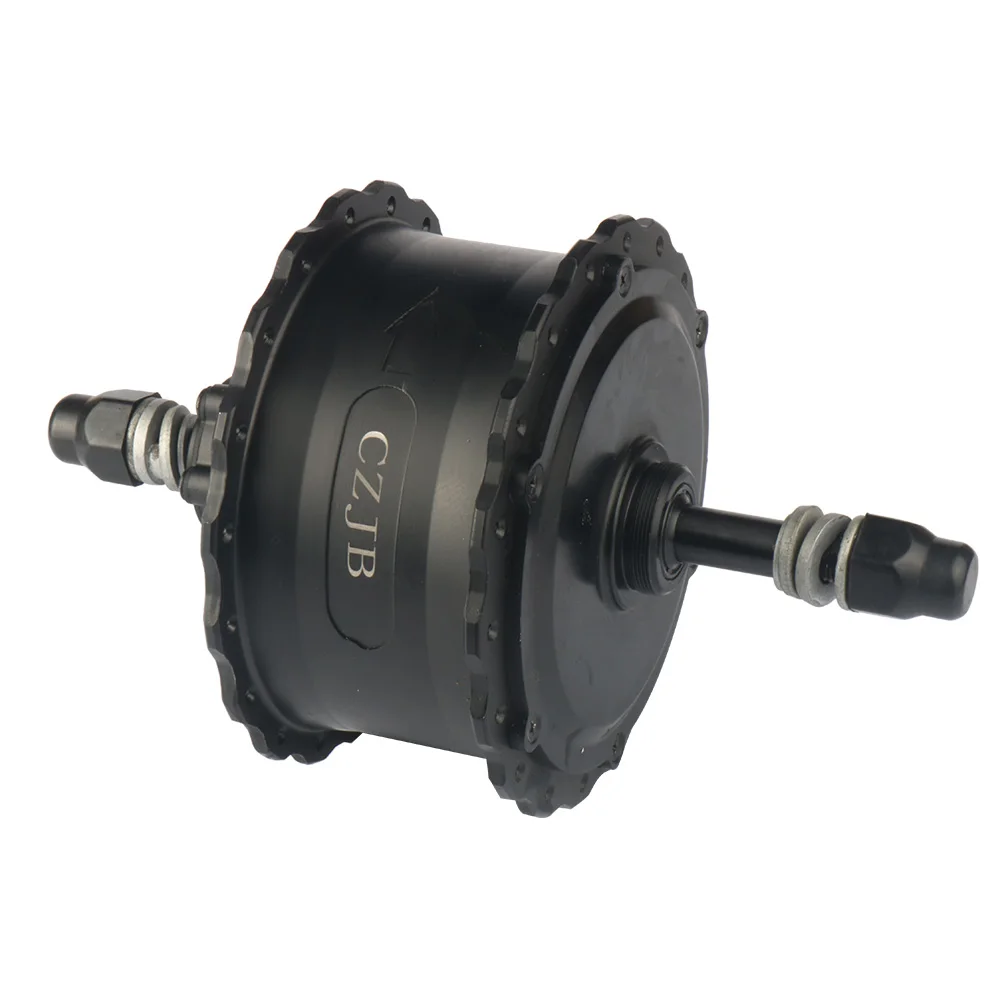

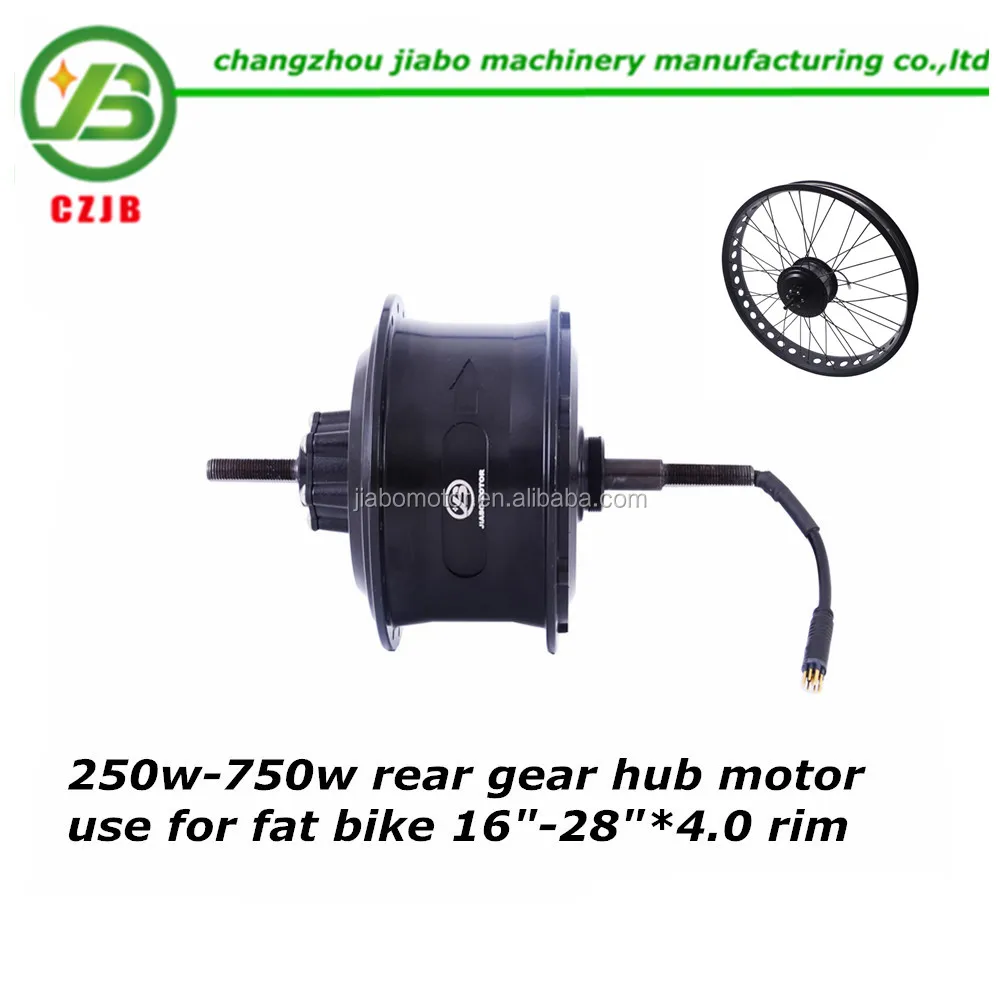

CZJB 110C snow bike 750w electric bicycle motor for rear wheel
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (60693732793):
Product Overview
Description
Products Paramenters
110C rear electric fat bike hub motor | ||
Rated Voltage(V) | 36/48/60v | |
Rated Power(W) | 250-750 | |
Rated Speed(km/h) | 25-42 | |
Temperature(℃) | -20～45 | |
Rated Efficiency(%) | ≥82 | |
Hall Sensor | Optional | |
Integrate Speed Sensor | Optional | |
Color | Shining/Black/Silver | |
Wheel Size | 16"-28" | |
Redution Ration | 350w1:5/500w1:5.2/750w1:5.8 | |
Weight（kg） | 4-4.5 | |
Open Size(mm) | 170-195 | |
Cable Location | Shaft Center left/ Right | |
Spoke Specification | 36H*12g/13g | |
Brake Type | V /Disc Brake | |
Noise(db) | <55db | |
Waterproof Grade | IP65 | |
Product Advantages
A1:High temperature resistant, pure copper coil, exquisite workmanship and exquisite workmanship.
A2:Vacuum dipping paint can improve insulation, reduce vibration, noise and temperature rise, etc. The effect is remarkable, and the service life of products.

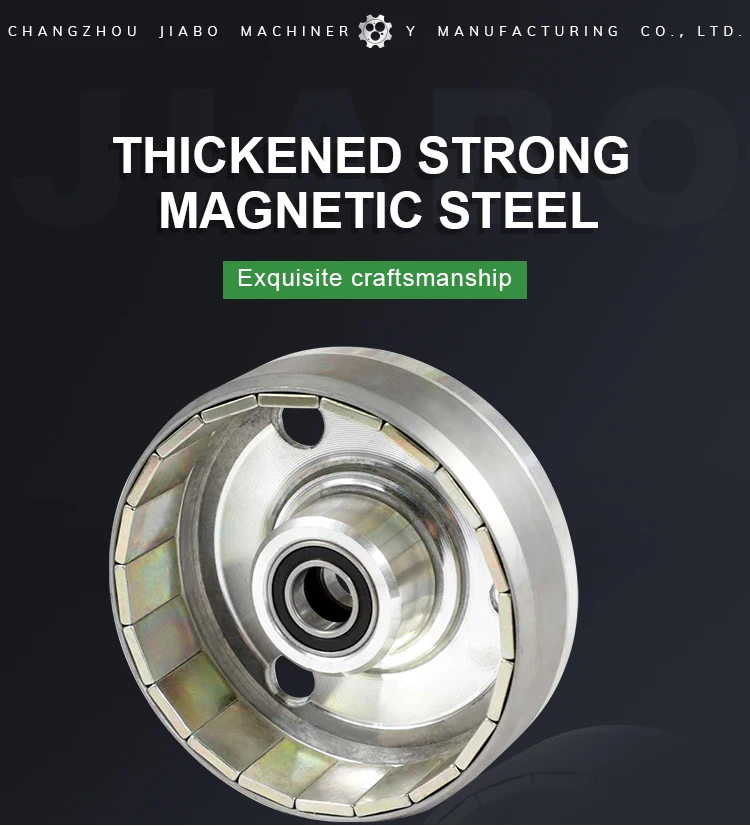

A3:Our magnets are made of 38H, with a high temperature resistance of 120 degrees, placed in a 110 ℃ high temperaturebox, constant temperature for 2 hours, demagnetization rate ≤ 2.6%.
A2:Reduce the gear friction to ensure low noise and strong powerunder load. Applicable models: 75Q, 75T, 75T2, 90T, 90TQ, 90T2, 90TZ,105C,105CQ,105C2,105CZ.
Details Images

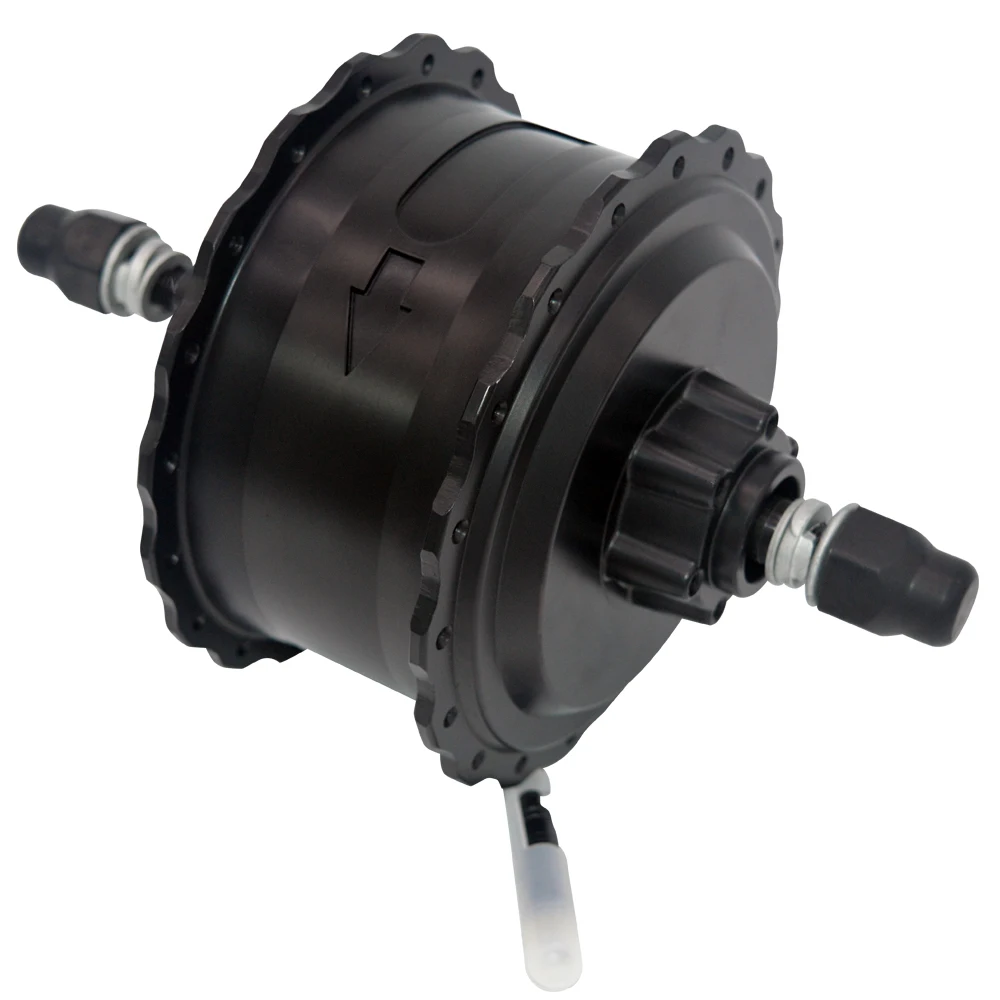

6-7s multispeed freewheel
dropout can do 170-195mm

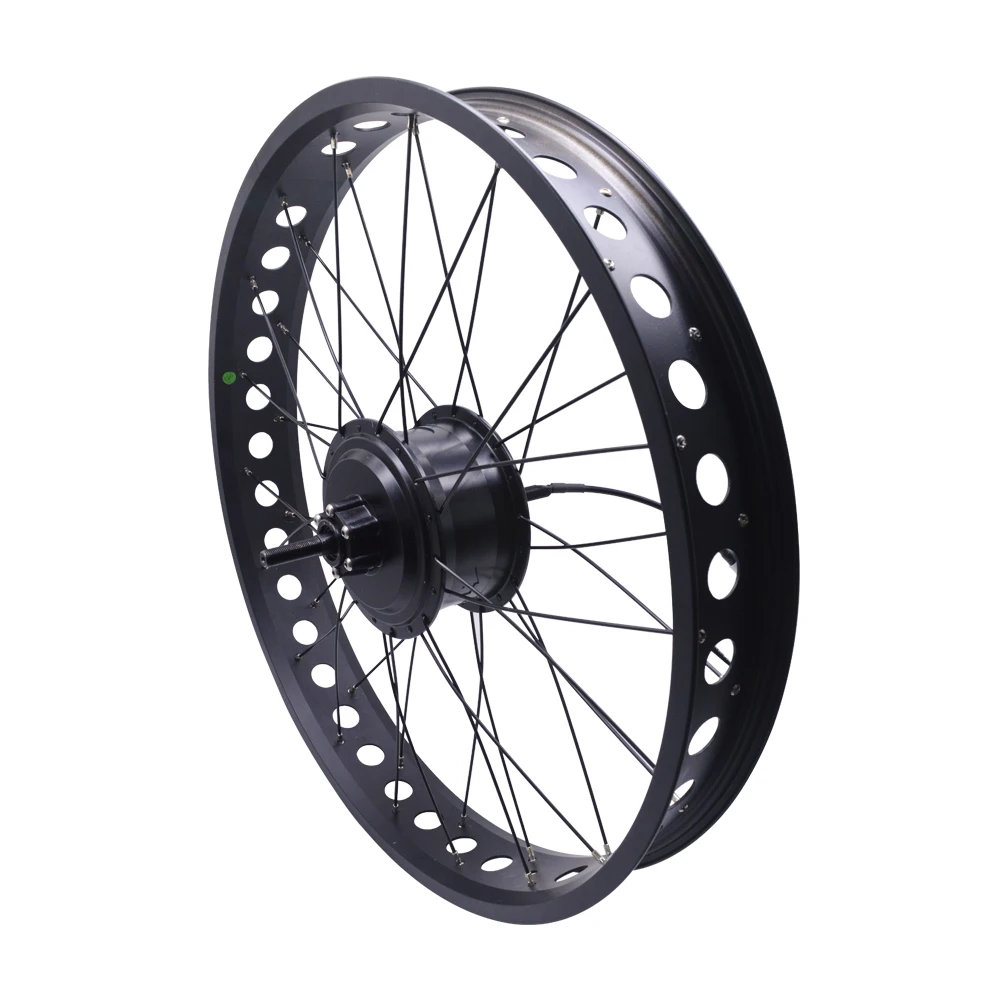

assemble 4.0 wheel

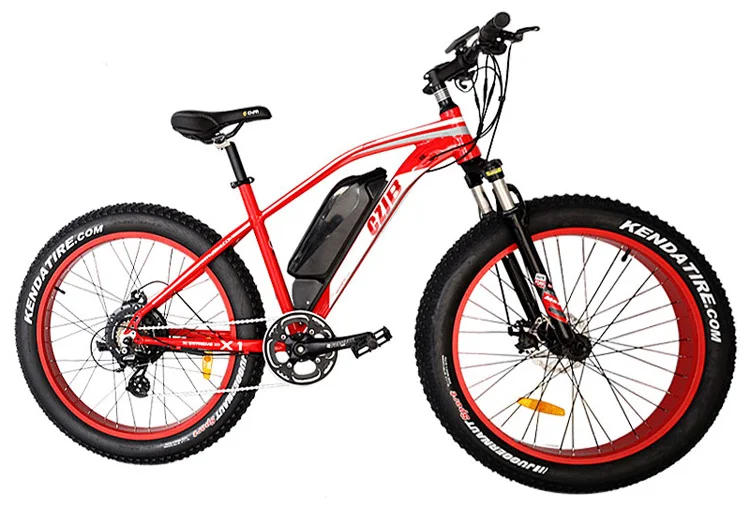

fat bike motor can assemble 20-26"*4.0 wheel
CZJB 250W kit model suitable for all normal bicycles convert to electric bicycles. As long as the OLD size of the rear fork is 135mm which is geared BLDC e-bike motor which is riding comfortable and enjoy your life.The geared motor which without resistance when your battery exhausted to push the bike.Regarding the battery that you can choose for rear rack battery or down tube battery bot available.
About us
Changzhou Jiabo Machinery Manufacturing Co., Ltd.founded in 2008, concentrates on researching and developing ebikes, lithium electric bike motors, electric bicycle conversion kits and so on. With more than 10 years experience in price and quality..
Jiabo has its own R&D department consist of over 10 senior engineers who guarantee the products' quality and development of new products. Our products exported to many countries and regions around the world, especially America, Europe, the Middle East and South Asia. Our products enjoy good reputation among our customers.
Jiabo, which is a factory with complete after-sale service system. We promise 2 years' warranty. First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight. OEM and ODM is available.
Jiabo has its own R&D department consist of over 10 senior engineers who guarantee the products' quality and development of new products. Our products exported to many countries and regions around the world, especially America, Europe, the Middle East and South Asia. Our products enjoy good reputation among our customers.
Jiabo, which is a factory with complete after-sale service system. We promise 2 years' warranty. First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight. OEM and ODM is available.

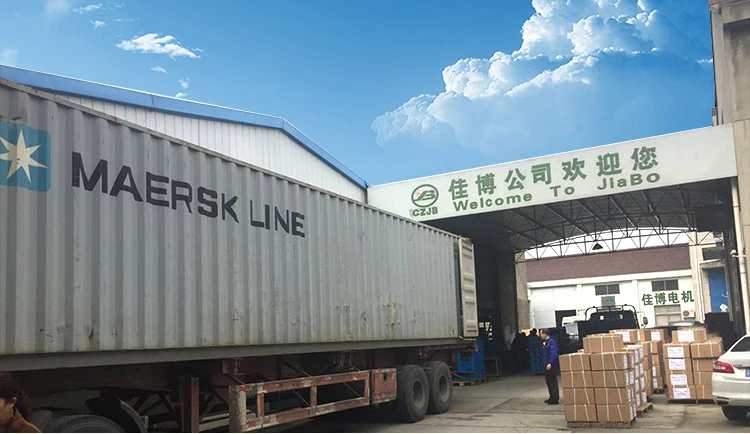

Company Exhibition
Partner
Certifications
1. Q: What are your terms of packing?
A: Generally, Packaging with foam and makar carton for ebike motors which is suitable for shipping container.
A: Generally, Packaging with foam and makar carton for ebike motors which is suitable for shipping container.
2. Q. What is your terms of payment ?
A: T/T 30% as deposit, and 70% before delivery. 100% for sample.We'll show you the photos or video of the products
and packages before you pay the balance. Or you can come to have a check of it.
A: T/T 30% as deposit, and 70% before delivery. 100% for sample.We'll show you the photos or video of the products
and packages before you pay the balance. Or you can come to have a check of it.
3. Q: Do you test all your goods before delivery?
A: Yes, all products will be tested before delivery.
A: Yes, all products will be tested before delivery.
4. Q: Could you print customer’s logo and information on motors?
A:Yes, OEM and ODM is available for ebike motor.
A:Yes, OEM and ODM is available for ebike motor.
5. Q: Do you accept sample order?
A:Yes, Sample order is available and sample delivery by express such as FedEx, DHL.
A:Yes, Sample order is available and sample delivery by express such as FedEx, DHL.
6. Q: How long is your lead time ?
A:Sample order for e-bike motor is within 15 working days
Sample order for E-bike conversion kit is about 25-30 working days
7. Q: How to confirm the conversion kit fit my bicycle?
The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
8. Q: How do you make our business long-term and good relationship?
A: First we keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers’benefit;Second we respect each customer. We sincerely do business and make friends with them.
9. Q: Can we have a recheck of products before delivery?
A: Yes, you can let you
A:Sample order for e-bike motor is within 15 working days
Sample order for E-bike conversion kit is about 25-30 working days
7. Q: How to confirm the conversion kit fit my bicycle?
The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
8. Q: How do you make our business long-term and good relationship?
A: First we keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers’benefit;Second we respect each customer. We sincerely do business and make friends with them.
9. Q: Can we have a recheck of products before delivery?
A: Yes, you can let you
10.Q:How do you guarantee the quality of the products?
Jiabo, which is a factory with complete after-sale service system. We promise 2 years' warranty. First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight.
Jiabo, which is a factory with complete after-sale service system. We promise 2 years' warranty. First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight.
