Hot Sell Dmx 512 Digital Control System Garden Water Music Fountain For Outdoor Use
- Category: >>>
- Supplier: Hangzhou Dancing Dragon Technology Co. Ltd.
Share on (60693813592):
Product Overview
Description
Product Description

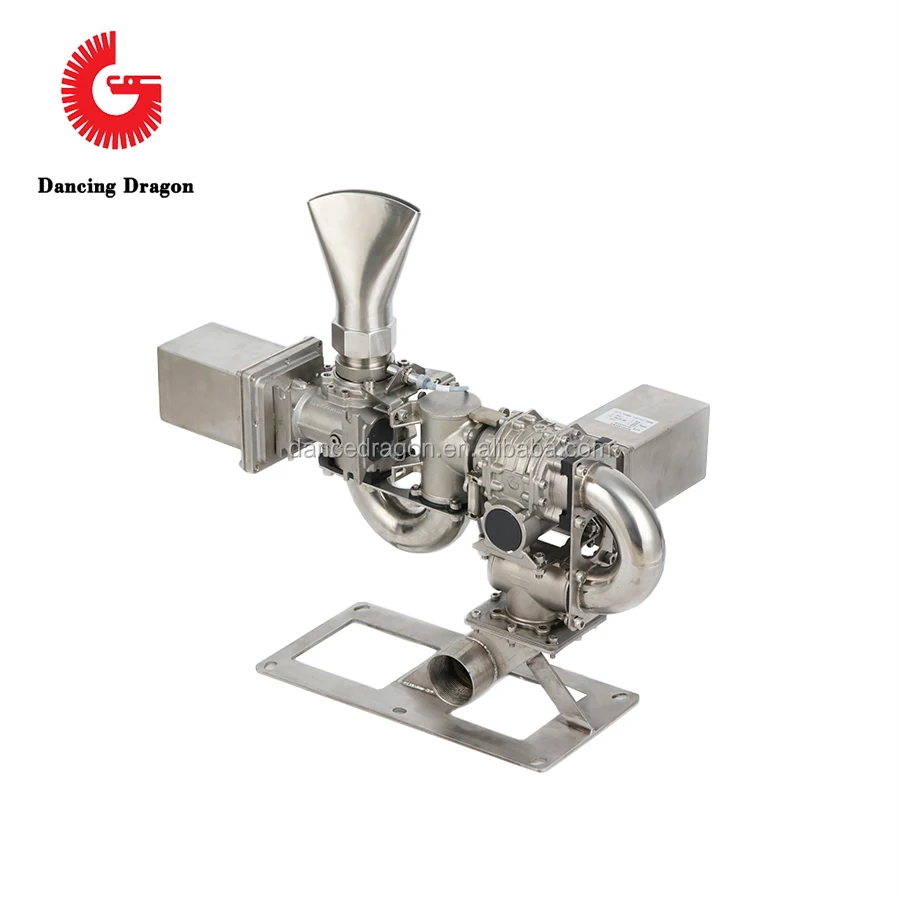

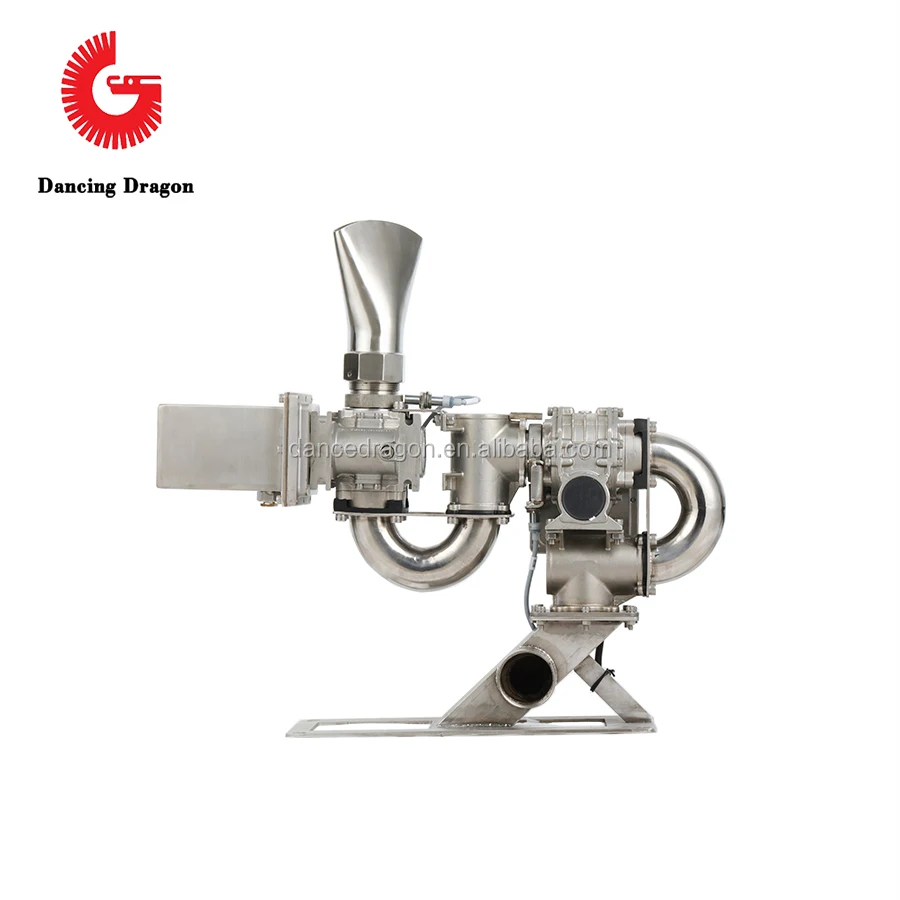

Floating fountain flat fan spray nozzle
| Specification | YTL2-50A | YTL2-50S | YTL2-50B | YTL2-65S | |||||
| Top axis | Lower axis | Top axis | Lower axis | Top axis | Lower axis | Top axis | Lower axis | ||
| 1 | Material | aluminium alloy | stainless steel | aluminium alloy | stainless steel | ||||
| 2 | Mesurement, highth*revolution diameter (cm) | 55*50 cm | 55*50 cm | 60*60 cm | 65*60 cm | ||||
| 3 | Net weight (KG) | 31Kg | 35Kg | 42Kg | 58Kg | ||||
| 4 | Reduction ratio | 1:10 | 1:10 | 1:10 | 1:10 | 1:10 | 1:10 | 1:10 | 1:10 |
| 5 | Cable max transmission distance (M) | 500m | 500m | 300m | 300m | ||||
| 6 | Stepper motor the number of phases | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 7 | Stepper motor voltage (AC) | 80v | 80v | 80v | 80v | 80v | 220v | 220v | 220v |
| 8 | Stepper motor power (W) | 300w | 350w | 300w | 350w | 350w | 700w | 700w | 700w |
| 9 | Stepper motor max holding torque (N/M) | 6 N/M | 8 N/M | 6 N/M | 8 N/M | 8 N/M | 14 N/M | 14 N/M | 14 N/M |
| 10 | Sensor input voltage | 24v | 24v | 24v | 24v | 24v | 24v | 24v | 24v |
| 11 | Highest head (M) | 18m | 18m | 25m | 35m | ||||
| 12 | Highest rotationl speed (r/min) | 75 r/min | 45 r/min | 75 r/min | 40 r/min | 90 r/min | 60 r/min | 120 r/min | 60 r/min |
| 13 | 180° shuttled back & forth (times per min) | 42 | 30 | 42 | 30 | 42 | 40 | 60 | 40 |
| 14 | 90° shuttled back & forth (times per min) | 70 | 50 | 70 | 50 | 60 | 60 | 90 | 60 |
| 15 | 45° shuttled back & forth (times per min) | 135 | 60 | 135 | 60 | 115 | 80 | 160 | 80 |
| 16 | 5° shuttled back & forth (times per min) | 1200 | / | 1200 | / | 1000 | / | 1200 | / |
| 17 | Sensor positioning accuracy | The maximum deviation is 5mm (less than 0.1 degrees) by laser test at 30 meters distance | |||||||
| 18 | Stepper motor waterproof electric cable | JHS 4*2.5 | JHS 3*2.5 | JHS 4*2.5 | JHS 3*2.5 | ||||
| 19 | Sensor anti-intereference electric cable | JHSP 3*1 | JHSP 3*1 | JHSP 3*1 | JHSP 3*1 | ||||
Recommended Products
Company Information
Certifications
Shipping & Delivery
FAQ
1. Does your factory accept sample order?
Yes, we accept sample order and welcome to test and check quality.
2. What is your MOQ for the 1/2/3-AXIS Jet?
Our MOQ is 5 sets.
3. What is your lead time?
For the sample, it will take 3-5 days, and 30 days for the mass production.
4. Do you offer guarantee for the products?
We offer 24 months warranty to our products.
If there is any question about us, please feel free to contact us!
