Multifunctional tillage machine agriculture farming rotary tiller cutivator weeding machine
- Category: >>>
- Supplier: Weifang Champion Farm Machinery Co. Ltd.
Share on (60693837477):
Product Overview
Description
Product Description
rotary tiller machine description:
1. 1GQN series rotary tiller with middle gear transmission,it can be mounted with the tractor 15-150hp.
2. We can’t see the wheel tracks on the soil after it worked.
3.The quality of the rotary tiller is good and the function very well.
4.It is suited to dry land and paddy field.
5. It can save time,labour and money etc.strong point.
specifications
rotary tiller cutivator machine SPECIFICATIONS:

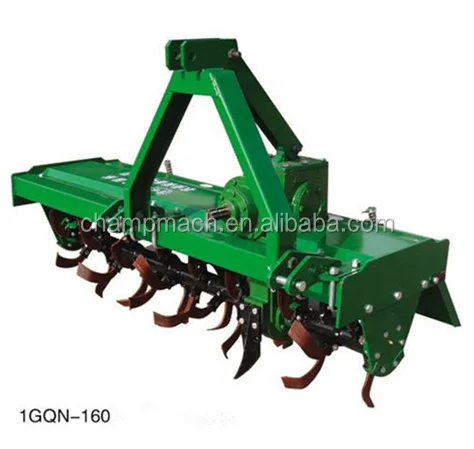

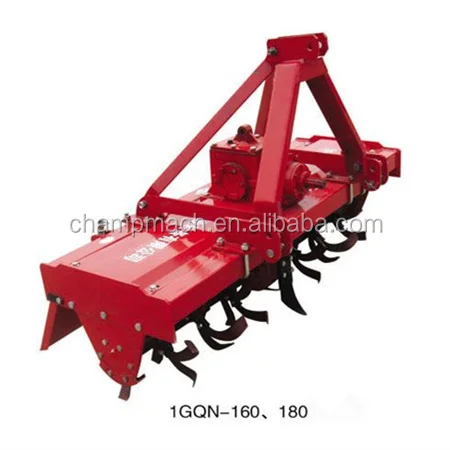

| Model | 1GQN-125 | 1GQN-140 | 1GQN-160 | |
| Matched power(hp) | 15-18 | 20-30 | 30-40 | |
| Working Width(cm) | 125 | 140 | 150 | |
| Tilling depth(mm) | Dry land | 80-140 | 120-180 | 120-180 |
| Paddy land | 100-160 | 140-200 | 140-200 | |
| Output shaft speed(r/min) | 530-730 | 530-730 | 530-730 | |
| Spindle speed(km/h) | 180-250 | 180-250 | 180-250 | |
| Rate of working depth(%) | ≥85 | |||
| Soil level after worked(cm) | ≤5 | |||
| Vegetation covered rate(%) | ≥55 | |||
| The rate of crushed soil (%) | ≥50 | |||
| Working speed(km/h) | 2-5 | |||
| Blade | Number | 22 | 30 | 38 |
| Model | IT225 | IT245 | IT245 | |
| Dimension(mm) W*L*H | 900x1310x1000 | 900x1600x1000 | 900x1880x1000 | |
| Package dimension(mm) L*W*H | 1350x760x600 | 1550x760x700 | 1650x760x700 | |
| Gross weight(kg) | 200 | 220 | 240 | |

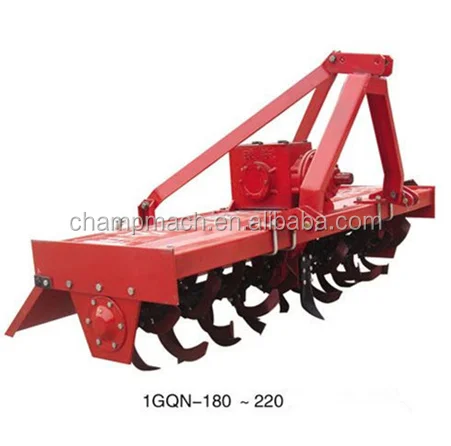

| Model | 1GQN-180 | 1GQN-200 | 1GQN-220 | |
| Matched power(hp) | 50-55 | 55-75 | 75-80 | |
| Working Width(cm) | 180 | 200 | 220 | |
| Tilling depth(mm) | Dry land | 120-180 | 120-180 | 120-180 |
| Paddy land | 160-200 | 160-200 | 160-200 | |
| Output shaft speed(r/min) | 530-730 | 530-730 | 530-730 | |
| Spindle speed(km/h) | 180-250 | 180-250 | 180-250 | |
| Rate of working depth(%) | ≥85 | |||
| Soil level after worked(cm) | ≤5 | |||
| Vegetation covered rate(%) | ≥55 | |||
| The rate of crushed soil (%) | ≥50 | |||
| Walking speed(km/h) | 2-5 | |||
| Blade | Number | 50 | 54 | 58 |
| Model | IT260 | IT260 | IT260 | |
| Dimension(mm) W*L*H | 1020x2056x1152 | 1020x2396x1152 | 1020x2636x1152 | |
| Package dimension(mm) L*W*H | 2000x800x700 | 2150x800x700 | 2300x800x700 | |
| Gross weight(kg) | 405 | 420 | 435 | |
Detailed Images

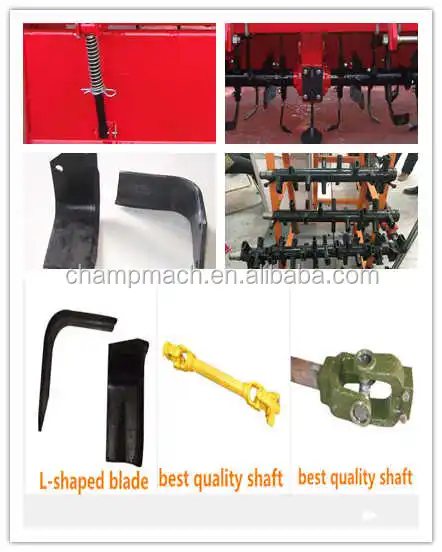

rotary tiller machine Detailed Images:

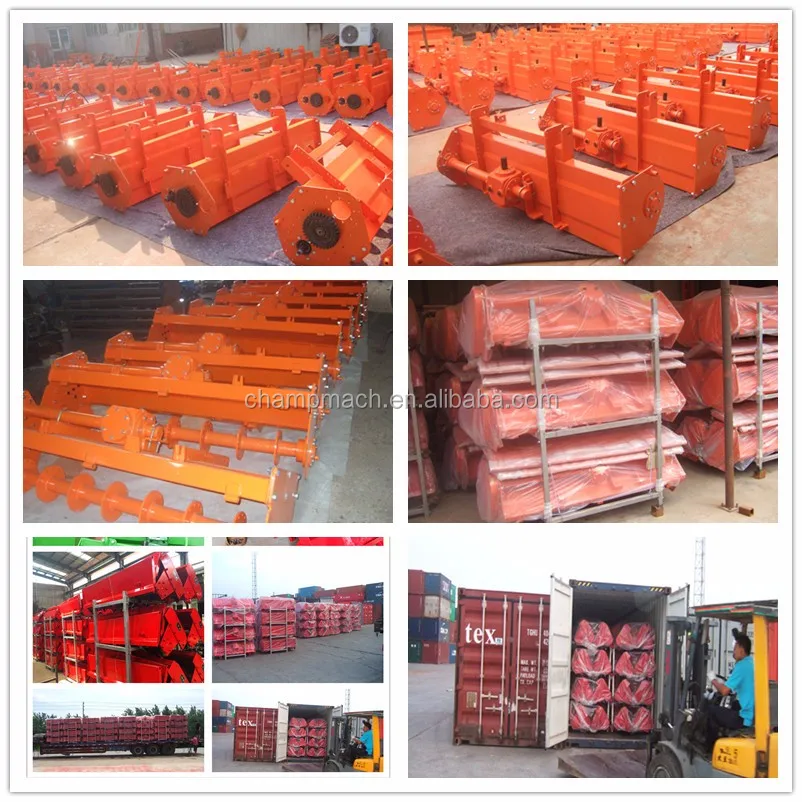

Packaging & Shipping
