Недорогой маленький шаговый двигатель 5 в 15BY PM, постоянный магнит, шаговые двигатели для промышленного автоматического управления
- Category: >>>
- Supplier: Shenzhen Maintex Intelligent Control Co. Ltd.
Share on (60694005589):
Product Overview
Description

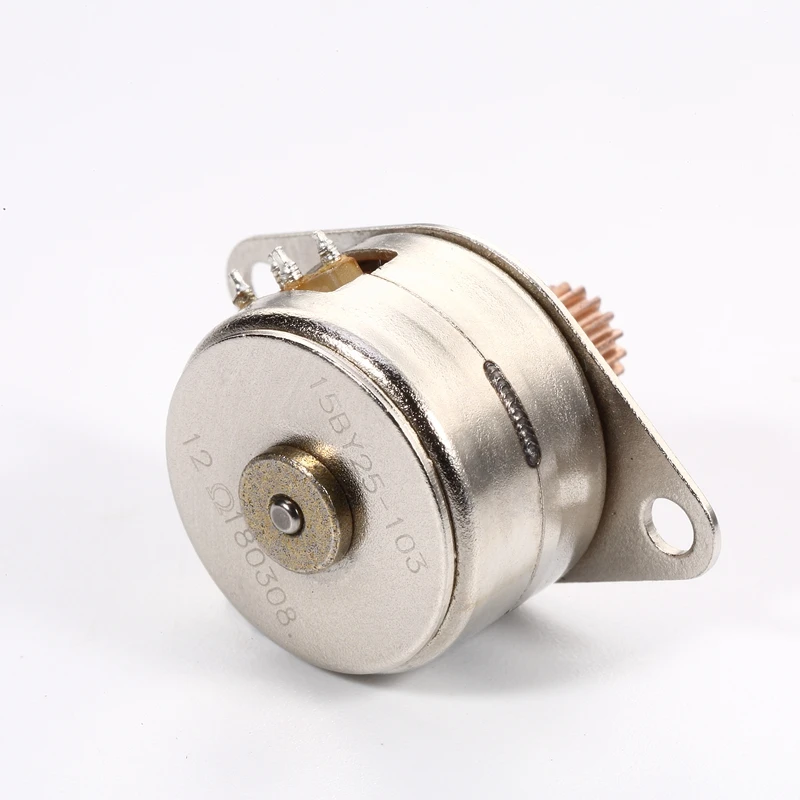

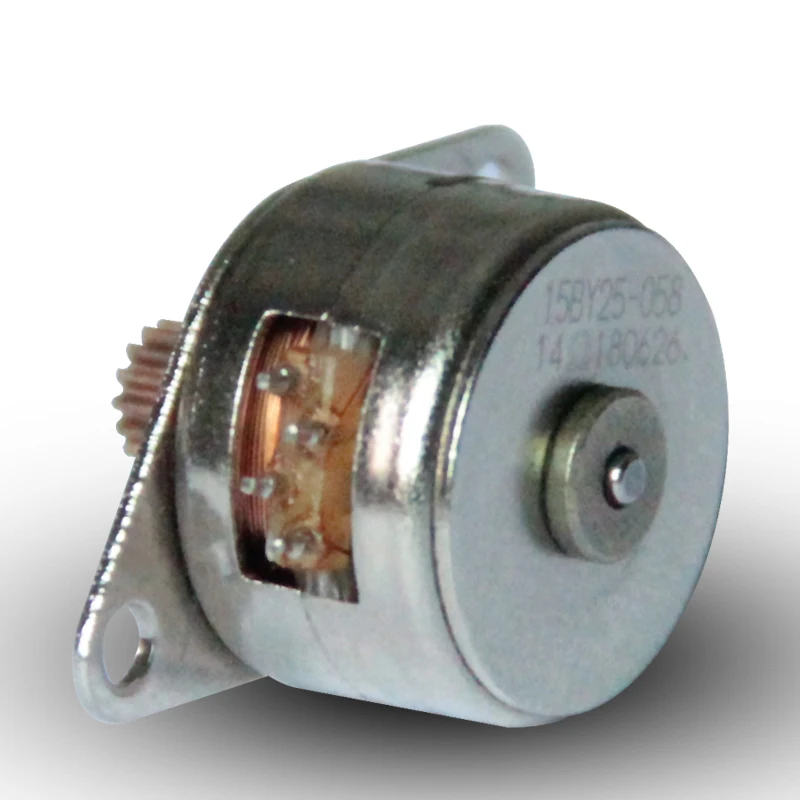

Maintex cheap small stepper motor 5V 15BY for Kitchen appliance,pm Permanent Magnet stepping motors for industrial auto control
Specification
Type | PM Stepper Motor |
Model | 15BY25-058 |
Rated Voltage | 5VDC |
Exciting Method | 2-2 |
Resistance | 14Ω±7% (25°C) |
No-load Pull-in Frequency | ≥800Hz |
No-load Pull-out Frequency | ≥1100Hz |
Holding Torque | ≥42gf.cm |
Detent Torque | ≥7gf.cm |
Insulation Resistance | ≥100MΩ(500VDC) |
Insulation Class | B |
Noise | ≤40dB |
Terminal Spec. | 1.5mm*5P" |
Typical Applications | Kitchen appliance |
Parameters can be customized according to your actual demands, for detailed informations please contact with us or leave a message.
