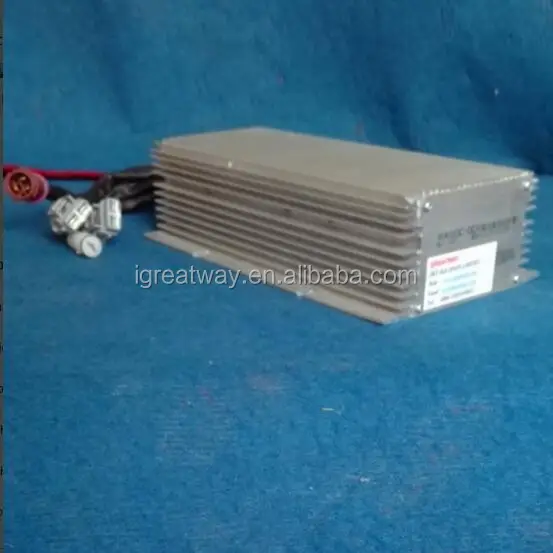

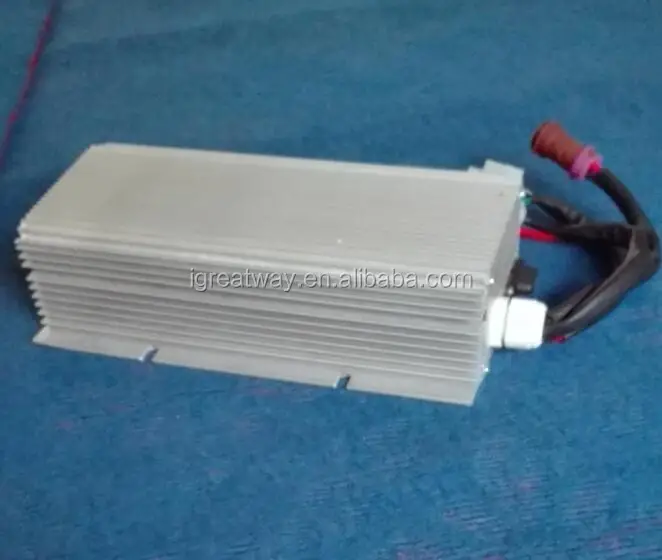

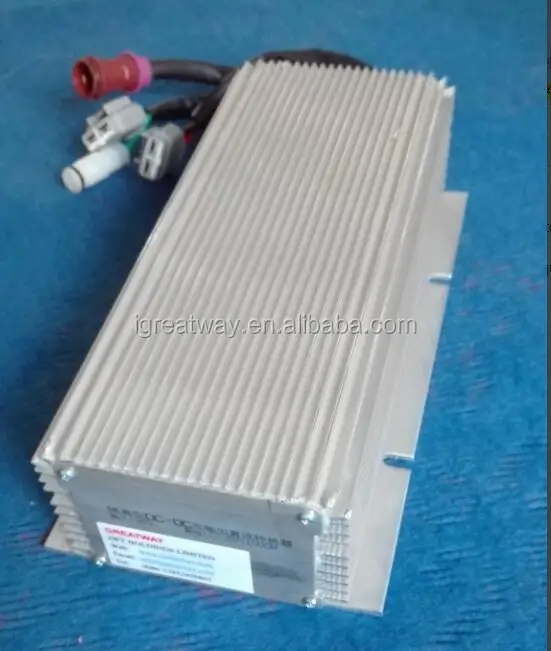

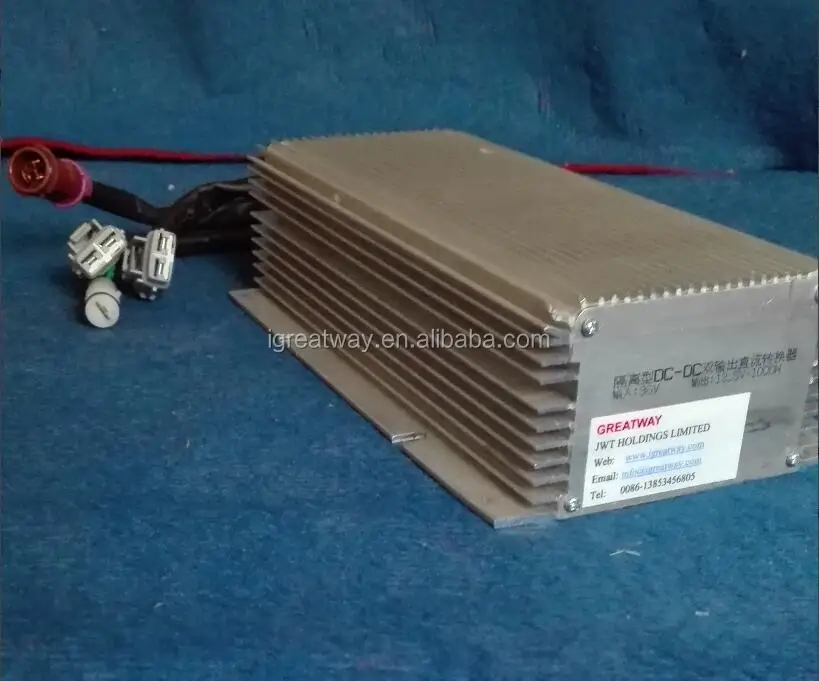

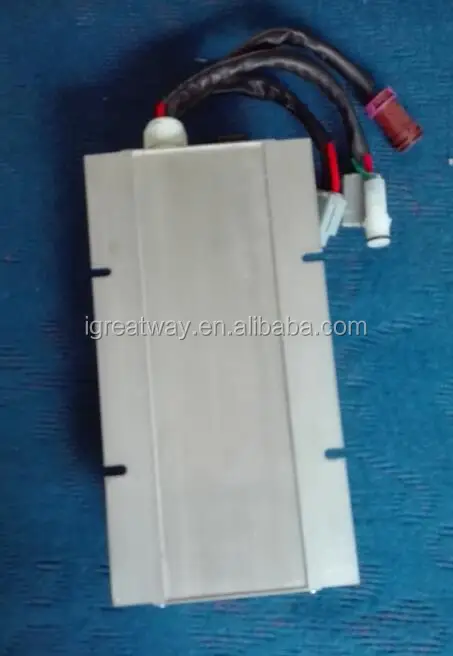

1000w 36V48V60V72V84V96V120V144v v to 12v isolated DC DC Converter with dual output

Input volt:36v48v60v72v84v96v120v144v     output volt:12v,24V

Rated power efficiency≥87%    Ripple factor<1%   peak power: 120%rated power,6min

Working temperature:-30℃-+55℃     Storage temperature:-40℃-+80℃

Protection function

1. Output short circuit protection,

2)output  over-current protection

3)input over -volt.&Undervoltage protection

4.Input reverse polarity protection

5 Overheating protection

Temperature protection: the shell temperature reaches 80-90 ℃, the converter is protected, it has no output, the shell temperature drops to 60-70℃,  the converte rautomatically restores the output

Earthquake rating: meet SAEJ1378

Fog Salt: GB / T2423, 17-2008 Environmental Test for Electrical and Electronic Products

The input and output insulation resistance between the shell and the input and output is greater than 1000MΩ

Other technical performance  is in line with GB / T24347-2009 standard requirement

our   company specialized in the manufacture and export of electric system products ,  including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator ,air conditioning system,electric system solution .etc
