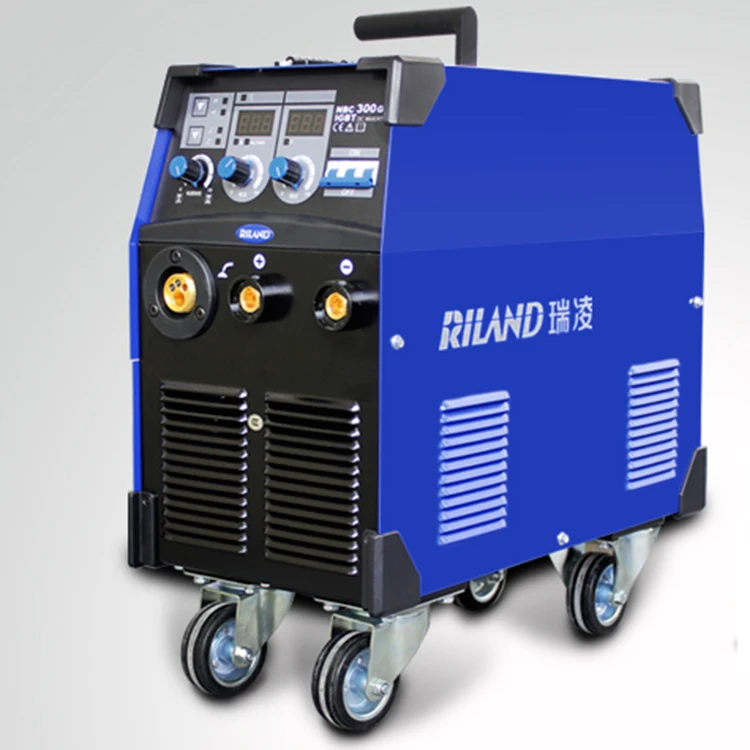

Integrated Wire Feeder IGBT Inverter Portable CO2 Mig Welding Machine 300A
- Category: >>>
- Supplier: Nanning Chuanjun Welding Hardware Co. Ltd.
Share on (60694124118):
Product Overview
Description
CO2 mig welding machine
Integrated Wire Feeder IGBT Inverter Portable CO2 Mig Welding Machine 300A
Product Description
1.IGBT high frequency inverter technology, inverter frequency up to 25KHZ, fast dynamic response;
2.Using PWM control, reliable quality, stable performance;
3.With a sound protection circuit and fault display, safe and reliable and easy to find fault;
4.With three anti-function (dust, water, wind erosion)
5.Small size, light weight, high efficiency, high load duration, low noise;
6.All digital welding current, voltage display, intuitive and convenient operation;
7.Main transformer core with ultra-micro-crystal nano-materials;
8.High duty cycle, at 40 ℃ ambient temperature full current working load duration greater than 60%
9.The welding process is stable, the anti-grid fluctuation ability (320 ~ 450V)

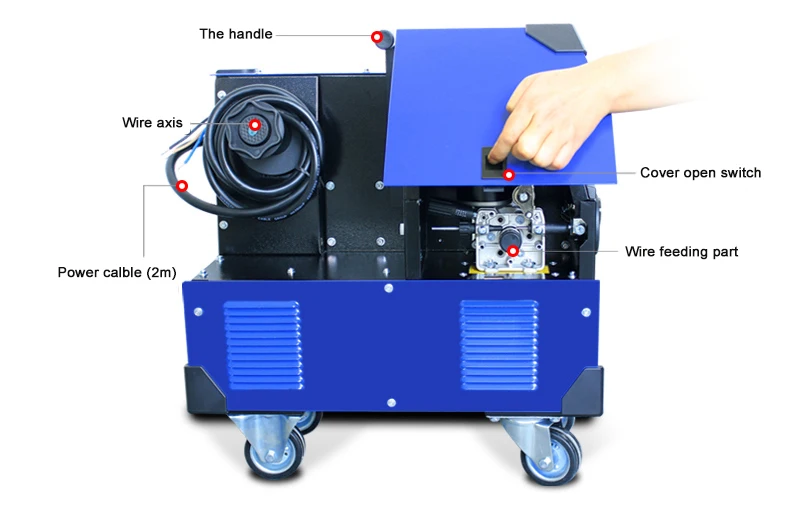

Detailed Images

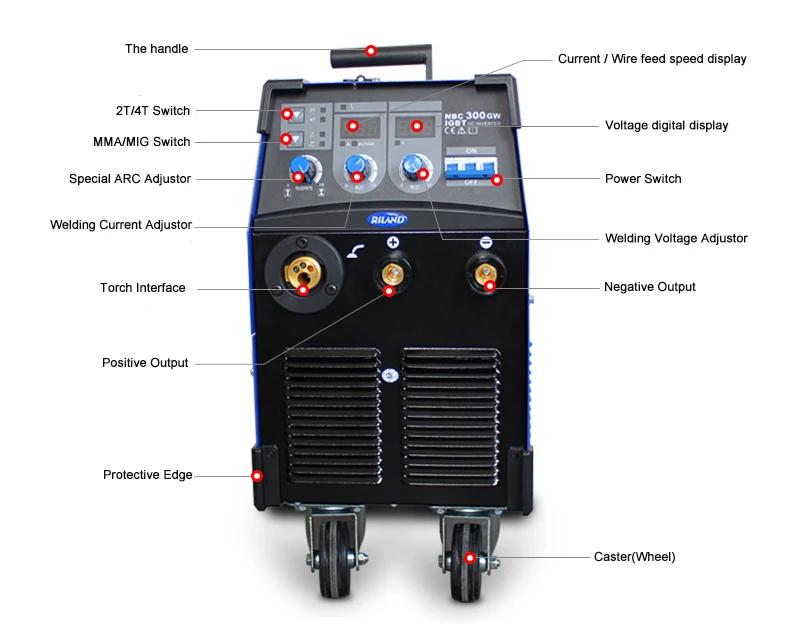

Basic parameters of mig welding machine,
IGBT Inverter Mig Welding Machine NBC-300GW for instance:

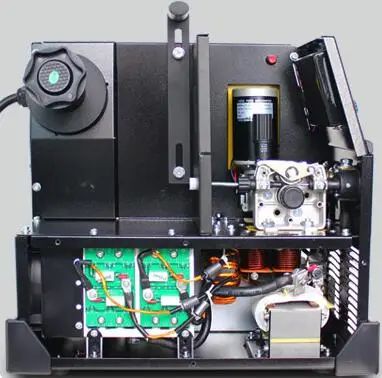

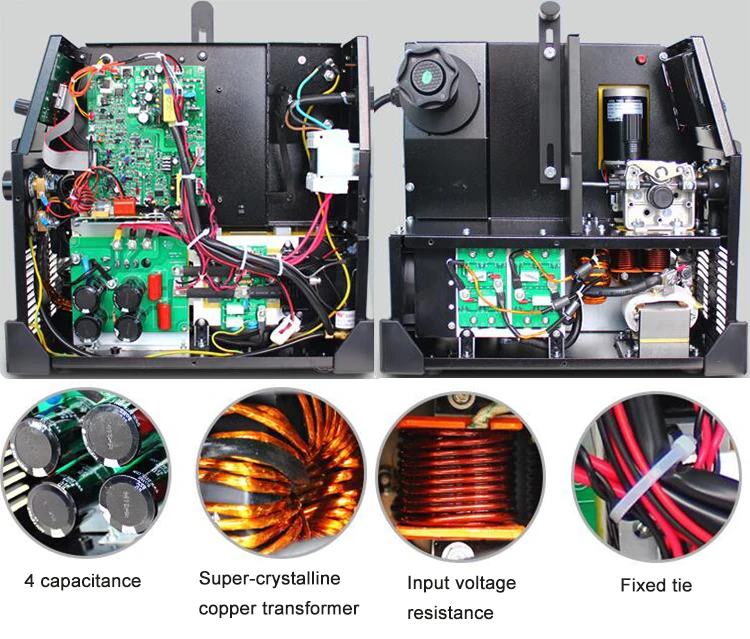

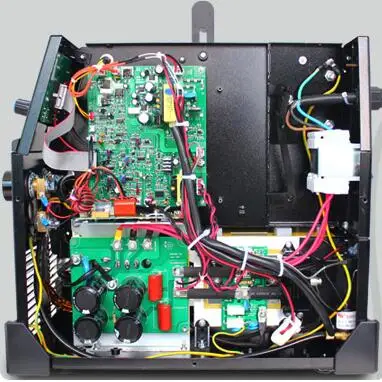

Inside view:

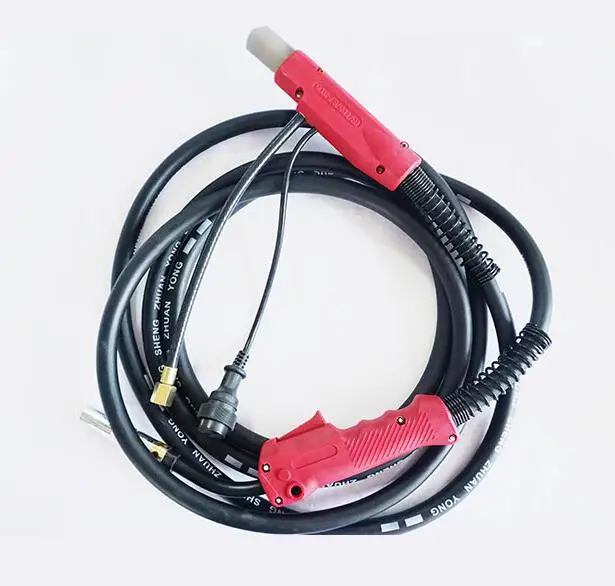

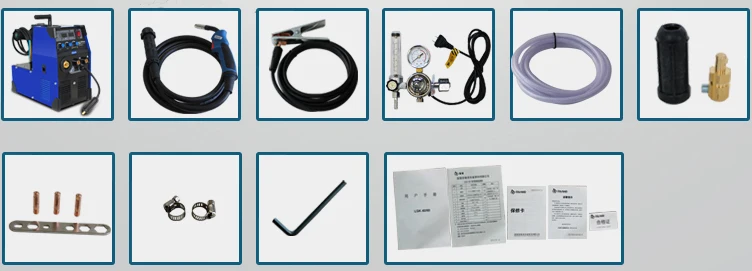

Accessories:
Features

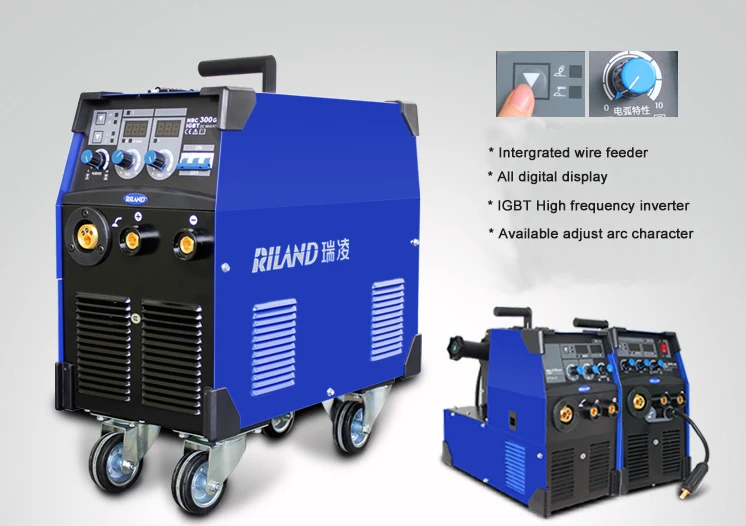

IGBT Inverter MIG Welding Machine with intergrated wire feeder: features and mig / mag welding process display.
Specifications
Specification of NBC-300GW mig welding machine:
Model Number | NBC-300GW |
Rated Input Voltage(V) | 3 Phase 380±15% |
Input Frequency (HZ) | 50/60 |
Rated Input Current(MMA/MIG,A) | 19/18 |
Current Regulation Range (MMA/MIG,A) | 70-300/ 30-300 |
Output Voltage (MMA/MIG,A/V) | 22.8-32/16.5-29 |
Wire Diameter(mm) | 0.8/1.0/1.2 |
No-load Voltage(V) | 56 |
The Wire Feeding Machine Form | Intergrated |
Wire-feeder Speed (m/min) | 3~16 |
Efficiency (%) | 85 |
Power Factor | 0.93 |
Class of Insulation | F |
Protection Class | IP21 |
Weight(KG) | 31.5 |

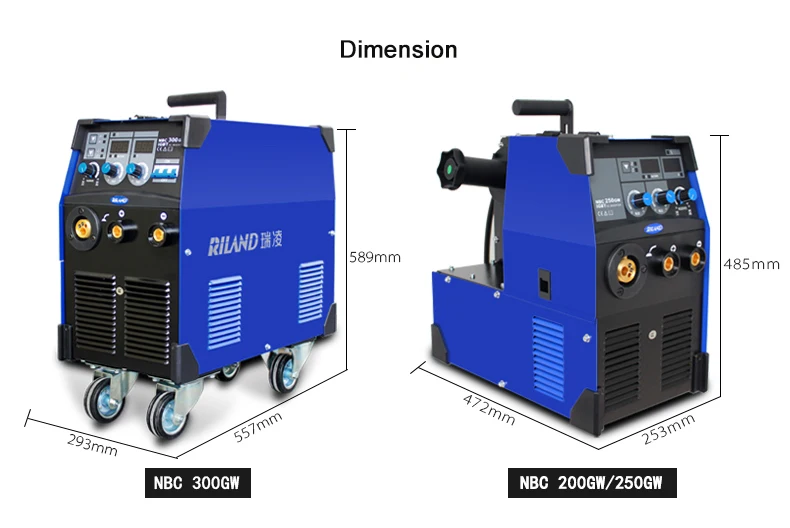

Size(mm) | 557×293×589 |
Packaging & Shipping
Generally, carton box packed or depands on your special requirements.
Company Information
Nanning ChuanJun Welding Hardware Co., Ltd.
is founded in 2004, it has been focused on welding and cutting equipment and accessories for more than 12 years.
Our products ranges:
On Welding: TIG, MIG, MAG, MMA arc welding machine and the welding accessories, automatic welding carriage, welding consumables,etc;
On Cutting: gas cutting machines, oxy-fuel cutting machine for plate and pipe, air inverter plasma cutting machine cnc plasma and flame cutting machine, gas cutting accessories, pipe cutting and beveling machine;
Others: welding mask, welding helmets, welding gloves, etc.
We are devoted to offering high efficient machines for your metal work and trading business.
