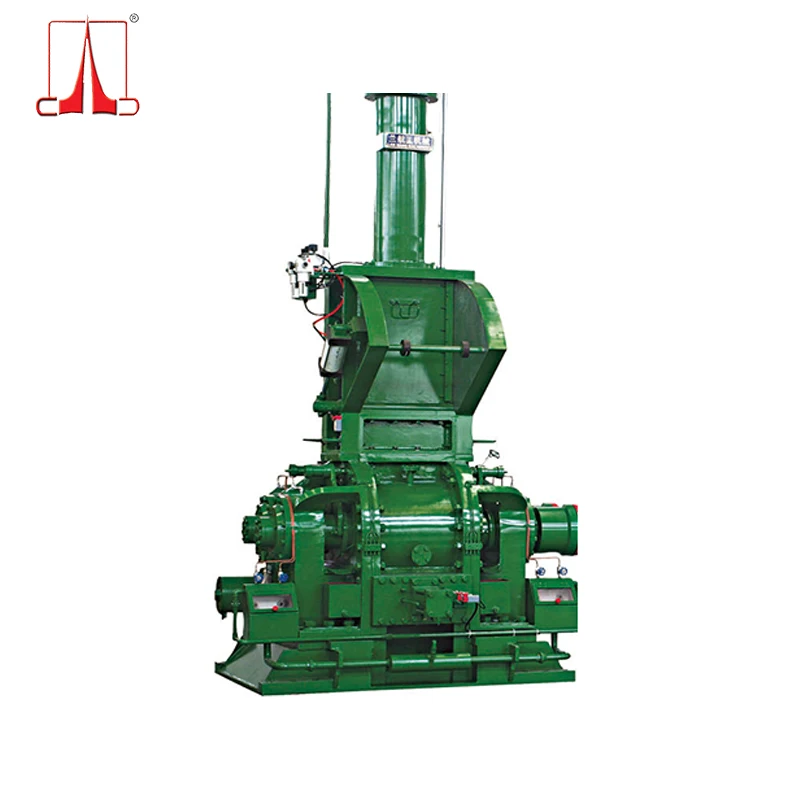

High performance Mixing room chrome plated Banbury Rubber Intensive Kneader Mixer Price for Rubber and Plastic

Product Overview

Description

Hot selling Industrial High performance lab banbury rubber mixer machine

project\\model	LX-75L	LX-100L	LX-120L	LX-160L	LX-255L	LX-270L	LX-410L	LH-100Y	LH-145Y	LH-200Y	LH-250L	LH-330L
roter style	tangential							intermesh
total volume of mixer	75	100	120	160	255	270	410	100	145	200	250	330
fill factor	0.75							0.65
rotating speed of rear rotor(r/min)	40	40	40	40	4-40 6-60	4-40	6-60	10-60
ram max pressure(Mpa)	0.55				0.58	0.58	0.62	0.55	0.58	0.58	0.62	0.62
max capacity(T/H)	1.25	1.6	1.95	2.64	4.6	4.6	7.4	1.36	2.2	3.05	4.2	5
main motor power(kw)	160	220	310	355	1500	1250	2500	520	720	1100	1320	1700
weight(t)	20	24	26	26	55	55	76	19	29	48	65	80
Main features	Choice of Rotor Designs Pneumatic or Hydraulic Ram Direct Drive or Compound Drive Multiple contact surface hardfacing or heat-treating Temperature sensing and oil injection NMC Mixer Control System: monitors and controls mixing time Mixer Accessories: Hydraulic Power Unit, Dust Stop Lube Unit, Air Valve and Temperature Control System



 Internal batch mixers such as the Banbury mixer are used for mixing or compounding rubber and plastics. The mixer consists of two rotating spiral-shaped rotors encased in segments of cylindrical housings. The rotors may be cored for circulation of heating or cooling.



It has reasonable design, advanced structure, high manufacturing quality, reliable operation and long service life. It's suitable for tire and rubber industries insulating material and cable industries to plasticization, master-batch and final mixing, especially for mixing of radial tire compound.
