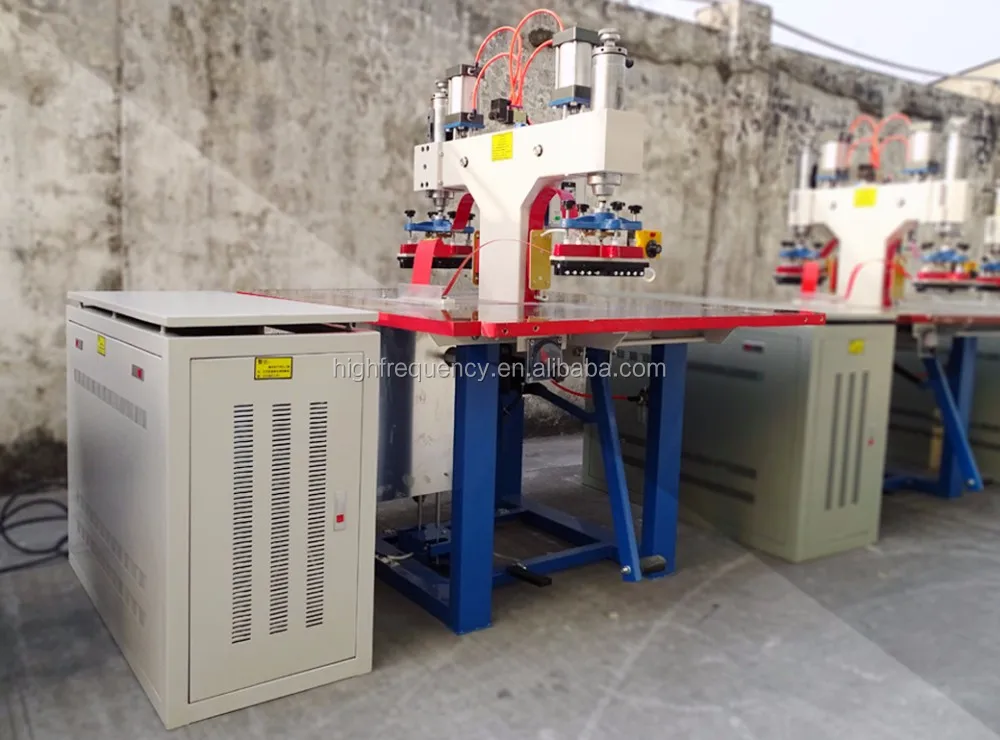

Hf Leather Label/trademark Logo Embossing Machine is a high frequency device, whose self-exited oscillator of the electron tube can produce high frequency electromagnetic field. And the plastic to be processed is in the high frequency electromagnetic field between the upper and low electrode. When its interior molecules are polarized and produce heat automatically by mutual movement and friction, it will be welded with the pressure of the die.
Model
YJ-TJ-5000TA
YJ-TJ-8000TA
YJ-TJ-10KWTA
High frequency Power
5000W
8000W
10KW
Supply Power
220V/50/60HZ
220V/50/60HZ
220V/50/60HZ
Frequency
27.12MHZ
27.12MHZ
27.12MHZ
Input power
8KVA
15KVA
18KVA
Rectifier
diode
diode
diode
Oscillating tube
7T85RB
7T69RB
E3069
Max pressure
350kg
500kg
500kg
Electrode spacing
160mm
160mm
160mm
Activities Dimension
60mm
60mm
60mm
Above electrode size
120*290mm
120*290mm
120*290mm
Upper electrode size
350*700mm
350*700mm
350*700mm
Welding time
0-10 seconds
0-10 seconds
0-10 seconds
Pressure Ways
Pneumatic drive
Pneumatic drive
Pneumatic drive
Body work dimension
350*400mm
350*700mm
350*700mm
Dimension
1720*1100*1500
1720*1100*1500
1720*1100*1500
Net Weight
330kg
330kg
330kg
Facture
The feacture of Hf Leather Label/trademark Logo Embossing Machine
1. Timing continued electrical control, especially for difficult alignment products welding,also can choose pneumatic devices according to the needs of pressure. High frequency welding machine designs the principles of toggle leverage. PVC welding enables uniform pressure, high frequency machine severity of head pressure can be adjusted to match the needs of high-frequency welding depth.
2. High-Q electronic oscillation tubes, international industry standard high-frequency frequency band frequency frequency output stability. With automatic over-current protection system, when the high-frequency current load exceeds the limit value, it will automatically cut off the high-frequency, high-frequency oscillation protection tube is damaged, avoid high frequency by the frequency drift caused by improper operation, so that high-frequency mold and material damage to a minimum.
3. European standard low-loss Coaxial oscillator with heating device and Promise heating thermostat device, working more efficient .
4. High-frequency oscillation frequency meets the international standards for industrial band,frequency electromagnetic field generated by a high Q value vacuum tube self-excited oscillator,So that the processing of plastic in high frequency electric field between the upper and lower electrodes to generate intense molecular kinetic friction,then forming under the pressure of welding mold .
Dongguan Yongjia Machinery Equipment Co.,Ltd, founded in 2003, is a large professional high frequency equipment factory, with strong technical capacity, advanced production equipment, experienced team and excellent service, using scientific management system, strictly follow production standards and testing standards, our products quality and service have been widely recognized by the industry, with many years production practice and technology development, we are a leading company in the industry with complete high frequency equipment product lines; our products include automatic high frequency plastic packaging production line, digital products hot pressing equipment, automotive interior components welding equipment, membrane structure canvas welding machine, industrial belt skirt baffle welding machine, automatic medical bag high-frequency welding machine and other kinds special high frequency welding machines; automatic high-frequency welding equipment, automatic cylinder production line, soft line glue box machine and hundreds of products. At the same time, we provide customized non-standard and special equipment, according to the needs of different customers, has a strong team of foreign trade business, the products are exported to Germany, Russia, Brazil, America, Southeast Asia and are hot selling in domestic market too. Yongjia enterprise, based on out superb technology and complete, high quality service, provides customers great service.
Welcome to visit our plant!
