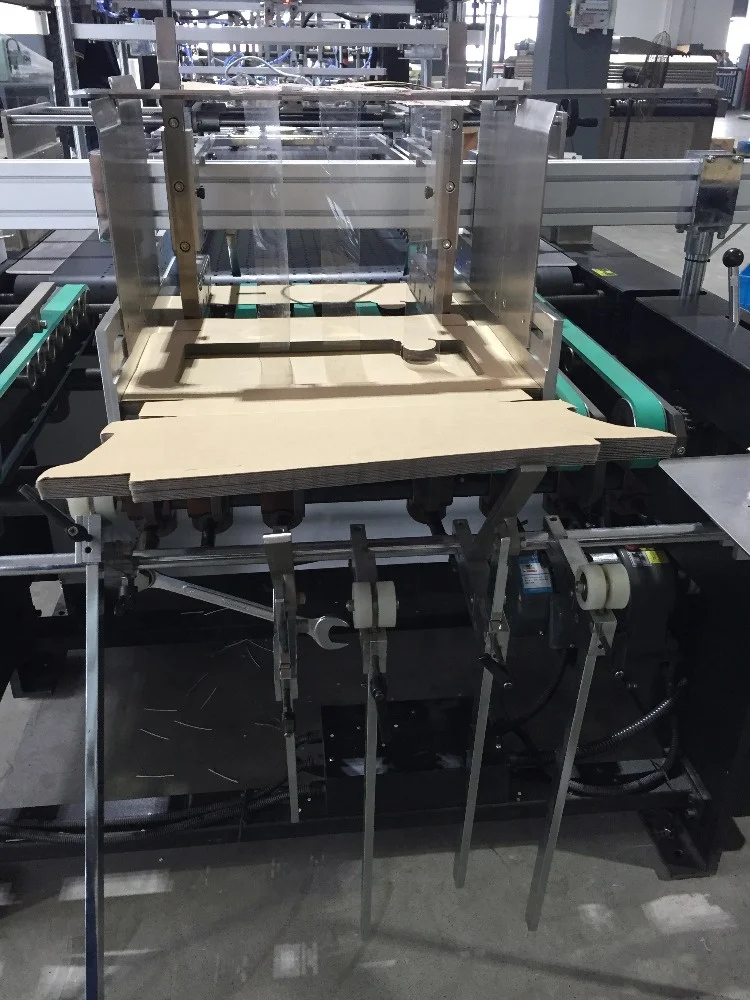

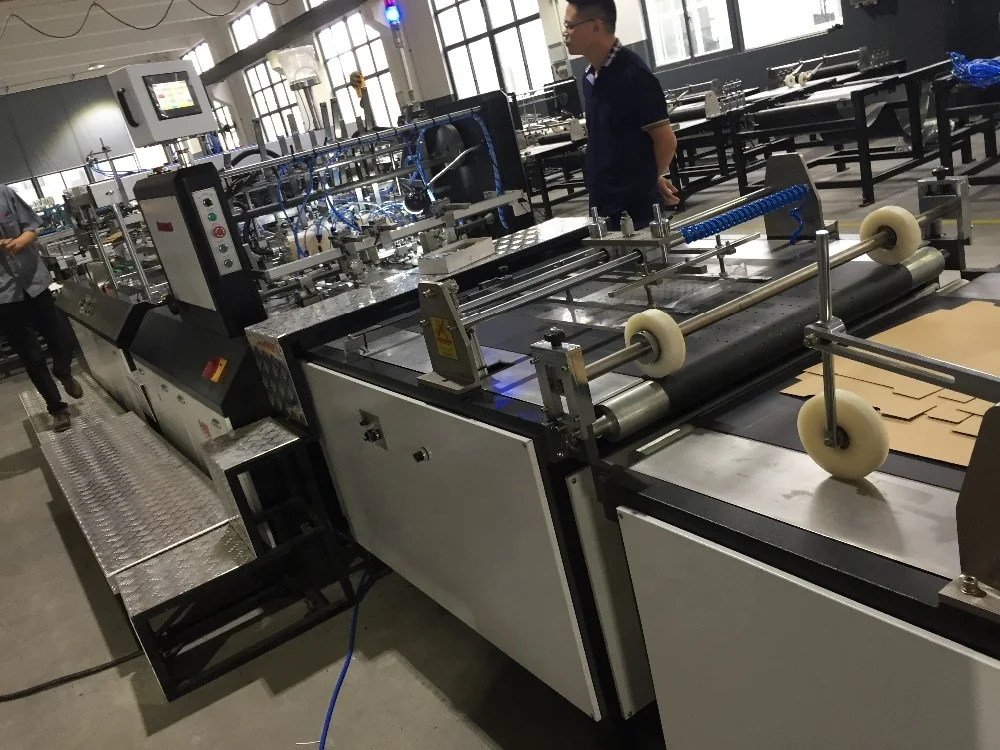

JB 900TC Automatic shaped window patching machine for carton and E flute box
- Category: >>>
- Supplier: Wenzhou Xinguang International Trade Co. Ltd.
Share on (60694300116):
Product Overview
Description
Our Services
As distributor, our most advantage is competitive price and effective aftersale service.
we offer on-the-spot serivice within 24 hours worldwide
Your one stop solution for Printing&Packaging

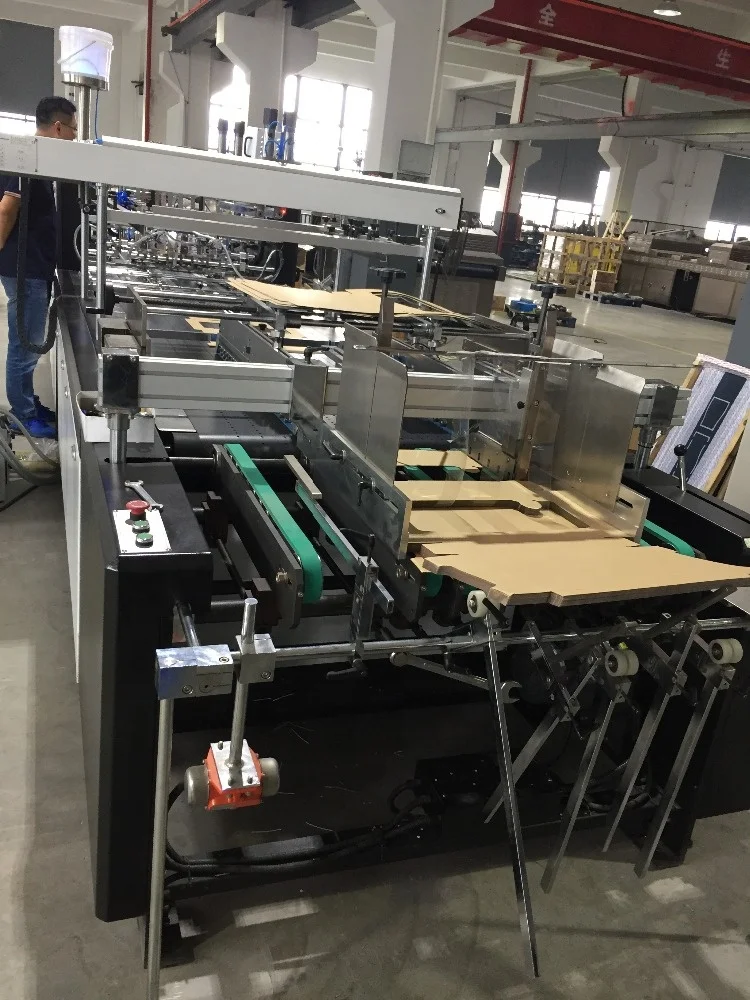

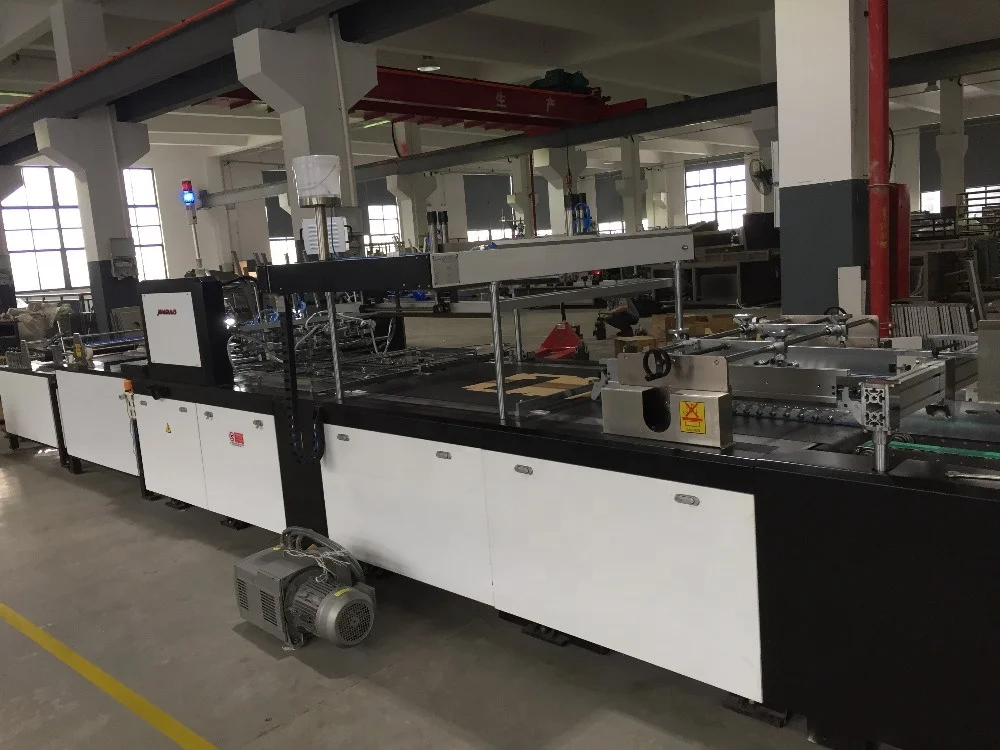

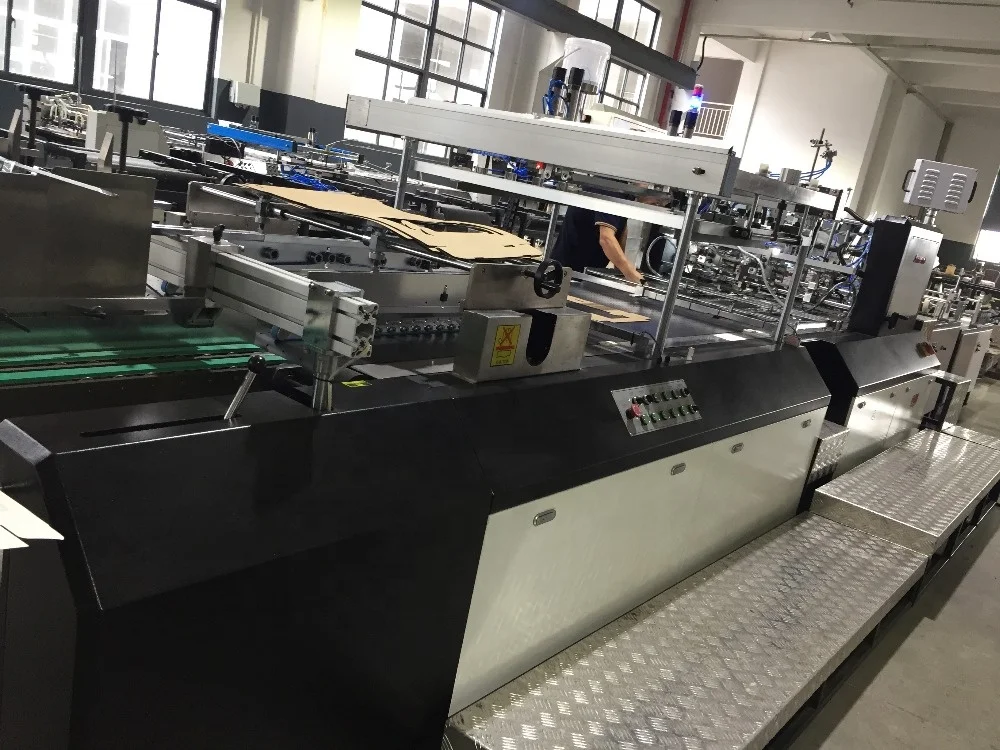

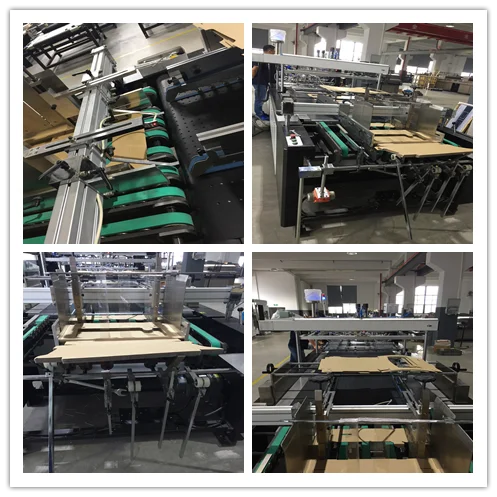

JB-900TC automatic shaped window patching machine
Product Description
Feature:
JB-900TC Automatic Shaped Window Patching Machine is used to patch films on windows of all kinds of cardboard or corrugated boxes, cases after die-cutting, embossing; it is available for sheet film with corner cutting or embossing. The equipment adopts screen printing to gule, the layer is thick and equal. The feeding adopt servo motor, positioning printing, three point positioning lamination, printing and laminating precision is high; it can realize multi piece parallel film laminating at the same time; it is the first choice to window patching processing of high-grade toy box, packing box, cosmetics box, wine box etc.
Main Technical Parameters:
JB-900TC | ||
Running speed | 1800-2200 pcs/h | |
Max. bottom sheet size | 900×700mm | |
Min. bottom sheet size | 150×100mm | |
Bottom sheet spec. | Cardboard | 120-700 g/m² |
corrugated paper | ≤ 5mm | |
Max. pasted sheet size | 500×330mm | |
Min. pasted sheet size | 8×12mm | |
Pasted sheet thickness | 0.1-1.0 mm | |
Installation power | 3P 380V 50Hz 11.3Kw | |
Total Weight | About 2000kg | |
Overall size | Feeding part | 1450×1620×1386mm |
Printing part | 2610×1860×1375mm | |
Patching part | 1530×1620×1550mm | |
Pressing Part | 1585×1330×990mm | |
Overall size | 7200×2360×1550mm | |
Remark: The actual work speed depending on the different bottom paper and patch material specifications
