Product Overview
Description
China supplier 30kw ac variable frequency drive
Product Description
(1) Frequency inverter is generally applied to 3 phase AC asynchronism motors.
(2) Frequency inverter is applied to the admisive accasion, the occasion where is not admissive may lead to fire, electric shock, explosion and so on.
(3) If the inverter sizes up when it is applied to the equipment which may lead danger(e.g. lift tools of transportation, aviation systerm, saftety equipment, etc), it should be managed carfully. Do inquire the supplier when it happens.
Certifications
Product Details

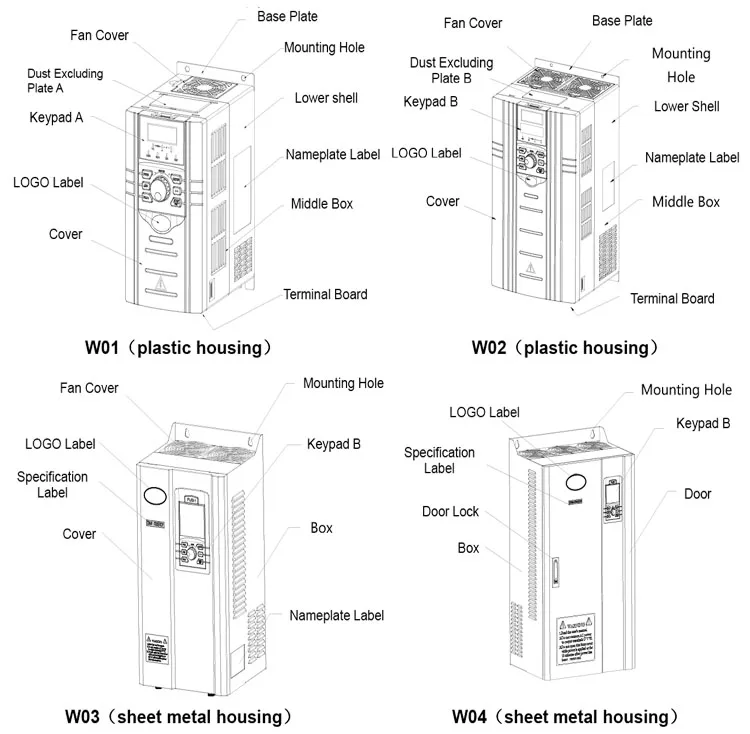

Variable-Frequency Inverter Wall-mounted Type Appearance:

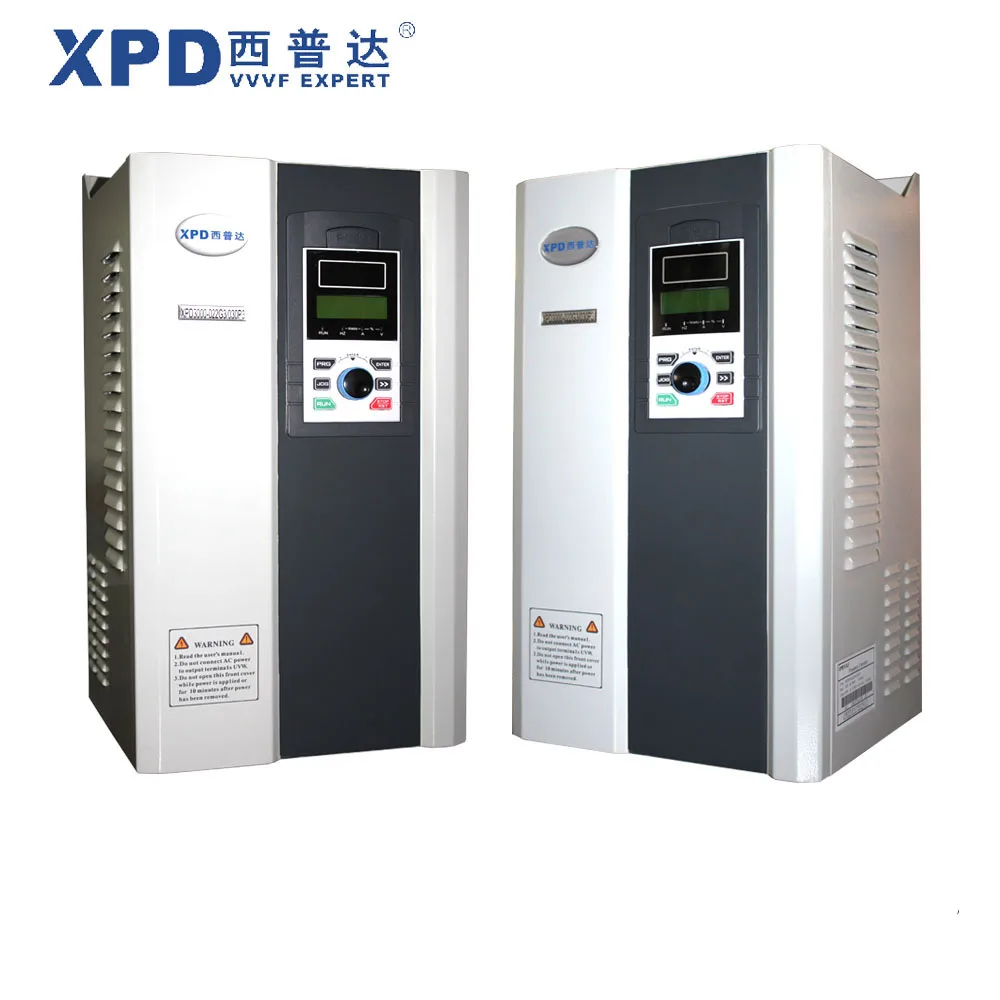

Variable-Frequency Inverter Cabinet Type Appearance:
1.Technical Parameters:
| Single phase 220v | ||||||
| Model | Power Capacity (kva) | Input Current (A) | Output Current (A) | Brake Unit | DC Reactor | Control Panel |
| XPD3000-0R7G2 | 1.5 | 8.2 | 2 | Optional built-in | --- | Standard LED Keyboard |
| XPD3000-1R5G2 | 3 | 14 | 7 | |||
| XPD3000-2R2G2 | 4 | 23 | 9.6 | |||
| Three phase 220v | ||||||
| Model | Power Capacity (kva) | Input Current (A) | Output Current (A) | Brake Unit | DC Reactor | Control Panel |
| XPD3000-1R7G2-3 | 1.5 | 6 | 4 | Optional built-in | --- | Standard LED Keyboard |
| XPD3000-1R5G2-3 | 3 | 9 | 7 | |||
| XPD3000-2R2G2-3 | 4 | 11 | 9.6 | |||
| XPD3000-4R0G2-3 | 8.9 | 14.6 | 13 | Standard built-in | ||
| XPD3000-5R5G2-3 | 17 | 26 | 25 | |||
| XPD3000-7R5G2-3 | 21 | 35 | 32 | |||
| Three phase 380v | ||||||
| Model | Power Capacity (kva) | Input Current(A) | Output Current(A) | Brake Unit | DC Reactor | Control Panel |
| XPD3000-1R5G3/2R2P3 | 3.0/4.0 | 5.0/5.8 | 3.8/5.5 | Standard built-in | --- | LED Keyboard |
| XPD3000-2R2G3/4R0P3 | 4.0/5.9 | 5.8/10.5 | 5.5/9 | |||
| XPD3000-4R0G3/5R5P3 | 5.9/8.9 | 10.5/14.6 | 9/13 | |||
| XPD3000-5R5G3/7R5P3 | 8.9/11 | 14.6/18 | 13/17 | |||
| XPD3000-7R5G3/011P3 | 11/17 | 18/26 | 17/25 | |||
| XPD3000-011G3/015P3 | 17/21 | 26/31.2 | 25/30 | LED & LCD keyboard | ||
| XPD3000-015G3/018P3 | 21/24 | 31.2/39.2 | 30/38 | |||
| XPD3000-018G3/022P3 | 24/30 | 39.2/46.5 | 38/45 | |||
| XPD3000-022G3/030P3 | 30/40 | 46.5/62 | 45/60 | |||
| XPD3000-030G3/037P3 | 40/57 | 62/78 | 60/76 | |||
| XPD3000-037G3/045P3 | 57/69 | 78/93 | 76/91 | Optional external | Optional external | |
| XPD3000-045G3/055P3 | 69/85 | 93/114.5 | 91/112 | |||
| XPD3000-055G3/075P3 | 85/114 | 114.5/153.5 | 112/150 | |||
| XPD3000-075G3/090P3 | 114/134 | 153.5/180 | 150/176 | |||
| XPD3000-090G3/110P3 | 134/160 | 180/214 | 176/210 | |||
| XPD3000-110G3/132P3 | 160/192 | 214/256 | 210/253 | |||
| XPD3000-132G3/160P3 | 192/231 | 256/307 | 253/304 | |||
| XPD3000-160G3/185P3 | 231/240 | 307/360 | 304/350 | Standard built-in | ||
| XPD3000-185G3/200P3 | 240/250 | 360/385 | 350/377 | |||
| XPD3000-200G3/220P3 | 250/276 | 385/425 | 377/415 | |||
| XPD3000-220G3/250P3 | 276/335 | 425/479 | 415/465 | |||
| XPD3000-250G3/280P3 | 335/375 | 479/535 | 465/520 | |||
| XPD3000-280G3/315P3 | 375/420 | 535/600 | 520/585 | |||
| XPD3000-315G3/355P3 | 420/475 | 600/674 | 585/650 | |||
| XPD3000-355G3/400P3 | 475/535 | 674/785 | 650/720 | |||
| XPD3000-400G3/450P3 | 535/600 | 785/850 | 720/820 | |||
| XPD3000-450G3/500P3 | 600/670 | 850/930 | 820/890 | |||
| XPD3000-500G3/560P3 | 670/750 | 930/1055 | 890/1000 | |||
| XPD3000-560G3/630P3 | 750/840 | 1055/1155 | 1000/1120 | |||
| XPD3000-630G3/710P3 | 840/947 | 1155/1310 | 1120/1270 | |||
| XPD3000-710G3/800P3 | 947/1067 | 1310/1475 | 1270/1430 | |||
| XPD3000-800G3/850P3 | 1067/1133 | 1475/1575 | 1430/1520 | |||
| XPD3000-900G3/1000P3 | 1200/1334 | 1668/1850 | 1610/1790 | |||
| XPD3000-1000G3 | 1334 | 1850 | 1790 | |||
2. Terminals wiring diagram of the ac driver

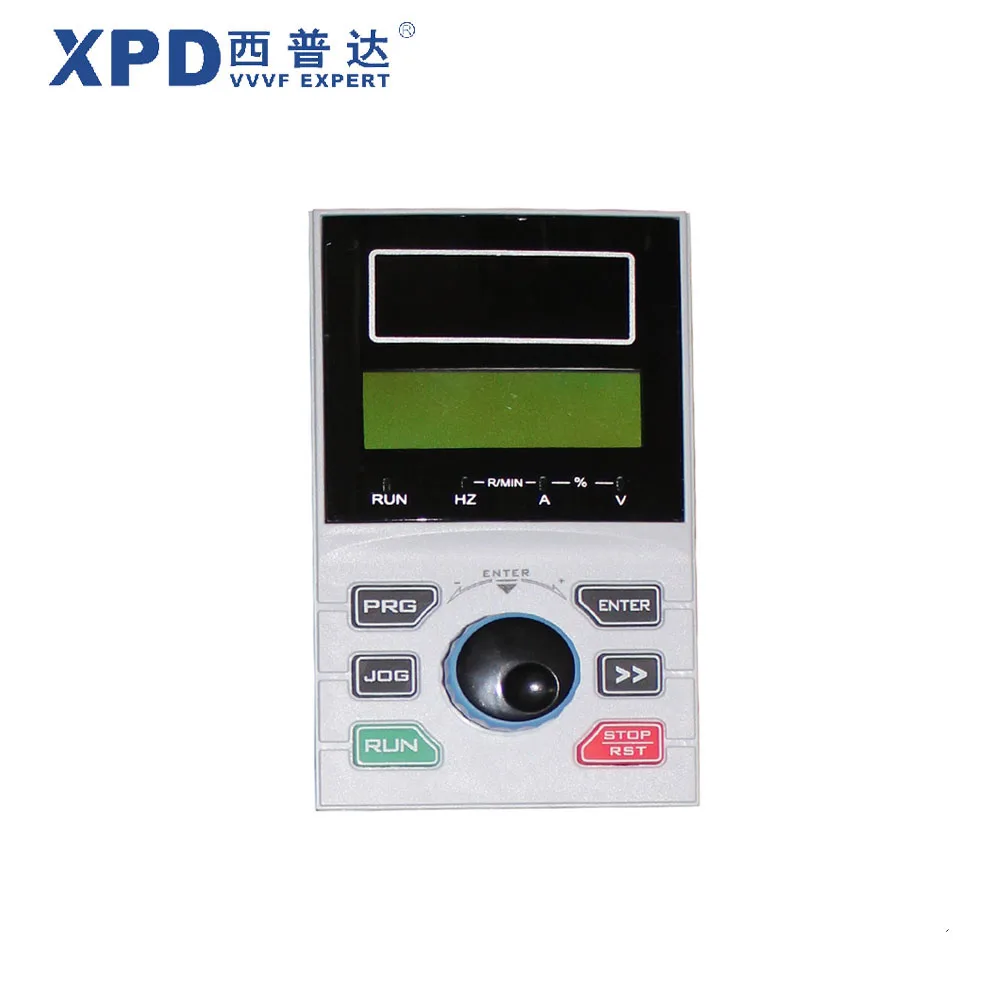

3. Keypad
LED Keypad LED and LCD display Keypad
Application
