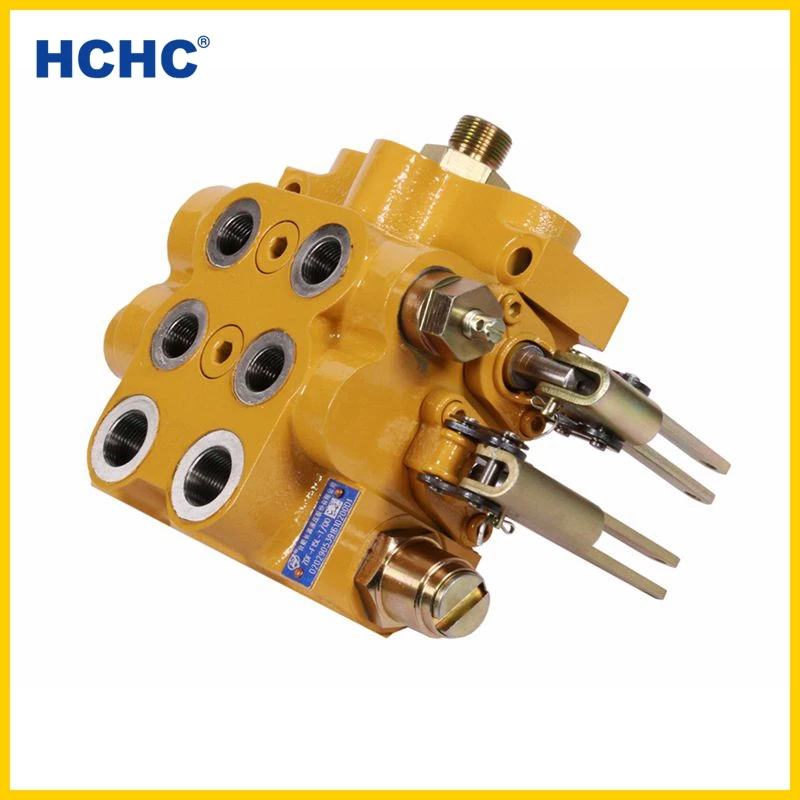

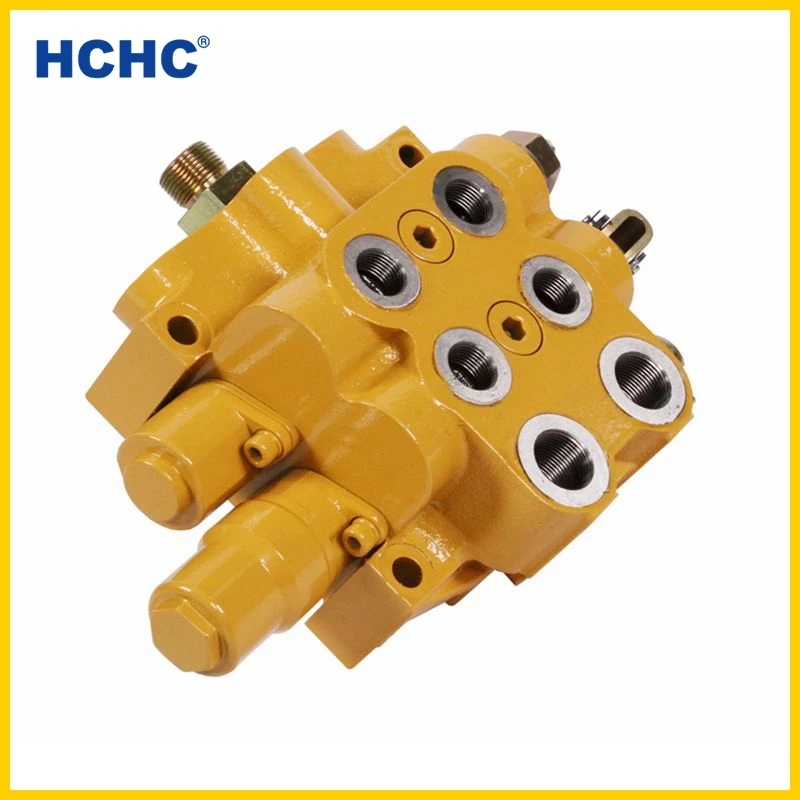

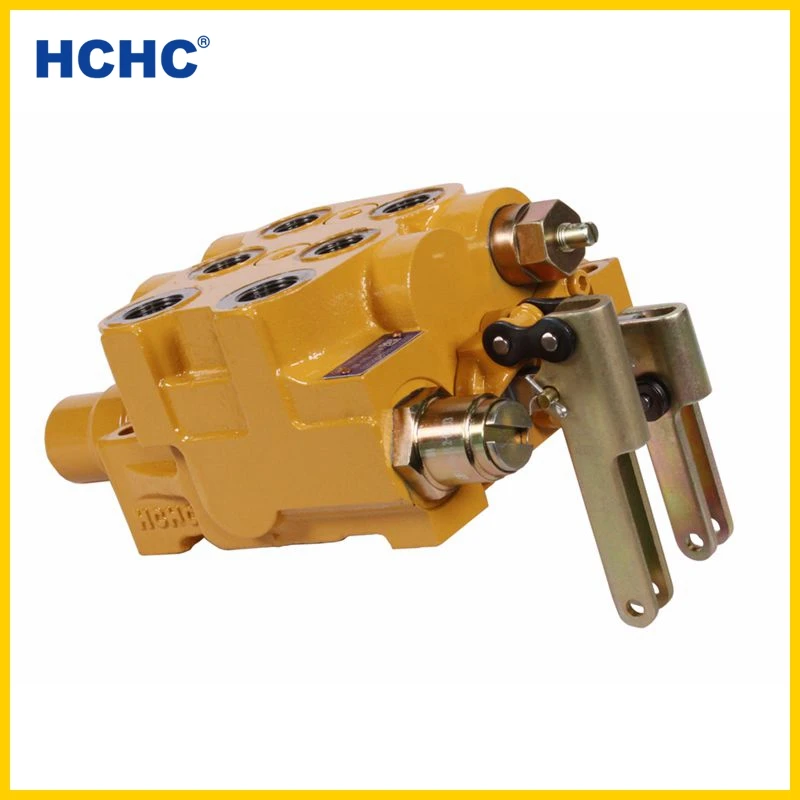

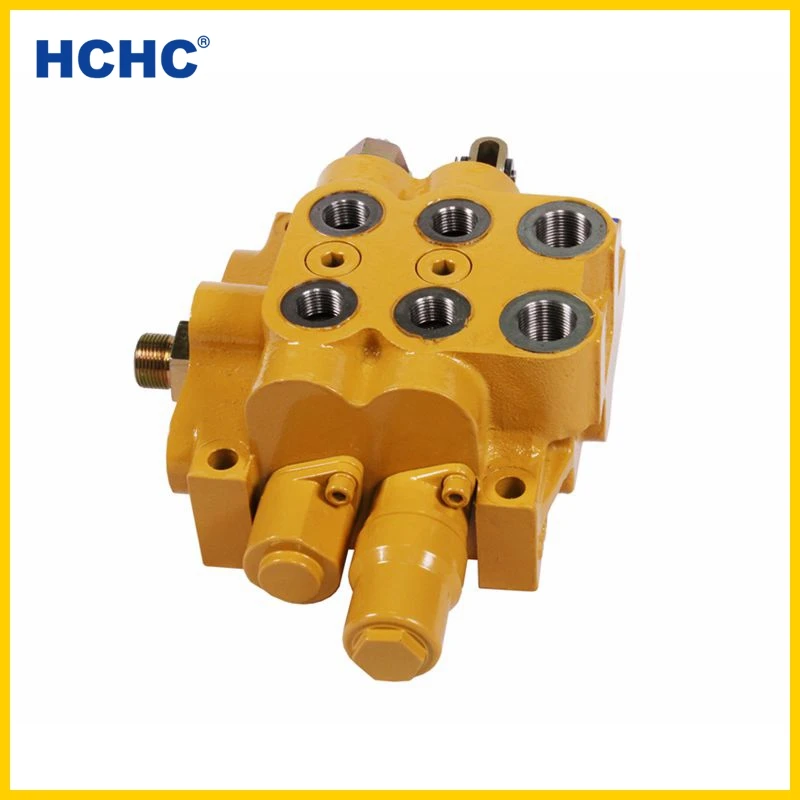

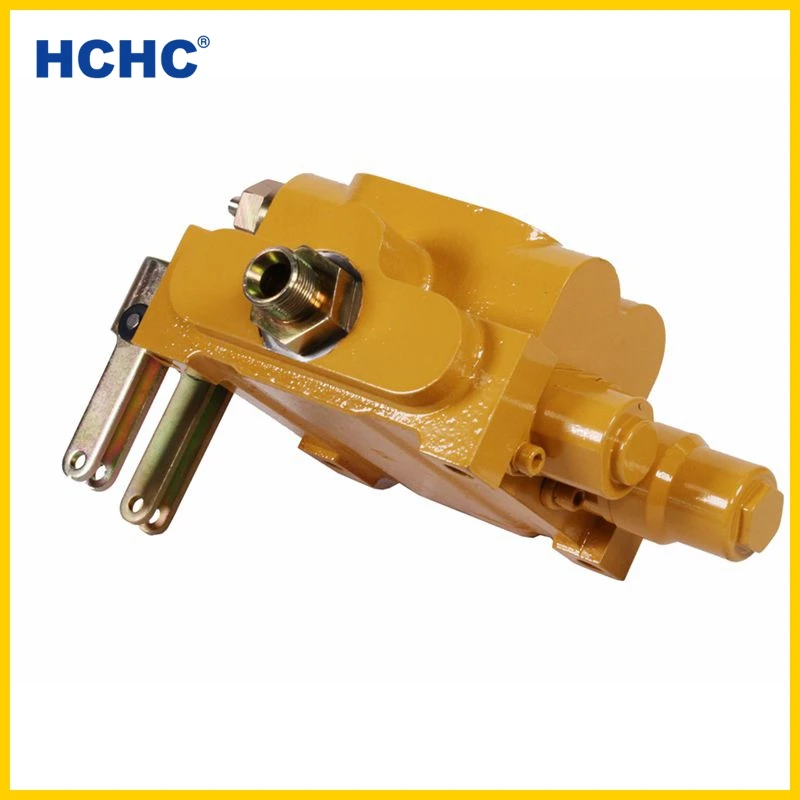

good price monoblock hydraulic valve ZDF1 hydraulic control valve for tractor
ZDF1-L15F is a middle-high pressure integral multi-direction valve with parallel circuit. The valve body built-in safety valve, one-way valve or overload valve and single-double acting conversion valve to realize the loading or unloading of the oil port.
The body of ZDF1-L15F is equipped with pressure outlet P1 which connected with other oil inlets of hydraulic components to realize the series of several hydraulic components.
This kind of valve has spring retain and steel ball positioning which can achieve A, O, Y and Q functions in accordance with according to user's needs and are widely used in engineering machinery and agricultural machinery industries.
Product Characteristics:
★ advanced features
★ compact structure
★ tight sealing
★ reliable work
★ easy maintenance
Specification
Model Code
ZDF1 *-L 15 F- * / *-* / *
① ② ③ ④ ⑤ ⑥ ⑦ ⑥ ⑧
① Product code
② Design code
1 means pressure output, if no pressure output, it will be omitted.
③ Joining port type: L=thread
④ Nominal size: 15 mm
⑤ Pressure grade: E=160 bar
⑥ Spool control type: T=spring W=ball
⑦ Spool function type of block 1
⑧ Spool function type of block 2
Nominal pressure (bar) | 200 | ||||
Nominal size (mm) | 15 | ||||
Nominal flow (L/min) | 50 | ||||
Spool number | 1~3 | ||||

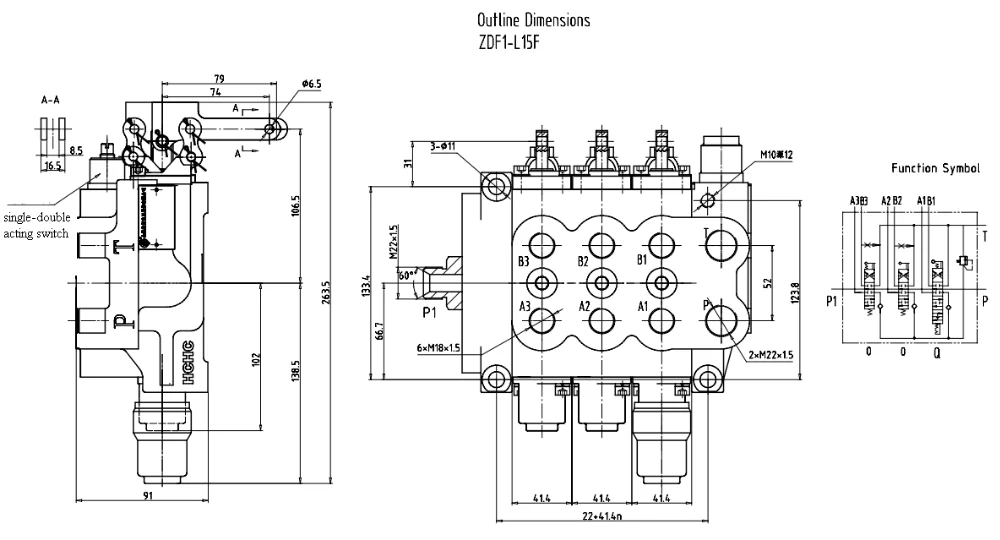

Outline Dimension
