Chinese manufacturer offer water clear lens 10mm Round Dip 1w 930nm 940nm 950nm infrared led diode
- Category: >>>
- Supplier: Shenzhen Starsealand Opto Electronics Co. Ltd.
Share on (60694361342):
Product Overview
Description
Chinese manufacturer offer water clear lens 10mm Round Dip 1w 930nm 940nm 950nm infrared led diode
Starsealand offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels. Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available. Please contact us for pricing.
Product Description
1.Model: XL810IRC/940
2.Power:1W
3.Light Color: invisible light
4.Wavelength (nm): 940nm,different Wavelength are avaliable.
5.Voltage: 1.1-1.3V
6.Drive current: 300-350mA
7.Remark:1PCS led chip
Item | Symbol | condition | Min | Type | Max | Unit |
DC forward Voltage | VF | I=350mA | 1.1 | ---- | 1.3 | V |
DC reverse Current | IR | V=5V | ---- | ---- | 10 | μA |
wavelength | λ | I=350mA | 930 | 940 | 950 | nm |
Spectrum Radiation Bandwidth | Δλ | I=350mA | ---- | 50 | ---- | Nm |
Power output | IV | I=350mA | 30 | ---- | 60 | mW |
50%Power Angle | 2θ1/2 | I=350mA | ---- | 30 | ---- | deg |

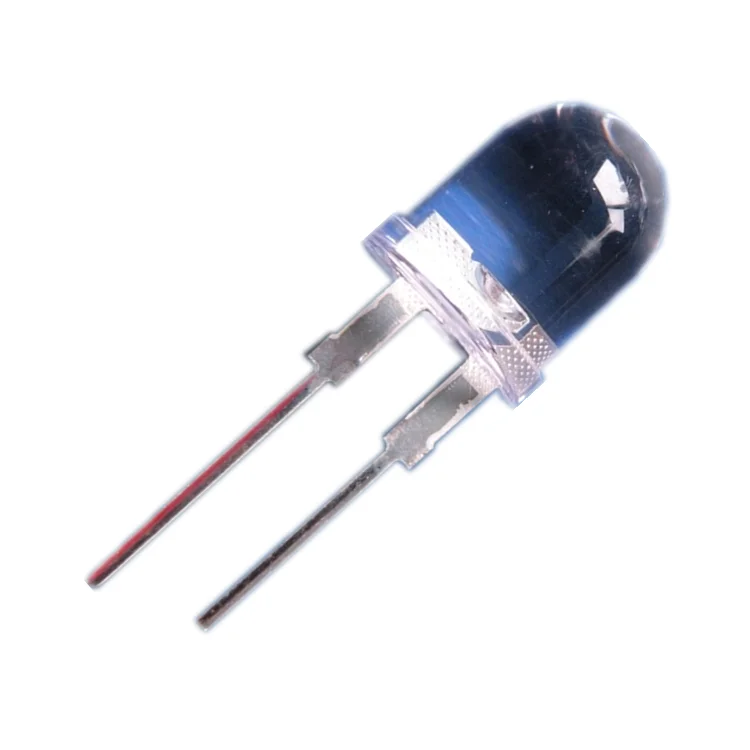

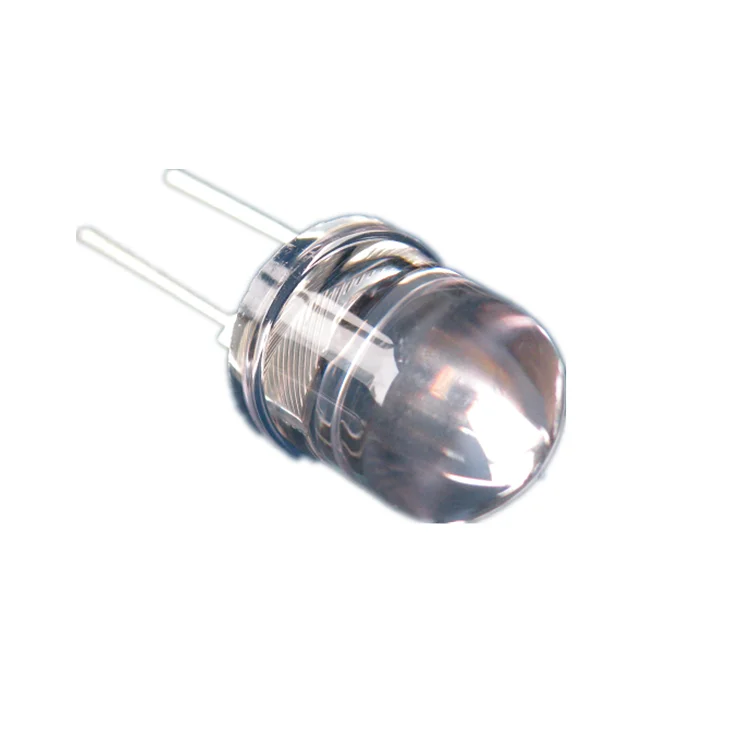

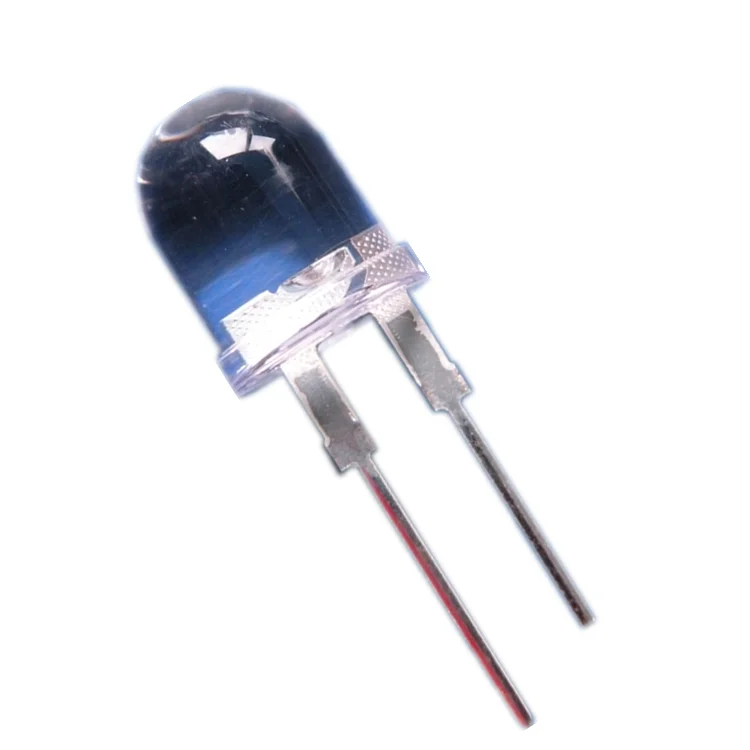

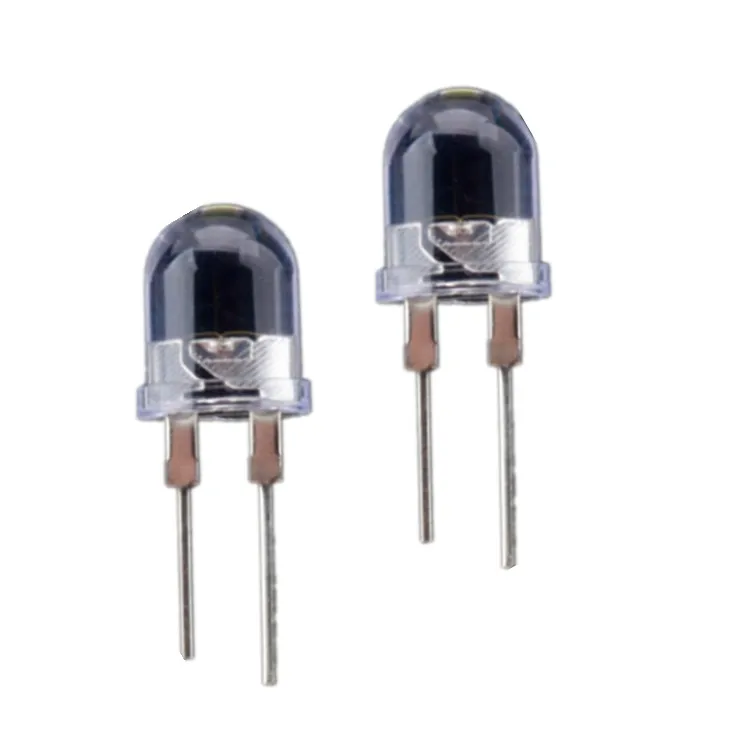

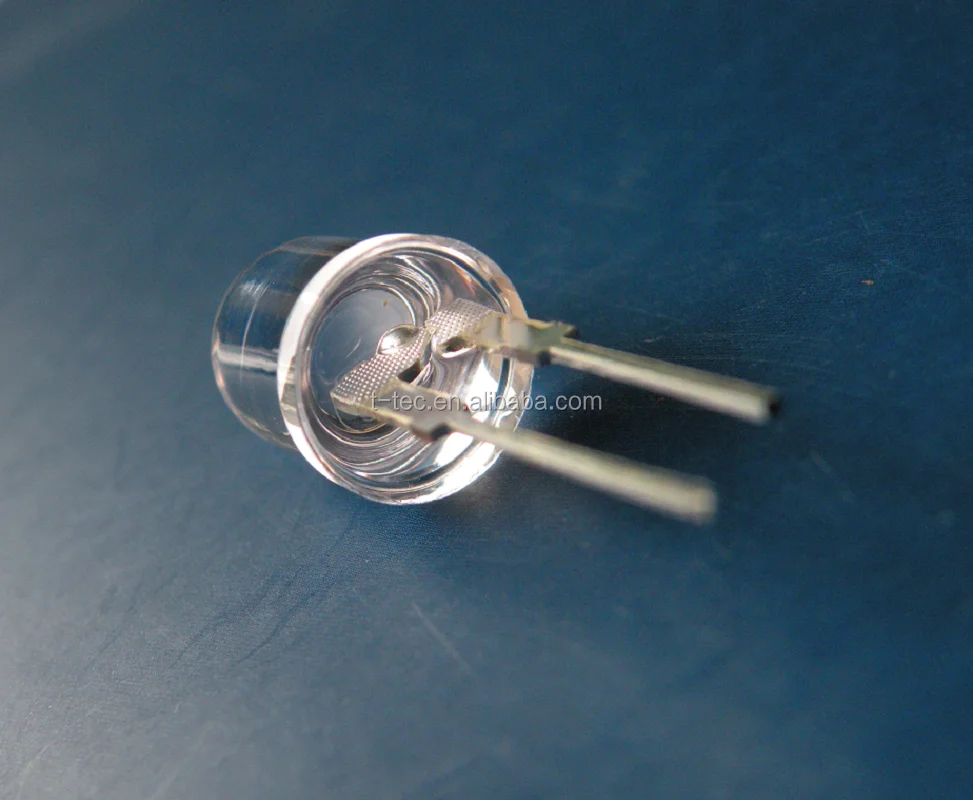

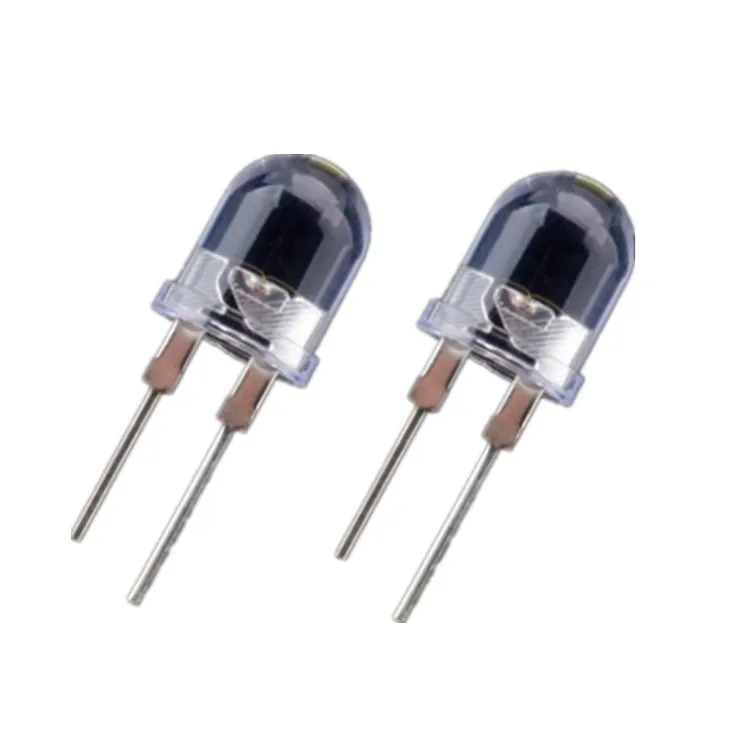

Appearance
Size drawing
Packaging & Shipping
it packaged with pp bag,250pcs in a bag,with carton
shipping way
Our Services
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
Company Information
FAQ
Q:How can I get your pricelist?
A:Please Email us your country name, your detailed contact telephone, fax number, part# you need and how many pieces
you will buy.
Q:If I place an order, how long will it take to delivery it?
A:It usually takes about only 2-3 days on receipt of payment, depends on the quantity ordered and the stock status.
Q:How do you deliver parts to us?
A:Normally sent to you by DHL, UPS,TNT etc Worldwide Express or by shipment. Delivery charge is ofen $35.00 with packaging less than 0.5KG,more depends on its detail weight.
Q:How is the payment made?
A:There are different payment options. You may choose any of following at your convenience.
by western union: you can find your local service from www.westernunion.com.
by T/T (wire transfer) you can pay to our company account for large quality order.
