Railteco Hopper freight wagon for Grain Transportation on Railway
Railteco Hopper freight wagon for Grain Transportation on Railway
Railteco Hopper freight wagon for Grain Transportation on Railway
Railteco Hopper freight wagon for Grain Transportation on Railway

Railteco Hopper freight wagon for Grain Transportation on Railway

Share on (60694421712):


Price:$72,000.00 - $80,000.00

Quantity:


Product Overview

Description


Product Description

Product Application

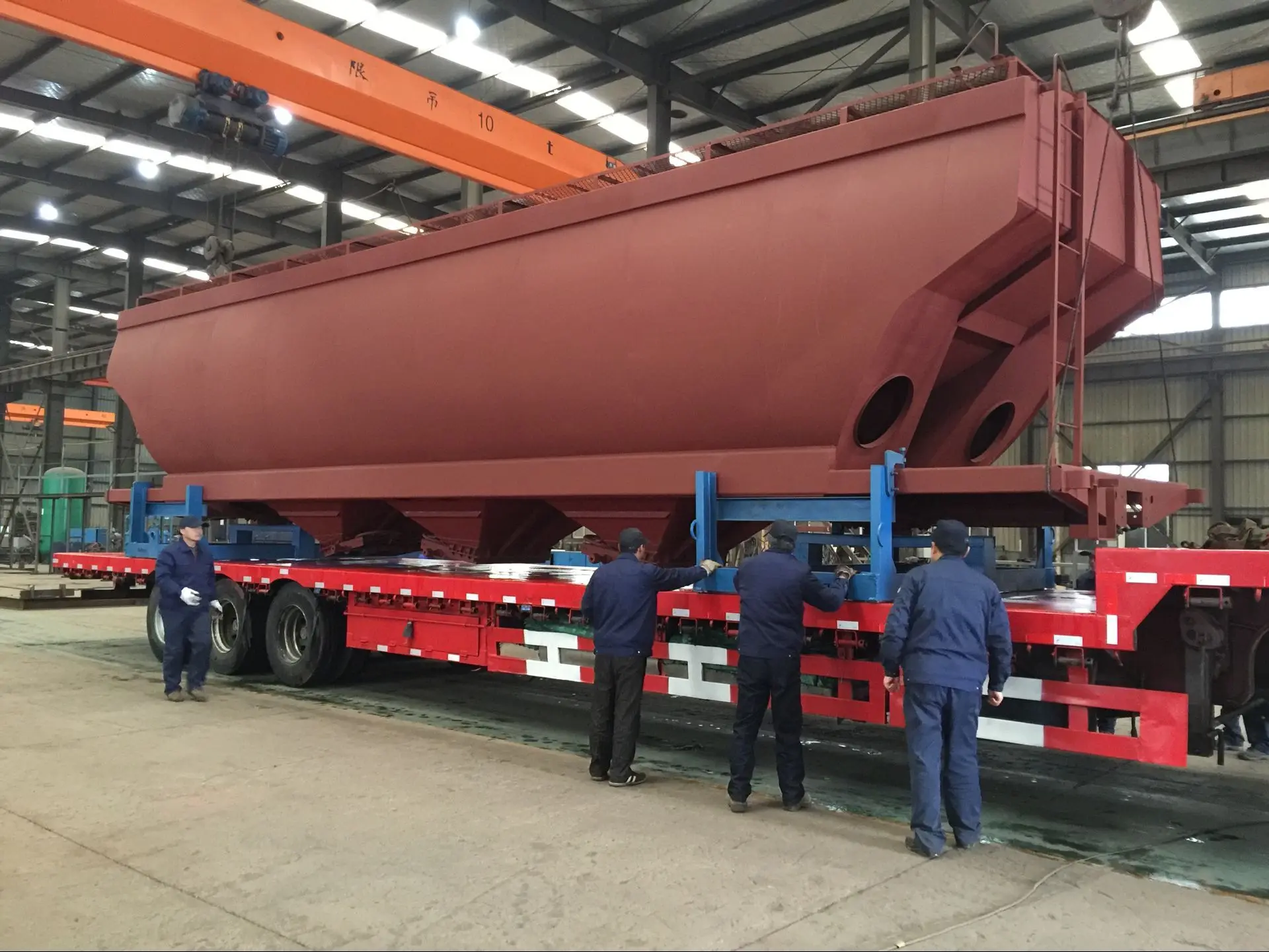

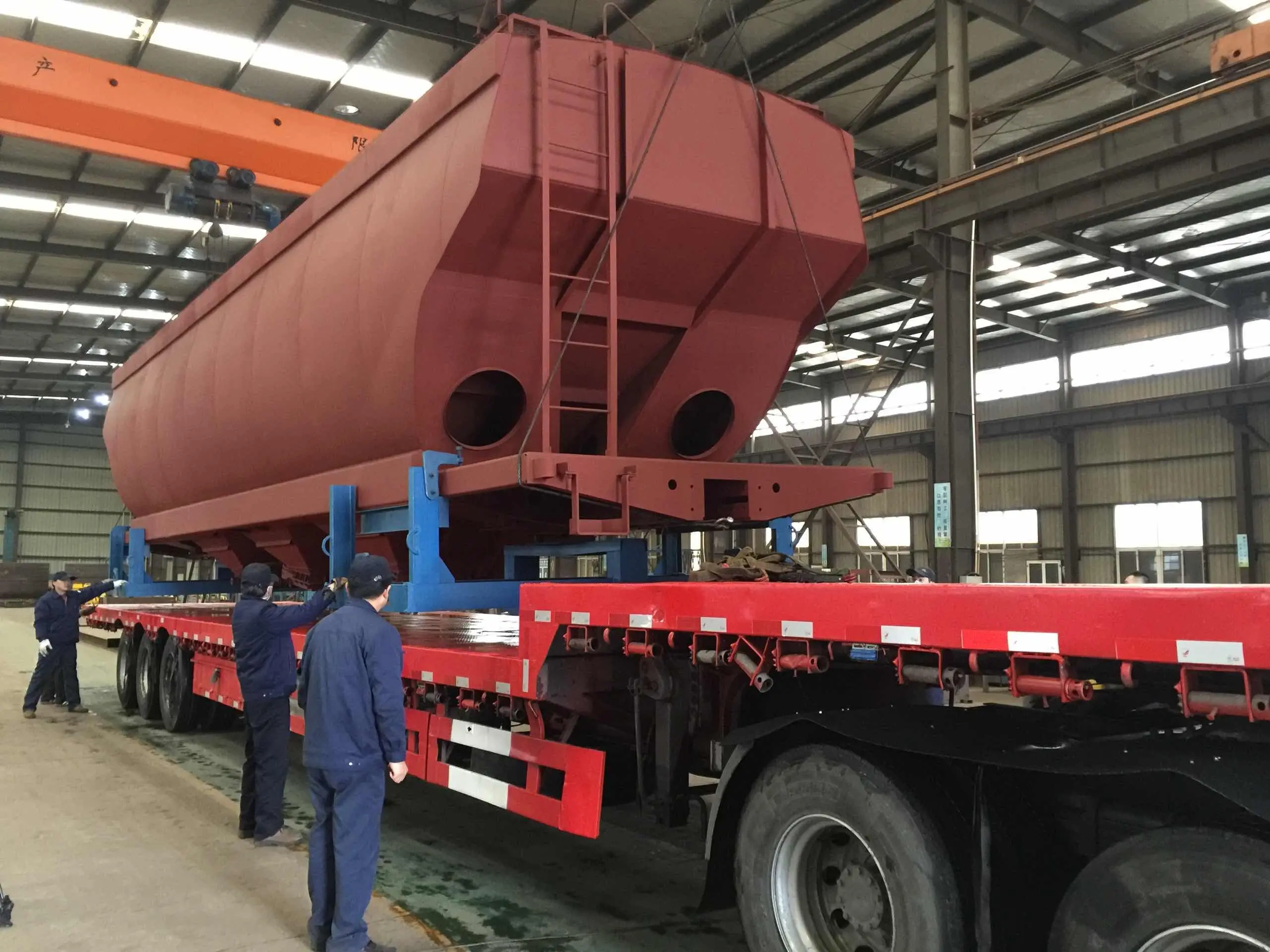

Railteco KM70 hopper wagon is specially designed for transportation of coals, cereals, grains and other bulk goods on railway tracks.

\t
Main Parameters for Railteco KM70 hopper wagon
\t
Loading capacity
\t
70 tons
\t
Tare weight
\t
<=23.5 tons
\t
Volumes
\t
75 cubic meters
\t
Nos of unload ports
\t
4
\t
Operating speed
\t
120 km/h
\t
Min Radius
\t
145m
\t
Center of gravity height of empty wagon
\t
983mm
\t
Braking distance(emergency, full loaded)
\t
<=1400mm
\t
Braking leverage of whole wagon
\t
7.8
\t
Braking ratio
\t
Full wagon: 16.8%; Empty wagon: 22.6%

\t
Drive mode
\t
Double-stage driving top lock system
\t
Handling mode
\t
Top loading and bottom unloading, Unload with hopper door
\t
Wagon length
\t
12074mm
\t
Wagon maximum width
\t
3168mm
\t
Wagon distance
\t
8000mm
\t
Wagon maximum height (empty)
\t
3726mm
