Plastic Thermoforming Filling Sealing Machine of Vacuum Forming Mold
Product Name:
Plastic Thermoforming Filling Sealing Machine of Vacuum Forming Mold
Condition:
New
Type:
thermoforming / vacuum forming / Customer Request
Plastic Type:
ABS / PP / PVC / Customer Request
Product Type:
Customer Request
Automatic:
Customer Request
Place of Origin:
Taiwan
Brand Name:
BP
Model Number:
MC33VT02
Voltage:
-- (Customer Request)
Power(W):
32KW (Customer Request)
Weight:
--(Depend on Customer's Design)
Dimension(L*W*H):
3100x3400x2600 (Depend on Customer's Design)
Certification:
ISO14001, ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12months
Color:
White / Customer Request
Application:
Refrigerator
Air Compressor:
10HP
Vacuum Pump:
7.5HP
MAX Forming Depth (mm):
150
Manufacturer:
Yes
OEM / ODM:
available
Payment:
L/C, D/A, D/P, T/T
Detailed Images
Structure Feature
Applications
Bulk production of many types of disposable food containers such as ice cream cups, lunch boxes, hamburger boxes, trays, etc.
Description
PLC programming achieves very stable operations with, low breakdown rate, easy maintenance and repair. High speed high accuracy servomotor feed, adjustable length settings. Very stable ceramic silicon heating units in upper and lower electric furnaces are group controlled for fast heating and reduced power consumption. Pre-heating and chain feed achieve high speed and great output. Hydraulic vacuum forming is the first choice for forming high quality products. This model is suitable for processing plastic roll or sheet including PP, PET, PS, PVC, etc.
Applications
Egg box, food container, bowl, plate, cookie box and various plastic blisters for packaging of hardware and stationery.
Description
PLC programming achieves very stable operations with, low breakdown rate, easy maintenance and repair. Automatic material advance with powerful clamp provides fast, smooth operations. Precision feed saves material. Adjustable forward and reverse speed. Automatic group controlled electric heater with electronic temperature adjustment for fast heating and uniform temperature. For safety the electric furnace and upper mold automatically return to start point in the event of a breakdown. Phase controlled cooling of mold seat cooling water achieves a uniform cooling effect. Automatic water cooling and blow cooling equipment are available for increased stability and extra fine products. Swing type automatic sprinkler cools all corners evenly. Suitable for PVC, PS, PP, PET, OPS...etc. sheet or roll.

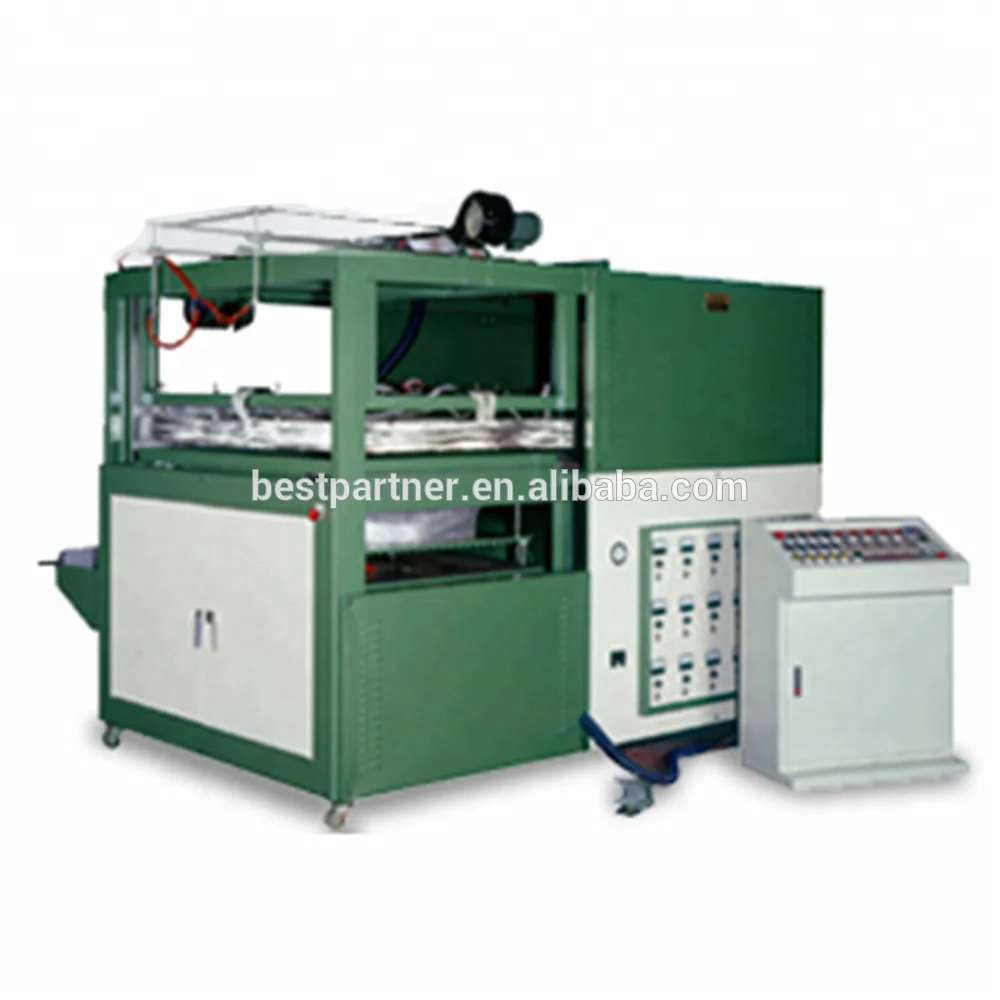

Single Cycle Automatic Vacuum Forming Machine
Model
MC33VT07
Forming Area (m/m)
570x1000
Heater Capacity
25KW
MAX Forming Depth (m/m)
150
Air Compressor
3HP
Vacuum Pump
3HP
Machine Size (m/m)
2000x1700x1650
Applications
Food plates, various packaging blisters as well as hardware and stationery for skin packaging.
Description
Material applications include forming of PVC, PP, PS, and PET rolls. This is a single cycle automatic machine -- all processes are automatic except for the material feed. Also performs skin packaging -- i.e. product is vacuum sealed tightly between a paper card and a layer of clear soft plastic film laminated on top. PLC programming achieves very stable operations with, low breakdown rate, easy maintenance and repair. Automatic group controlled electric heater with electronic temperature adjust for fast heating and uniform temperature. For safety the electric furnace and upper mold automatically return to start point in the event of a breakdown.

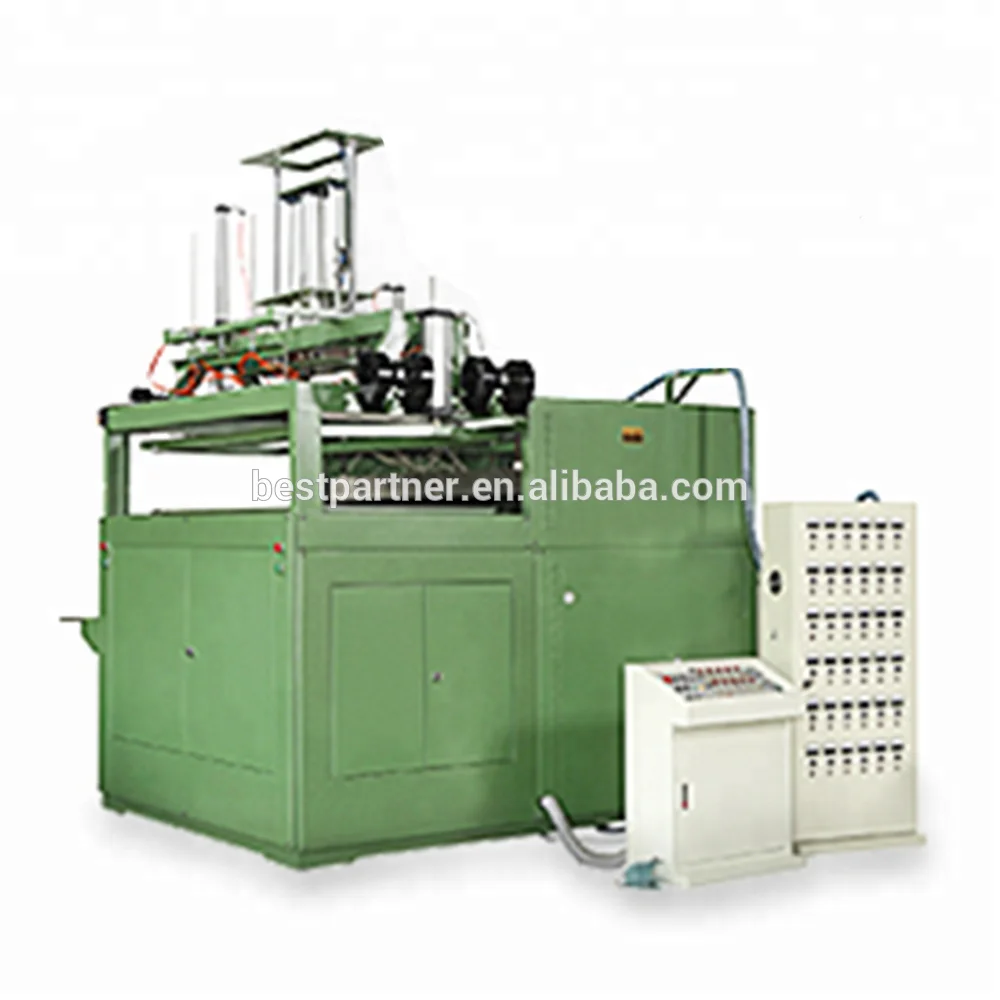

Thick-Board Vacuum Forming Machine
MODEL
MC33VT08
MC33VT09
Forming Area (mm)
860x1200
1150x2350
Heater Capacity
(Upper) 28Kw
(Lower) 24Kw
(Upper) 56Kw
(Lower) 46Kw
Air Compressor
5HP
7.5HP
Vacuum Pump
7.5HP
7.5HP
Machine Size (mm)
3300x1650x1900
4500x2800x4100
Custom specifications available upon request.
Description
This machine is applicable to forming of thick board from materials such as PVC, PS, PP, ABS, ACRY, etc. PLC programming achieves very stable operations with, low breakdown rate, easy maintenance and repair. Heating units on top and bottom, group control heating apparatus, temperature settings for even heat distribution. Product examples include forming of billboard, tubs, brief cases, inside panels for refrigerators, etc.
Packing & Delivery
Packing Details :
1) Standard Export Packing. 2) Packing Wood Frame / Iron Frame / Seaworthy Package / Exporting standard wooden case package / Customer's Request
3) Shipment By courier, sea/air freight are acceptable.
4) Accepts LCL, FCL shipment.
Delivery Details :
45-120 days after approval of your
specification and receipt of your payment
