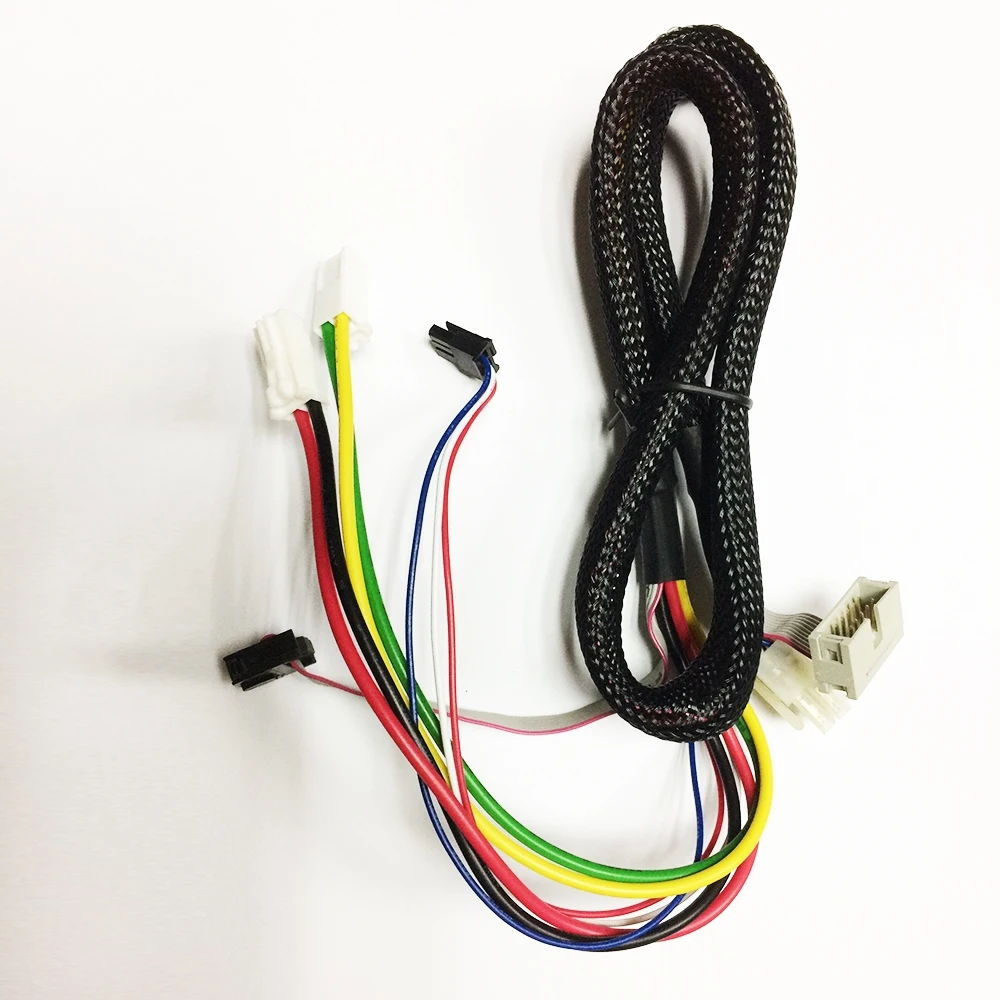

custom made motorcycle electrical wires wiring harness

Share on (60694507974):


Price:

Quantity:


Product Overview

Description


custom made motorcycle electrical wires wiring harness

Product Description



  • Rectangular, Thermoplastic housing
  • Accepts size 12 (25 amp) pins and sockets
  • Available for inline, flange mount and PCB mount installations
  • Available in 2 and 4 cavity arrangements
  • Accommodates wire sizes 10-14 AWG
  • Wedgelocks assure contact alignment and retention
  • Integrated latch for mating
  • Wedgelocks assure contact alignment and retention
  • All length can be made as requested.
  • Connectors can be used in a copy of made in China









custom machine wiring harness and cable assemblies
Product Parameters
Manufacturer Name:Deutsch IPD or Made in China
Housing Part Number:DTP06-4S
Required Wedgelock:WP-4S Included
Required Seals:Silicone Rubber, Included
Series:DTP Series
Material:Thermoplastic
Operating Temperature:-67°F (-55°C) to +257°F (+125°C)
IP Rating:IP67
Color:Gray
Shape:Rectangular
Cavities:4
Insulation:.134"-.170"
Wire Gauge:10-14 AWG
Keyed:No
Mates with:All DTP04-4P Receptacles
Contact Size:12
Current Rating:25 Amps Continuous
Holds Pin / Socket:Socket
Flange / Inline / PCB Mount:In-line
Detailed Images

DTP06-4S to DTP-04-4P Plug Assembly



DTP06-4S to DTP-04-4P Plug AssemblyDTP06-4S to DTP-04-4P Plug AssemblyDTP06-4S to DTP-04-4P Plug Assembly





Related Products

DT Series Connectors Wiring Harness




Packaging & Shipping
Shipping MethodsInt'l express, By Air, By Sea, By Train
Freight CostPrepaid or Collected by Customers
Delivery to Customer 4-5days after shipment
PackagingPE bag in carton or as customer's requests
Paper Carton size47*32*24cm
Our Services
MOQ500pcs or as its raw material complexity
Place of OriginShenzhen, Guangdong, China
Price termsEXW, DDU, FOB, CIF, DDP
Payment methodsPayPal, T/T, Western Union, 50% T/T in advance, balance before shipping.
Delivery timeUsually 10-15 business days, On-time delivery
Sample timeWithin 5 business days.
SamplesUsually free of charge, charge cost as raw material complexity and samples quantity
Other serviceProduct sourcing, supplier sourcing
FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
