carbonated beverage filling machine drink filling line
- Category: >>>
- Supplier: Zhangjiagang Fillex Beverage Machinery Co. Ltd.
Share on (60694574251):
Product Overview
Description
Product Description
The carbonated drinking filling machine could be separated to 3 modules. The height of the bottle-out conveyor is adjustable. Bottles are conveyed to rinser, filler and capper through starwheel and conveyed out finally through bottle-out conveyor. Equip with alarm device for bottle block, bottle absence, cap absence and overload. The machine meets the national food hygienic standard, with high automation and easy to operate.
Technical Features(Carbonated beverage filling machine line)
1.Adopt technology of air conveyor direct connect with bottle infeed starwheel and neck handling technology to convey bottles.
2.High speed filling line adopts bottle gripper conveying technology. It is free to change over bottle size and the working table inside the machine is more laconic.

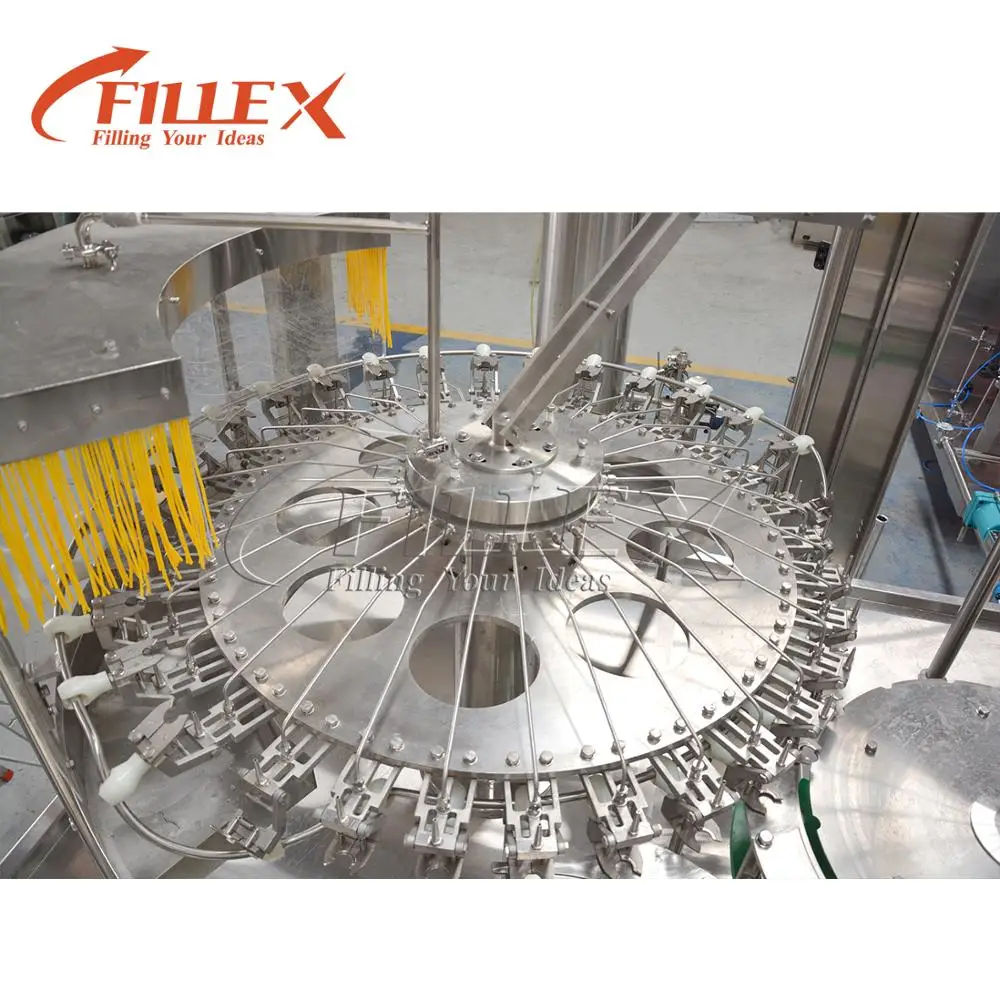

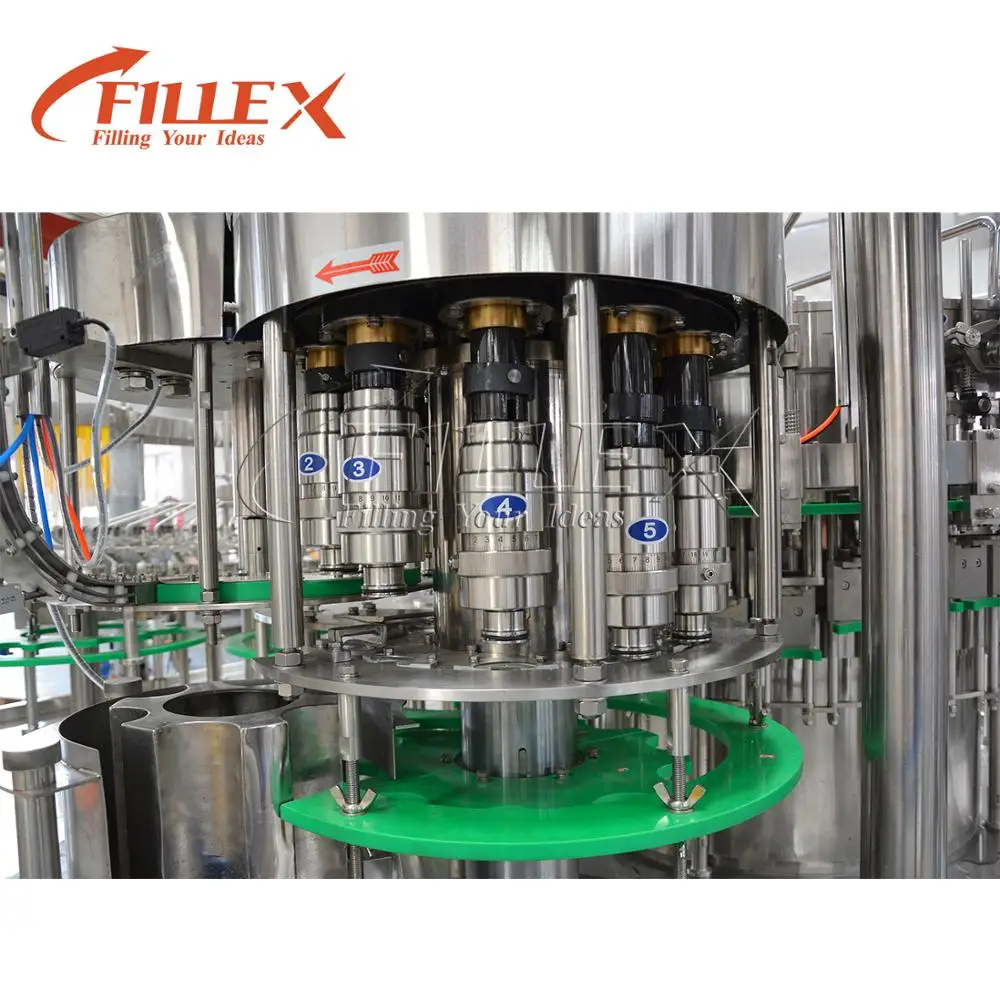

3.By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
4.Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck, avoiding the second contamination.
5.Pressure liquid carousel. High speed line adopts annular liquid carousel.

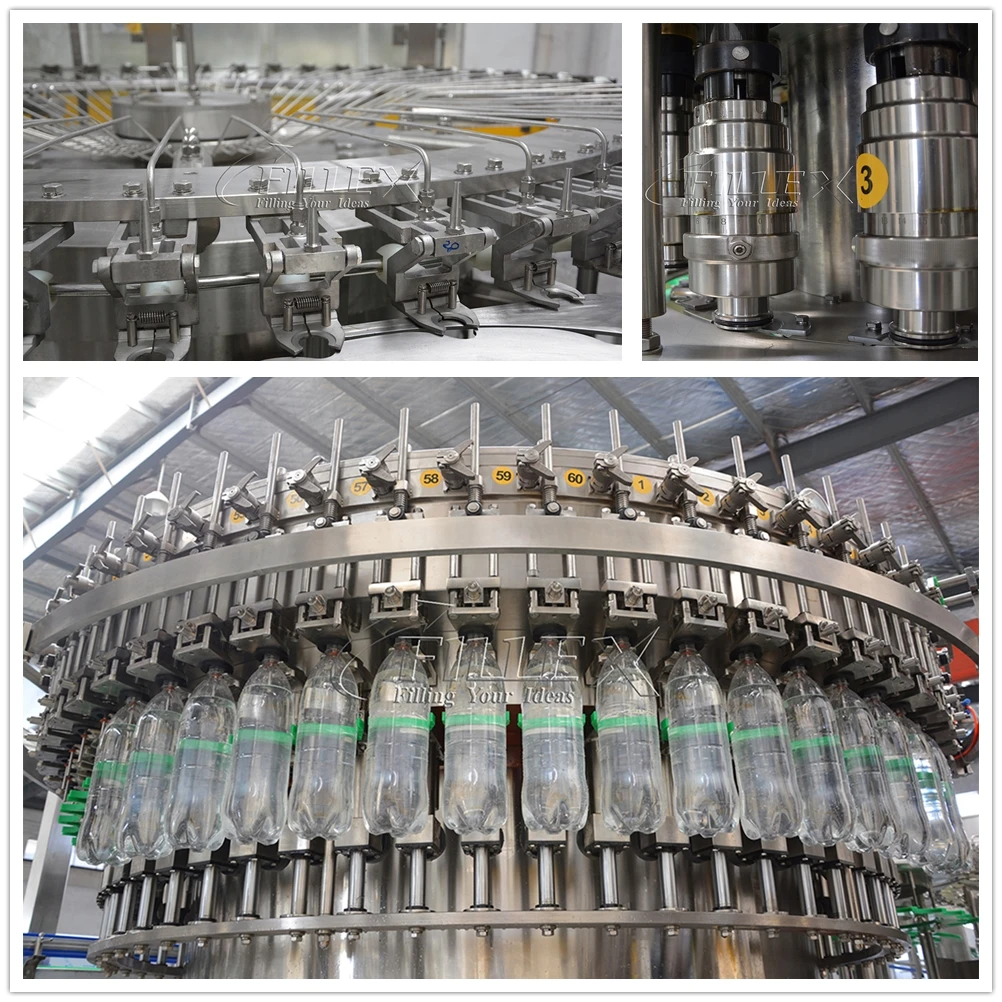

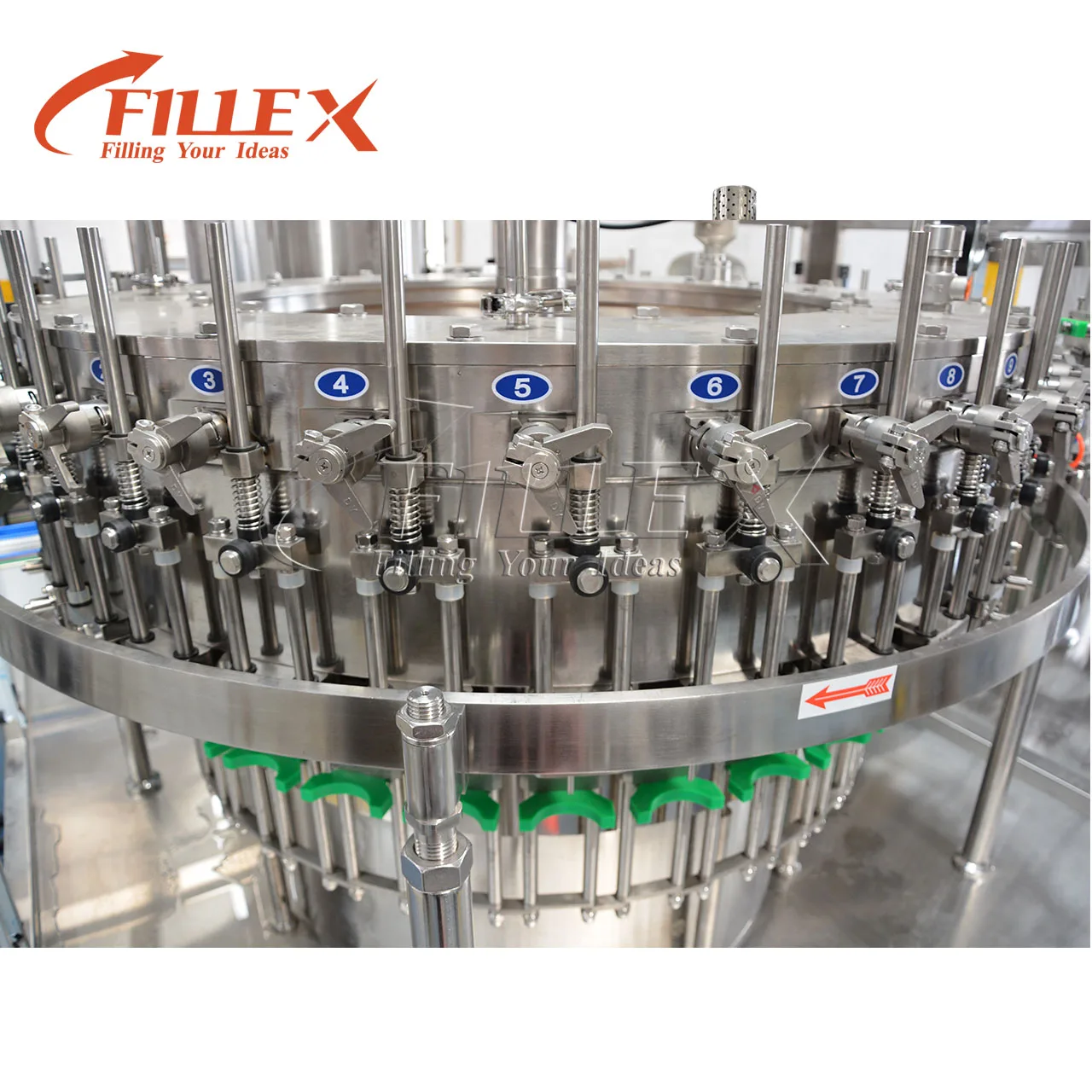

6.High speed and mass flow filling valve ensures the high filling speed and exact fluid level.
7.Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. The electric system is from international brand and achieves the national food hygienic standard.
8.The bottle-out starwheel is helical structure. While changing over bottle size, it is no need to adjust bottle-out conveyor height.
Technical Parameters
Model(RFC-W) | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | |||||
Capacity(BPH) | 3000 | 5000 | 8000 | 12000 | 15000 | 18000 | |||||
Suitable to Bottle Shape | Round and Square container Bottle diameter: 50-120mm Bottle Height: 160-320mm | ||||||||||
Drive Motor | 2.42 | 3.12 | 3.92 | 3.92 | 5.87 | 7.87 | |||||
Dimension (L*W*H)mm | 2360*1770*2700 | 2760*2060*2700 | 2800*2230*2700 | 3550*2650*2700 | 4700*3320*2700 | 5900*4150*2700 | |||||
Our Company

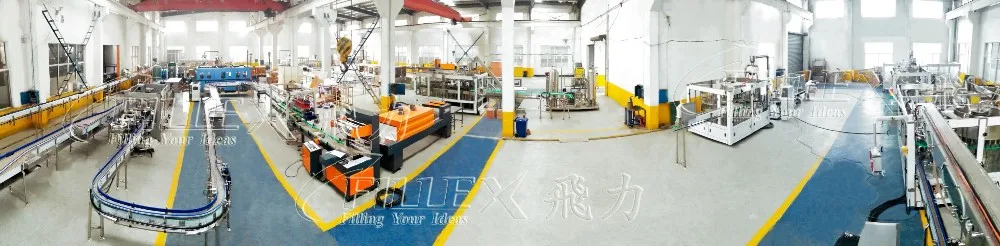

Zhangjiagang Fillex Beverage Machinery Co.Ltd Established in 2006, FILLEX located in the famous Suzhou city, near Shanghai city, own 4000 square meter modern factory. FILLEX focus on filling, packing & water treatment field, Fillex is one of the professional & reliable Chinese manufacturers & provider for liquid & semi-liquid filling & packaging machinery, blow molding machines and water treatment systems with reliable quality & pretty good after sale service with CE certification & ISO9000:2001 certification.(Automatic PET Bottle Water Filling Machine Line)
Packing & Delivery
Our Service
Installation service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
FAQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
A: We are a manufacturer, we supply the factory price with good quality, welcome to visit.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you the high quality machines with one year guarantee and supply long life technical support.
Q3: When can I get my machines after I paid?
A: The delivery time is based on the exact machine you confirmed.
Q4: How can I install my machines when they arrive?
A: We will send our engineers to your factory to install the machines and train your staffs how to operate the machines.
Q5: How about the spare parts?
A: After we deal with all the things, we will offer you a spare parts list for you refer.
