MF51 MF55 Temperature Measurement glass coated axial lead NTC Thermistor 3435 3450 3750 3950 4150 4200 4350 4450 2 1500Kohm1%3%

Product Overview

Description

MF51 MF55 Temperature Measurement glass coated axial lead NTC Thermistor  3435 3450 3750 3950 4150 4200 4350 4450 2-1500Kohm1%3%

MF51 MF55 NTC Thermistor  3435 3450 3750 3950 4150 4200 4350 4450  series:

MF51 MF55 NTC Thermistor  3435 3450 3750 3950 4150 4200 4350 4450  series' parameter:

NO.	Rated Resistance R25(Kohm)	Rated Resistance Tolerance R25	B Value(25/85℃)K	B Value Tolerance	Others
MF51 3435	2-10	±1%,±2%,±3%,±5%	3435	±1%,±2%	Pmax(mW)
MF51 3450	2-10	±1%,±2%,±3%,±5%	3450	±1%,±2%	50/35/15
MF51 3750	8-10	±1%,±2%,±3%,±5%	3750	±1%,±2%
MF51 3950	10-50	±1%,±2%,±3%,±5%	3950	±1%,±2%	themal time constant(S)
MF51 4150	50-100	±1%,±2%,±3%,±5%	4150	±1%,±2%	about14
MF51 4200	100-350	±1%,±2%,±3%,±5%	4200	±1%,±2%	about7
MF51 4350	870-980	±1%,±2%,±3%,±5%	4350	±1%,±2%	about5
MF51 4450	1000-1500	±1%,±2%,±3%,±5%	4450	±1%,±2%

MF51 2.186K 3420	R25=2.186 R0=6	±2%,±3%,±5%	3420(B0/100=3390)	±1%,±2%	Dissi.Coef.(mW/℃)
MF51 5.369K 3480	R25=5.369 R0=15	±2%,±3%,±5%	3480(B0/100=3450)	±1%,±2%	about1.4
MF51 49.12K 3992	R25=49.12 R100=3.3	±2%,±3%,±5%	3992(B0/100=3970)	±1%,±2%	about0.9
MF51 98.63K 4066	R25=98.63 R200=0.55	±2%,±3%,±5%	4066(B100/200=4300)	±1%,±2%	about0.75
MF51 231.4K 4240	R25=231.4 R200=1	±2%,±3%,±5%	4240(B100/200=4537)	±1%,±2%

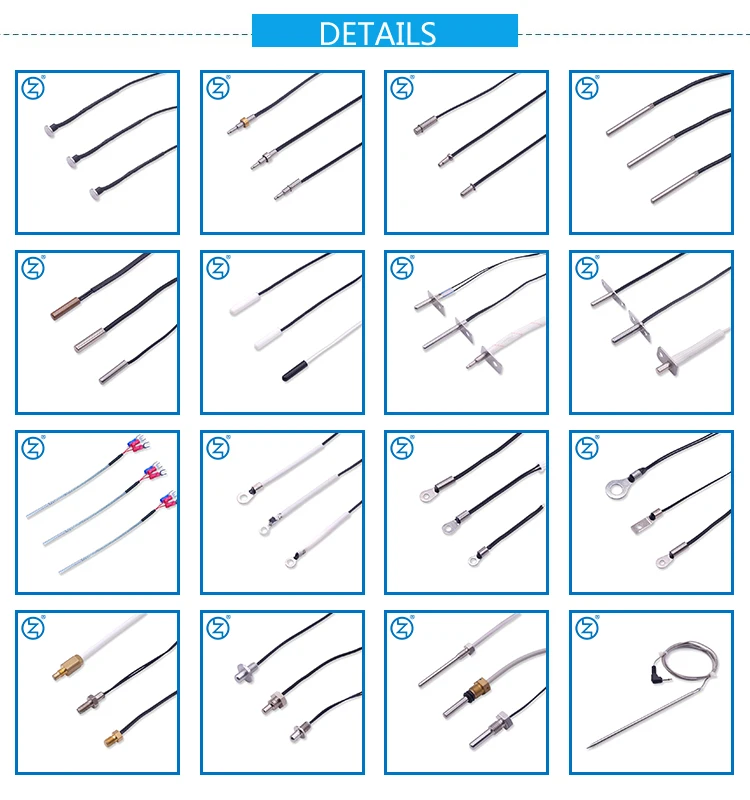

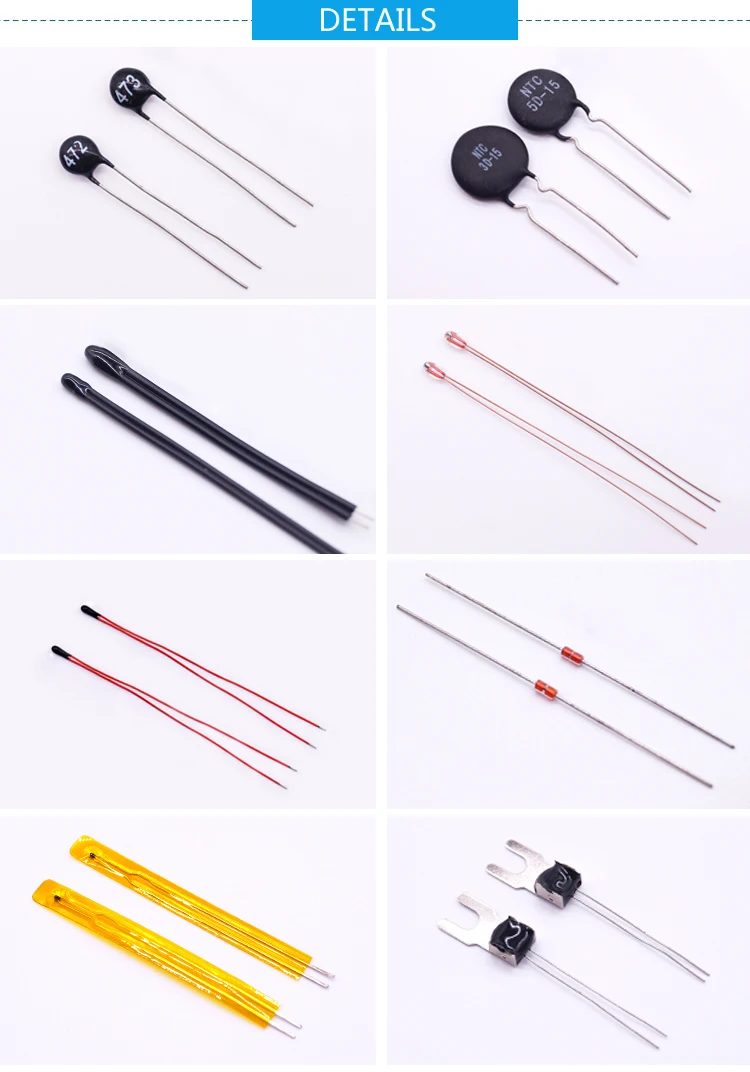

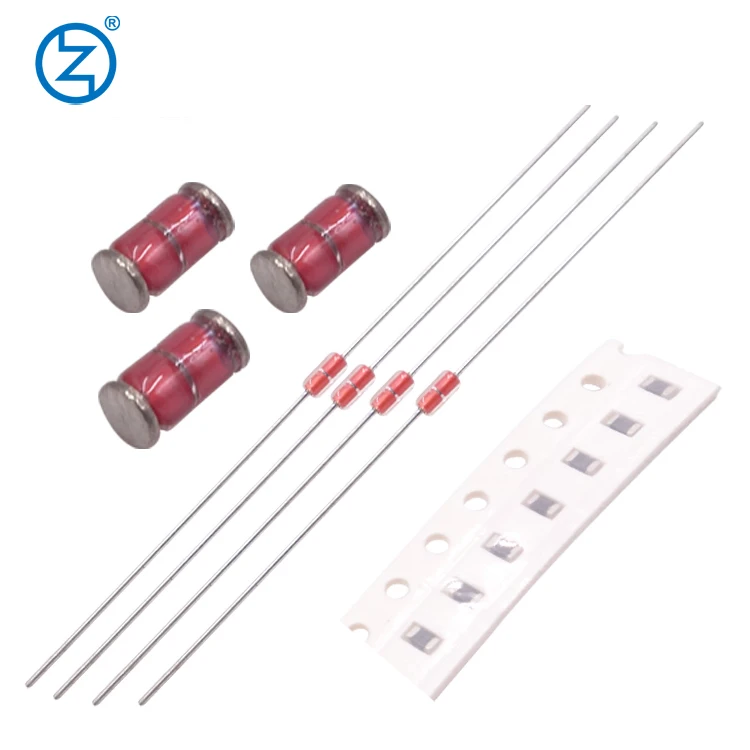

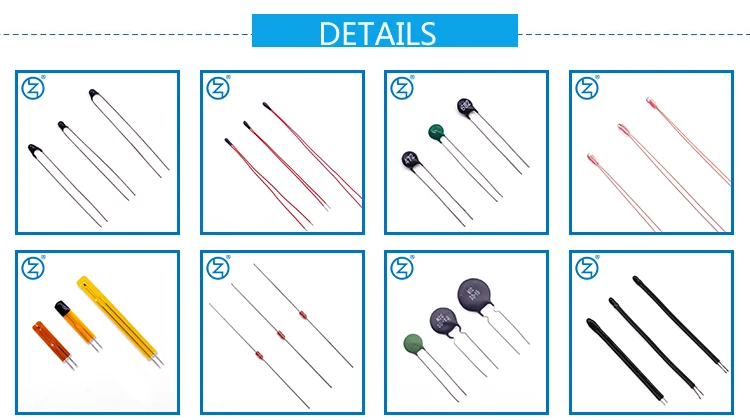

Show some pictures of MF51 MF55 NTC Thermistor  3435 3450 3750 3950 4150 4200 4350 4450  series:



Characteristics of MF51 MF55 NTC Thermistor  3435 3450 3750 3950 4150 4200 4350 4450  series:

1:small size

2:high testing precision

3:fast response

4:good quality of coherence and interchange

5:it can be used in such worse environment as high temperature and humidity etc.

Applications ofMF51 MF55 NTC Thermistor  3435 3450 3750 3950 4150 4200 4350 4450  series:

1:Air-Conditioner,Heating Apparatus

2:Electric Thermometer

3:Liquid level sensor

4:Automobile electronic 5:Electric table-board
