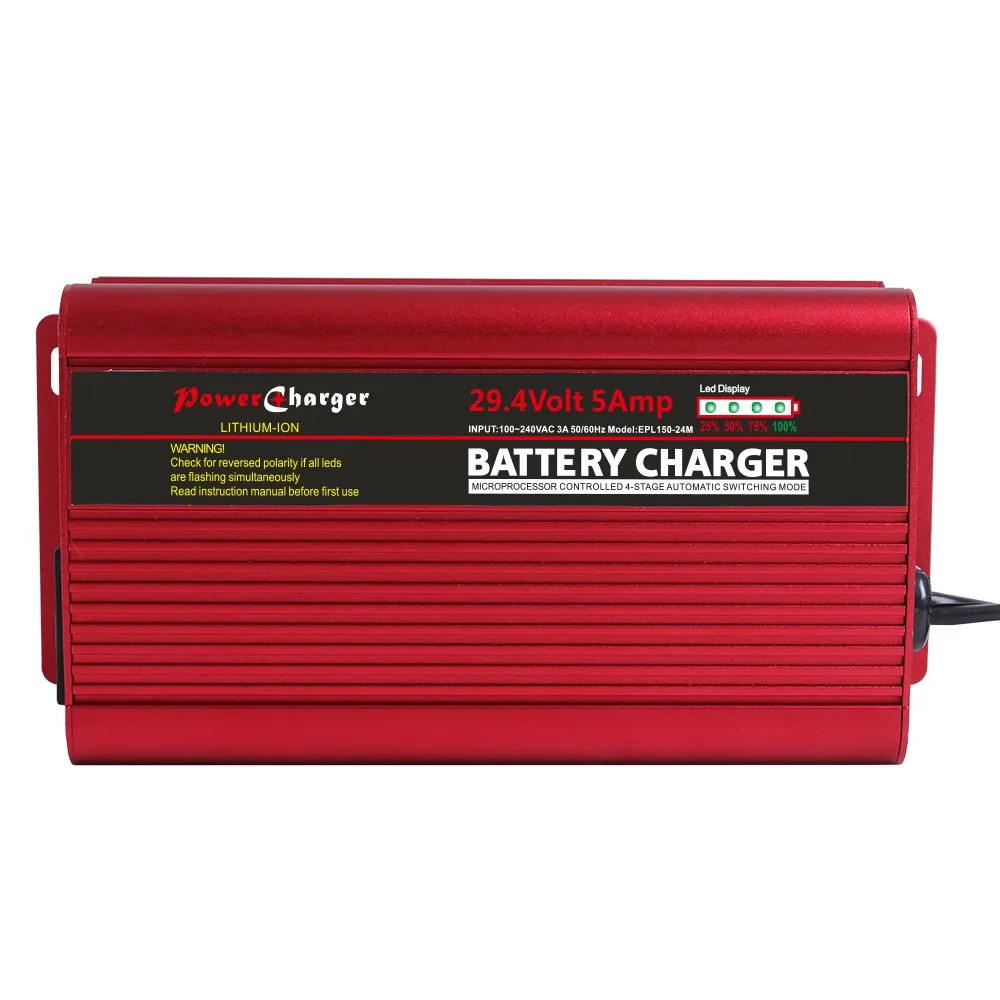

29.4 Volt 5 Amp Lithium-Ion LiPO Battery Smart Charger For Scooter 24V
Product Description
BRIEF:
The device is 4 stages automatic battery charger/maintainer by Microprocessor controlled with solid 4LEDs charging indicator.it is suitable for type of batteries included 24V Lithium ion , Li-ion and Lipo batteries.
Perfect for charging Li-ion/lithium ion/polymer batteries Fully automatic 4 stages charging process by MCU controlled Solid state 4Leds indicator for battery charging and One Led indicator for Power on Short circuit/OVP/OCP/Overload/Polarity reversed
FEATURE:
Best charger for charging all bicycle dynamo,e-bike,car,electronic scooter,electronic tool

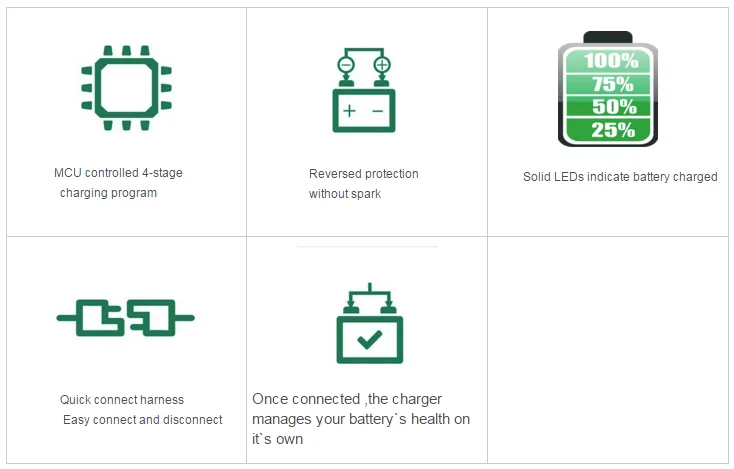

Fully automatic – faster, safer, smarter
Microprocessor controlled – 4 stage charging program
Monitors the battery and resumes continuous charging when battery becomes discharged
Multi-stage charging for added precision timer, safety and battery life
Glowing charger status interface
Charges standard, Lithium ion , Li-ion and Lipo batteries
Reverse hook-up protection
Safety protections:
- Over Voltage protection
- Short Circuit protection
- Polarity error protection
- Over power protection

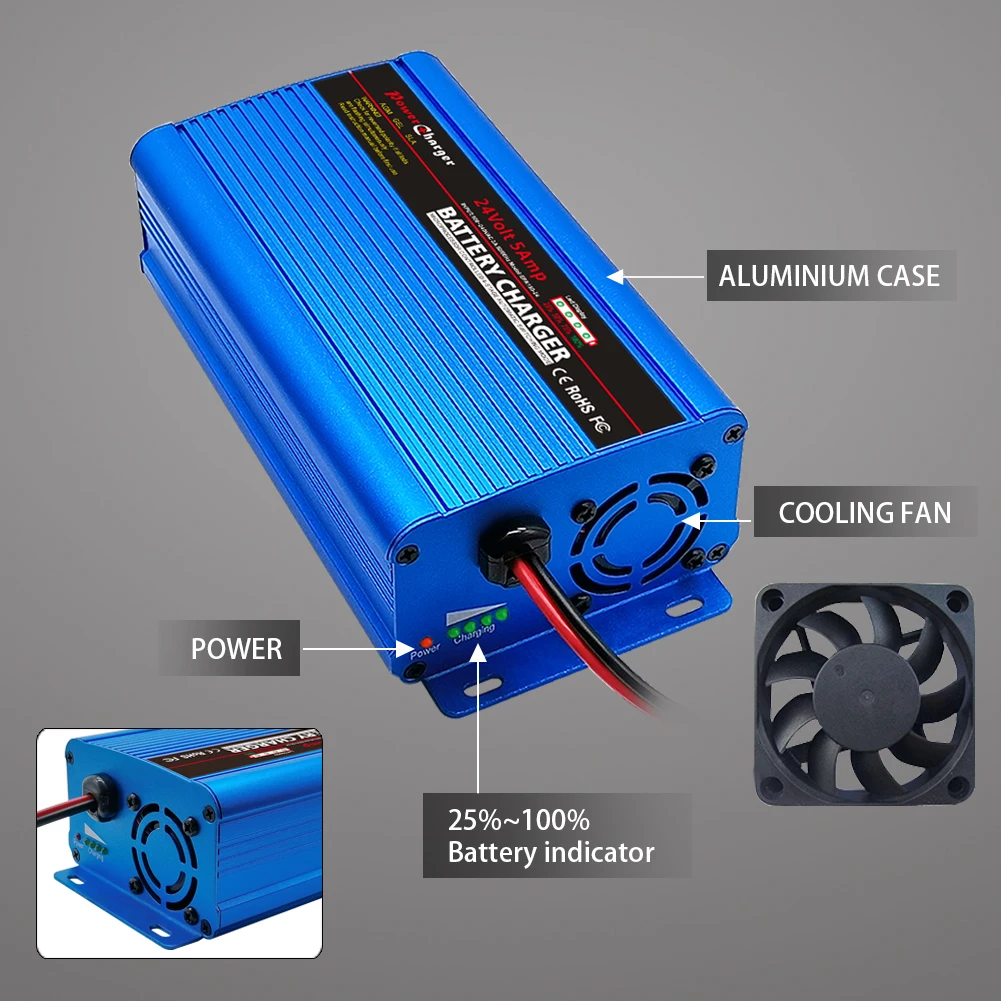

When the charger is charging,the battery capacity from 25% to100% indicated by 4LEDs:
- Power on----Red LED
- 4 LEDs---- Green LED(indicate the battery capacity 25% to 100%
Specification:
- Input: AC 100-240V 50-60Hz
- Output: DC 29.4V
- Charging current: 5A
- Weight: 800g(only body)
Product selected:
Everpower EPL150-XX series Lithium ion/Li-ion Lipo battery charger select guide
Model | Input | Output | Suited battery pack |
EPL150-12 | AC100~240V | 12.6V 10A | Li-ion 12V 20 ~ 80Ah |
EPL150-16 | AC100~240V | 16.8V 8A | Li-ion 16V 12 ~ 80Ah |
EPL150-24 | AC100~240V | 29.4V 5A | Li-ion 24V 7 ~ 50Ah |
EPL150-42 | AC100~240V | 42V 3.5A | Li-ion 42V 5~35Ah |
4-STAGE CHARGING PROCESS
Stage 1:Pre-charge battery through small current,Charger enters the stage if it detects battery deep discharged,it is helpful for battery cycle life
(LEDs:1 ON,2-4 OFF)
Stage 2: Bulk charge using charger highest rated current for the type of battery in use until it reaches 80% capacity. (LEDs:1-4 Blinking Sequentially)
Stage 3:Constant Voltage,the output voltage is limited to 4.2V/Cells while current
declines follow as the battery charges to its full capacity without overheating
(LEDs:1-3 ON,4 Blinking)
Stage 4: Cut-off,At this stage,the battery is fully charged and the charger will cut-off output automatic.(LEDs:1-4 ON)
TROUBLESHOOTING:
Problem | Error Code | Possible Causes | Suggested Solution |
Charger Does Not Work? | No Indicator lights on | -No AC Power | - Check AC connections and make sure Power Point is switched ON |
No DC Output? | 4LEDs Indicator flashing simultaneously | -Output is short circuited
-Reverse polarity connection to Battery
-Battery is severely sulphated and battery voltage under 1.5V | - Check DC connection between charger and battery and make sure they are not short circuiting. - Check that the crocodile clips / ring terminals are connected to the correct polarity. -Check the battery voltage |
No Charging Current? | 4LEDs indicator lights off | -Battery voltage no voltage | - Battery is defective Move battery |
HOW TO USE:
1. Plug in the charger to AC socket, all the lamp will be blinking
sequentially then solid “power” LED ON.

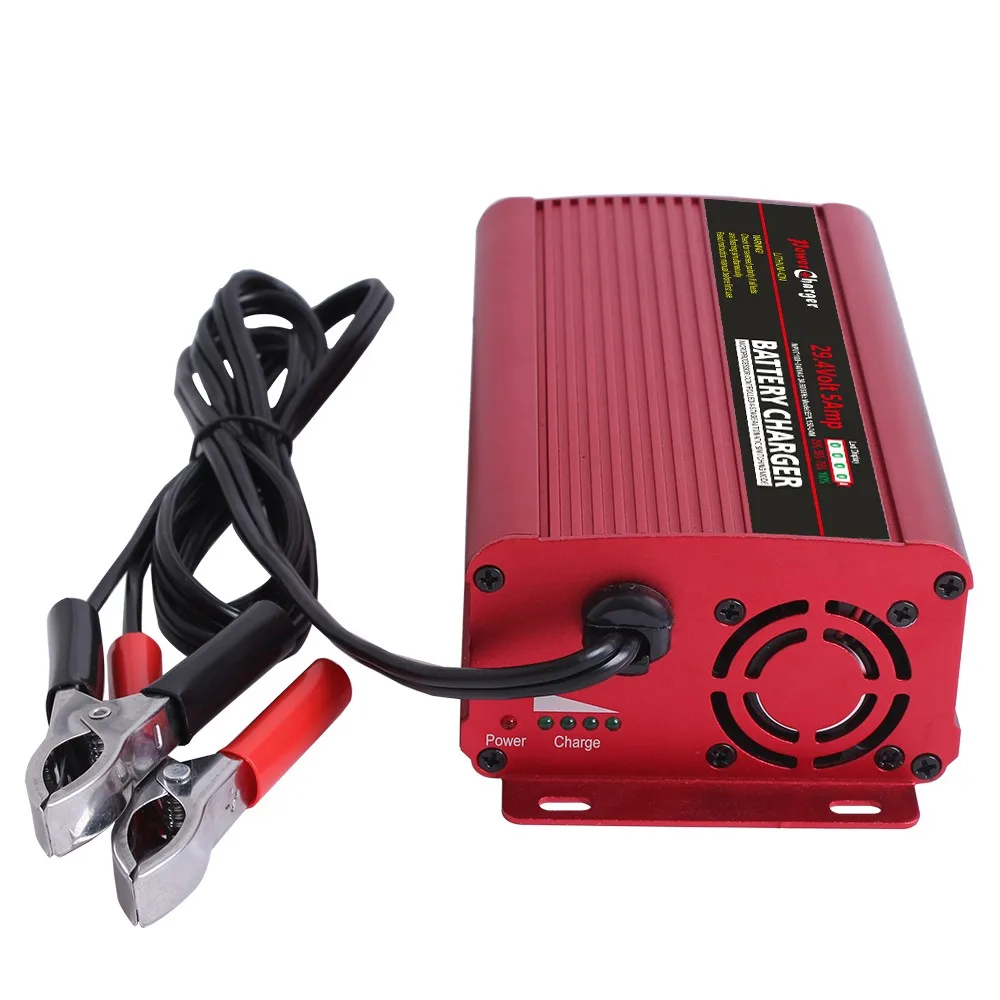

2. Connect positive charger clip (red) to positive battery terminal, the
black clip to negative. (You can use other dc plugs to connect
battery),the “Green 4LEDs ”lamps will light in sequence . If the
battery polarity reversed or output shorted, the “Green 4LEDs”lamps
will flashing simultaneously,please DISCONNECT&CHECK
3. Depend on the charged battery capacity that the “Green 4LEDs”light
up solid,When all are ON,the battery is fully charged,you can
disconnect the battery to use or keep it connected to charge in float
mode.if battery stays at stage 2 after 24 hours of charging,then the
battery is defective.
WARNING!
1.This charger is designed for charging lithium ion/li-ion batteries from 7 to
80Ah,Do not use for any other purpose
2.Since batteries may emit explosive gases,always provide good
ventilation and avoid any source of flames or sparks when charging.
3.To reduce risk of damage to electric plug and cord,pull by the
plug rather than by the cord when disconnecting charger.
4.Use of an improper extension cord could result in a risk of fire
and electric shock
5.Do not operate charger if you notice any signs of damage to charger or
cords
6.Do not disassemble the charger;take it to a qualified serviceman when
service of repair is required.in correct reassembly may result in a risk of
electrical shock or fire.
7.To reduce risk of electric shock,unplug charger from AC outlet before
attempting any maintenance or cleaning

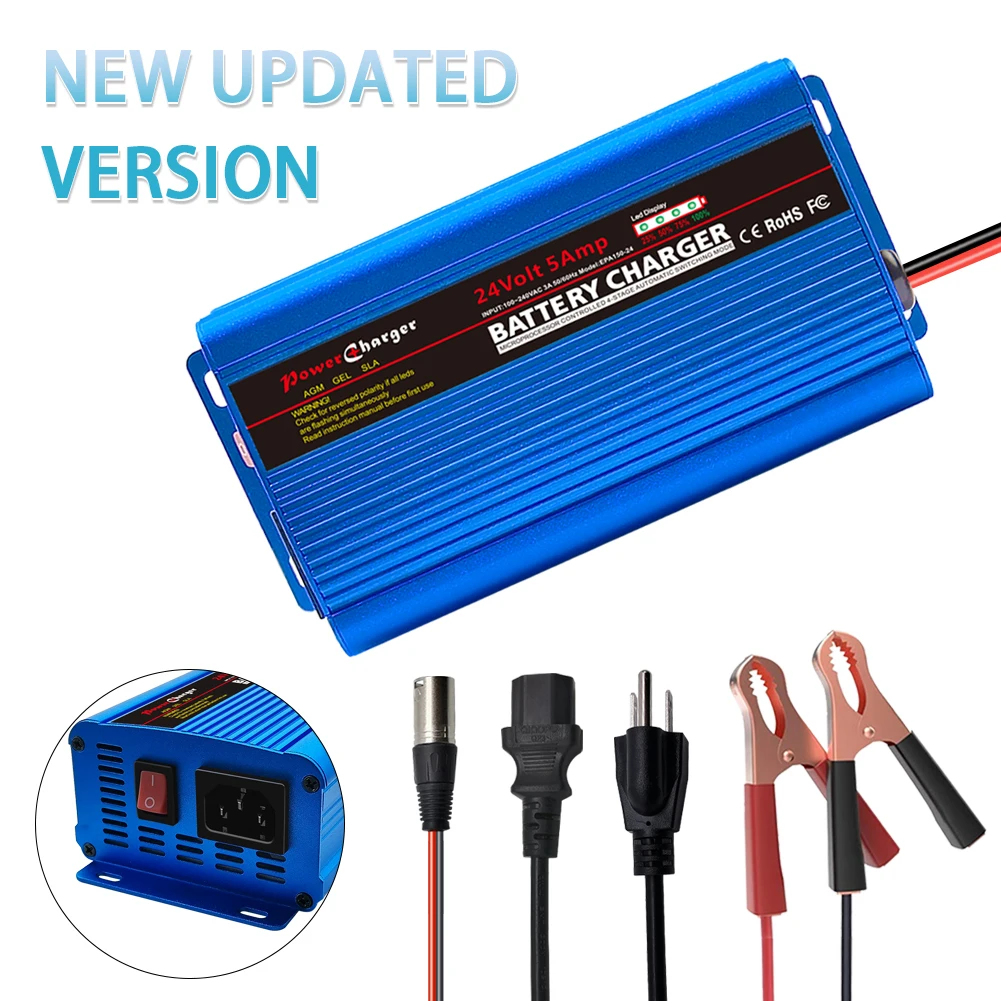

Input AC Plug
Output DC connectors
Charger Application
