Product Overview


Product Description


                       Industrial ammonia cooling tower evaporative condenser

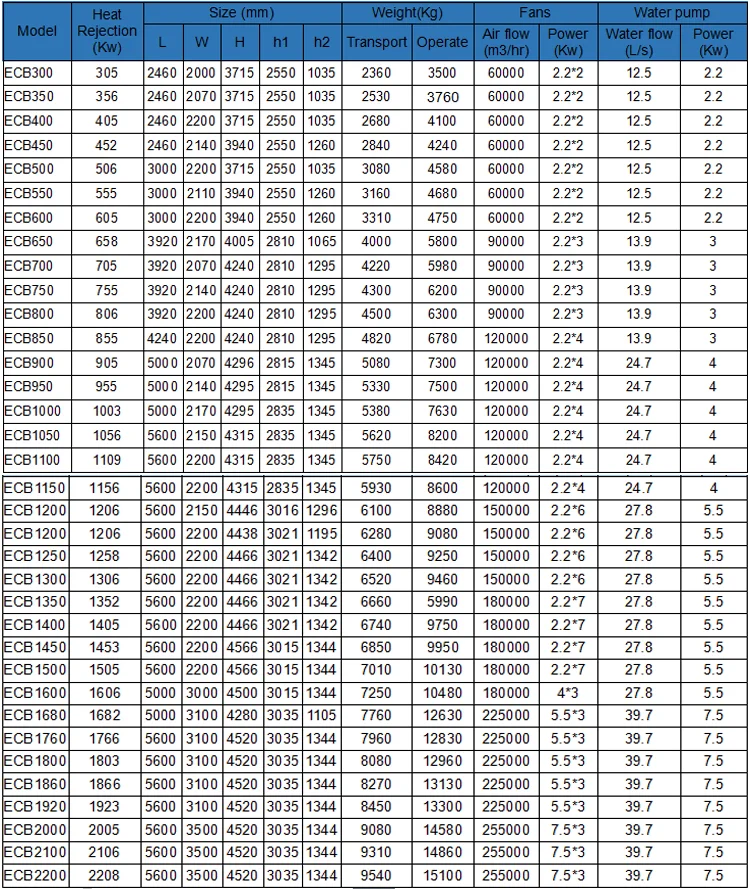

           Model               Size                     Weight
             ECB1150    5600*2200*4315mm                              5930 kg



Leader Industrial axial fan ammonia cooling evaporative condenser





1)The evaporative condenser is one of the most important parts of the whole refrigeration system.

2)The condenser condenses the refrigerant gas inside the coil and complete a heat exchange circle.

3)The evaporative condenser is widely applied to cold storage, ice-store, chemical industry, supermarket and etc.



 Leader Industrial axial fan ammonia cooling evaporative condenser

evaporative condenser.png



 How to choose a right model


* Compressor conditions



* Condensing capacity calculating


  Total cooling Capa. and motor capa. of the compressors : (A+B)xC
  Obtain a factor from Table 1/2 according to condensing temp.and wet bulb : t
  Total condensing capacity of the evaporative condenser :(A+B)xC x t

* For example

  Compressor : R717; cooling capa.335 kw ;motor power 90kw ;2sets
  Working conditions :Condensing temp.35 ℃ and wet bulb temp.28 ℃

* Selection

  Therefore,select an Oceanblue model ECB1460 with condensing capacity of 1466kw .


Table1 - R22 and R134a Heat Rejection Factors .

Table 1.png


Table2 - Ammonia(R717) Heat Rejection Factors .

Table 2.png



 How to install the evaporative condenser

During operation, the cooling water is pumped up to the top nozzle and evenly sprayed onto the outer surface of condensing coil and form a water layer. The high temperature refrigerant gas come out from compressor and get into the condensing coils. Under a high speed wind bring by the fans on the top, the water layer on the outer surface of condensing coil evaporates and takes away the heat of the refrigerant. The refrigerant condenses into liquid and flow back to the compressor. Some water absorb heat and become steam, the rest water drop into the water tank for re-circulation. The hot steam is blown out from top and rest vapour remain on the top water stopper. The floating valve in the tank control water supplement into the tank automatically.



Leader Industrial axial fan ammonia cooling evaporative condenser

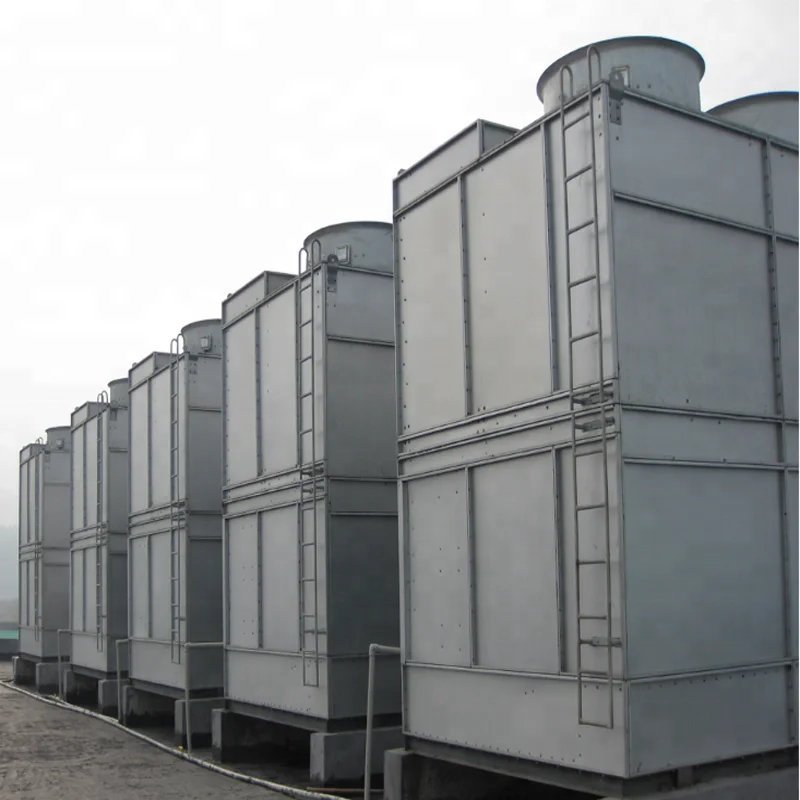

Those picture are our evaporative condenser which have been sale to the Vietnam ,Malaysia ,Srilank ... they are working very well now .  If you also want buy same one ,Please feel free to contact me .

Leader Industrial axial fan ammonia cooling evaporative condenser




* If you want us quote you ,We should know some your basic detail requirement as follow :


 1.The Heat Rejection of evaporative condenser( ? KW ) ?

 2.Your local electrial power ( ?V ?HZ ?P )  ?

 3.Material of condenser coil ( stainless steel material or hot dip galvanized material can be choose ) ?

 4.Material of panel ( stainless steel material or hot dip galvanized material can be choose ) ?

 5.Counter flow type ( ECE series ) and Parallel flow type ( ECB series ) ,which type will you choose ?


 Leader Industrial axial fan ammonia evaporator evaporative condenser


Packaging & Shipping


Ammonia heat exchange evaporative condenser

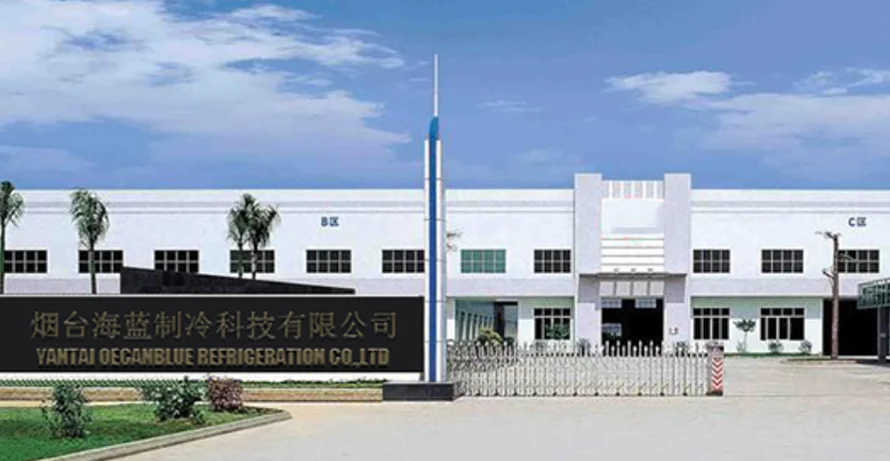

Company Information

OCEANBLUE is one consulting and engineering company with main business line of Industry Refrigeration products.

 We offer solutions and advanced refrigeration equipments for all kinds of food processing, cooling, freezing and deep freezing projects.

OceanBlue is an energetic runner in market of Industrial Refrigeration, Freezing, and Cold Storage, focusing on offering solution and equipments with
advanced technology in market of industrialrefrigeration, cold storage, quick freezing and coldchain logistics.

Our rapid growth and success can be attributed to our dedication to quality, technical expertise, cost efficiency, and high technology capabilities.

Business Goal :
World’s Leading Refrigeration Equipments Supplier
Customer-Oriented Company Business Goal :
World’s Leading Refrigeration Equipments Supplier Customer-Oriented Company

Target Market :
Seafood Processing;
Fruit & Vegetable processing;
Meat processing;
Chemical industry....




Leader Industrial axial fan ammonia cooling evaporative condenser




Q:Can you print my logo on the evaporative condenser ?OEM? and produce evaporative condenser as our design?

A:Yes, we can supply label printing service, we also can do silk-screen printing and hot stamping.We also can do customized packing for customers.If you need ,we are able to produce evaportative condenser as your design.

Q:What' s your normal delivery time?

A: 20-45 days against down  payment (exclude the official holiday)

Q:Will you let us know what your terms of T/T payment are?

 A:50% of total value by T\\T as down payment,balance 50% of total value by T\\T against the shipping advice.

Q:How to install the Evaporative condenser?

A:when we ship the machine to you ,instructions booklets along with the machine,you can read it ,and we will let our engineers help you install and debug in your country,pls rest about that.

Q:How about after-sales?

A:We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.

Whole machine 12 months warranty,  Maintenance for life.

 Q:How long does your offer remain valid/firm/open?

 A:About one month
