Product Overview
Description
top quality 3000m 22dbm CC1120 ask receiver rf module for wireless sensor networks

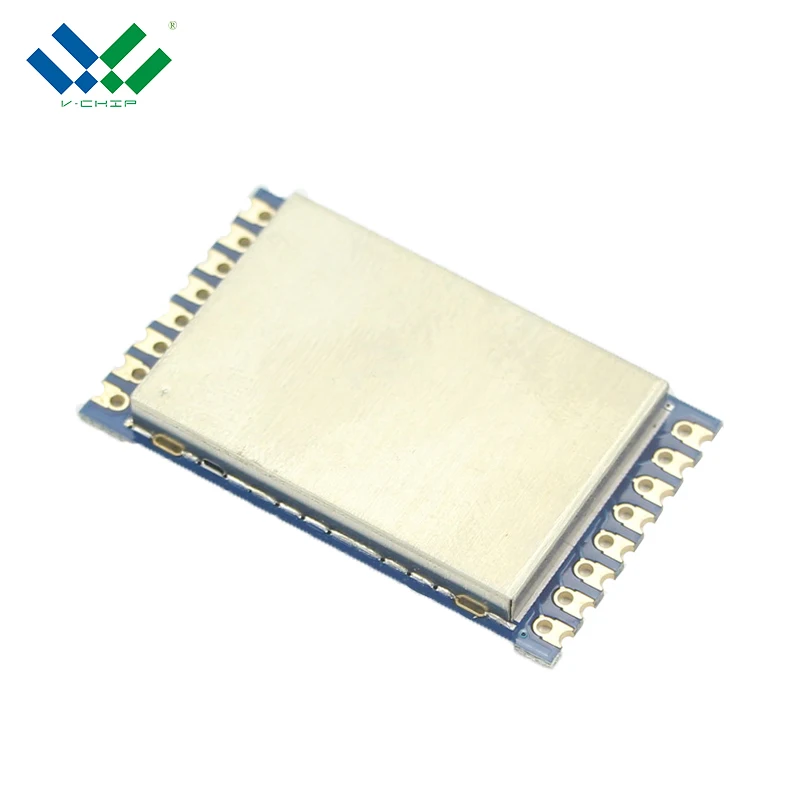

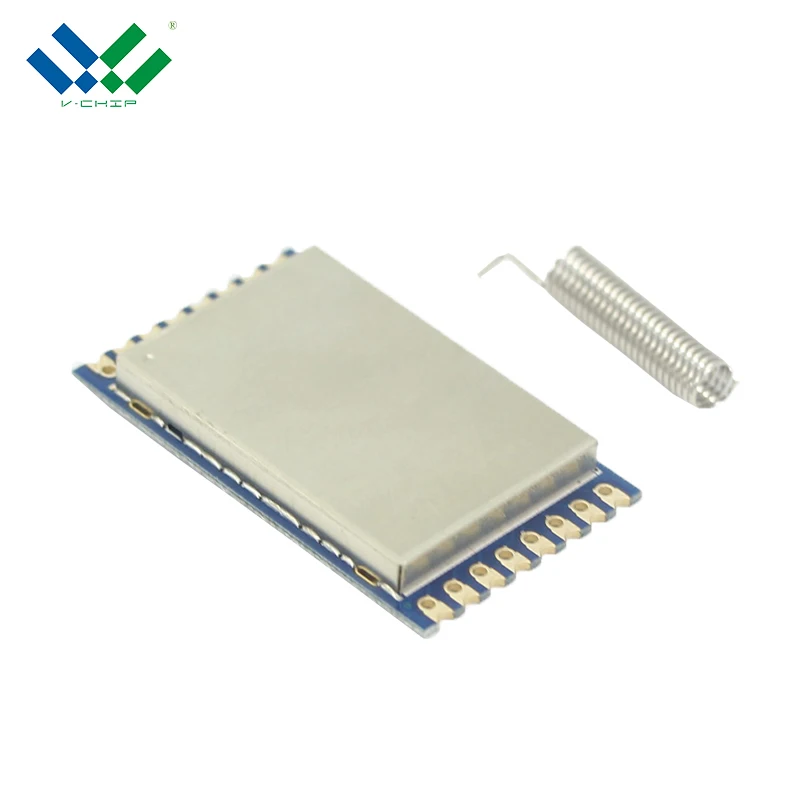

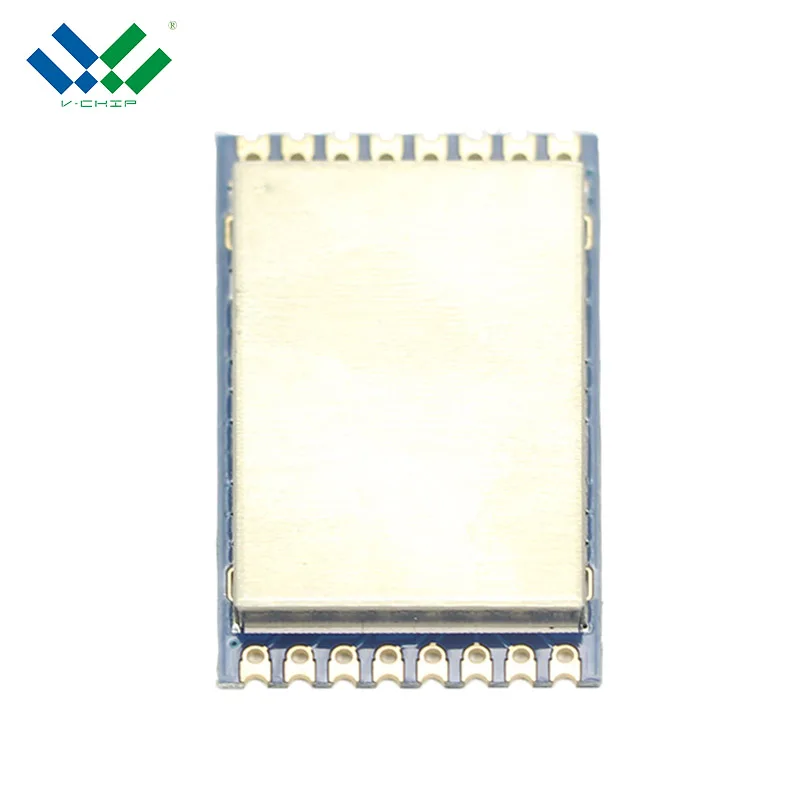

VT-CC1120PL-433/868/915M is based on RF Transceiver CC1120 of TI Chipcon,CC1120 is fully integrated single-chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. Added PA, LNA circuit, enhanced output power and sensitivity.The module integrated many RF functions thus you can use it conveniently and reducing your development time.
Detail Parameters
Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.
Parameter | Type | Condition/Note |
Operating supply voltage | DC 3.0~3.6V |
|
Frequency range | 820-960MHz | Programmable |
Frequency accuracy | ±10ppm |
|
Modulation format | 2-FSK/4-FSK/2-GFSK/4-FSK/MSK/OOK | Programmable |
Transmit power | MAX:26dBm(3.3V) | Programmable |
Receiver sensitivity | -125dBm | 1.2kbps DEV=4KHz RX BW=25KHz |
TX current consumption | ≤250mA |
|
RX current consumption | ≤25mA |
|
Sleep State current consumption | <1uA |
|
Transmit distance | 5000M |
|
Antenna impedance | 50ohm |
|
Operating voltage | 3.0~3.6V |
|
Operating temperature | -40~+85 °C |
|
Storage temperature range | -40~+125°C |
|
Dimension | 36.3×22.2mm×4.0 mm(With shield cover) |
Note:
1. The module transmission data rate will affect Transmission distance ,the higher the data rate , the closer the distance, and the lower the receiving sensitivity.
2. The supply voltage to the module will affect TX power, in the operating supply voltage range, the lower the voltage, the lower the TX power.
3. The module central frequency will change as the operating temperature change, use it under suggest temperature, the module can work well.
4. The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly.
5. The module mount will affect the communication distance.
Features
Applications

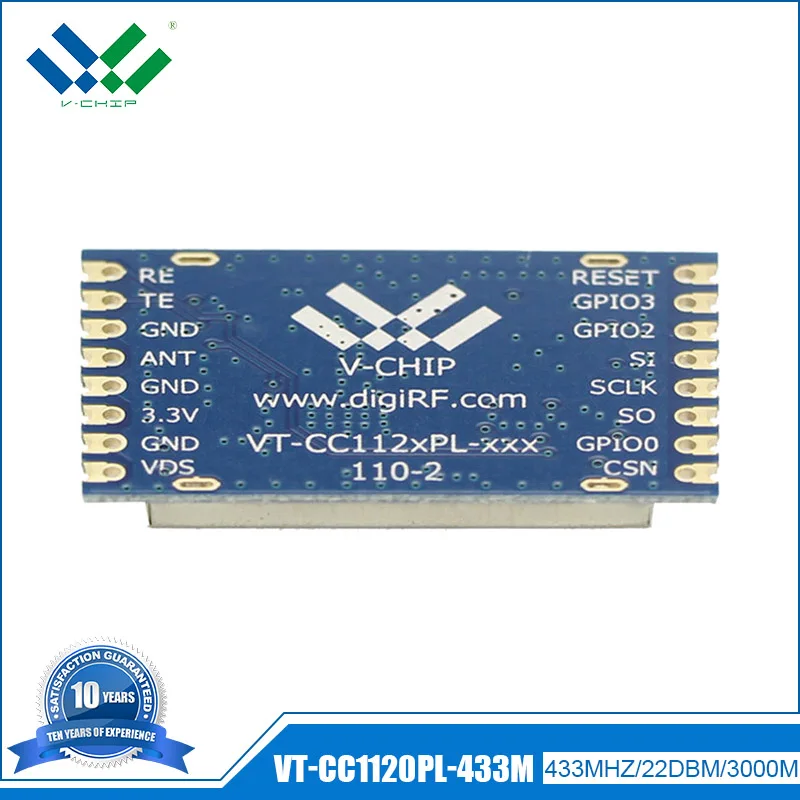

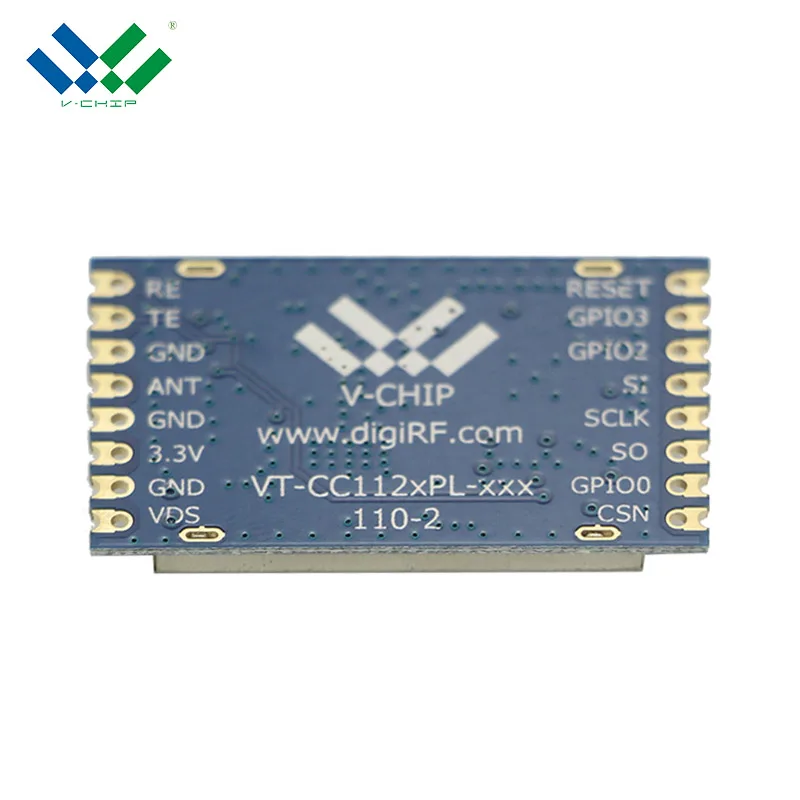

Pin name | Pin type | Description |
RESET_N | Digital in | Reset; low level valid |
GDIO3 | Digital in/out | Digital I/O, register configuration |
GDIO2 | Digital in/out | Digital I/O, register configuration |
SI | Digital In | Digital in (SPI) |
SCLK | Digital In | Time input (SPI) |
SO/GPIO1 | Digital In/out | Digital output (SPI) or general digital In/out port |
GDIO0 | Digital In/out | Digital I/O, register configuration |
CSN | Digital I/O | Module select (SPI), low level valid |
RE | Status control | RX=0,TX=1,SLEEP=0 |
TE | Status control | RX=1,TX=0,SLEEP=0 |
GND | ground |
|
ANT | Antenna port | Impedance 50 ohm |
3.3V | Work power | DC 3.0-3.6V |
VDS | Power amplifier | Power amplifier, default short circuit |
Configuration Registers
The configuration of CC1120 can be done with software SmartRF Studio7. Complete descriptions of the registers are given in the CC1120 datasheet. We can provide evaluation board and demo code to the customer to develop and evaluate the module’s capability.
Company Information
Packaging & Shipping
FAQ
Description | Reason and Solution |
Can’t communication | 1.The power supply connect not well, check the module VCC whether it is out of maximum rating. 2.The signal line connect not well, check the module SPI interface. 3.The settings of the transmitter module and receiver module are not the same. Check these modules’ register configuration. 4.Signal block. If the transmitter work with a high TX power, and the receiver was put at a short distance(<0.5m), maybe there is a signal block to make no communication. |
Communication distance is too short | 1.The application environment is too bad or the antenna is shield. Put the antenna to a better place outside or higher throw a coaxial line , replace it with a higher gain antenna. 2.The work space contains a same frequency interference source, or a strong magnetic field interference, power source disturbance. Try to change the carrier frequency or get far away from the source of the disturbance. 3.The power supply is not strong. Check the voltage and the current whether it is enough. |
High data error | 1.The power supply ripple is too big, Change the power supply. 2.Check the module register configuration, it is recommended to set as the CC1120-datasheet. 3.There is a carrier frequency interference, change the channel. 4.The antenna unmatched to the module RF interface, change another matched antenna. |
