HRC55 Cheap Corner Carbide Radius End Mill for Cutting CNC Machinery Tools
- Category: >>>
- Supplier: Changzhou Raiko Cutting Tools Co. Ltd.
Share on (60694666253):
Product Overview
Description
Product Description

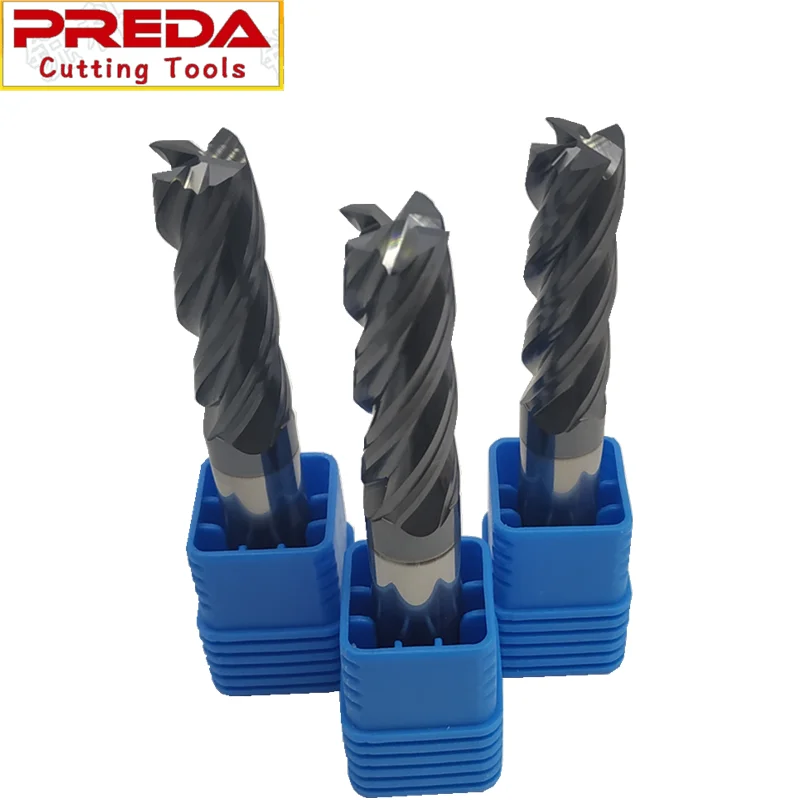

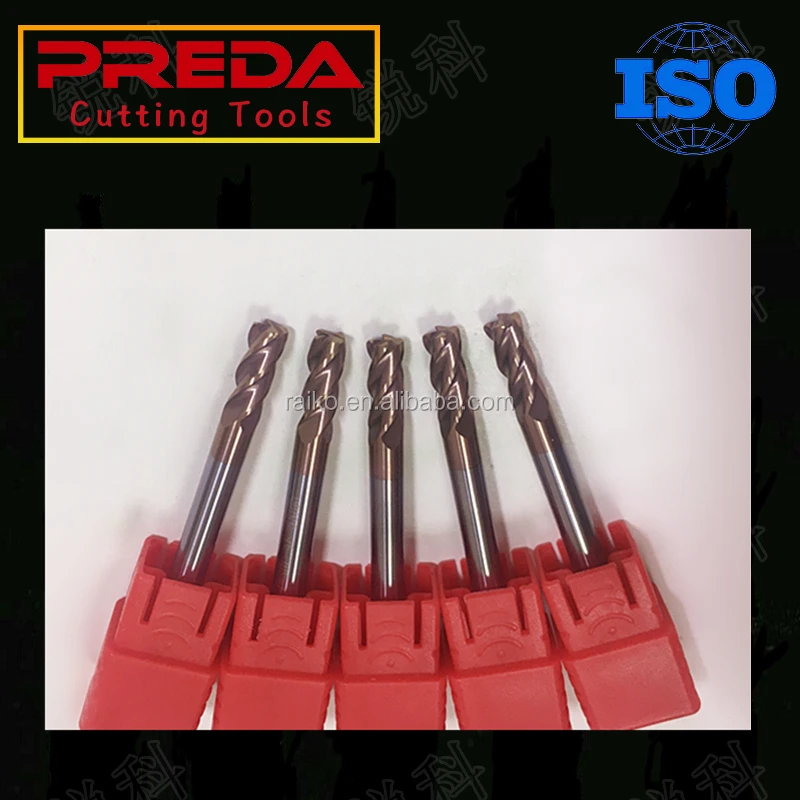

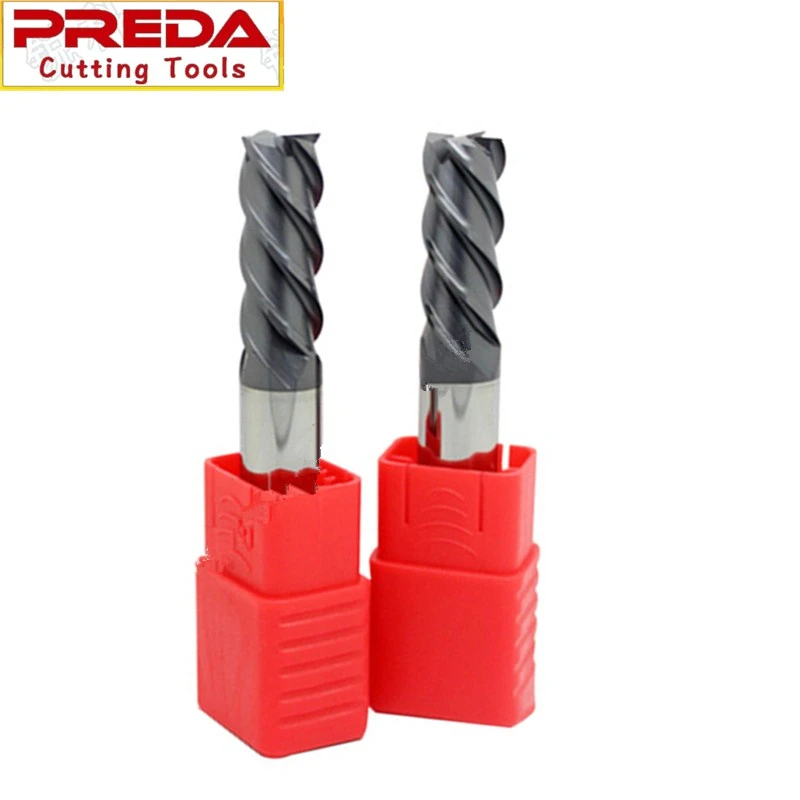

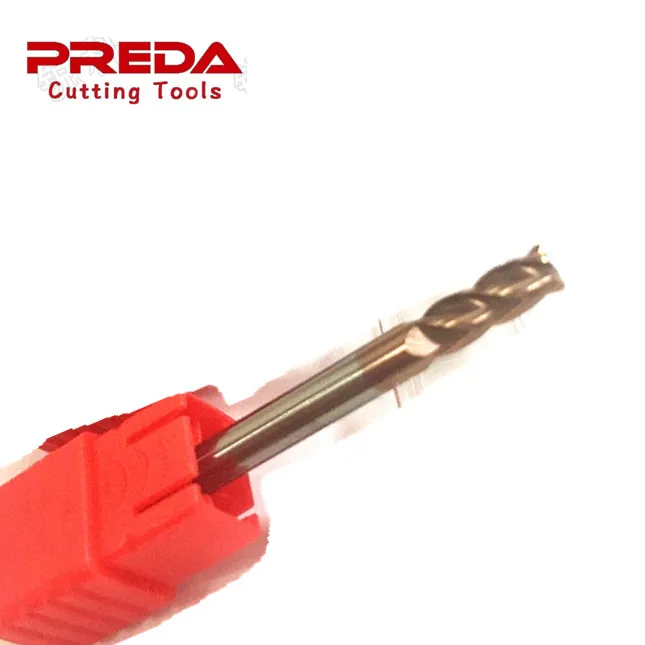

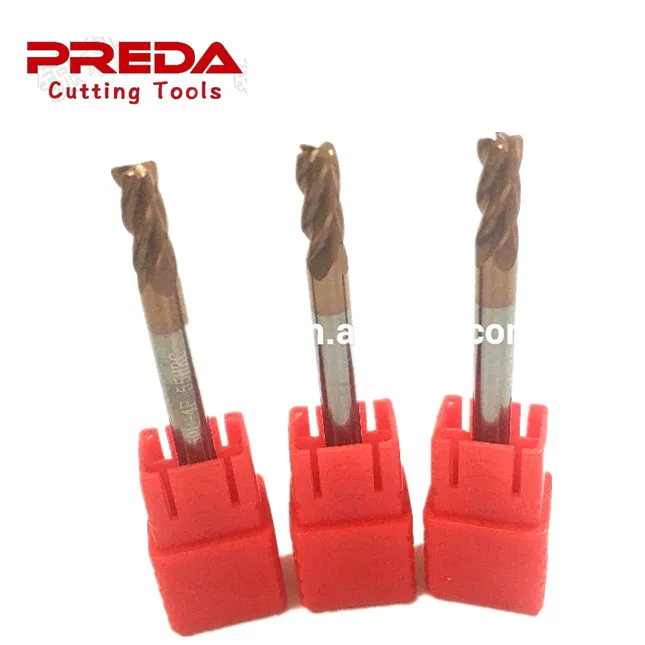

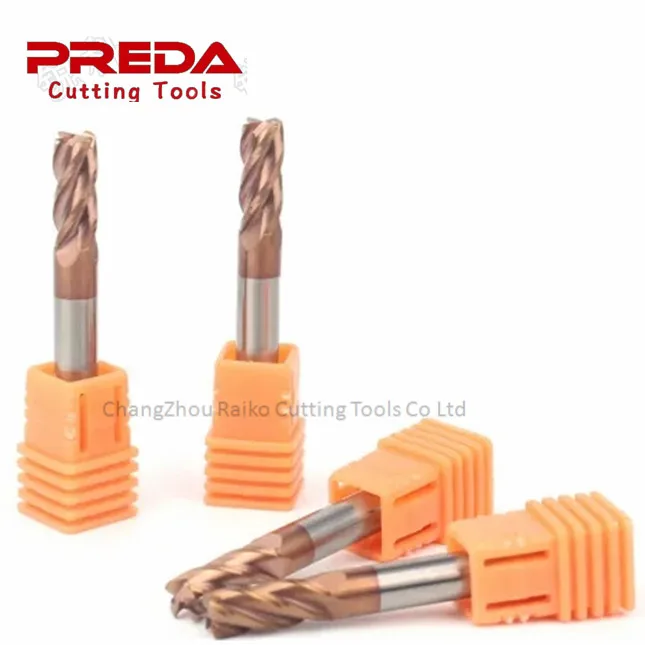

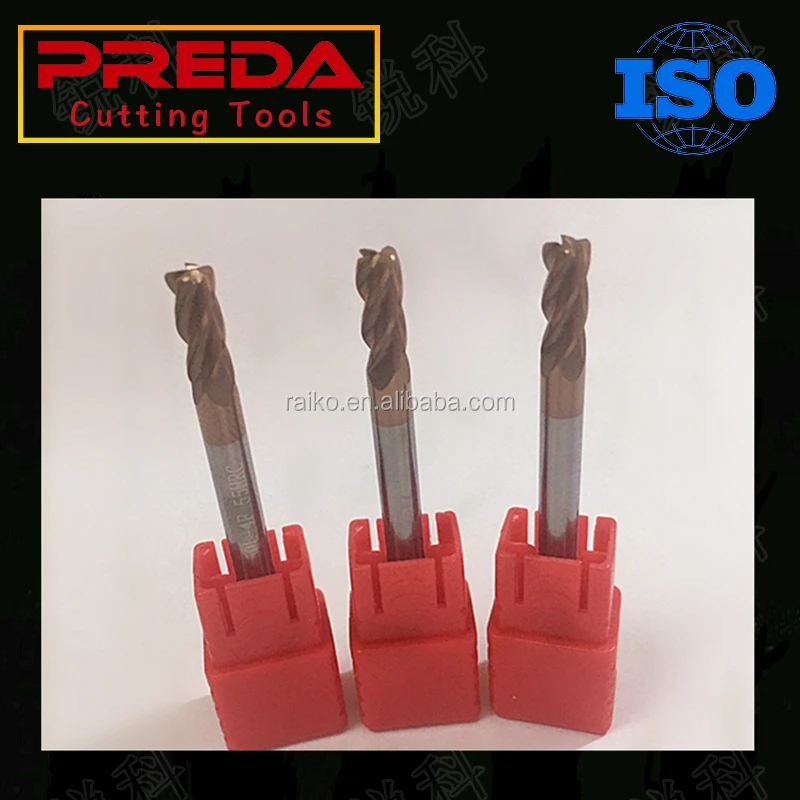

1. HRC55 Cheap Corner Carbide Radius End Mill for Cutting CNC Machinery Tools
2. HRC: 55
3. TiSiN Coating
4. 1mm-25mm / 1/16" to 3/4 "
5. 4 Flute
2. HRC: 55
3. TiSiN Coating
4. 1mm-25mm / 1/16" to 3/4 "
5. 4 Flute
Product Show
Detailed Images
1. SurfaceTiSiN Flexural
2. Strength2500-4000N/mm2 Controling ModeCNC
3. UsageMetal Chemical Composition6%-12%Co-WC
4. Density14.45-14.90g/cm3
5. Chemical Composition: 10%Co-Wc
6. Raw Material: Super Micro grain with Diameter less than 0.2UM
7. International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
8. Application areas: Machining of cast iron, nonferrous alloy,chill cast iron,hard steel,stainless steel,plastic materials,fiberglass,carbon fiber and other non-metallic.
9. Served industries: Aerospace,Transportation, Medical Equipment,Military Manufacturing,Mold Development,etc.
Specifications
No. | d | R | I | D | L |
2.0×R0.5*4×4D×50L | 2 | 0.5 | 4 | 4 | 50 |
3.0×R0.5*5×4D×50L | 3 | 0.5 | 5 | 4 | 50 |
4.0×R0.5*8×4D×50L | 4 | 0.5 | 8 | 4 | 50 |
4.0×R1*11×4D×50L | 4 | 1 | 8 | 4 | 50 |
6.0×R0.5*15×6D×50L | 6 | 0.5 | 15 | 6 | 50 |
6.0×R1*15×6D×50L | 6 | 1 | 15 | 6 | 50 |
8.0×R0.5*20×8D×60L | 8 | 0.5 | 20 | 8 | 60 |
8.0×R1*20×8D×60L | 8 | 1 | 20 | 8 | 60 |
10.0×R0.5*25×10D×75L | 10 | 0.5 | 25 | 10 | 75 |
10.0×R1*25×10D×75L | 10 | 1 | 25 | 10 | 75 |
10.0×R1.5*25×10D×75L | 10 | 1.5 | 25 | 10 | 75 |
10.0×R2*25×10D×75L | 10 | 2 | 25 | 10 | 75 |
12.0×R0.5*30×12D×75L | 12 | 0.5 | 30 | 12 | 75 |
12.0×R1*30×12D×75L | 12 | 1 | 30 | 12 | 75 |
12.0×R1.5*30×12D×75L | 12 | 1.5 | 30 | 12 | 75 |
12.0×R2*30×12D×76L | 12 | 2 | 30 | 12 | 75 |
Raw Materials
Packing & Delivery

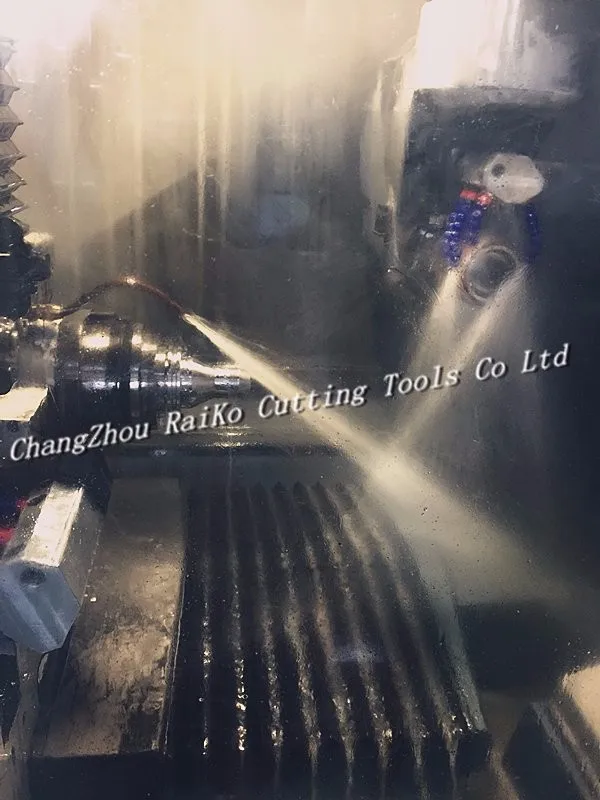

Factory Photo
