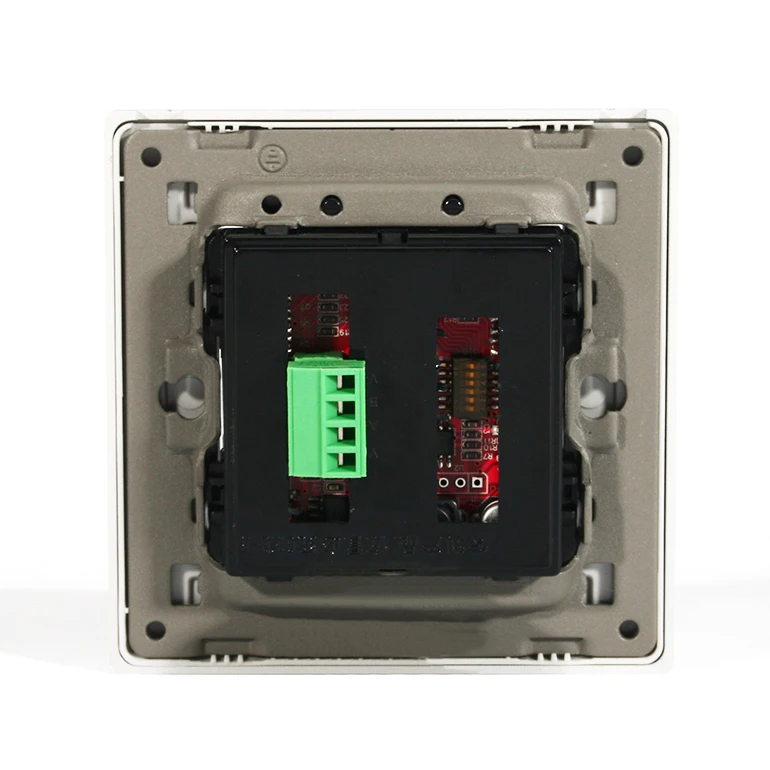

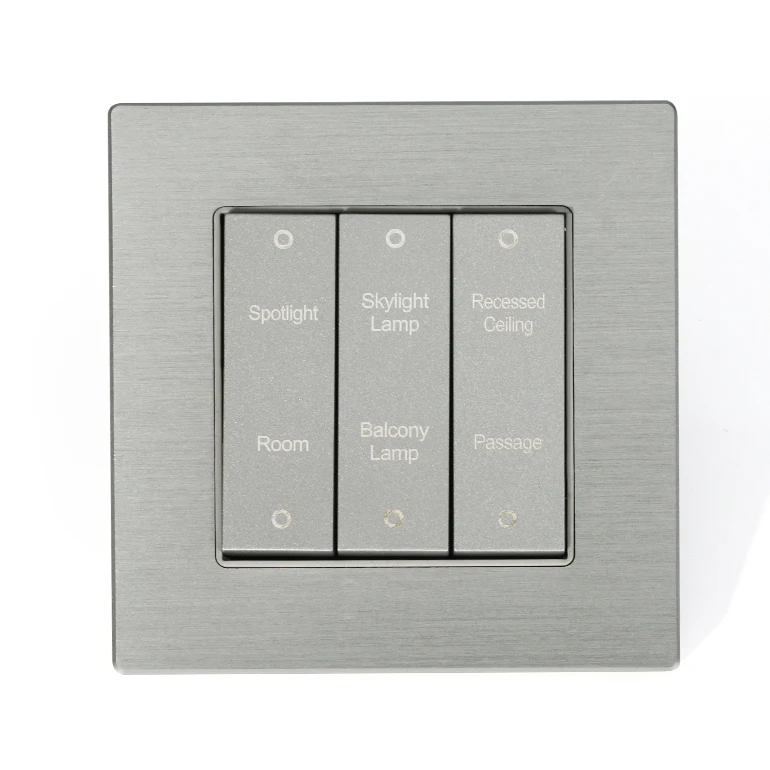

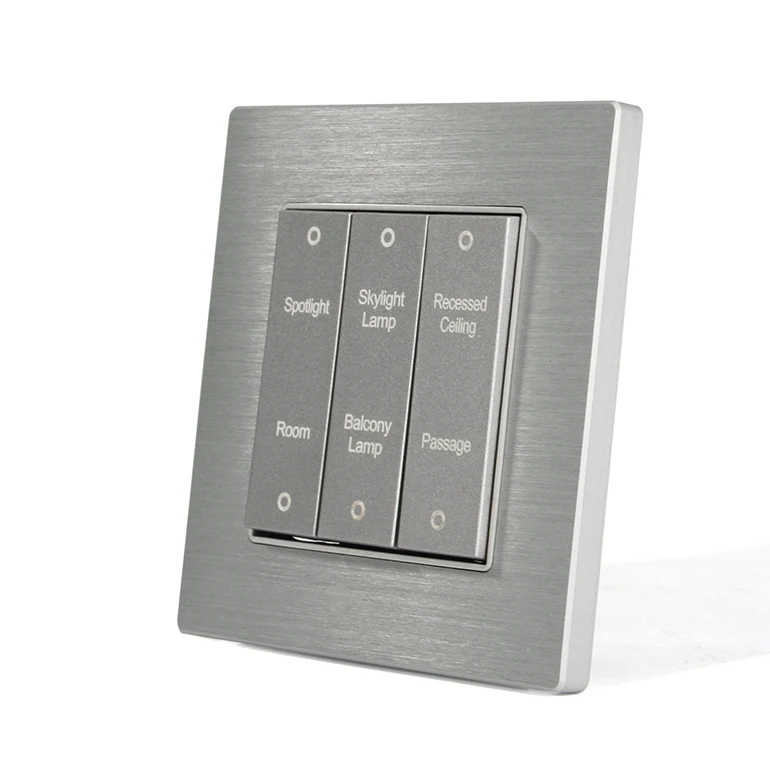

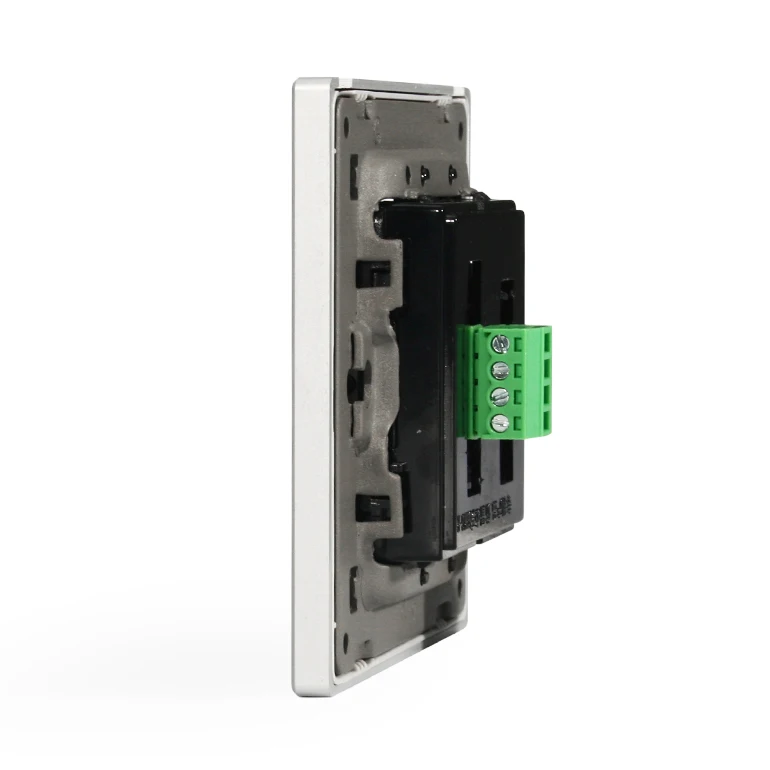

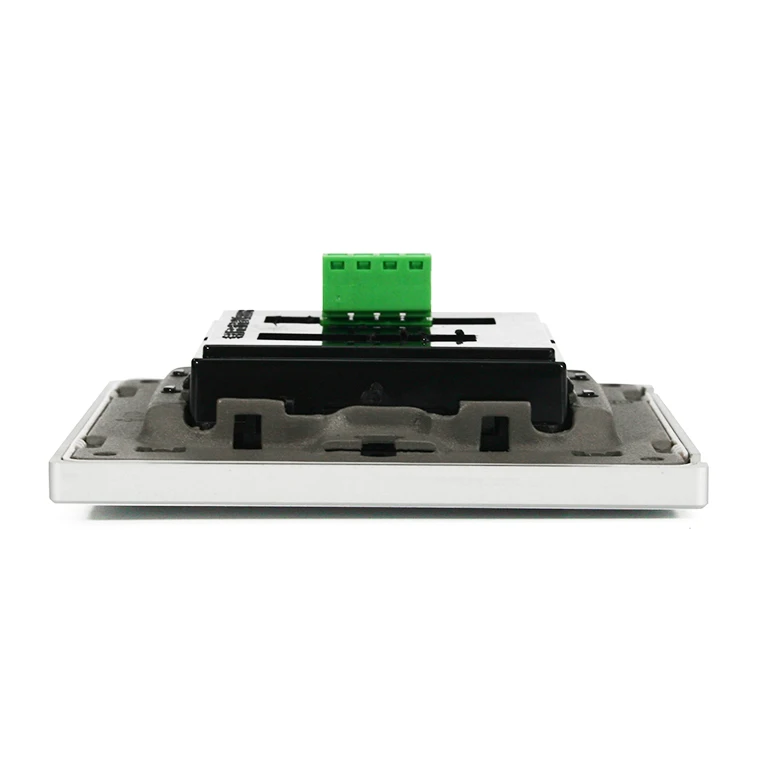

Silver Brushed Aluminum Alloy Dry Contact Reset Switch Panel with LED Customized Words and Indicator Bar

Product Overview

Description

Silver Brushed Aluminum Alloy Dry Contact Reset Switch Panel with LED Customized Words and Indicator Bar



This product is our 12V DC low voltage reset button dry contact switch, it can be widely used in hotels, resorts, clubs, etc. Modular function keys can be freely combined at customer's request. Text content and colors can also be customized.





Low Voltage Dry Contact Signal

This product adopts low voltage dry contact signal hotel switch. Separation for strong and light current are arranged to enhance safety and reliability.





Brushed Aluminum Alloy Panel

Brushed aluminum alloy gives nice and delicate glazed quality to the panel. It is also slide-proof and easy to clean. Chamfering processing to the panel sides also greatly enhances safety.







Modular, Integrated Design

Optional 1 to 5 modular design can be applied in different space and venues. The panel is integrated in order to make it more firm and secure. Functions can be custom-designed, reset button is also available.





LED Indicator

LED indicators on the top and buttom can show status and makes it easy to spot at night. We can also make fluorescence indicators.





Cold Rolled Steel Support

The base utilizes a whole cold rolled steel to support function component, which enhances security and lengthen life of use.





Customizable Text Content, LOGO and Color

We can have text description on the button switch. Different languages suitable for any countries in the world. Customizable LOGO and optional color choices (white, champagne, gold, silver) at your request.





Excellent Fire-proofing PC Materials

The panel and mounting box both applies high-quality PC materials, fireproofing, flame retardant and strong security.



Rich Set of Components

This product has a rich set of components, motion detector, telephone, TV, computer socket, 5-7 hole socket, dimmer switch, speed -control switch. It can be combined in any way you like.



Optional Panel Materials

We can use different panel materials such as tempered glass, aluminum alloy, brushed aluminum, PC, etc.





Product Parameters

Fixed screw center distance: 60mm (applicable for 86 mounting box)

Working temperature: -10℃~60℃

Working humidity: 0~95%

Size: single module 86*86*7mm

         2 connected modules 172*86*7mm

         3 connected modules 258*86*7mm

         4 connected modules 344*86*7mm

         5 connected modules 430*86*7mm
