Hangzhou Xinghuai Flexo Printing Machine Manufacturer 4 Colors Roll Paper Flexographic Printer
- Category: >>>
- Supplier: Hangzhou Xianghuai Machinery Technology Co. Ltd.
Share on (60694709429):
Product Overview
Description
MASS_APP4_1618_BEGIN
MASS_APP4_1618_END
Product Description

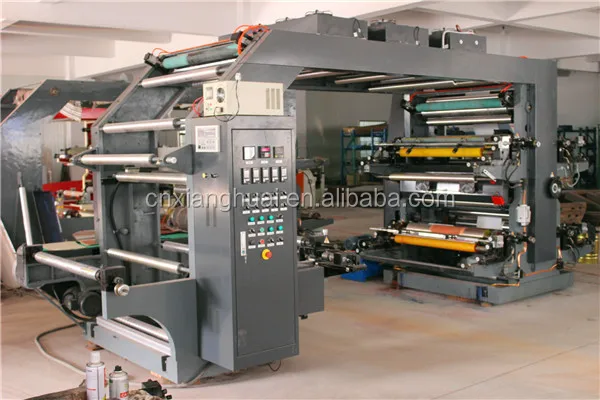

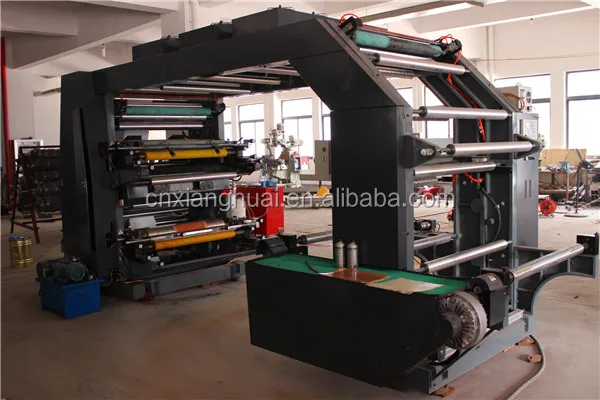

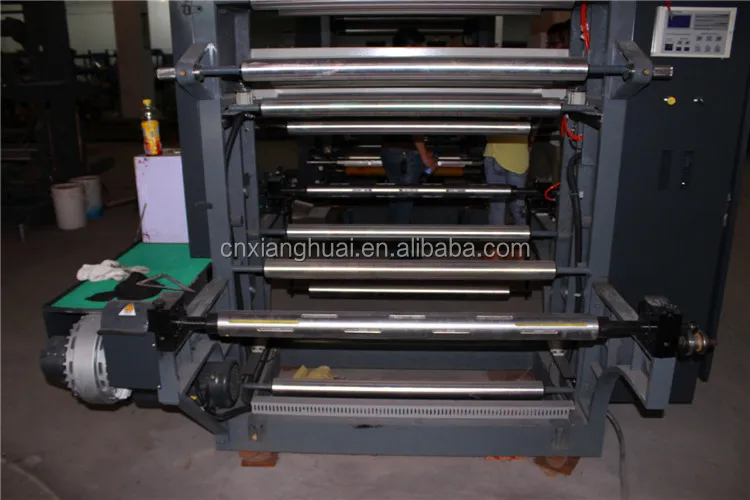

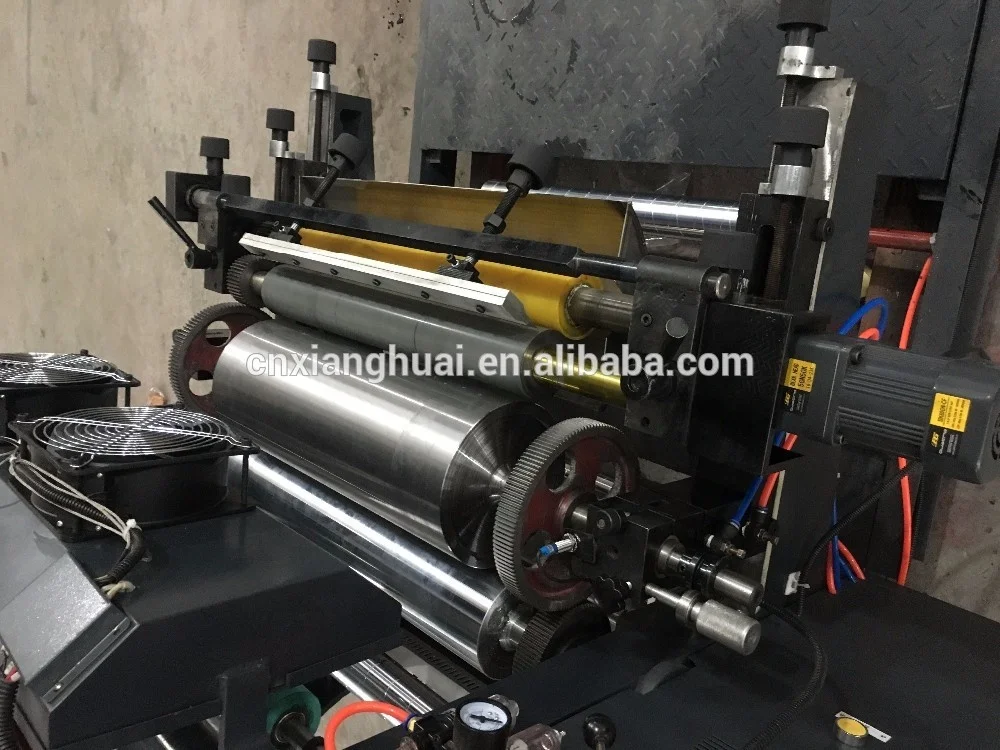

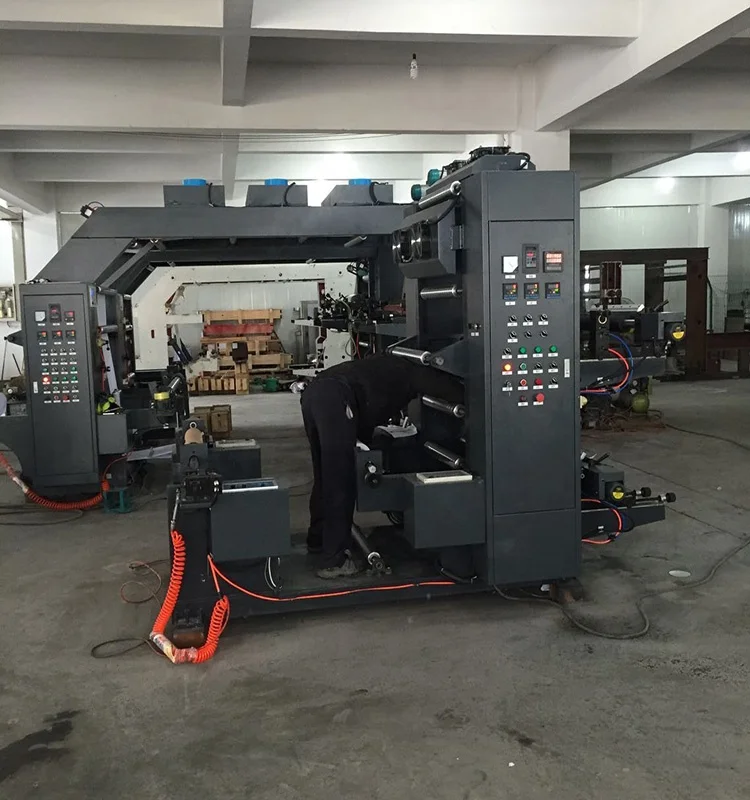

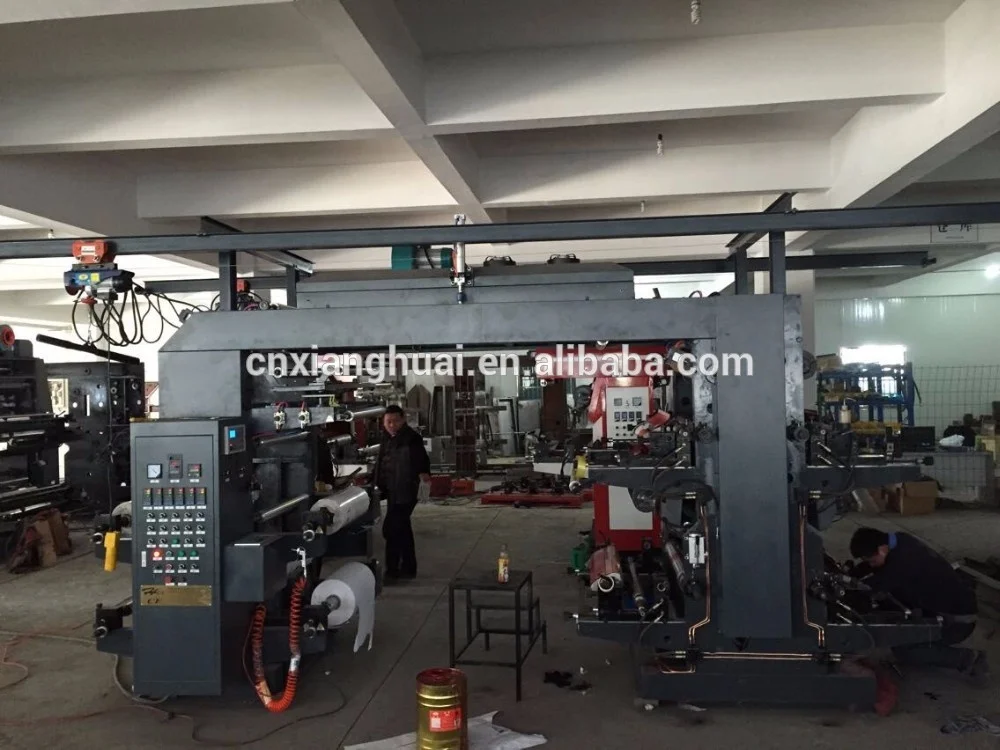

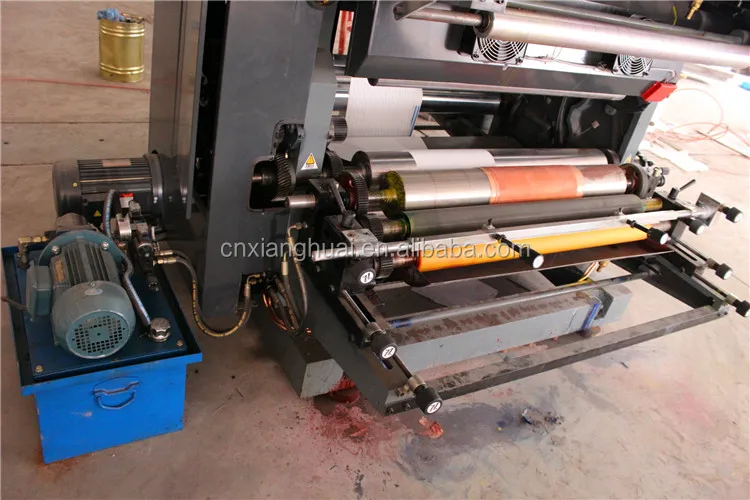

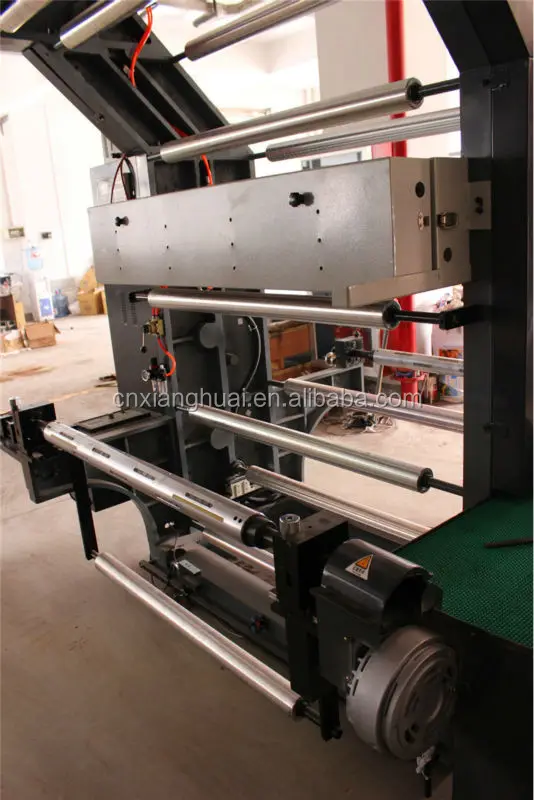

machine picture show:
I. Parameters:
printing machine Model | YTB-2600-2000 | YTB-4600-2000 | YTB-6600-2000 | YTB-8600-2000 | |
Printing Machine color | 2color(2+0,1+1) | 4color(4+0,3+1,2+2) | 6color(6+0,5+1,4+2,3+3) | 8color(8+0,7+1,6+2,5+3,4+4) | |
Max. Material Width | 600-2000mm | 600-2000mm | 600-2000mm | 600-2000mm | |
Max. Printing Width | 560-1960mm | 560-1960mm | 560-1960mm | 560-1960mm | |
Printing Length | 200-1100mm | ||||
Printing Speed | 5-90m/min | 5-90m/min | 5-90m/min | 5-90m/min | |
Max. Diameter of Roll Material | Φ600 mm(Non woven, filmΦ1000mm) | ||||
Total Power | 9kw | 18kw | 24kw | 28kw | |
Plate Thickness (including two-sided glue paper) | 2.38mm | ||||
Machine Weight | 2000kg | 3000kg | 3400kg | 4500kg | |
Overall Dimension | 3.3*1.6*2.3m | 4.8*1.6*2.3m | 5.2*1.6*2.3m | 5.2*1.8*2.8m | |
Working Voltage | 380V 3-phase 50Hz | ||||
Main Devices: 1) EPC web guider + Auto tension controller 2) Air Shaft 3)Ceramic Anilox Roller + General Doctor Blade 4)Motor(Taiwan) + Electric Parts (Siemens)
| |||||
We retains the right to modify parameters without previous advice. | |||||
II. Feature:
1. Cast iron thickness wall(75mm),easy-operation, high speed, accurate color register,reasonable price.
2. The meter counter can set printing quantity and will stop the machine automatically when the material is out.
3. Lifts and lowers the printing plate cylinder manually, it will automatically stir the printing after lifting.
4. The printing ink is spread by the knurled cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360 degree continuous and adjustable length register device.
7. The imported frequency control device of motor speed can adapt to different printing speeds.
Printing sample
Printing sample

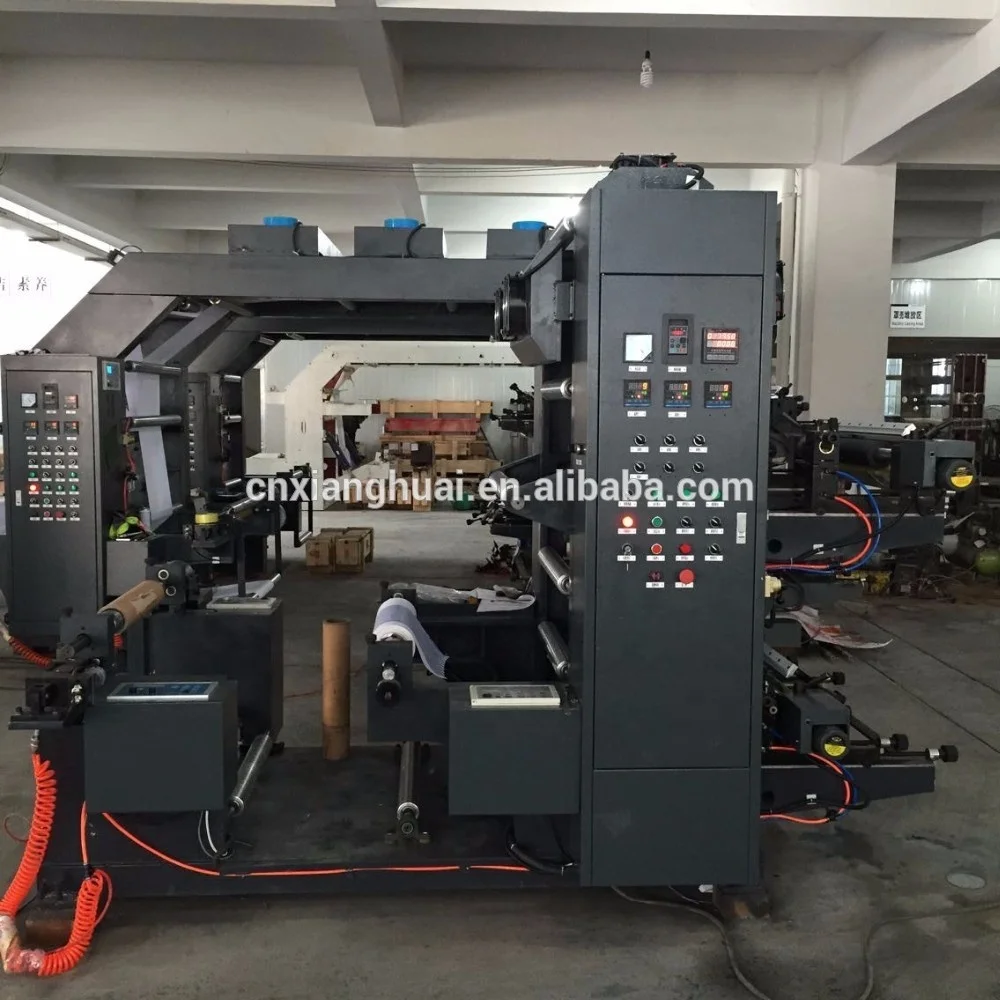

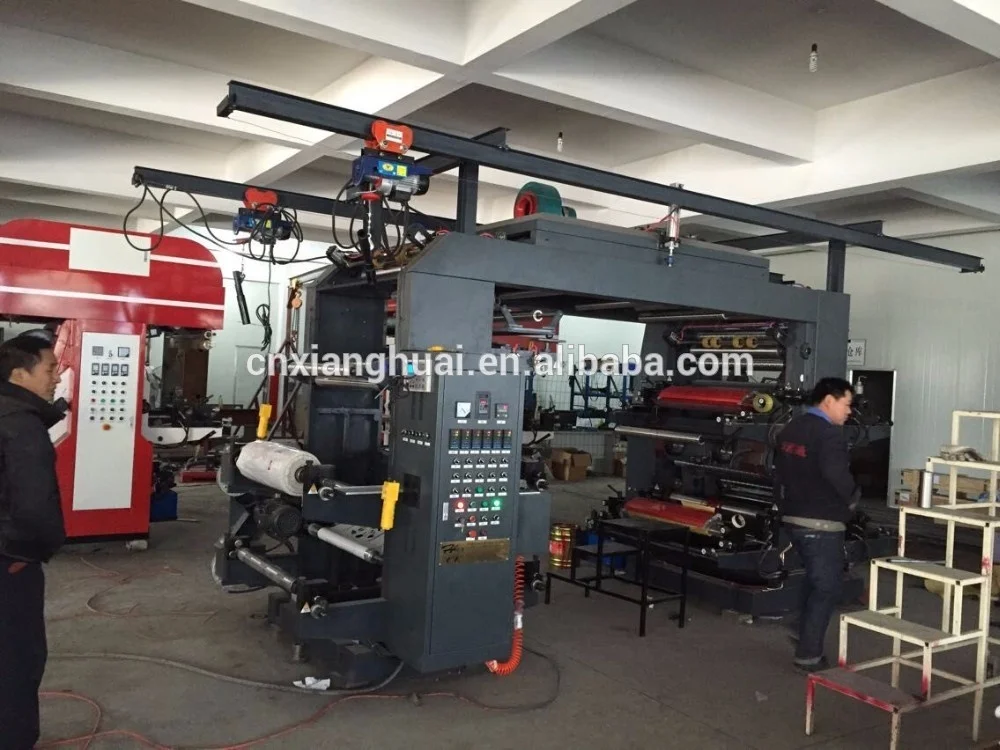

IV.Company show:
