Railroad Phosphoric Acid Tank Freight Wagon
- Category: >>>
- Supplier: Jiangsu Railteco Equipment Co. Ltd.
Share on (60694739328):
Product Overview
Description
Introduction
Tank Car Description
PHOSPHORIC ACID TANK CAR is built to 43.6 t gross rail load for the transportation of Phosphoric acid and other similar commodities.
The car is loaded from the top hatches, after the hatch cover is opened. The top hatch cover is manually operated from the top platform. The car is unloaded from the bottom hatches, which is equipped with one 5' internal valve, T branch pipe and two ball valves. The internal valve and the ball valves are manually operated from both sides of the car, and each ball valve are work independently. The goods are unloded to both sides of the cars.
The tank body and its accessories are made of 316L stainless steel, and the whole car is designed according to EN standards.
Various options for loading/unloading valve configurations are available depending on the service requirements.
Main Parameters for PHOSPHORIC ACID TANK CAR | ||
Tare weight | <=16.5t(approx.) | |
Load capacity | 43.6 t | |
Capacity utilized | 25.8 Cubic meters | |
Max. operating speed | 80 km/h | |
Track gauge | 1435mm, 1607mm,1372mm,1000mm... | |
Min Cruve Radius | 70m | |
Max. height of gravity center(load) | <=1829mm | |
Design pressure | 0.306 Mpa | |
Hydro test pressure | 0.459 Mpa | |
Design and Fabrication standard | ASME Section VIII DIV-II | |
Brake distance | 328m(empty); 430m(loaded) | |
Tank Car Structure
PHOSPHORIC ACID TANK CAR Main Componsed of:
Bogie, Under frame, Tank, Brake Systems, Coupler and Buffer, Discharge Device, and accessories parts.

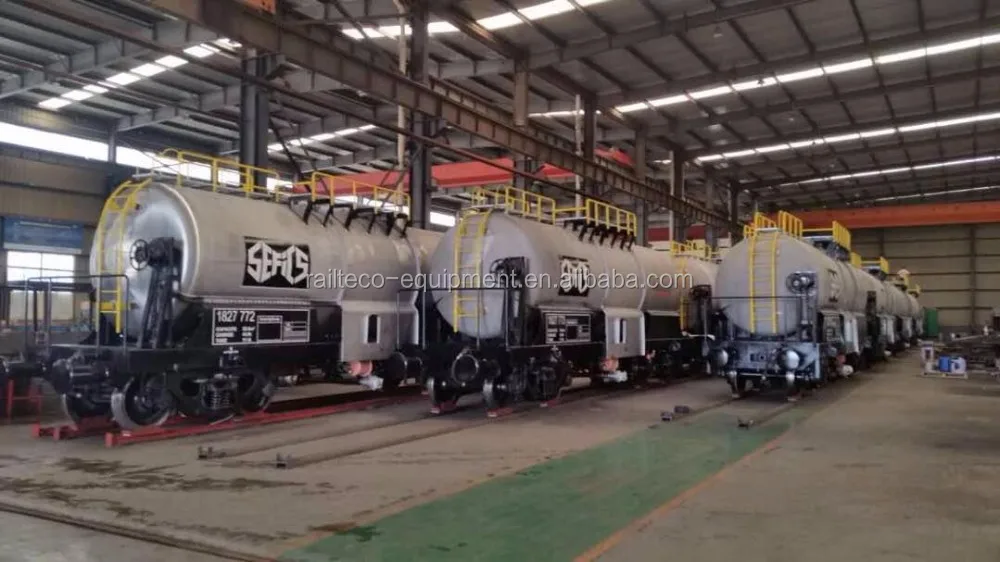

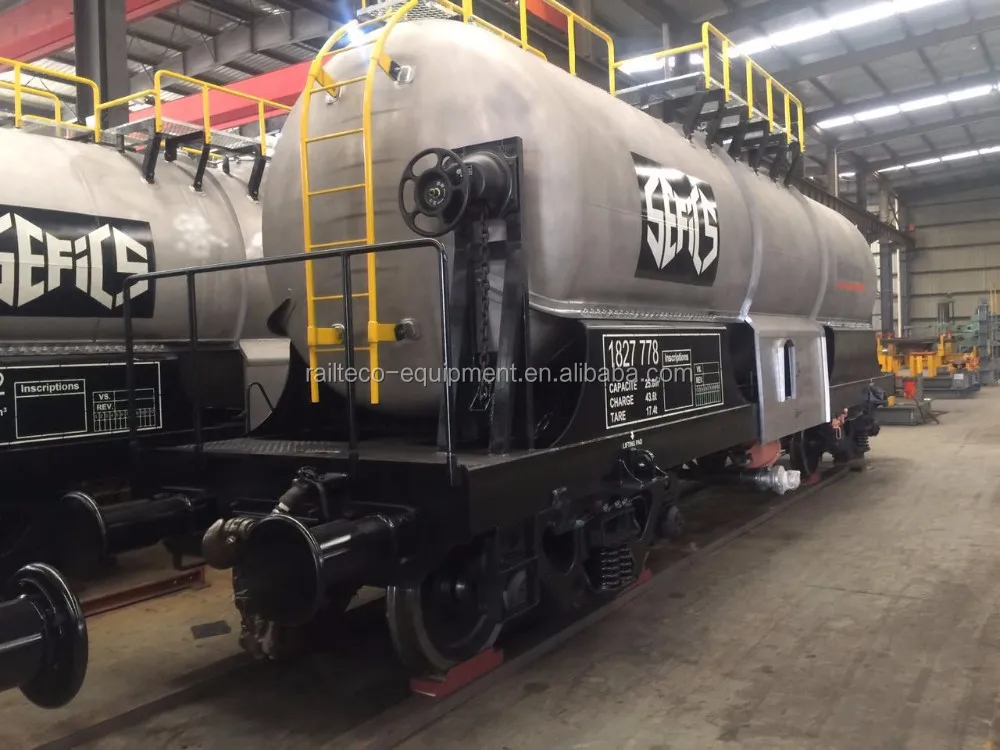

Tank Car Photos

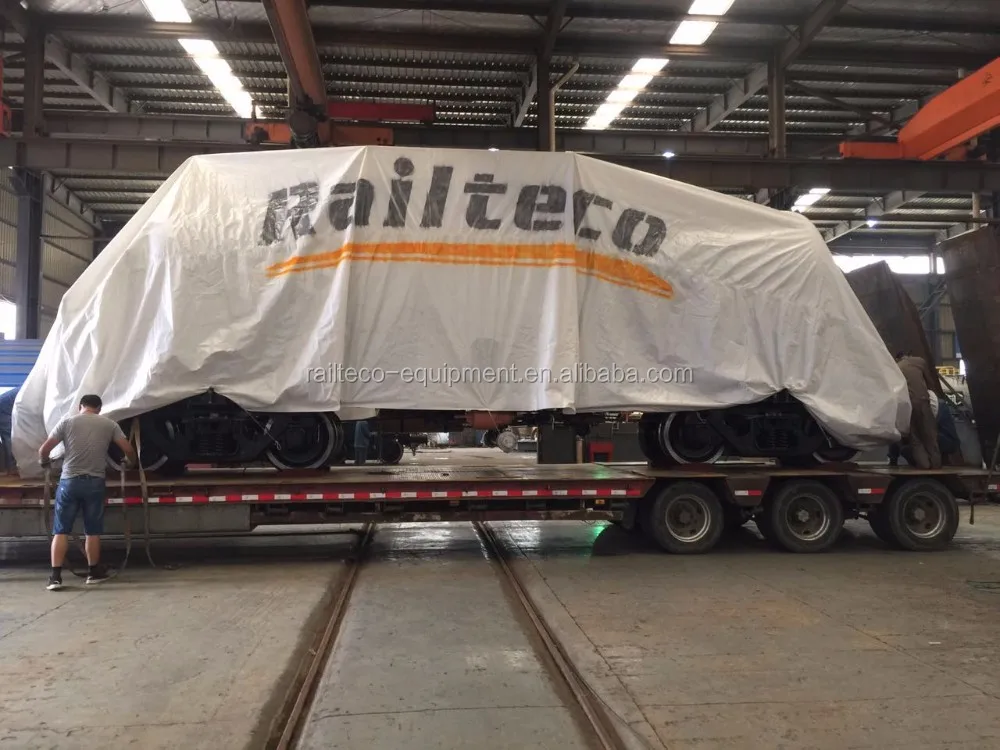

Tank Car Pack
Company And Product Description
Package And Delivery
Finishing: Paint protection
Package: Wooden packing or Steel Frame, strong enough for road and sea transportation
Loaded by 20GP containers
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. We have production bases in Zhangjiagang, Changzhou, Suzhou and Anwei Tongling.
Q: How long is your delivery time?
A: For first batch 30 to 45 days, series batch according to customer's plan.
A: For first batch 30 to 45 days, series batch according to customer's plan.
Q: Do you provide free design or drawings?
A: Yes, we have design ability, and we have an expert technology team for railway equipment.
A: Yes, we have design ability, and we have an expert technology team for railway equipment.
Q: What is your terms of payment?
A: T/T or L/C, we need at least 30% prepaid, and balance before shipping.
If you have another question, pls feel free to contact us as below:
A: T/T or L/C, we need at least 30% prepaid, and balance before shipping.
If you have another question, pls feel free to contact us as below:
