Product Overview
Description
HS-520 Large vertical packing machine

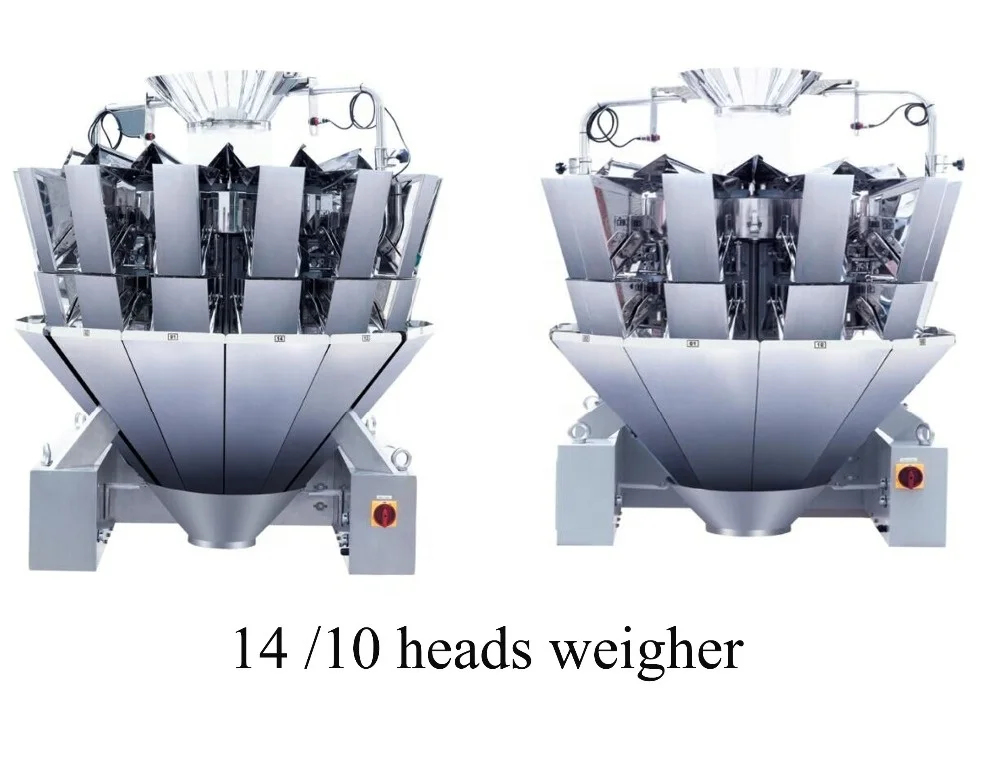

Upper handler for packing machine when machine pack the weight more than 1kg:
I. The scope of packaging:
It’s suitable to use in packing the high accuracy and easy fragile material , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .
II. The major performance and structural feature:
*Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;
*precise positioning with servo film transporting system; excellent complete machine performance and nice packing;
* minimize the loss with complete automatic warn protection function;
* supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling,sealing.
* The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
1,Features
1.PLC control with touch panel-step by step instruction.
2.Use intellectual temperature controller, the high temperature control to ensure neat sealing.
3.The perfect automatic alarm safety protection, little waste. The machine will automatically complete all packaging processes from feeding, measuring, filling, printing finished bag.
1,Scope Of Applications
It is suitable to use in food :such as chemical, metal, pharmaceutical and other industries etc.
2,Technical parameter:
Items | Content |
Packing speed | 10-70 bags/min |
Bag size | (L)80-350mm (W)80-250mm |
Bag making mode | Pillow-type bag, standing bag, punch device |
Range of measuring | Max 2000ml |
The maximum width of packing film | 520mm |
Thickness of film | 0.04-0.08mm |
Air consumption | 0.4m3/min 0.8 MPa |
Main power/voltage | 4KW/220V 50-60Hz |
Dimension | L1430×W1200×H1700mm |
The weight of switchboard | 650kg |
| Contact Us | Start Order | View Websist |
Related Products
Company Information
Trade Shows
Advantages
Certifications
Buying Guides
| FAQ |
Q1: When Hosng Pack was founded ?
A: It started in 2007, till now it around 12 years experience in Packaging Industry.
Q2: How about your delivery time?
A: Commonly it needs 30 days for production, but if there is anything urgent, can be finished within 15 days if spare parts in stock.
Q3: What’s the warranty?
A: Warranty is 1 year, not including easy damaged spare parts, such as heater, belts, etc.
Q4: How do you recommend to me the suitable packing machine?
A: You need to offer us detailed packing requirements, including packing products, bag size, packing weight, bag type,etc.
Q5: Can arrange technician to oversea for commissioning ?
A: Yes, we can if you need, but you need to pay the fees including: Visa charges, return ticket, accommodation and labor fees. We also accept you arrange technician to learn in our factory before shipping.
