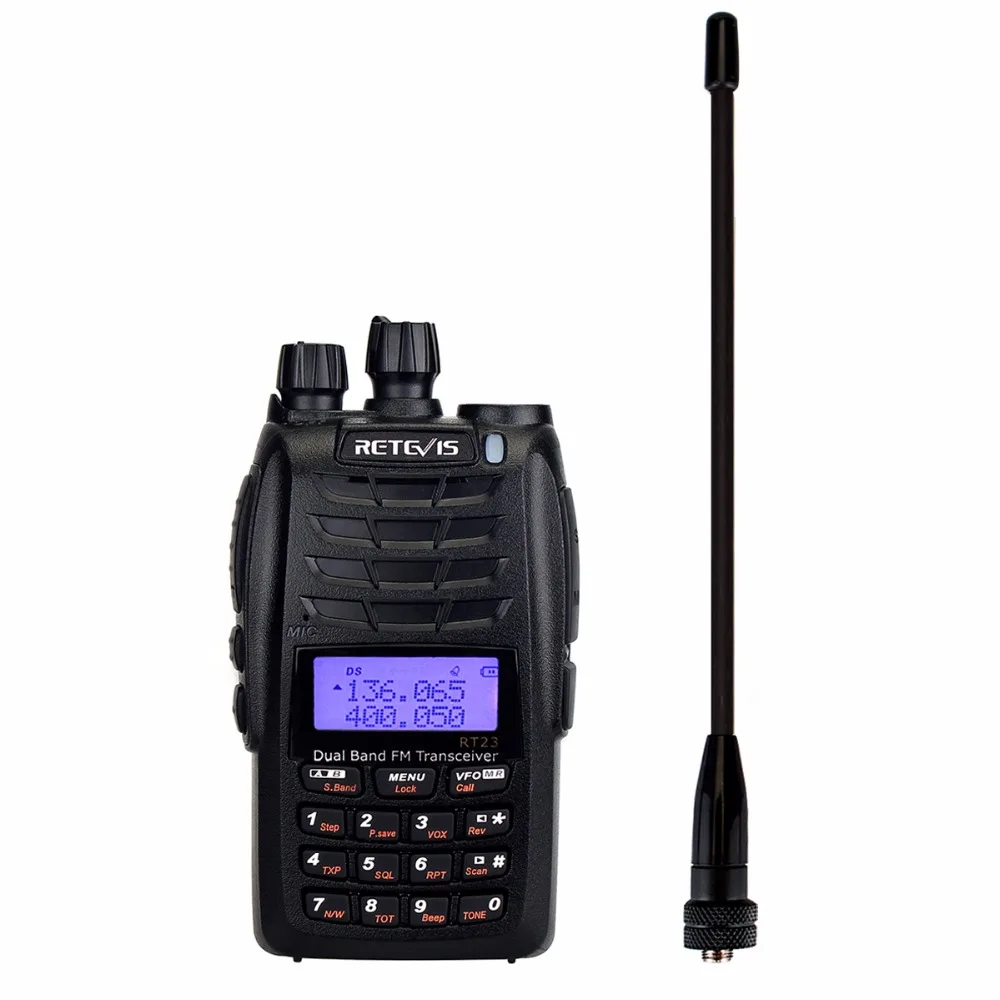

2017 Retevis RT23 Dual PTT Dual Receive Dual Band UHF VHF Cross Band Repeater Radio Transceiver

Product Overview

Description





2017 Retevis RT23 Dual PTT Dual Receive Dual Band UHF VHF Cross-Band Repeater Radio Transceiver







2017 Retevis RT23 Dual PTT Dual Receive Dual Band UHF VHF Cross-Band Repeater Radio Transceiver



What makes RT23 unique?



1.Cross-Band Repeater Function.



Turn on the cross-band repeater function(menu 6). You can choose one-way or two way repeater(menu 34). One way(single) means the repeater's receive and transmit frequencies are specific. The radio will show 162R2375,426T2375. It indicates the repeater only can receive 162.2375,transmit 426.2375. Two way(double) means the repeater's receive and transmit frequencies are random. The radio will show 162*2375,426*2375. It indicates the repeater not only can receive 162.2375,transmit 426.2375, but also can receive 426.2375,transmit 162.2375.

Cross-Band Repeater function also can increase the distance of communication. If you choose two way repeater, it can make the UHF radio communicate with VHF radio. When you turn on the repeater function, you also can set if the radio PTT Transmitting(menu 33) and Speaker(menu 32) is available.



For example:

(1)RT23 radio A: RX 426.2375MHz, Offset: - 264.000MHz

RT23 radio B: RX 426.2375MHz, Offset: - 264.000MHz

RT23 radio C: Repeater RX 162.2375MHz, Offset: + 264.000MHz

Radio A could communicate with Radio B,It also can increase the distance of communication.

(2)RT23 radio A: RX&TX 162.2375MHz

RT23 radio B: RX&TX 426.2375MHz,

RT23 radio C: Two-way Repeater 162.2375MHz, Offset: + 264.000MHz

Radio A could communicate with Radio B



2.Dual Receive



RT23 is not same with other radios. Other radios can "watch" two channels. Mointor two different frequencies(even on different bands (VHF/UHF)) and the radio will monitor both frequencies giving priority to the first station to receive an incoming call. RT23 not only can "watch" both frequencies, but also can receive two incoming calls at the same time. What is more,you can set the volume mode by the menu 35. MAIN indicates the main frequency sound is louder when receiving, SUB is indicates the sub frequency sound is lounder when receiving. OFF indicates both main and sub frequency have same sound.





For example:

RT23 radio A: TX/RX 162.2375MHz,

RT23 radio B: TX/RX 426.2375MHz,

RT23 radio C: Dual Standby 426.2375MHz, 162.2375MHz,

Radio C can receive voice of Radio A&B at the same time.



3.Dual PTT



You can set a Sub-PTT by side key. If so you need not to choose the transmit channel. Push PTT transmit the main-channel, push another side key will transmit the sub-channel. Very convenient.



4.306 Degree Channel Knob



The channel knob can rotate 360 degree. You can operate the menu up and down by this knob. It is very convenient.



Main Features:

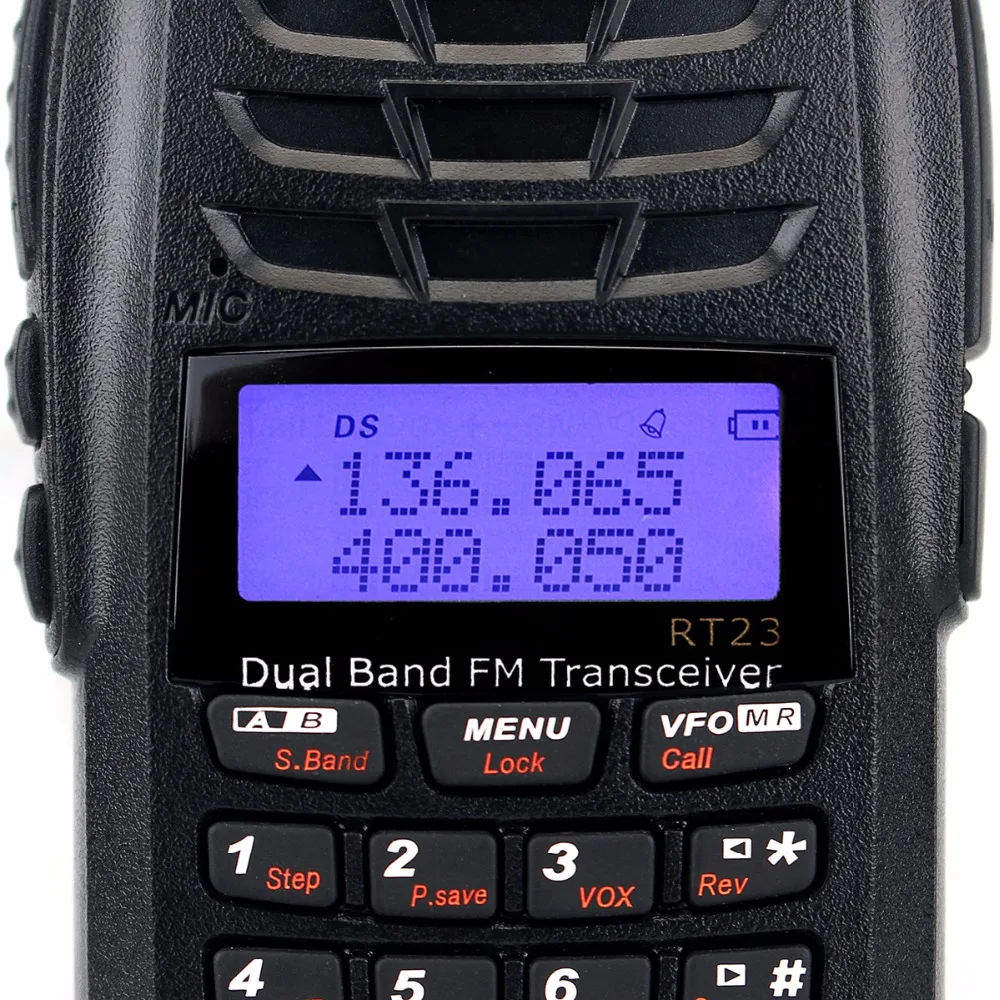

1.Dual Band Dual Display Dual Standby Handheld Radio

2.128 Memory Channel

3.360 Degree Channel Knob

4.Cross-Band Repeater Function(VHF to UHF or UHF to VHF)

5.Frequency offset and direction programmable in repeater mode

6.Dual PTT(Side key can setup Sub-Ch transmit)

7.Dual Receiving(RX on the same/different bands of A&B areas simultaneously)

8.VFO/MR/CH Mode

9.1600mAh

10.Battery Save

11.Strong and Stable Output Power (High:5W/4W,Low:1W)

12.CTCSS/DCS

13.Scan(3 kinds of scan:Time,Carrier,Search)

14.VOX

15.TOT

16.SQL

17.PTT ID

18.FM

19.Multi Definition for Sidekeys

20.DTMF Encoding&Decoding

21.All/Group/Slective Calls

22.Reverse Frequency

23.Remote Alarm

24.Wide/Narrow Bandwidth Slection(25KHz/12.5KHz)

25.Voice Guide:Chinese/English

26.Chinese/English Screen Display

27.Single-Tone Pulse Frequency:2100Hz/1750Hz/1450Hz/1000Hz(Signalling for activating repeater)

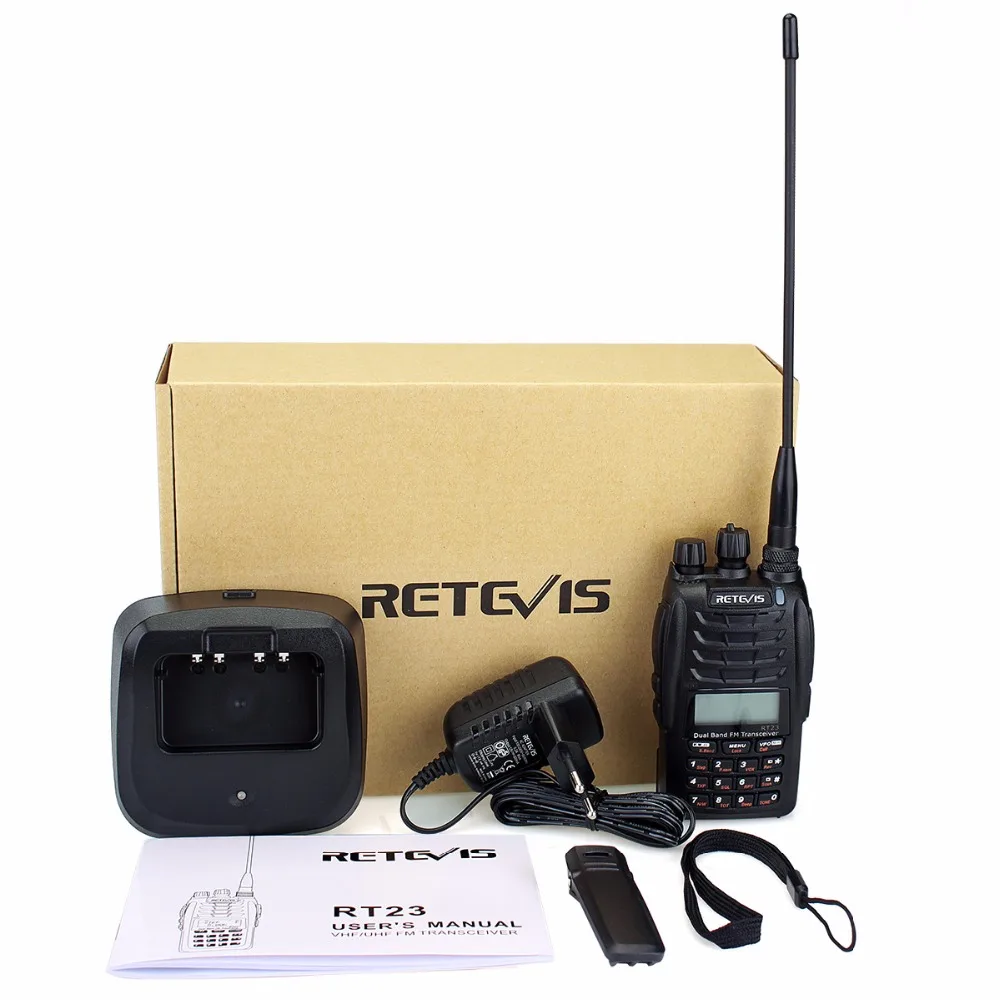

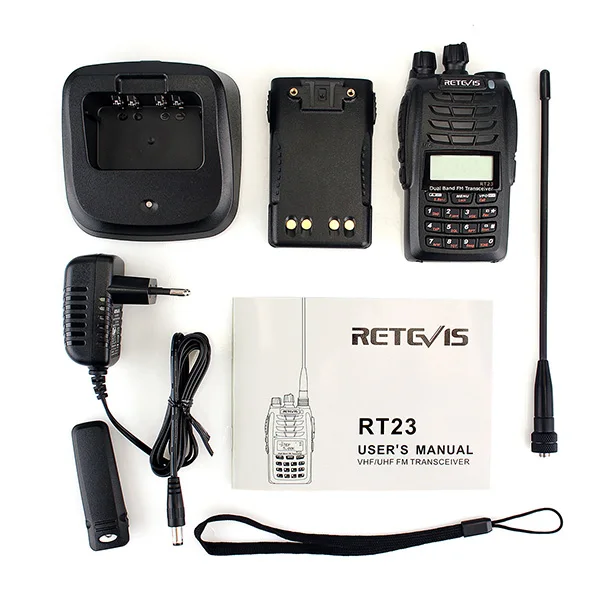

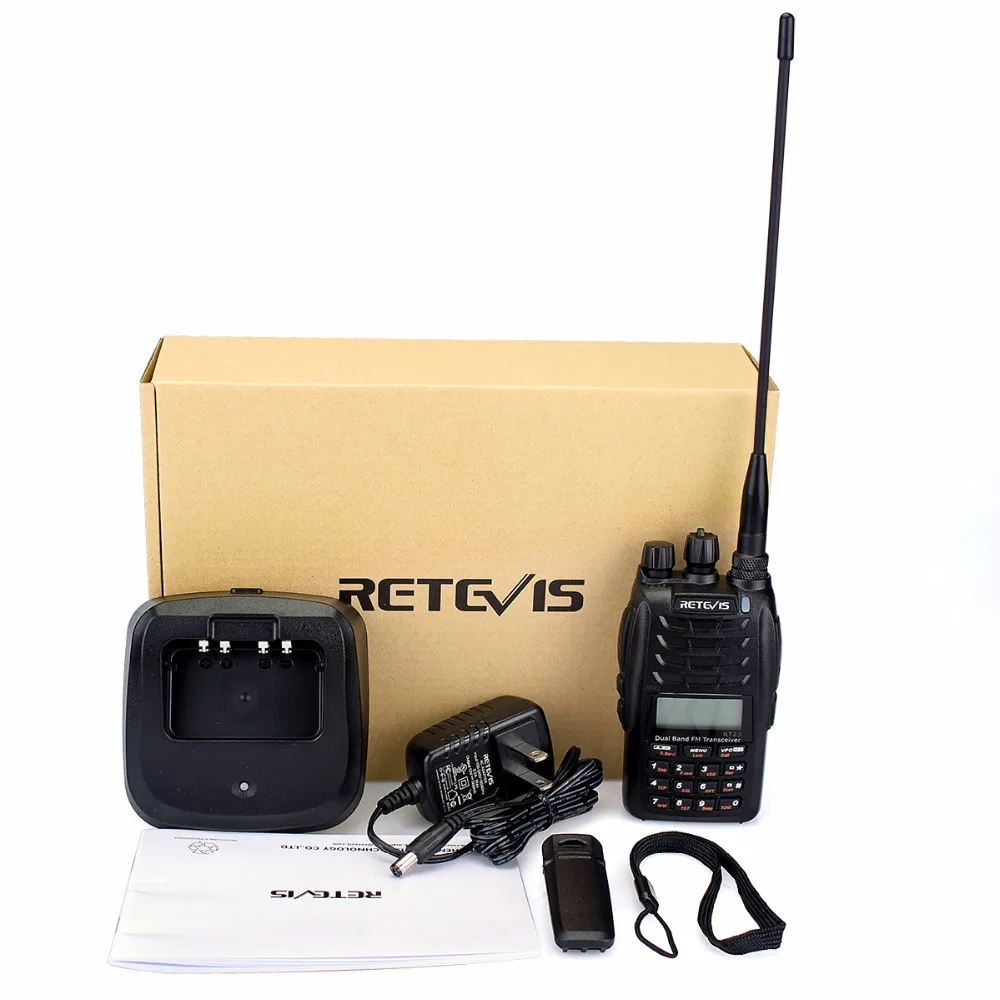

1 x Handheld Radio

1 x Li-ion Battery

1 x AC Adapter

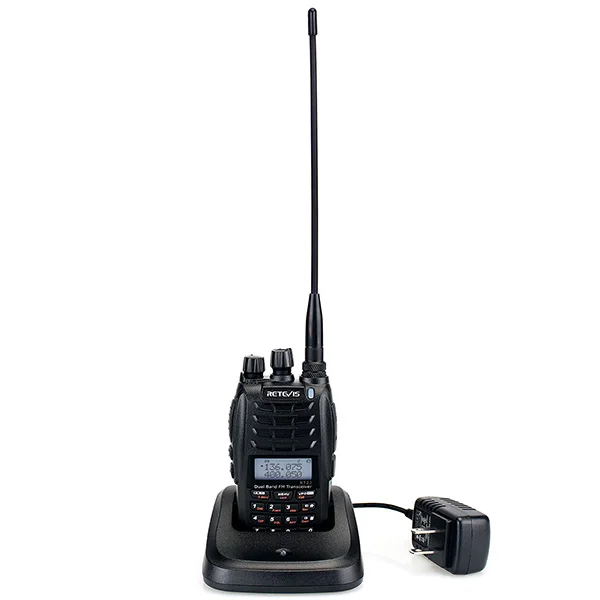

1 x Charger Station

1 x Belt chip

1 x Antenna

1 x User manual
